Year model chart on WD tractor???

 Post Reply Post Reply
Author
Message
arg40 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 03 May 2012
Location: Ga
Points: 5
Post Options Post Options   Thanks (0) Thanks(0)   Quote arg40 Quote  Post ReplyReply Direct Link To This Post Topic: Year model chart on WD tractor???
    Posted: 03 May 2012 at 12:08pm
I bought an Allis Chalmers WD tractor Clap.

The serial number is WD15665, thats  it...no other numbers!

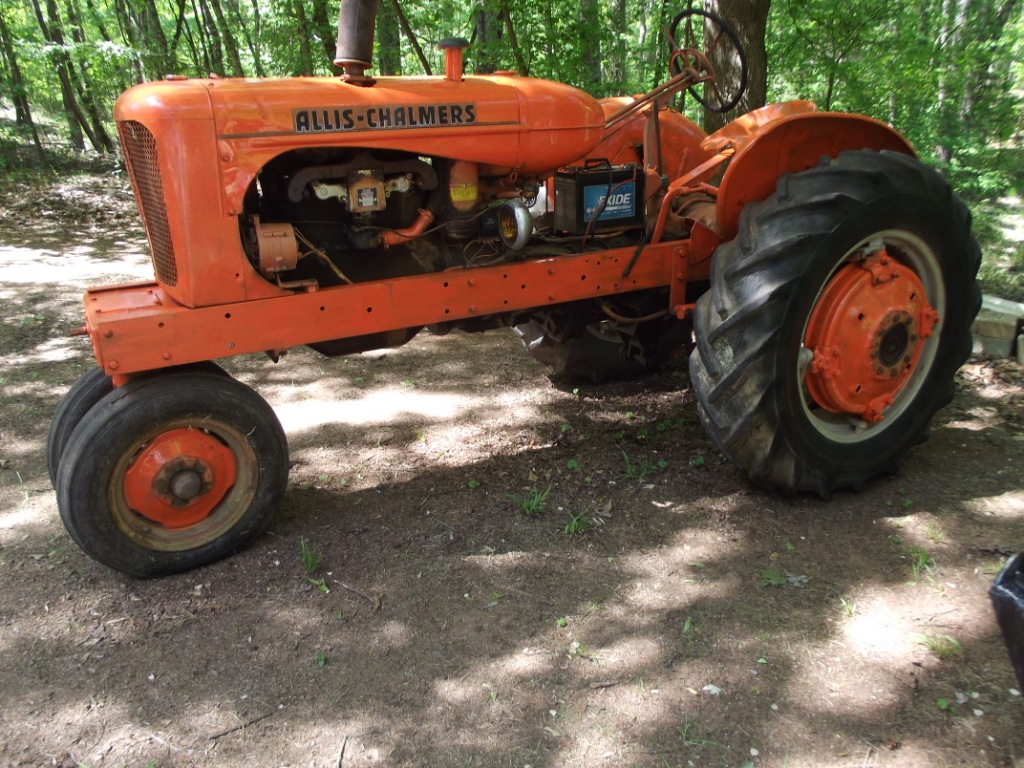

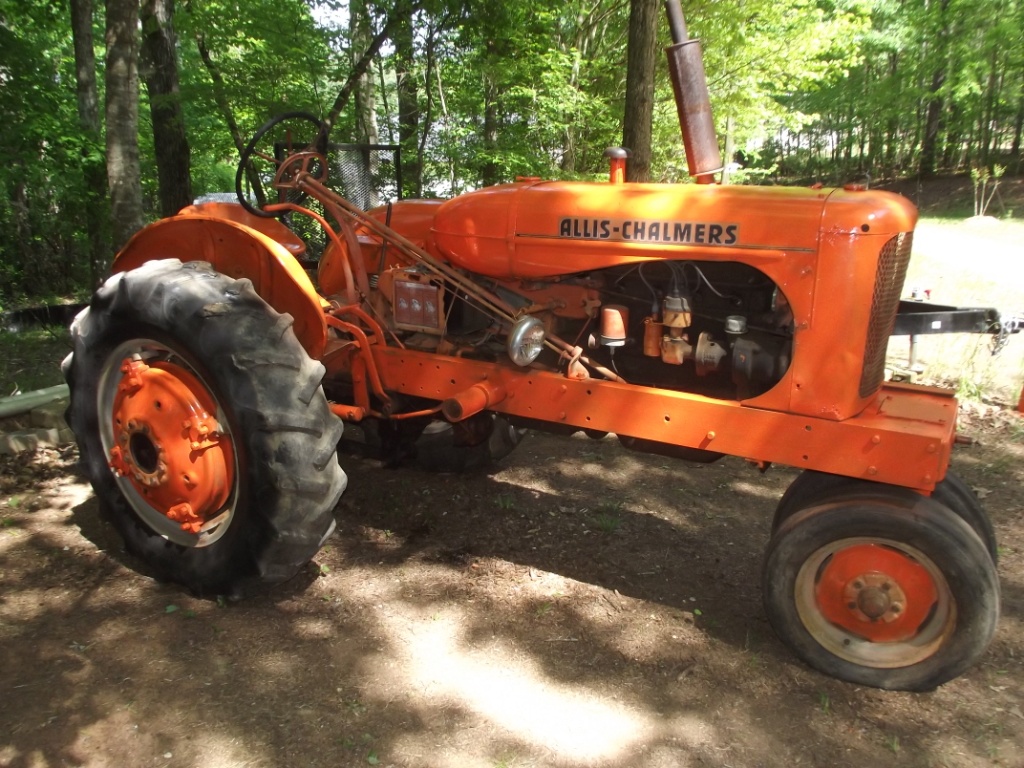

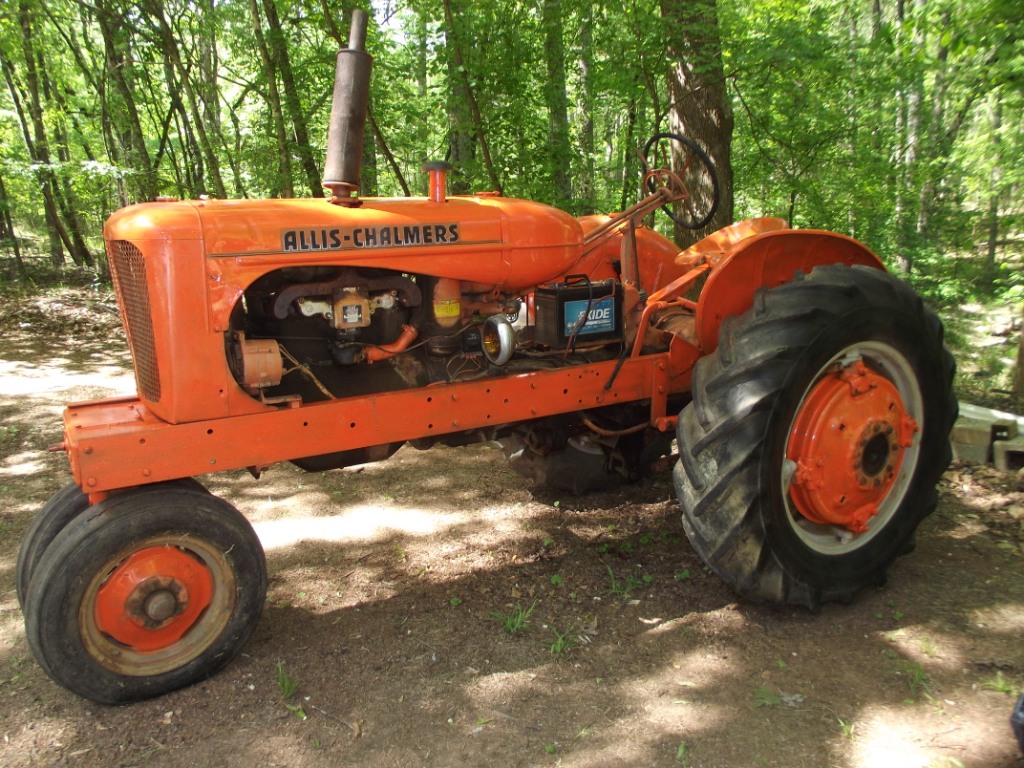

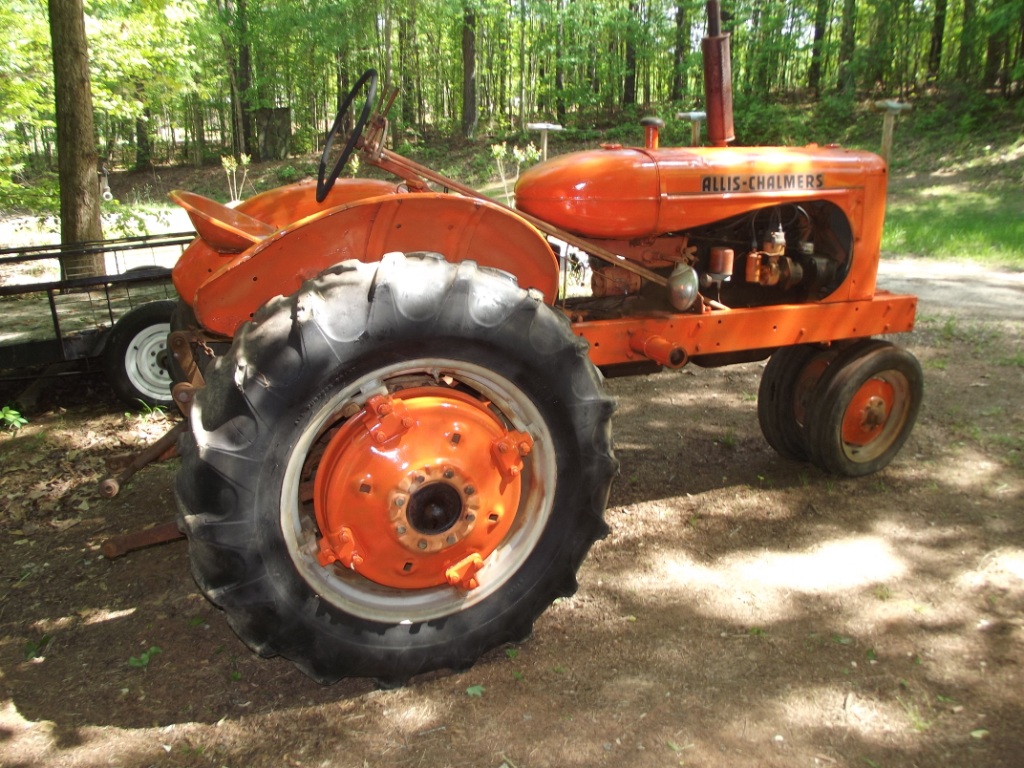

I have the "spin out" wheels, and the hand clutch that was new for 1953, (please see photos). The year chart for the WD model shows that my serial number should be higher for a 1953 Ouch.

Could someone shed any light on the possible year of my tractor?

Thanks in advance for your help!!! Smile
Back to Top
Sponsored Links


Back to Top
John (C-IL) View Drop Down
Orange Level
Orange Level


Joined: 11 Sep 2009
Location: Illinois
Points: 1654
Post Options Post Options   Thanks (0) Thanks(0)   Quote John (C-IL) Quote  Post ReplyReply Direct Link To This Post Posted: 03 May 2012 at 12:11pm
The hand clutch was introduced in 1948 when the WD was new. Your serial number would make your tractor a 1949.
Back to Top
arg40 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 03 May 2012
Location: Ga
Points: 5
Post Options Post Options   Thanks (0) Thanks(0)   Quote arg40 Quote  Post ReplyReply Direct Link To This Post Posted: 03 May 2012 at 12:23pm
Thanks John, I see now on the chart where the "WD" is up there under the 1940's models now. OK...if 1949 WD models started with 35444...that would make my tractor,(15665) a 1948, the 1st year of the WD.

I had found an old ad on eBay that stated ,"new" changes for 1953, and it listed the hand clutch. That threw me off the trail while trying to ID the year. I appreciate the fast response.

My 1948 runs very good. I tried to upload some photos, but I guess I didnt do it right.

Thanks again! Smile
Back to Top
Matt MN View Drop Down
Orange Level
Orange Level
Avatar

Joined: 14 Sep 2009
Location: Silver lake MN
Points: 1491
Post Options Post Options   Thanks (0) Thanks(0)   Quote Matt MN Quote  Post ReplyReply Direct Link To This Post Posted: 03 May 2012 at 12:30pm
on that serial number chart, that is the LAST serial number built for that year.

so the last serial # for 1948 would be 9249

the 1949 model year would include serial #'s 9250 through 35444, Making yours a 1949 model.

also don;t believe everything you see on Ebay.
Unless your are the lead horse the scenery never changes!!
Back to Top
arg40 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 03 May 2012
Location: Ga
Points: 5
Post Options Post Options   Thanks (0) Thanks(0)   Quote arg40 Quote  Post ReplyReply Direct Link To This Post Posted: 03 May 2012 at 12:41pm
Thanks Matt...John was right! I appreciate the info!
I think I have the photo thing figured out...
Back to Top
Orange Blood View Drop Down
Orange Level
Orange Level
Avatar

Joined: 29 Nov 2010
Location: ColoradoSprings
Points: 4053
Post Options Post Options   Thanks (0) Thanks(0)   Quote Orange Blood Quote  Post ReplyReply Direct Link To This Post Posted: 03 May 2012 at 2:48pm
Welcome to the forum, glad to have you around.

That's a nice WD, quite an interesting belt pulley you have there.  I see you also have the power crater manifold! :-)
Still in use:
HD7 WC C CA WD 2-WD45 WD45LP WD45D D14 3-D17 D17LP 2-D19D D19LP 190XTD 190XTLP 720 D21 220 7020 7030 7040 7045 3-7060
Projects: 3-U UC 2-G 2-B 2-C CA 7-WC RC WDLP WF D14 D21 210 7045 N7
Back to Top
Gary View Drop Down
Orange Level Access
Orange Level Access


Joined: 13 Sep 2009
Location: Peterborough,On
Points: 5392
Post Options Post Options   Thanks (0) Thanks(0)   Quote Gary Quote  Post ReplyReply Direct Link To This Post Posted: 03 May 2012 at 4:04pm
That ebay Ad you mention might have been referring to the Transmission.

In 1953 at Serial approx 127007 WD started using the curved Trans. Shift Lever and tapered gears, commonly referred to as the WD-45 transmission.

Gary
Back to Top
AaronSEIA View Drop Down
Orange Level
Orange Level


Joined: 11 Sep 2009
Location: Mt Pleasant, IA
Points: 2551
Post Options Post Options   Thanks (0) Thanks(0)   Quote AaronSEIA Quote  Post ReplyReply Direct Link To This Post Posted: 03 May 2012 at 6:24pm
And when they did the  tranny change they went to a 3 disc and clutch vs the 2 disc of the WD.
AaronSEIA
Back to Top
arg40 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 03 May 2012
Location: Ga
Points: 5
Post Options Post Options   Thanks (0) Thanks(0)   Quote arg40 Quote  Post ReplyReply Direct Link To This Post Posted: 03 May 2012 at 9:02pm
Thanks Orange!!! I found an orig. belt pully on eBay , right now the opening bid is at $14. and shipping $22. I expect it to go up in the next 3 days tho. I would also like to get some newer tires installed on her soon.
Is this "Power Crater manifold" an orig. part, an upgrade option, or an after market addition? A rarity, or a common find??? I don't know much yet about this tractor...but I am learning LOL
Gary and Aaron...good info, I appreciate any and all info! THANKS!!!  Smile
Back to Top
CTuckerNWIL View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: NW Illinois
Points: 22823
Post Options Post Options   Thanks (0) Thanks(0)   Quote CTuckerNWIL Quote  Post ReplyReply Direct Link To This Post Posted: 03 May 2012 at 9:15pm
The manifold is the original for a WD I believe. The Power Crater sticker  came with the 45's when they dished the pistons. I don't know if they ever made a PC piston for the shorter stroked WD engine. Seems like a lot of em got a sticker stuck on at some time.
http://www.ae-ta.com
Lena 1935 WC12xxx, Willie 1951 CA6xx Dad bought new, 1954WD45 PS, 1960 D17 NF
