 Topic: Worn WD Lower Steering Shaft Support
Posted: 22 May 2021 at 9:14am |

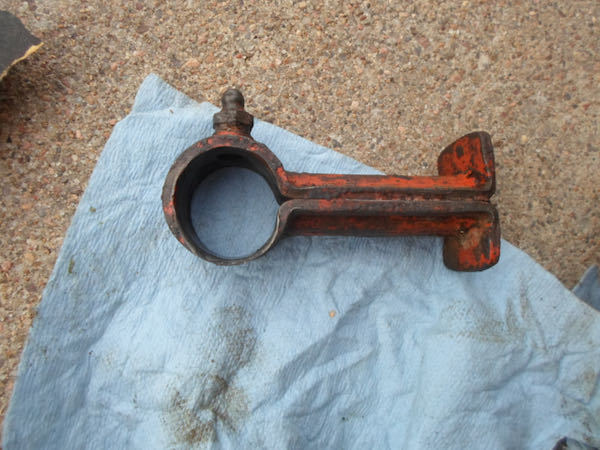

What are folks doing to deal with worn lower steering shaft supports? I am thinking there is not enough material here to re-center/bore out and put a bushing in, like you can do with the support and quadrant on the steering wheel shaft.
I was going to cut off the round portion and weld in a piece of pipe but after I got the pipe cleaned up there's more play than I'm okay with. The ID is a little big. I might try to get a chunk of DOM tubing that would have a tighter ID on that 1" shaft? Any other ideas?
|
|
1939 B, 1940 B, 1941 WC, 1951 WD, 1952 CA, 1956 WD-45
|
 |
|
Sponsored Links
|
|
|
Sugarmaker
Orange Level
Joined: 12 Jul 2013
Location: Albion PA
Points: 8242
|
Post Options
Thanks(0)
Quote Reply
Posted: 22 May 2021 at 6:35pm |
One option may be to get a good used one? I am sure they are out there. Maybe someone is parting out a tractor? I dont think I have a extra but will try to look. You might find a piece of pipe or tubing and cut the old one off and weld the new one on?? Regards, Chris |
|
D17 1958 (NFE), WD45 1954 (NFE), WD 1952 (NFE), WD 1950 (WFE), Allis F-40 forklift, Allis CA, Allis D14, Ford Jubilee, Many IH Cub Cadets, 32 Ford Dump, 65 Comet.
|
|
plummerscarin
Orange Level Access
Joined: 22 Jun 2015
Location: ia
Points: 3381
|
Post Options
Thanks(0)
Quote Reply
Posted: 22 May 2021 at 6:47pm |
|
They have a grease zerk in them? I wondered what that hole in mine was for.
|
|
steve(ill)
Orange Level Access
Joined: 11 Sep 2009
Location: illinois
Points: 80257
|
Post Options
Thanks(0)
Quote Reply
Posted: 22 May 2021 at 6:48pm |
|
The pipe is probabaly 1-1/16 ID if it is a schedule 40 pipe.. You could cut about a 1/8- 3/16 inch slit in the pipe and PINCH it back together for a tighter fit.. Then weld into place.
Edited by steve(ill) - 22 May 2021 at 6:50pm
|
|
Like them all, but love the "B"s.
|
|
Lonn
Orange Level
Joined: 16 Sep 2009
Location: Назарово,Russia
Points: 29781
|
Post Options
Thanks(0)
Quote Reply
Posted: 22 May 2021 at 8:37pm |
|
How about cutting out the worn section and weld in a section of pipe to match
|
|
-- --- .... .- -- -- .- -.. / .-- .- ... / .- / -- ..- .-. -.. . .-. .. -. --. / -.-. .... .. .-.. -.. / .-. .- .--. .. ... -
Wink
I am a Russian Bot
|
|
wjohn
Orange Level
Joined: 19 Jan 2010
Location: KS
Points: 1913
|
Post Options
Thanks(0)
Quote Reply
Posted: 22 May 2021 at 9:13pm |
 plummerscarin wrote:
They have a grease zerk in them? I wondered what that hole in mine was for. |
Ha! Might as well have not been there on my tractor since nobody seems to have greased it.
|
|
1939 B, 1940 B, 1941 WC, 1951 WD, 1952 CA, 1956 WD-45
|
|
wjohn
Orange Level
Joined: 19 Jan 2010
Location: KS
Points: 1913
|
Post Options
Thanks(0)
Quote Reply
Posted: 22 May 2021 at 9:23pm |
I hadn't thought about cutting and pinching the pipe I have, then rewelding. I like that idea. I cut a piece to the right length and planned on welding it in place of the existing support. Then I cleaned up the weld seam inside and test fit it on the shaft, and that's when I discovered that it was still a little too loose for my liking.
I didn't want to cut the existing support yet in case someone has a better way of saving the part, and I didn't have the right ID pipe to weld in place yet... But pinching it down should work.
I have to imagine a lot of these never got greased and are pretty worn? Mine may be worse than most of them, though.
|
|
1939 B, 1940 B, 1941 WC, 1951 WD, 1952 CA, 1956 WD-45
|
|
wjohn
Orange Level
Joined: 19 Jan 2010
Location: KS
Points: 1913
|
Post Options
Thanks(0)
Quote Reply
Posted: 22 May 2021 at 9:24pm |
|
I did get a package of new zerks and nuts with matching threads, so I can drill a hole and weld the nut in so the new part will still have a zerk.
|
|
1939 B, 1940 B, 1941 WC, 1951 WD, 1952 CA, 1956 WD-45
|
|
IBWD MIke
Orange Level
Joined: 08 Apr 2012
Location: Newton Ia.
Points: 3642
|
Post Options
Thanks(0)
Quote Reply
Posted: 23 May 2021 at 5:18am |
wjohn wrote:
plummerscarin wrote:
They have a grease zerk in them? I wondered what that hole in mine was for. |
Ha! Might as well have not been there on my tractor since nobody seems to have greased it. |
I think that zerk got missed on a lot of geasings on many of these tractors. Finding a good used one may be tricky, most are worn pretty bad. At least the ones I've seen.
|
|
Lon(MN)
Orange Level
Joined: 11 Sep 2009
Location: Elk River,MN
Points: 1955
|
Post Options
Thanks(0)
Quote Reply
Posted: 23 May 2021 at 6:19am |
|
I have a bin full of those that are in better condition and also new shafts. Both wear into each other. Now that your package is on its way. The WC used a solid block.
|
|
wjohn
Orange Level
Joined: 19 Jan 2010
Location: KS
Points: 1913
|
Post Options
Thanks(0)
Quote Reply
Posted: 23 May 2021 at 9:58am |
Lon(MN) wrote:
I have a bin full of those that are in better condition and also new shafts. Both wear into each other. Now that your package is on its way. The WC used a solid block. |
That's my fault for not even thinking to ask. Maybe I was wrong in assuming all the used ones are worn. I did weld my shaft up and worked it back to being reasonably round.
|
|
1939 B, 1940 B, 1941 WC, 1951 WD, 1952 CA, 1956 WD-45
|
|
JTOOL
Silver Level Access
Joined: 28 Feb 2021
Location: 64720
Points: 346
|
Post Options
Thanks(0)
Quote Reply
Posted: 23 May 2021 at 11:09am |
|
When installed does the zerk face down? If so, how did it wear like it did?
|
|
