wiring allis b model
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
mopar1946 View Drop Down
Bronze Level
Bronze Level


Joined: 23 Apr 2015
Location: Tucker Ga
Points: 7 		Post Options Post Options   Thanks (0) Thanks(0)   Quote mopar1946 Quote  Post ReplyReply Direct Link To This Post Topic: wiring allis b model
    Posted: 12 May 2015 at 12:34pm
I need a wiring diagram for a b model that has a voltage regulator with L B F left to right. wiring was off tractor and all I find is a schematic with electric starter and such, this is foot start any help would be great I think the letters are L for light B for battery F for field where do the go? generator has one wire which I think is battery? Gary Mopar guy
Back to Top
Sponsored Links


Back to Top
Tankman View Drop Down
Bronze Level
Bronze Level


Joined: 21 Apr 2015
Location: Perkasie, PA
Points: 20 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Tankman Quote  Post ReplyReply Direct Link To This Post Posted: 12 May 2015 at 7:28pm

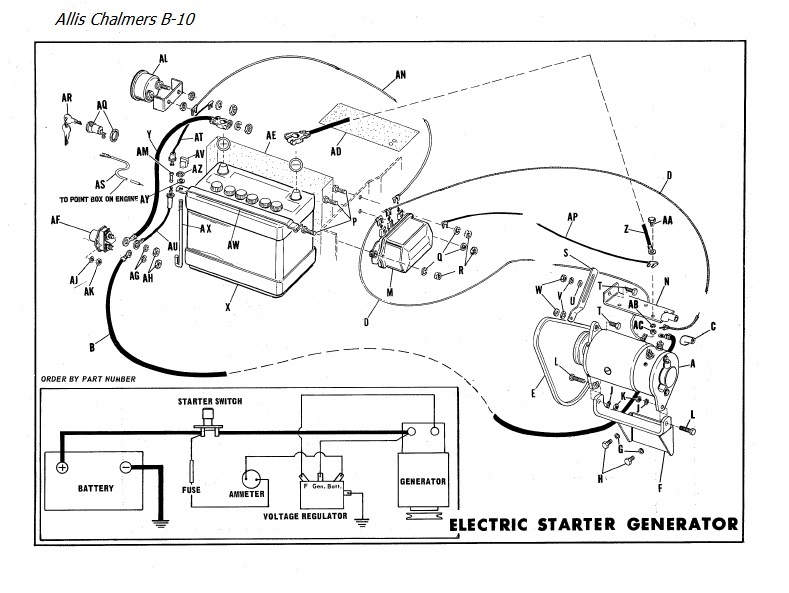

Here's all I have. Hope it helps some.
Back to Top
Gary View Drop Down
Orange Level Access
Orange Level Access


Joined: 13 Sep 2009
Location: Peterborough,On
Points: 5377 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Gary Quote  Post ReplyReply Direct Link To This Post Posted: 12 May 2015 at 7:43pm

When you mention 'Foot Starter' are you talking about the Model B farm tractor, or one of the B Series Garden Tractors ?

Eg B-10, B-110, B-212 etc.

Gary
Back to Top
Steve in NJ View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 12 Sep 2009
Location: Andover, NJ
Points: 11791 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Steve in NJ Quote  Post ReplyReply Direct Link To This Post Posted: 13 May 2015 at 6:42am
Sounds like your referring to the Model B full size farm tractor. If so, your in the wrong thread but I can help ya out. Let us know if that's what you have.

On voltage regulators the "L" is for "Load", which means you can run a circuit off of that terminal to feed a switch or component. AC used to use the Load terminal to power up the Headlight switch on the "D" series Tractors. "F" is Field which runs to the Field post of the Generator, and "B" is of coarse the Battery lead from the Neg (-) side of the Ammeter. As far as a foot switch, follow the diagram Art provided.
Steve@B&B
39'RC, 43'WC, 48'B, 49'G, 50'WF, 65 Big 10, 67'B-110, 75'716H, 2-620's, & a Motorhead wife
