were do i hook up my 80 sickle bar mower?
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
mike 44 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 05 Jul 2010
Location: East Arcade ny
Points: 747 		Post Options Post Options   Thanks (0) Thanks(0)   Quote mike 44 Quote  Post ReplyReply Direct Link To This Post Topic: were do i hook up my 80 sickle bar mower?
    Posted: 19 Oct 2021 at 6:35pm
Back to Top
Sponsored Links


Back to Top
mike 44 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 05 Jul 2010
Location: East Arcade ny
Points: 747 		Post Options Post Options   Thanks (0) Thanks(0)   Quote mike 44 Quote  Post ReplyReply Direct Link To This Post Posted: 19 Oct 2021 at 6:36pm
this is not like the old d17 I had
Back to Top
allisbred View Drop Down
Orange Level Access
Orange Level Access


Joined: 28 Mar 2015
Location: Hanover Pa
Points: 1011 		Post Options Post Options   Thanks (0) Thanks(0)   Quote allisbred Quote  Post ReplyReply Direct Link To This Post Posted: 19 Oct 2021 at 7:19pm
S or R?
Back to Top
Gary View Drop Down
Orange Level Access
Orange Level Access


Joined: 13 Sep 2009
Location: Peterborough,On
Points: 5911 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Gary Quote  Post ReplyReply Direct Link To This Post Posted: 19 Oct 2021 at 7:30pm

I don't know of any 80 Series that attached to Snap Coupler.

The No. 7 did though.


https://www.ebay.ca/itm/284205056163?epid=17045508334&hash=item422bf100a3:g:nj0AAOSwXbNgPt~-
Back to Top
mike 44 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 05 Jul 2010
Location: East Arcade ny
Points: 747 		Post Options Post Options   Thanks (0) Thanks(0)   Quote mike 44 Quote  Post ReplyReply Direct Link To This Post Posted: 19 Oct 2021 at 7:35pm

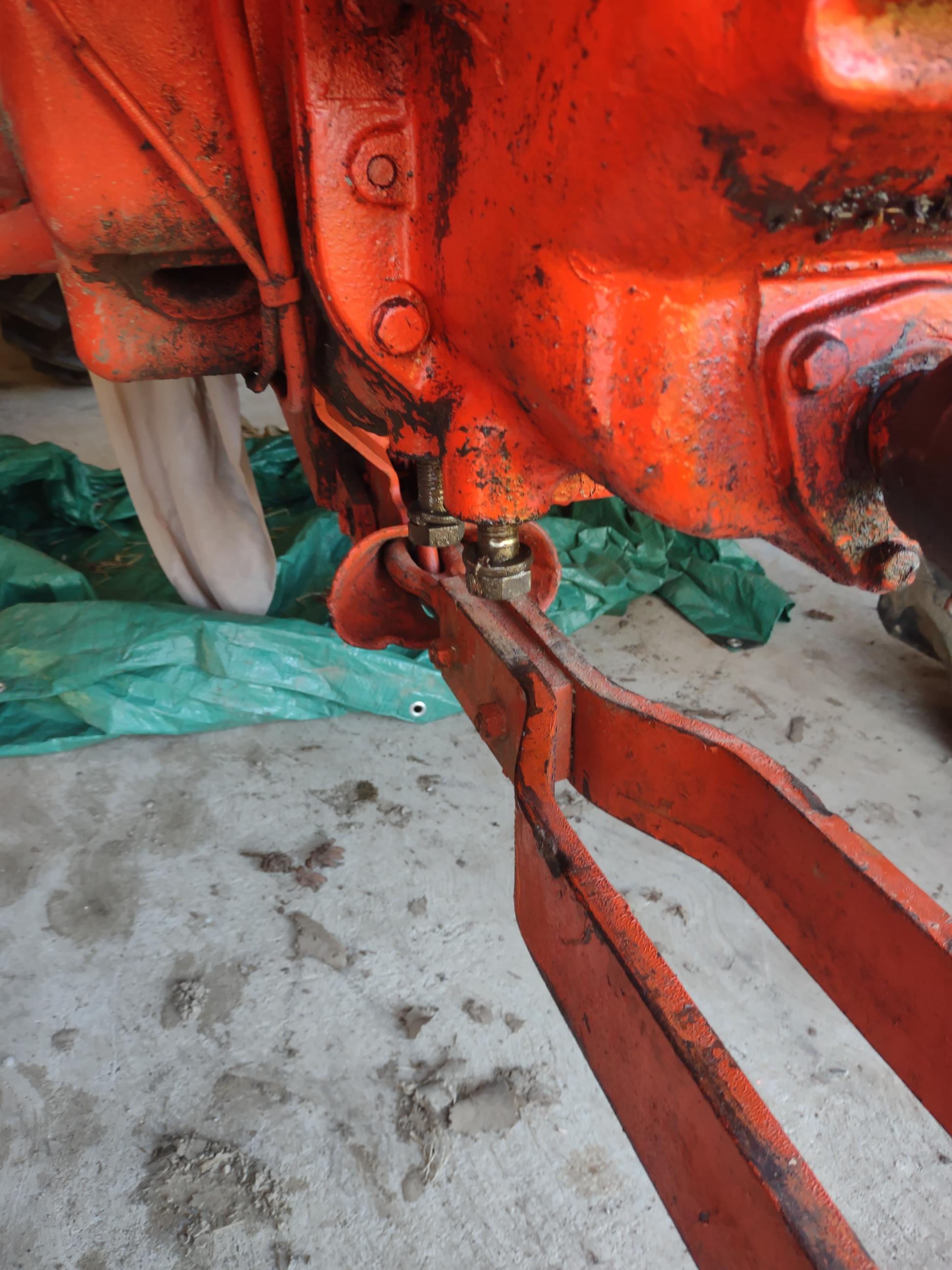

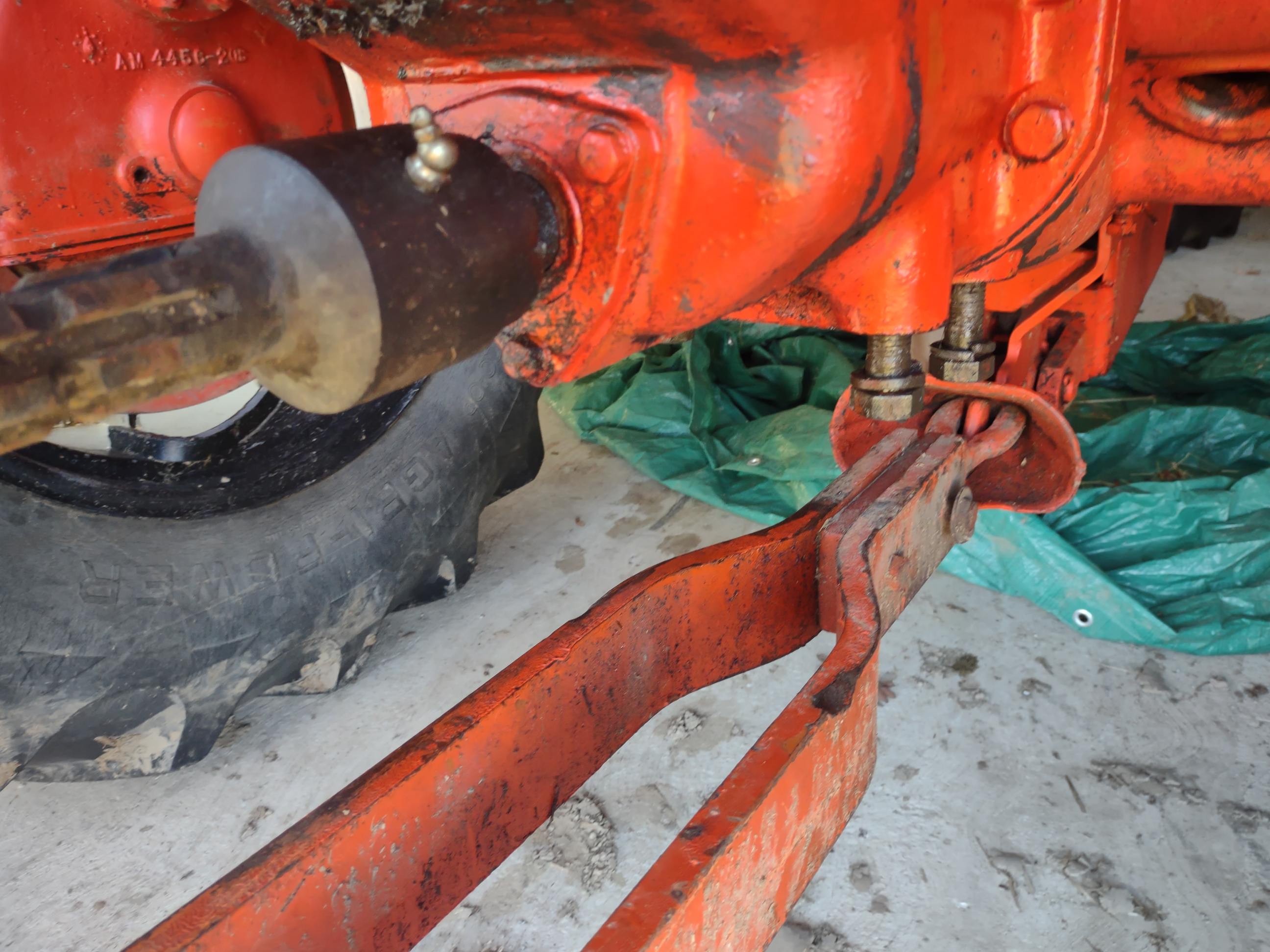

r ... the thing hooked up in pic is my sc blade i have the piece that hooks to tractor just dosent look like my old d17 under there
Back to Top
Mikez View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 16 Jan 2013
Location: Usa
Points: 8919 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Mikez Quote  Post ReplyReply Direct Link To This Post Posted: 19 Oct 2021 at 7:50pm
look in the parts book. Shows the brackets needed. Hangs off the pins where the draw bar hangs. And the balance spring, has like a C bracket that bolts around bottom of axle.

Edited by Mikez - 19 Oct 2021 at 7:51pm
Back to Top
Mikez View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 16 Jan 2013
Location: Usa
Points: 8919 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Mikez Quote  Post ReplyReply Direct Link To This Post Posted: 19 Oct 2021 at 7:53pm
well the pictures shown is missing the brackets
Back to Top
mike 44 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 05 Jul 2010
Location: East Arcade ny
Points: 747 		Post Options Post Options   Thanks (0) Thanks(0)   Quote mike 44 Quote  Post ReplyReply Direct Link To This Post Posted: 19 Oct 2021 at 8:48pm
yea my drawbar/3pt set up is diff than theone i had before no were to hang the piece to hook mower too
Back to Top
MACK View Drop Down
Orange Level
Orange Level


Joined: 17 Nov 2009
Points: 7664 		Post Options Post Options   Thanks (0) Thanks(0)   Quote MACK Quote  Post ReplyReply Direct Link To This Post Posted: 19 Oct 2021 at 8:56pm
Your tractor is missing the drawbar brackets where the mower bracket mounts.              MACK
Back to Top
mike 44 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 05 Jul 2010
Location: East Arcade ny
Points: 747 		Post Options Post Options   Thanks (0) Thanks(0)   Quote mike 44 Quote  Post ReplyReply Direct Link To This Post Posted: 19 Oct 2021 at 9:37pm
those available?
Back to Top
Mikez View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 16 Jan 2013
Location: Usa
Points: 8919 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Mikez Quote  Post ReplyReply Direct Link To This Post Posted: 20 Oct 2021 at 8:17am
I think a&w tractor had them in his ad in old allis new.
What mower do you have. 80R or 80R3.
Back to Top
Gary View Drop Down
Orange Level Access
Orange Level Access


Joined: 13 Sep 2009
Location: Peterborough,On
Points: 5911 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Gary Quote  Post ReplyReply Direct Link To This Post Posted: 20 Oct 2021 at 4:17pm

80R3 wouldn't need the drawbar brackets, but would need a 3 pt hitch.

G
Back to Top
Mikez View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 16 Jan 2013
Location: Usa
Points: 8919 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Mikez Quote  Post ReplyReply Direct Link To This Post Posted: 20 Oct 2021 at 9:43pm
Gary I know that.
I just was confused with the statement that it doesn’t look like his old D17 under there, and the drawbar/3pt set up is dif then the one he had b4.
The pictured tractor looks just our 57 D17 minus the drawbar brackets


Edited by Mikez - 20 Oct 2021 at 10:46pm
Back to Top
mike 44 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 05 Jul 2010
Location: East Arcade ny
Points: 747 		Post Options Post Options   Thanks (0) Thanks(0)   Quote mike 44 Quote  Post ReplyReply Direct Link To This Post Posted: 20 Oct 2021 at 10:40pm
its a r... mikez you dont have anything?
Back to Top
PaulB View Drop Down
Orange Level
Orange Level


Joined: 12 Sep 2009
Location: Rocky Ridge Md
Points: 5276 		Post Options Post Options   Thanks (0) Thanks(0)   Quote PaulB Quote  Post ReplyReply Direct Link To This Post Posted: 21 Oct 2021 at 6:21am
OP should have an operators manual for his mower. Then he would have known what brackets he needs and what is missing from his tractor.
If it was fun to pull in LOW gear, I could have a John Deere.
Real pullers don't have speed limits.
If you can't make it GO... make it SHINY
Back to Top
darrel in ND View Drop Down
Orange Level
Orange Level
Avatar

Joined: 22 Nov 2009
Location: Hebron, ND
Points: 8779 		Post Options Post Options   Thanks (0) Thanks(0)   Quote darrel in ND Quote  Post ReplyReply Direct Link To This Post Posted: 22 Oct 2021 at 9:43am
The brackets that you are missing are tractor related, not mower related (even though your mower bracket does attach to them). So I would head to a salvage yard to find them. The draw bar bail attaches to the missing brackets as well. Darrel
Back to Top
Mikez View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 16 Jan 2013
Location: Usa
Points: 8919 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Mikez Quote  Post ReplyReply Direct Link To This Post Posted: 22 Oct 2021 at 4:58pm
.227741 and 227739.
No we don’t have any available.


Edited by Mikez - 22 Oct 2021 at 5:00pm
