WD Handclutch
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
Wot View Drop Down
Bronze Level
Bronze Level


Joined: 16 Sep 2009
Location: N
Points: 154 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Wot Quote  Post ReplyReply Direct Link To This Post Topic: WD Handclutch
    Posted: 30 Dec 2021 at 2:10pm
I’m having some trouble with the handclutch of my WD. It kicks out if the tractor is not under load. I have removed shims, but it stil kicks out when not under load. When it is under light load, driving uphill, it stays engaged.

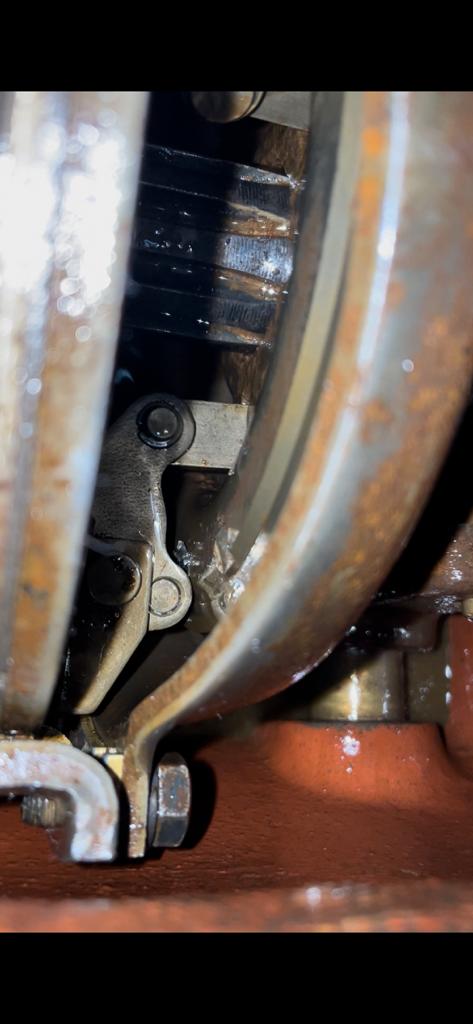

It looks like the plate where the rollers need to roll over is worn out. But I’m not shure if that could be the problem? Maybe i can adjust something else?

Thanks!
Back to Top
Sponsored Links


Back to Top
MACK View Drop Down
Orange Level
Orange Level


Joined: 17 Nov 2009
Points: 7664 		Post Options Post Options   Thanks (0) Thanks(0)   Quote MACK Quote  Post ReplyReply Direct Link To This Post Posted: 30 Dec 2021 at 9:07pm
Engauge clutch, remove front snapring (wire ring) , Engauge clutch, rotate over center plate to new location. Engauge clutch, replace snapring and your ready to go. Over time it may work itself back. While top is off, make sure no pins have come out of linkage.                        MACK
Back to Top
Nathan (SD) View Drop Down
Orange Level
Orange Level


Joined: 11 Sep 2009
Location: Day County SD
Points: 1264 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Nathan (SD) Quote  Post ReplyReply Direct Link To This Post Posted: 30 Dec 2021 at 10:36pm
Probably need to put the shims back in too..
Back to Top
Wot View Drop Down
Bronze Level
Bronze Level


Joined: 16 Sep 2009
Location: N
Points: 154 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Wot Quote  Post ReplyReply Direct Link To This Post Posted: 31 Dec 2021 at 5:49am
Great help, thanks! Will try and let you know.
Back to Top
Wot View Drop Down
Bronze Level
Bronze Level


Joined: 16 Sep 2009
Location: N
Points: 154 		Post Options Post Options   Thanks (1) Thanks(1)   Quote Wot Quote  Post ReplyReply Direct Link To This Post Posted: 03 Jan 2022 at 8:52am
Problem solved! Thanks!
