 Topic: WD oil pan gasket installation
Posted: 17 Jan 2011 at 6:53pm |
Just a quick question...
When installing the new gasket set for the oil pan on a WD.. Whats the normal length you guys leave the thick gasket on both ends (front and rear mains) above the height of the side gaskets? About a 1/4" or 1/8"? What do I need to do to make sure I got a good tight seal around the mains?
Thanks!
|
 |
|
Sponsored Links
|
|
|
allisorange
Silver Level
Joined: 27 Mar 2010
Location: perkins, michig
Points: 381
|
Post Options
Thanks(0)
Quote Reply
Posted: 17 Jan 2011 at 6:56pm |
Don't cut anything off or you will have a leak. Others will post soon and they will tell you not to cut them off.
John Carlson
|
|
norm[ind]
Orange Level
Joined: 29 Oct 2010
Location: bourbon,ind
Points: 2992
|
Post Options
Thanks(0)
Quote Reply
Posted: 17 Jan 2011 at 6:57pm |
|
do not cut any off of them or you will have problems leaking!! have seen it happen
|
|
redline
Orange Level
Joined: 11 Sep 2009
Location: Collins, IA
Points: 1013
|
Post Options
Thanks(0)
Quote Reply
Posted: 17 Jan 2011 at 7:01pm |
What a timely question! With a little luck, I too will be installing a pan gasket soon. I am glad I read this, I might have done some trimming that I would have regretted later.
I sure do like this website, and I sure appreciate the knowledge that is shared here!
|
|
If it weren't for the last minute, I wouldn't get anything done!
|
|
Don(MO)
Orange Level
Joined: 12 Sep 2009
Location: Bates City MO.
Points: 6862
|
Post Options
Thanks(0)
Quote Reply
Posted: 17 Jan 2011 at 7:23pm |
Don, Please don't cut them off, the guys are spot on about this!! Get a old soup can and clean it up then roll the end gaskets inside the soup can and leave them there for two or three days, the end gaskets will fit the pan and retain there shape from the can, use the little clips to hold the ends in place and don't use a lot of sealer on them.
hope this helps. Here's the can I use.
Don(MO)
Edited by Don(MO) - 17 Jan 2011 at 7:31pm
|
|
3 WD45's with power steering,G,D15 fork lift,D19, W-Speed Patrol, "A" Gleaner with a 330 corn head,"66" combine,roto-baler, and lots of Snap Coupler implements to make them work for their keep.
|
|
norm[ind]
Orange Level
Joined: 29 Oct 2010
Location: bourbon,ind
Points: 2992
|
Post Options
Thanks(0)
Quote Reply
Posted: 17 Jan 2011 at 7:51pm |
|
piece of 4" PVC PIPE WORKS GOOD ALSO FOR OVERNITE CLAMPING
|
|
redline
Orange Level
Joined: 11 Sep 2009
Location: Collins, IA
Points: 1013
|
Post Options
Thanks(0)
Quote Reply
Posted: 17 Jan 2011 at 7:59pm |
 Don(MO) wrote:
Don, Please don't cut them off, the guys are spot on about this!! Get a old soup can and clean it up then roll the end gaskets inside the soup can and leave them there for two or three days, the end gaskets will fit the pan and retain there shape from the can, use the little clips to hold the ends in place and don't use a lot of sealer on them.
hope this helps. Here's the can I use.
Don(MO)
|
Whadda ya use the salt for?
Edited by redline - 17 Jan 2011 at 8:00pm
|
|
If it weren't for the last minute, I wouldn't get anything done!
|
|
dannyraddatz
Orange Level
Joined: 12 Sep 2009
Location: Plainfield, Ill
Points: 848
|
Post Options
Thanks(0)
Quote Reply
Posted: 17 Jan 2011 at 8:10pm |
Some kits come with small clips to hold the front and rear gasket during installation. The A.C part number is 70229177 and when I did mine last summer it was a big help. Don and other members are right on about the can trick for getting those gaskets to work.
Danny
P.S. I agree don't cut anything.
|
|
Danny Raddatz
|
|
Don(MI)
Orange Level
Joined: 15 Sep 2009
Location: Michigan
Points: 3880
|
Post Options
Thanks(0)
Quote Reply
Posted: 17 Jan 2011 at 9:01pm |
|
Thanks guys!
|
|
Bill_MN
Orange Level
Joined: 12 Sep 2009
Location: Sioux Falls, SD
Points: 1471
|
Post Options
Thanks(0)
Quote Reply
Posted: 17 Jan 2011 at 9:03pm |
|
for those interested the NAPA number is FPG OS30130C (Fel-Pro brand), which also includes the clips
|
|
1951 WD #78283, 1918 Case 28x50 Thresher #76738, Case Centennial B 2x16 Plow
|
|
Allis Wd45
Bronze Level
Joined: 06 Nov 2017
Location: Washington
Points: 171
|
Post Options
Thanks(0)
Quote Reply
Posted: 02 Jan 2019 at 10:59pm |
|
Bill, I know this forum is 8 years old now but are the Napa gaskets as good as agco or elsewhere? I’m doing the pan gasket on my wd45 now.
|
|
Allis dave
Orange Level
Joined: 10 May 2012
Location: Northern IN
Points: 3040
|
Post Options
Thanks(0)
Quote Reply
Posted: 03 Jan 2019 at 8:06am |
|
If still available, Felpro's are always good gaskets.
|
|
Allis Wd45
Bronze Level
Joined: 06 Nov 2017
Location: Washington
Points: 171
|
Post Options
Thanks(0)
Quote Reply
Posted: 03 Jan 2019 at 10:17am |
|
Will the NAPA Felpro kit work on a wd45 too?
|
|
Bill_MN
Orange Level
Joined: 12 Sep 2009
Location: Sioux Falls, SD
Points: 1471
|
Post Options
Thanks(0)
Quote Reply
Posted: 03 Jan 2019 at 1:35pm |
Yep, still available. WD45 is same pan and gasket.
|
|
1951 WD #78283, 1918 Case 28x50 Thresher #76738, Case Centennial B 2x16 Plow
|
|
jboettcher
Bronze Level
Joined: 25 Sep 2017
Location: wisc
Points: 27
|
Post Options
Thanks(0)
Quote Reply
Posted: 28 Apr 2019 at 10:51am |

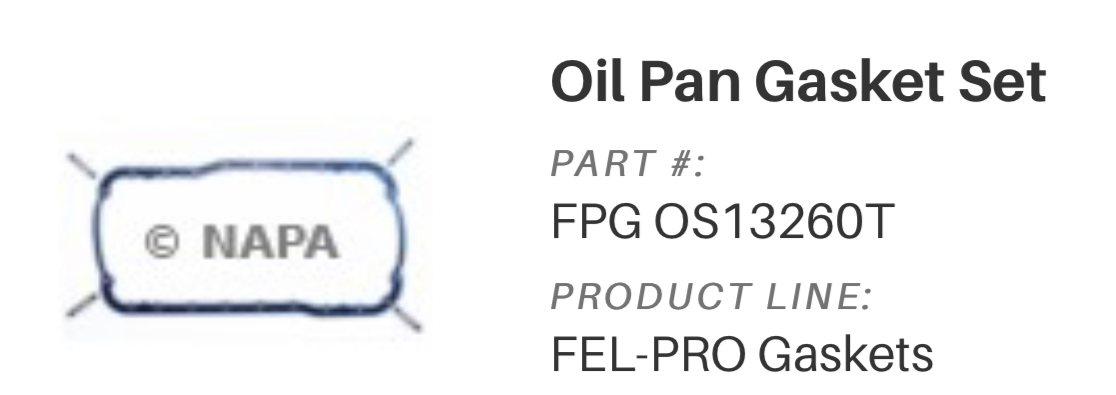

It appears FelPro makes a 1-piece neoprene gasket for a WD.   Does anyone know anything about this item?
|
|
mdm1
Orange Level
Joined: 12 Sep 2009
Location: Onalaska, WI
Points: 2677
|
Post Options
Thanks(0)
Quote Reply
Posted: 28 Apr 2019 at 11:55am |
|
Go to the farm equipment-knowledge base forum. There is an excellent post on exactly how to do it!
|
|
Everything is impossible until someone does it! WD45-trip loader 1947 c w/woods belly mower, 1939 B, #3 sickle mower 1944 B, 2 1948 G's. Misc other equipment that my wife calls JUNK!
|
|
AaronSEIA
Orange Level
Joined: 11 Sep 2009
Location: Mt Pleasant, IA
Points: 2569
|
Post Options
Thanks(0)
Quote Reply
Posted: 28 Apr 2019 at 2:33pm |
Anyone ever try one of those one piece gaskets? Looks interesting. AaronSEIA
|
|
IBWD MIke
Orange Level
Joined: 08 Apr 2012
Location: Newton Ia.
Points: 4057
|
Post Options
Thanks(0)
Quote Reply
Posted: 28 Apr 2019 at 9:01pm |
AaronSEIA wrote:
Anyone ever try one of those one piece gaskets? Looks interesting. AaronSEIA
|
Put one in a big block Chevy three or four years ago. So far so good. I did this in chassis so a four piece set would have been a nightmare. No experience with the WD set.
|
|
jboettcher
Bronze Level
Joined: 25 Sep 2017
Location: wisc
Points: 27
|
Post Options
Thanks(0)
Quote Reply
Posted: 04 May 2019 at 4:57pm |
|
Update. I fixed a leaking oil pan on my WD without a gasket. I used Right Stuff from Permatex.
I went to a engine machine shop and told them what I was doing, and they suggested Right Stuff.
It’s very heavy bodied and you need to work quick. I let it set up overnight and I’ve run in an hour so far with no drips.
(And I wasn’t chasing 4 pieces of cork around)
Just a heads up, it makes life easy
|
|
