 Topic: Adding Press Wheels to Grain Drill
Posted: 31 Dec 2020 at 10:25am |
Has anyone ever added press wheels to an older drill? I have a 1950s-era John Deere FB-A drill, but if something worked on an AC or any other brand of older drill it would be a similar concept.
I searched and couldn't even find any pictures of AC drills with press wheels. They did not seem to be a common option on the JD and IH drills of the time. So far I think my options are to luck into a set from another drill or a complete parts drill with them, which hasn't happened over the last couple of years, or buy some new press wheels and fabricate something similar to the original JD attachment that attaches where the foot board goes.
Our understanding of what's needed for good germination sure has come a long way from dragging covering chains.
|
|
1939 B, 1940 B, 1941 WC, 1951 WD, 1952 CA, 1956 WD-45
|
 |
|
Sponsored Links
|
|
|
wjohn
Orange Level
Joined: 19 Jan 2010
Location: KS
Points: 1913
|
Post Options
Thanks(0)
Quote Reply
Posted: 31 Dec 2020 at 10:30am |

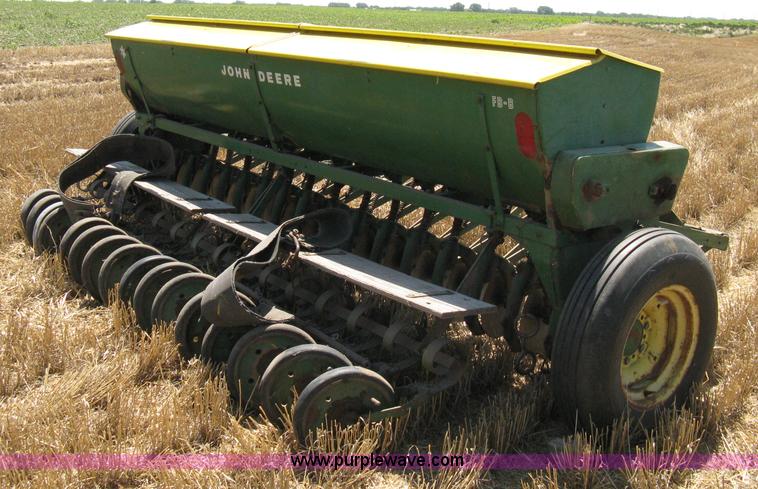

Here's a picture of the JD press wheel attachment on a FB-B drill, which is probably identical to what would've gone on my drill. I was thinking of making something similar.
|
|
1939 B, 1940 B, 1941 WC, 1951 WD, 1952 CA, 1956 WD-45
|
|
Dusty MI
Orange Level
Joined: 13 Sep 2009
Location: Charlotte, Mi
Points: 5054
|
Post Options
Thanks(0)
Quote Reply
Posted: 31 Dec 2020 at 11:53am |
Maybe put a hitch on the back of your drill and tow a culti-packer.
|
|
917 H, '48 G, '65 D-10 series III "Allis Express"
|
|
JohnColo
Orange Level
Joined: 03 Apr 2020
Location: Niwot, CO
Points: 1258
|
Post Options
Thanks(0)
Quote Reply
Posted: 31 Dec 2020 at 1:22pm |
|
After I plant hay/alfalfa, I roll it with what we call a mulcher, a cultipacker with rollers front and back with spring teeth in the center. I keep the teeth up and drive at right angles to the way I plant. Smooths the seed bed and helps germination.
|
|
orangereborn
Orange Level
Joined: 12 Sep 2009
Location: NW WI
Points: 1425
|
Post Options
Thanks(0)
Quote Reply
Posted: 31 Dec 2020 at 1:32pm |
hope this works....
|
|
wjohn
Orange Level
Joined: 19 Jan 2010
Location: KS
Points: 1913
|
Post Options
Thanks(0)
Quote Reply
Posted: 31 Dec 2020 at 9:11pm |
 Dusty MI wrote:
Maybe put a hitch on the back of your drill and tow a culti-packer. |
I would do that if I could even find a cultipacker around here. I'm not sure if they've just become more popular and everyone snaps them up, or if it's a regional thing and not many people used them around here to begin with, so not many around.
A cultipacker would be nice for broadcast seeding, too. The guy I worked for in high school had me broadcast Teff on his ATV and then run a cultipacker over it, and it turned out great.
|
|
1939 B, 1940 B, 1941 WC, 1951 WD, 1952 CA, 1956 WD-45
|
|
wjohn
Orange Level
Joined: 19 Jan 2010
Location: KS
Points: 1913
|
Post Options
Thanks(0)
Quote Reply
Posted: 31 Dec 2020 at 9:19pm |
JohnColo wrote:
After I plant hay/alfalfa, I roll it with what we call a mulcher, a cultipacker with rollers front and back with spring teeth in the center. I keep the teeth up and drive at right angles to the way I plant. Smooths the seed bed and helps germination.
|
I know exactly what you're talking about. We referred to them as cultimulchers where I grew up. I wish I could find a halfway decent one. The guy I worked for in high school had an old John Deere that we used several times.
|
|
1939 B, 1940 B, 1941 WC, 1951 WD, 1952 CA, 1956 WD-45
|
|
wjohn
Orange Level
Joined: 19 Jan 2010
Location: KS
Points: 1913
|
Post Options
Thanks(0)
Quote Reply
Posted: 31 Dec 2020 at 9:20pm |
orangereborn wrote:
hope this works.... |
Sure did, thanks! Can't be too many of those around.
|
|
1939 B, 1940 B, 1941 WC, 1951 WD, 1952 CA, 1956 WD-45
|
|
MACK
Orange Level
Joined: 17 Nov 2009
Points: 7664
|
Post Options
Thanks(0)
Quote Reply
Posted: 31 Dec 2020 at 9:34pm |
|
Might be best to sell what you have and buy one with press wheels. MACK
|
|
wjohn
Orange Level
Joined: 19 Jan 2010
Location: KS
Points: 1913
|
Post Options
Thanks(0)
Quote Reply
Posted: 01 Jan 2021 at 11:17am |
MACK wrote:
Might be best to sell what you have and buy one with press wheels. MACK |
That would be another route, true. I hate to give up on this one though since it's in great shape, has the small seed box, and is a good match for my B in size.
|
|
1939 B, 1940 B, 1941 WC, 1951 WD, 1952 CA, 1956 WD-45
|
|
Leon B MO
Orange Level
Joined: 12 Sep 2009
Location: Old Monroe, Mo
Points: 2098
|
Post Options
Thanks(0)
Quote Reply
Posted: 01 Jan 2021 at 4:48pm |
Here's a "cutimulcher" in Versailes MO. Here's one right up the road from me and I have one of these in the shed. We use it to reapair/reseed waterways. Leon B MO
|
|
Uncle always said "Fill the back of the shovel and the front will take care of itself".
|
|
wjohn
Orange Level
Joined: 19 Jan 2010
Location: KS
Points: 1913
|
Post Options
Thanks(0)
Quote Reply
Posted: 02 Jan 2021 at 11:03am |
Leon B MO wrote:
Here's a "cutimulcher" in Versailes MO.Here's one right up the road from me and I have one of these in the shed. We use it to reapair/reseed waterways. Leon B MO |
Those are about what I'm looking for, just hopefully not 5-6 hours away. My drill is only 7' wide so if pulling behind it I would need something a little smaller, but I may have to make that being an odd width. Alternatively doing a quick pass after seeding with a 12' packer wouldn't be that bad but it sure is nice to get things done in one pass instead of two.
I see Agrisupply has 9 1/2" wheels for $13.29 each after the bulk discount, so that might be another option if I'm willing to make something.
|
|
1939 B, 1940 B, 1941 WC, 1951 WD, 1952 CA, 1956 WD-45
|
|
Marlyn nwia
Silver Level Access
Joined: 11 Sep 2009
Points: 374
|
Post Options
Thanks(0)
Quote Reply
Posted: 02 Jan 2021 at 11:49am |
I have all three; drag chains, press wheels and cultipacker. If you use the cultipacker be sure the tongue is long enough to allow you to turn very short. I have damage packer wheels while turning too tight.
|
|
