Allis C Steering Gear- Repair
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
easygoin4 View Drop Down
Silver Level
Silver Level


Joined: 14 Sep 2009
Location: Fenton,MI
Points: 164 		Post Options Post Options   Thanks (0) Thanks(0)   Quote easygoin4 Quote  Post ReplyReply Direct Link To This Post Topic: Allis C Steering Gear- Repair
    Posted: 04 Aug 2017 at 7:39am
I have very sloppy steering, actually scary while driving too fast.
Since I removed this, I do notice some slop in front pedistal, I will get into that next.
Can this gear be fixed - anyone know someone that does it I can sent it out to.

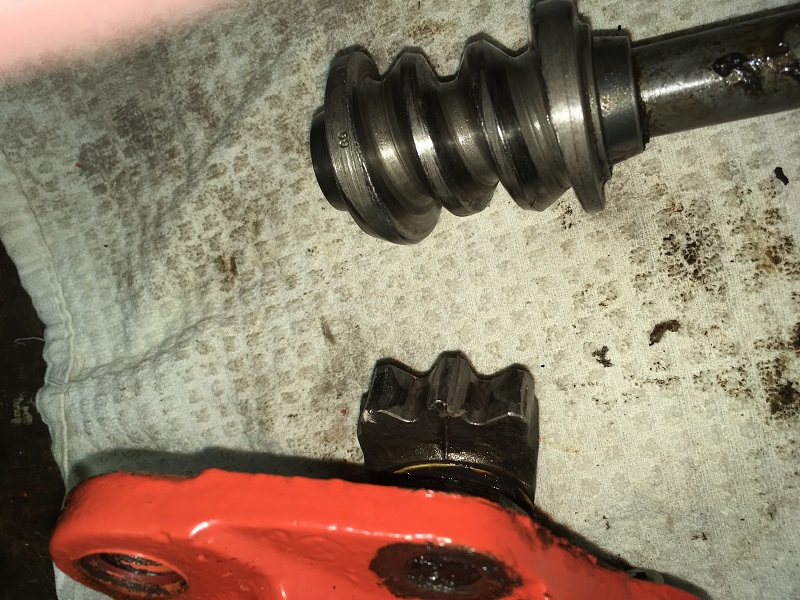

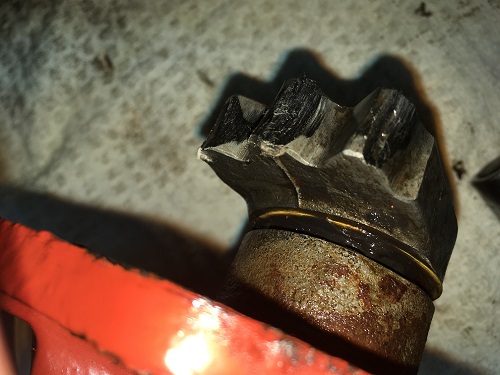

It appears that the worm gear looks good, may be hardened, wonder if small gear could be welded up and filed.

Any input would help - Thanks in Advance...

uploads/910/steering_gear_2.jpg
Back to Top
Sponsored Links


Back to Top
Dakota Dave View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: ND
Points: 3969 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Dakota Dave Quote  Post ReplyReply Direct Link To This Post Posted: 05 Aug 2017 at 8:11am
I welded mine and shaped with an angle grinder. yours don't look that bad in the pictures. did you try adjusting the engagement. there is one e3ccentric stud and two eccentric nuts on the plate side that set the gear engagement.
Back to Top
PaulB View Drop Down
Orange Level
Orange Level


Joined: 12 Sep 2009
Location: Rocky Ridge Md
Points: 5043 		Post Options Post Options   Thanks (0) Thanks(0)   Quote PaulB Quote  Post ReplyReply Direct Link To This Post Posted: 05 Aug 2017 at 1:33pm
First, you have a "Gemmer" steering box. Anything applying to the "Ross" steering will not be applicable. The shop manual will tell you the proper adjustment procedure after you have rebuilt or found the needed parts.
If it was fun to pull in LOW gear, I could have a John Deere.
Real pullers don't have speed limits.
If you can't make it GO... make it SHINY
Back to Top
john2189 View Drop Down
Silver Level
Silver Level


Joined: 11 Sep 2009
Location: Minerva,Ohio
Points: 304 		Post Options Post Options   Thanks (0) Thanks(0)   Quote john2189 Quote  Post ReplyReply Direct Link To This Post Posted: 06 Aug 2017 at 9:56pm
PM sent
'41 Allis B
'45 Allis B
'49 Farmall Cub
'72 IH Cub
Back to Top
easygoin4 View Drop Down
Silver Level
Silver Level


Joined: 14 Sep 2009
Location: Fenton,MI
Points: 164 		Post Options Post Options   Thanks (0) Thanks(0)   Quote easygoin4 Quote  Post ReplyReply Direct Link To This Post Posted: 14 Aug 2017 at 12:15pm
Anyone ever just replace the sector gear (3 teeth gear)with a good used one and used the old worm gear and steering shaft.
Back to Top
john2189 View Drop Down
Silver Level
Silver Level


Joined: 11 Sep 2009
Location: Minerva,Ohio
Points: 304 		Post Options Post Options   Thanks (0) Thanks(0)   Quote john2189 Quote  Post ReplyReply Direct Link To This Post Posted: 14 Aug 2017 at 2:51pm
Your worm gear looks about as good as mine. I'll send pics
'41 Allis B
'45 Allis B
'49 Farmall Cub
'72 IH Cub
Back to Top
