 Topic: Sub-Soiler
Posted: 25 Feb 2025 at 10:40pm |
Does anyone have any pictures of one? I am looking for how it hooks up to the lift latches.
I just bought one that was on a D-14 and am going to use it on my WD45 and it only has a rod that is bent at the end and there are holes for a K-key or cotter pin. I have no idea.
Can I modify it so it will fit a WD45? Or should I trade it for one that fits the 45?
It is an Curved Shank Oxnard Model.
Thanks
Edited by Ted J - 26 Feb 2025 at 1:28am
|
|
"Allis-Express"
19?? WC / 1941 C / 1952 CA / 1956 WD45 / 1957 WD45 / 1958 D-17
|
 |
|
Sponsored Links
|
|
|
DiyDave
Orange Level Access
Joined: 11 Sep 2009
Location: Gambrills, MD
Points: 54448
|
Post Options
Thanks(0)
Quote Reply
Posted: 26 Feb 2025 at 4:04am |
there are several kinds, I think the wd's used a drawbar mount, you bolt the drawbar to the subsoiler, and use the DB to connect to the snap coupler, IIRR. the one for my d-14 that I have experience with is a straight shank SC model... Some pictures would help...
|
|
Source: Babylon Bee. Sponsored by BRAWNDO, its got what you need!
|
|
truckerfarmer
Orange Level Access
Joined: 26 Jan 2013
Location: Watertown, SD
Points: 3292
|
Post Options
Thanks(0)
Quote Reply
Posted: 26 Feb 2025 at 5:52am |
|
Could be an older model that had the "box" that slipped over the lift arms and pinned on, and the "boxes" are missing. Is it just a rod with a loop on the end?
|
|
Looking at the past to see the future.
'53 WD, '53 WD45, WD snap coupler field cultivator, #53 plow,'53 HD5B dozer
Duct tape.... Can't fix stupidity. But will muffle the sound of it!
|
|
jaybmiller
Orange Level Access
Joined: 12 Sep 2009
Location: Greensville,Ont
Points: 24782
|
Post Options
Thanks(0)
Quote Reply
Posted: 26 Feb 2025 at 6:33am |
|
|
|
3 D-14s,A-C forklift, B-112
Kubota BX23S lil' TOOT( The Other Orange Tractor)
Never burn your bridges, unless you can walk on water
|
|
jaybmiller
Orange Level Access
Joined: 12 Sep 2009
Location: Greensville,Ont
Points: 24782
|
Post Options
Thanks(0)
Quote Reply
Posted: 26 Feb 2025 at 6:34am |

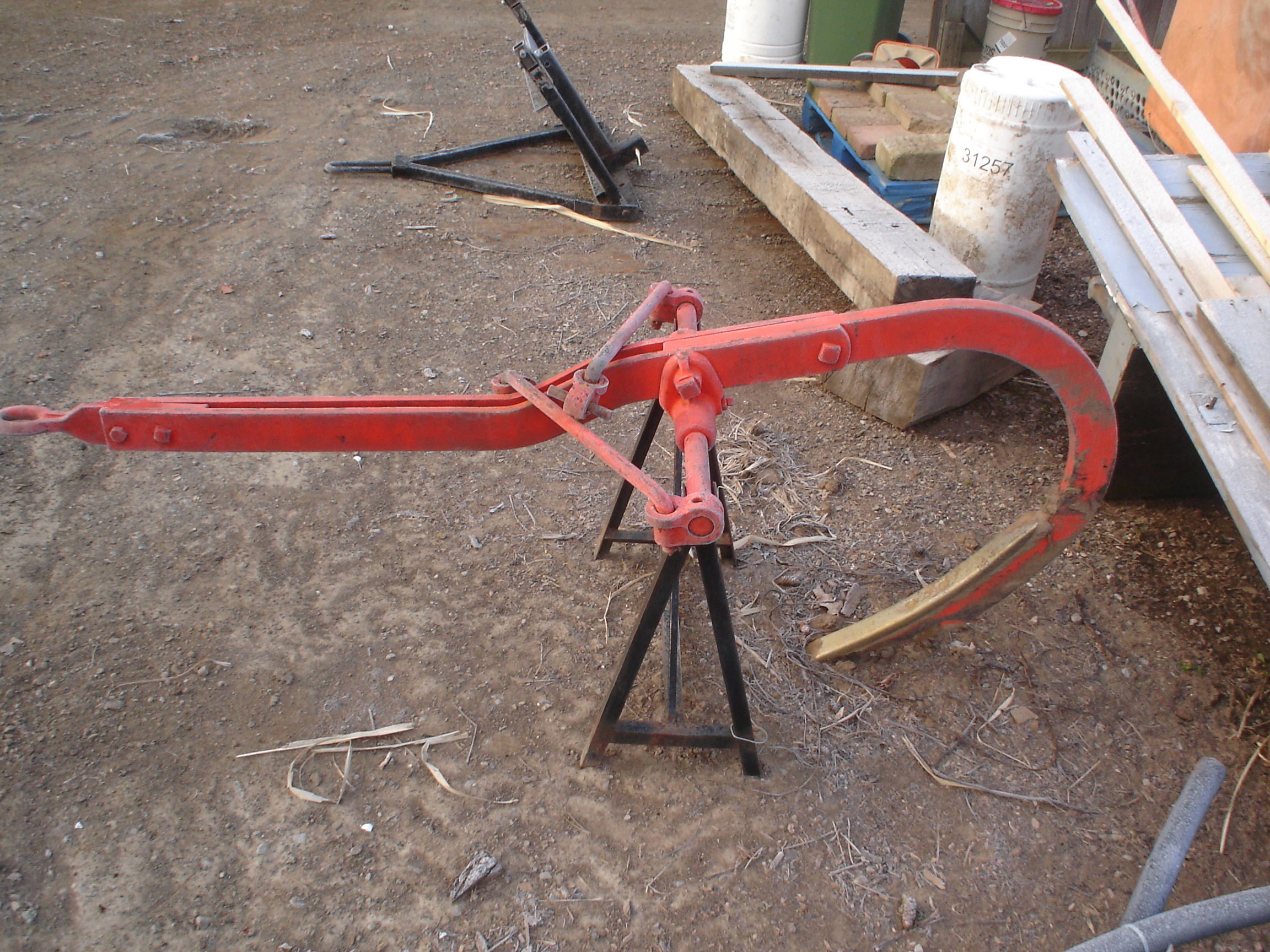

oopsy, kinda big..... Is this like yours ? sadly gave mine away 4 years ago when I 'lost' my storage shed.....(grrrrrrr)
|
|
