steering wheel shaft

 Post Reply Post Reply
Author
Message
Ted in NE-OH View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Nov 2009
Location: Austinburg OH
Points: 1703
Post Options Post Options   Thanks (0) Thanks(0)   Quote Ted in NE-OH Quote  Post ReplyReply Direct Link To This Post Topic: steering wheel shaft
    Posted: 05 Dec 2017 at 6:54pm
I need to make a new steering wheel shaft so I meed to know the over all length from tip to tip. The shaft needs to be out of the housing. Note this is a Ross steering box.
CA, WD, C, 3 Bs, 2 Gs, WC, I-400, 914
Back to Top
Sponsored Links


Back to Top
theropod View Drop Down
Orange Level
Orange Level
Avatar

Joined: 28 Sep 2017
Location: Arkansas USA
Points: 217
Post Options Post Options   Thanks (0) Thanks(0)   Quote theropod Quote  Post ReplyReply Direct Link To This Post Posted: 05 Dec 2017 at 6:58pm
Originally posted by Ted in NE-OH Ted in NE-OH wrote:

I need to make a new steering wheel shaft so I meed to know the over all length from tip to tip. The shaft needs to be out of the housing. Note this is a Ross steering box.

For what tractor?
Put the bunny back in the box!
1938 B, 1977 Yanmar YM2200

No private messages:
use email:
theropod AT yahoo DOT com
Back to Top
Dakota Dave View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: ND
Points: 3971
Post Options Post Options   Thanks (0) Thanks(0)   Quote Dakota Dave Quote  Post ReplyReply Direct Link To This Post Posted: 05 Dec 2017 at 7:26pm
You know that the worms gear is part of the shaft and not a seperate piece. The length of the shaft varies with the tractor serial number. It either 46 5/8" 46 7/8" or 47" unless it's a IB than its 31 5/8".
Back to Top
Ted in NE-OH View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Nov 2009
Location: Austinburg OH
Points: 1703
Post Options Post Options   Thanks (0) Thanks(0)   Quote Ted in NE-OH Quote  Post ReplyReply Direct Link To This Post Posted: 06 Dec 2017 at 9:42am
It is for a 1939  AC B  Thanks
CA, WD, C, 3 Bs, 2 Gs, WC, I-400, 914
Back to Top
theropod View Drop Down
Orange Level
Orange Level
Avatar

Joined: 28 Sep 2017
Location: Arkansas USA
Points: 217
Post Options Post Options   Thanks (0) Thanks(0)   Quote theropod Quote  Post ReplyReply Direct Link To This Post Posted: 06 Dec 2017 at 10:04am
Originally posted by Ted in NE-OH Ted in NE-OH wrote:

It is for a 1939  AC B  Thanks

I have a spare if it is the right gear system, and you are welcome to it if you pay shipping. I am going to rob the steering wheel off of it anyway, so it wouldn’t be too much trouble to pull the shaft.

How do I figure out which box is the one for the shaft you need? My spare tractor and the one I am bring back look exactly the same to me.

I will go take a picture of what I have and post it. Give me 20-30 minutes.
Put the bunny back in the box!
1938 B, 1977 Yanmar YM2200

No private messages:
use email:
theropod AT yahoo DOT com
Back to Top
theropod View Drop Down
Orange Level
Orange Level
Avatar

Joined: 28 Sep 2017
Location: Arkansas USA
Points: 217
Post Options Post Options   Thanks (0) Thanks(0)   Quote theropod Quote  Post ReplyReply Direct Link To This Post Posted: 06 Dec 2017 at 10:22am

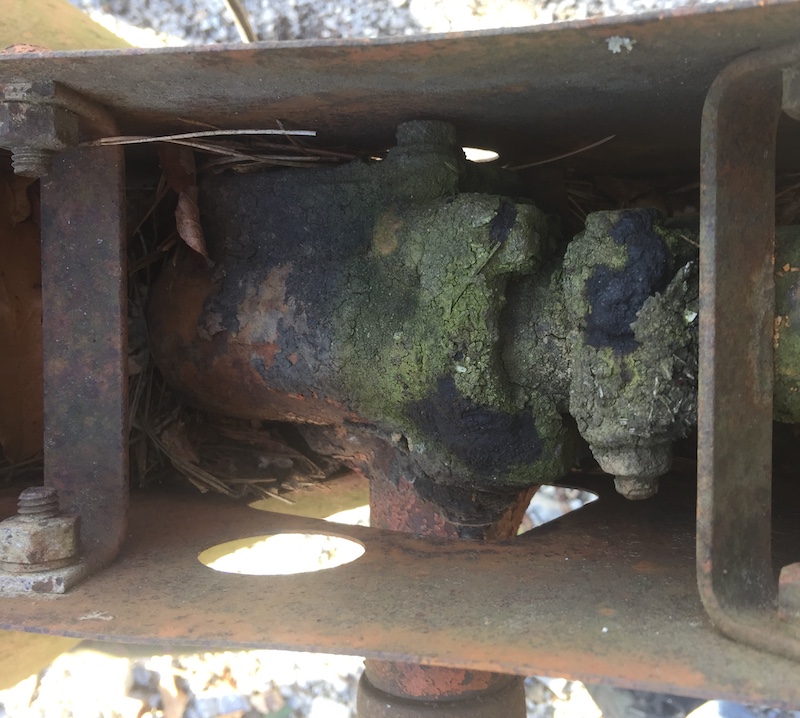

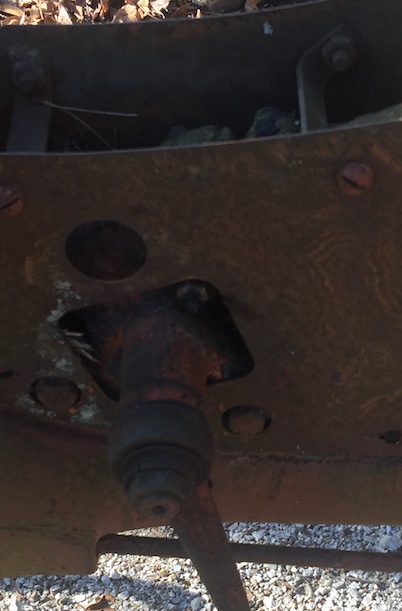

OK, here are 3 views of the steering gearbox on my spare B. If this is what you need just ask and it's yours.









Edited by theropod - 06 Dec 2017 at 10:24am
Put the bunny back in the box!
1938 B, 1977 Yanmar YM2200

No private messages:
use email:
theropod AT yahoo DOT com
Back to Top
theropod View Drop Down
Orange Level
Orange Level
Avatar

Joined: 28 Sep 2017
Location: Arkansas USA
Points: 217
Post Options Post Options   Thanks (0) Thanks(0)   Quote theropod Quote  Post ReplyReply Direct Link To This Post Posted: 06 Dec 2017 at 7:04pm
OK, I have an offer for someone to buy the entire steering sector minus the steering wheel, So, Ted if you want this shaft you have 24 hours to let me know. I need to offset some of the costs of my new mag, carb, ect.

Respond in this thread as private messages on my phone doesn't allow me to respond.

Thanks.
Put the bunny back in the box!
1938 B, 1977 Yanmar YM2200

No private messages:
use email:
theropod AT yahoo DOT com
Back to Top
Ted in NE-OH View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Nov 2009
Location: Austinburg OH
Points: 1703
Post Options Post Options   Thanks (0) Thanks(0)   Quote Ted in NE-OH Quote  Post ReplyReply Direct Link To This Post Posted: 06 Dec 2017 at 7:20pm
Thanks, but I am going to get some machining experience. I need the pratice.
CA, WD, C, 3 Bs, 2 Gs, WC, I-400, 914
Back to Top
theropod View Drop Down
Orange Level
Orange Level
Avatar

Joined: 28 Sep 2017
Location: Arkansas USA
Points: 217
Post Options Post Options   Thanks (0) Thanks(0)   Quote theropod Quote  Post ReplyReply Direct Link To This Post Posted: 06 Dec 2017 at 7:54pm
Originally posted by Ted in NE-OH Ted in NE-OH wrote:

Thanks, but I am going to get some machining experience. I need the pratice.

OK, have you found the info you were needing? Since I am pulling this steering sector off my parts tractor anyway I can measure it. This is another 38 and can get a serial number if that helps.
Put the bunny back in the box!
1938 B, 1977 Yanmar YM2200

No private messages:
use email:
theropod AT yahoo DOT com
