Seat Identification
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
RedHeeler79 View Drop Down
Bronze Level
Bronze Level


Joined: 09 Sep 2023
Location: NE Kansas
Points: 110 		Post Options Post Options   Thanks (0) Thanks(0)   Quote RedHeeler79 Quote  Post ReplyReply Direct Link To This Post Topic: Seat Identification
    Posted: 28 Oct 2023 at 1:02pm

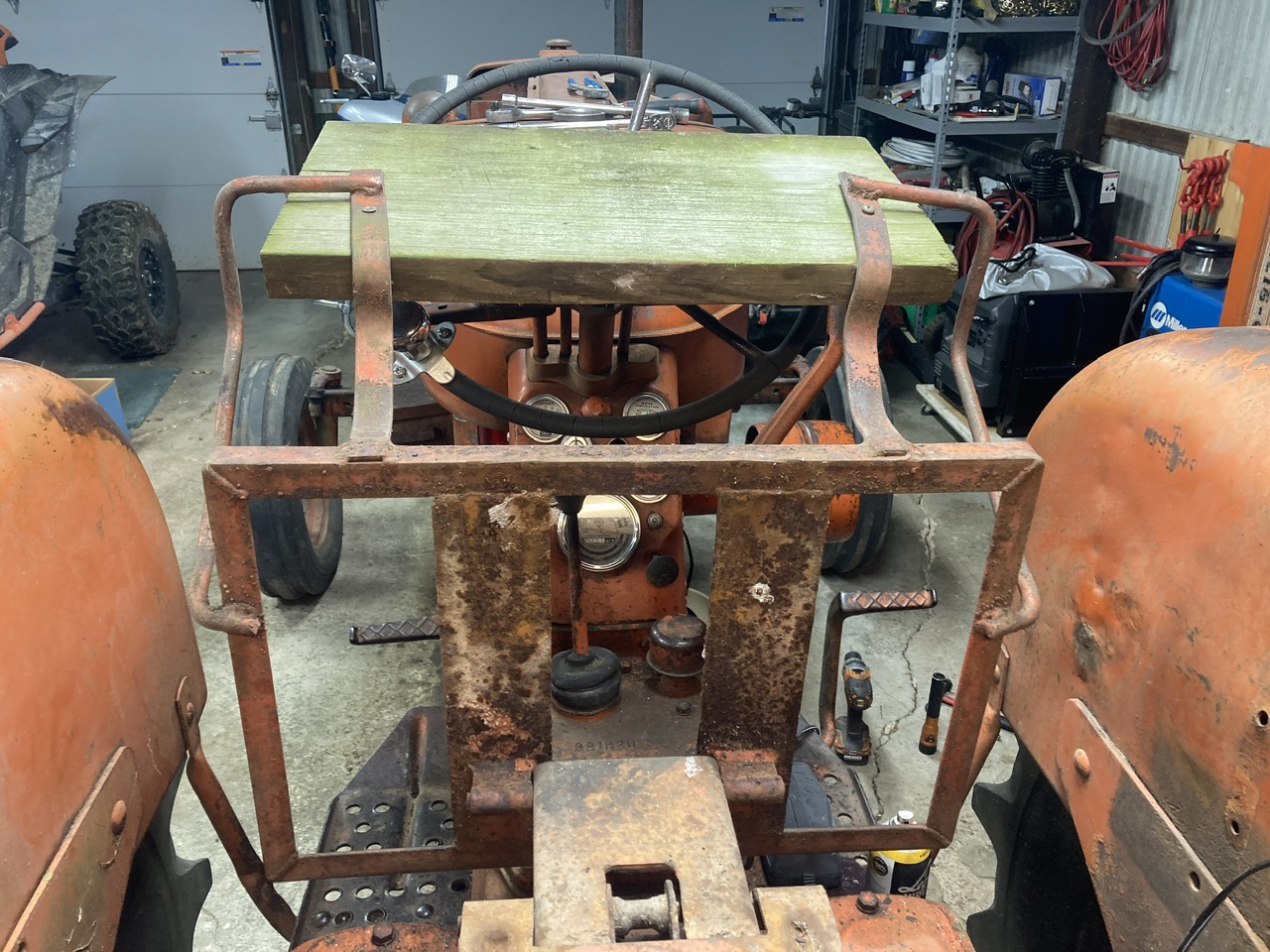

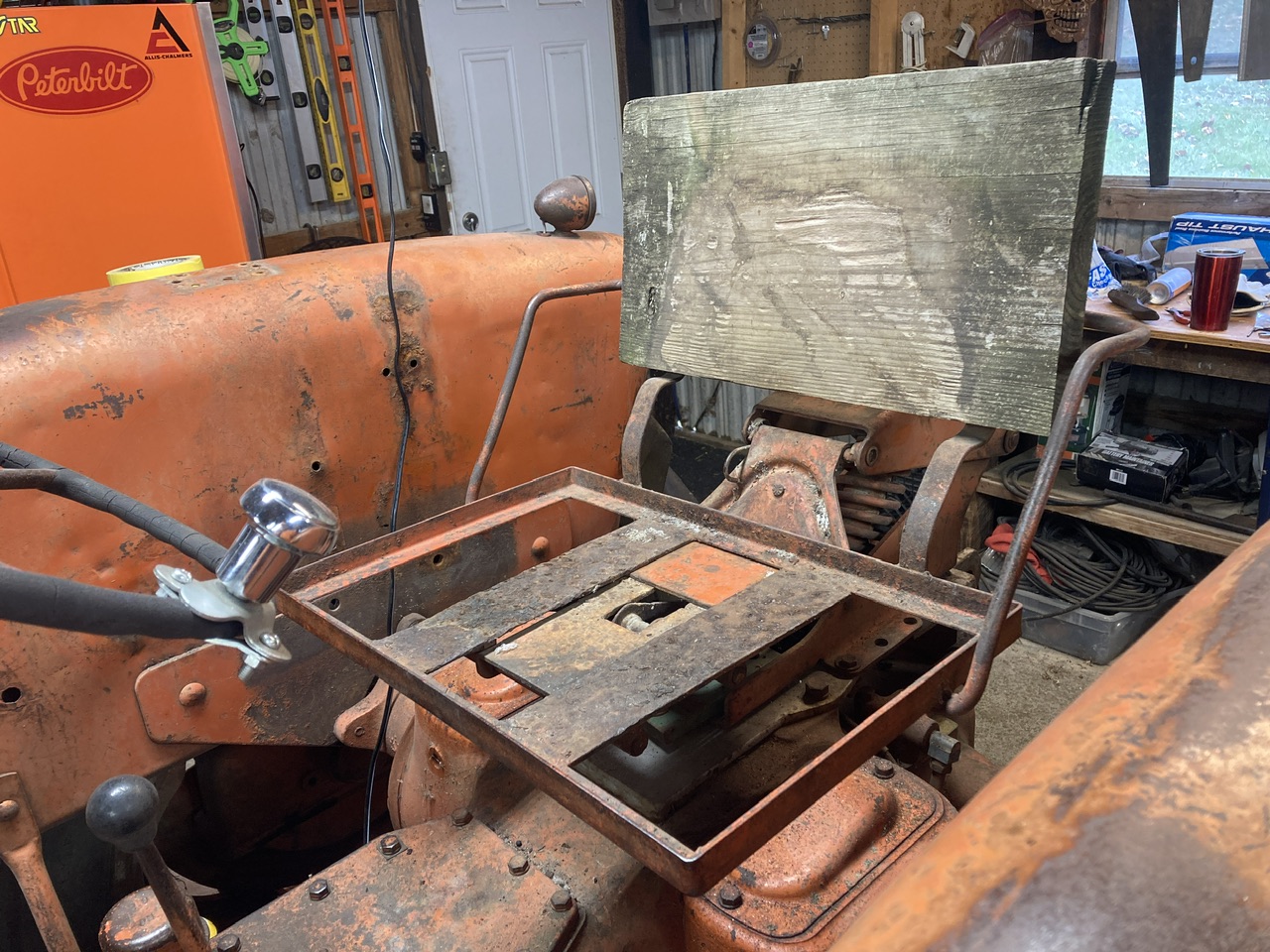

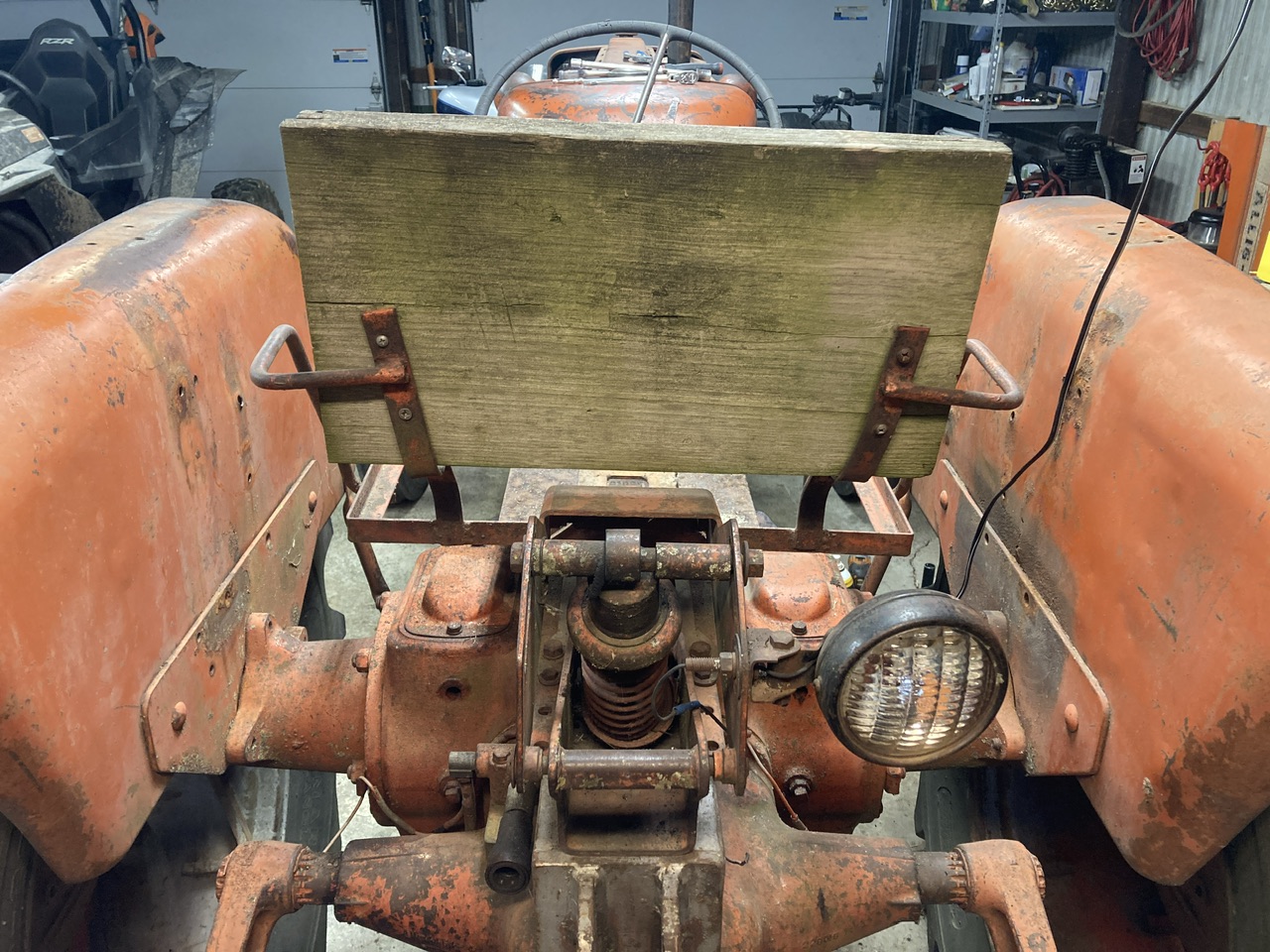

Can anyone say whether this “deluxe”seat frame is a factory part from a later model tractor, or is it a custom job? I’ve never seen one like it. It’s currently on a 1957 D17…
Back to Top
Sponsored Links


Back to Top
Leadoff View Drop Down
Silver Level
Silver Level
Avatar

Joined: 14 Oct 2016
Location: Calgary
Points: 268 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Leadoff Quote  Post ReplyReply Direct Link To This Post Posted: 28 Oct 2023 at 1:49pm
RedHeeler79

My 0.02 $ CDN worth ....................The seat frame does not look to be similar to any of the D Series seats I have ever seen, although it looks very well designed, and constructed.  Some TLC, paint, and new cushion would probably look and feel !!!! great

The seat support could use some new bushings etc and the sponsors/suppliers of this site are excellent with parts you might require

A replacement OEM Allis Chalmers D Series seat is available from this website sponsors/suppliers, and would fit right into your seat frame

For you interest, if you want to explore possibilities of Allis Chalmers seats other than the OEM  D Series seats, here is a link to a discussion thread from this Forum.  It might show you some of these possibilities that other members were looking at


Good luck with your project
1963 D17D Series III. 1965 D15 Series II. 1965 D17 Series IV. 1975 185. 1978 716H. 1979 716H. 1965 780 Harvester/1R&DC. 1957 Model 73 SC 4 Furrow Plow
Back to Top
RedHeeler79 View Drop Down
Bronze Level
Bronze Level


Joined: 09 Sep 2023
Location: NE Kansas
Points: 110 		Post Options Post Options   Thanks (0) Thanks(0)   Quote RedHeeler79 Quote  Post ReplyReply Direct Link To This Post Posted: 28 Oct 2023 at 2:13pm
Thanks, Leadoff. I think it would be a nice comfortable seat if it was fixed back up. I have a really nice D17 pan seat assembly that i could put on instead… but this one has potential. It has been moved back farther than the original seat mounting holes allow, makes me think its for a later model machine. The suspension looks identical to original pan seat suspension.
Back to Top
DrAllis View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Points: 20186 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DrAllis Quote  Post ReplyReply Direct Link To This Post Posted: 28 Oct 2023 at 3:59pm
The suspension always was the same. Pan seat was standard equipment from 1957 til the end of the series 4.   OPTIONAL "deluxe" cushion seat was an option on the series 3 and series 4 for sure and maybe during the late series 2 about 1961 ??  Your seat frame is some after-market or homemade unit mounted on the OEM seat suspension.
Back to Top
RedHeeler79 View Drop Down
Bronze Level
Bronze Level


Joined: 09 Sep 2023
Location: NE Kansas
Points: 110 		Post Options Post Options   Thanks (0) Thanks(0)   Quote RedHeeler79 Quote  Post ReplyReply Direct Link To This Post Posted: 28 Oct 2023 at 4:41pm
Thanks for the info. I might fix it up, but will probably install the original pan seat that i have, as i clean the old girl back up.
Back to Top
DPKII View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 08 Mar 2023
Location: Texas
Points: 66 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DPKII Quote  Post ReplyReply Direct Link To This Post Posted: 28 Oct 2023 at 9:00pm
I remember one of grandpas D17s having a square seat like that. Yours looks like I remember with the side bars. Maybe it was some type of afternarket seat?
David
Back to Top
Nathan (SD) View Drop Down
Orange Level
Orange Level


Joined: 11 Sep 2009
Location: Day County SD
Points: 1260 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Nathan (SD) Quote  Post ReplyReply Direct Link To This Post Posted: 29 Oct 2023 at 11:06am
Knoedler seat pan. Factory suspension.
Back to Top
