Rod difference on D12, ED40 gear box Why?
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
John426 View Drop Down
Silver Level
Silver Level


Joined: 14 Aug 2012
Location: France
Points: 302 		Post Options Post Options   Thanks (0) Thanks(0)   Quote John426 Quote  Post ReplyReply Direct Link To This Post Topic: Rod difference on D12, ED40 gear box Why?
    Posted: 22 Mar 2023 at 5:17am
Hi
Do you know why there is a difference on the indexing area on the 2 differents rod on the ED40 gear box, the same for D12 and othrers. May be the same for other tractors. ( D10, D12, D14, CA, may be?)

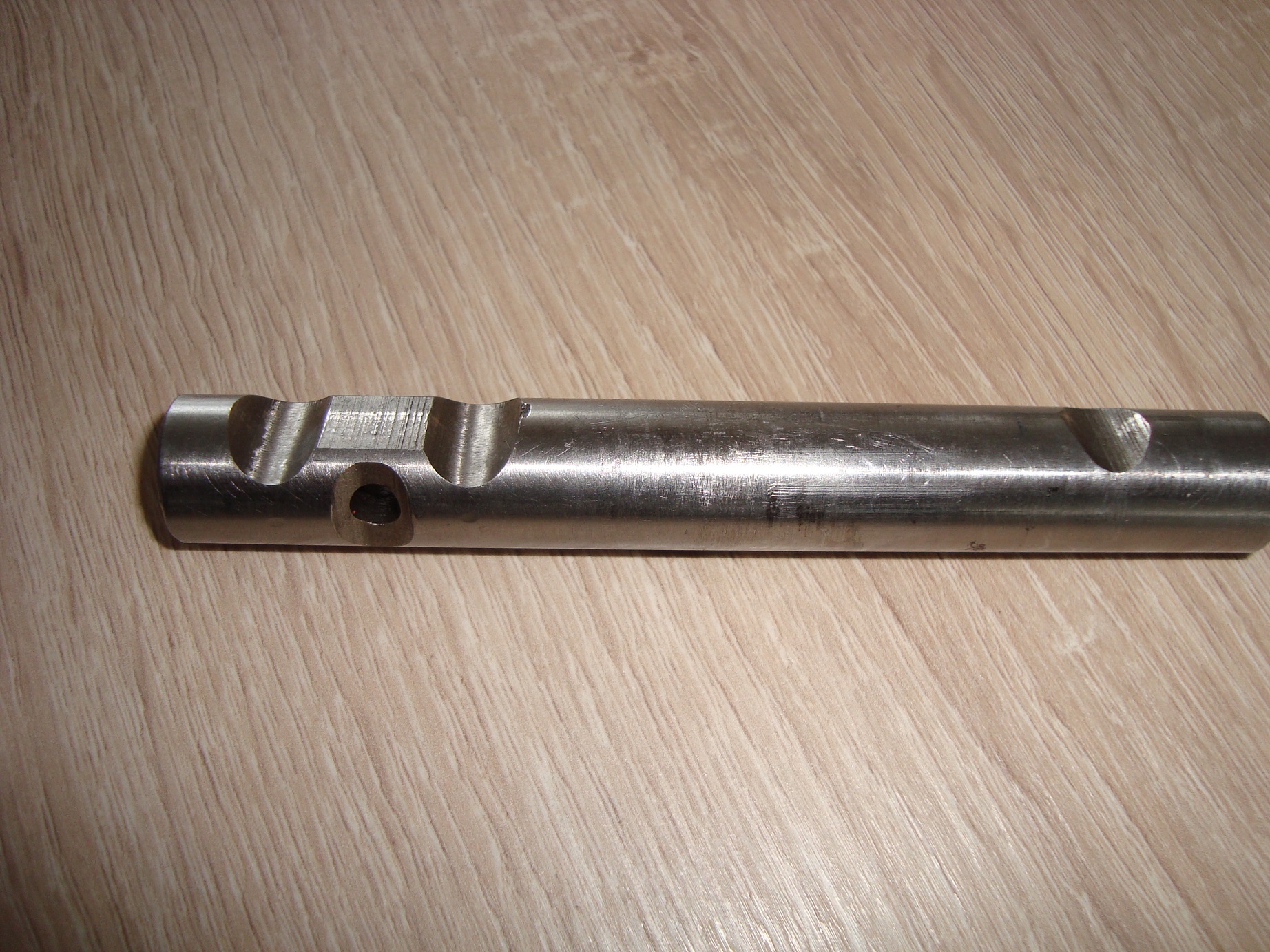

On the 1st / 4th shift rod there is a flat area between the 2 indexing hole

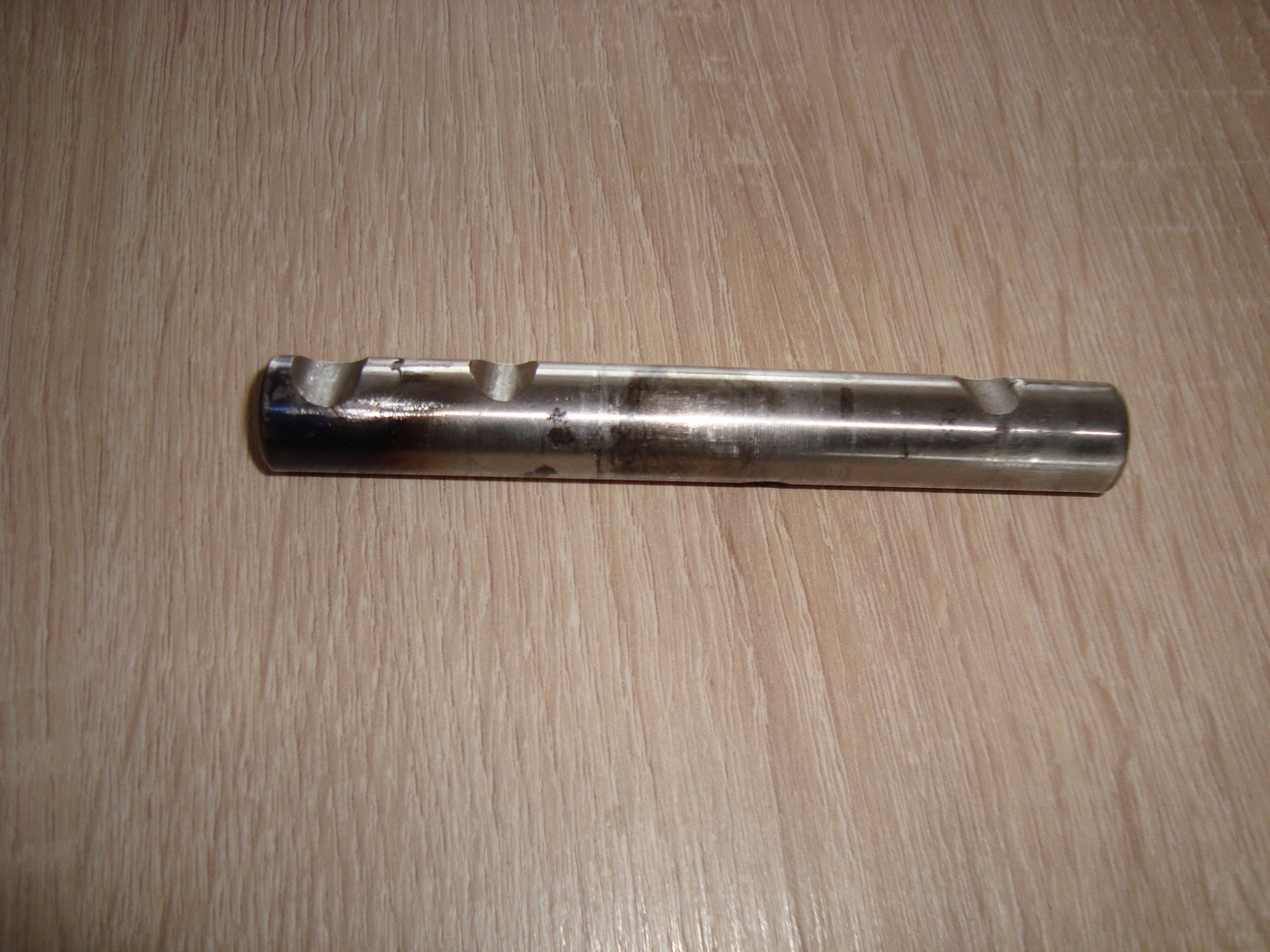

No flat on the 2nd / 3rd shift  rod

Why this difference?


Edited by John426 - 24 Mar 2023 at 2:08am
Back to Top
Sponsored Links


Back to Top
John426 View Drop Down
Silver Level
Silver Level


Joined: 14 Aug 2012
Location: France
Points: 302 		Post Options Post Options   Thanks (0) Thanks(0)   Quote John426 Quote  Post ReplyReply Direct Link To This Post Posted: 24 Mar 2023 at 2:09am
no explanation for these 2 different shapes?
Back to Top
DiyDave View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: Gambrills, MD
Points: 52993 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DiyDave Quote  Post ReplyReply Direct Link To This Post Posted: 24 Mar 2023 at 4:35am
Might be there because the flat spot is used to index tooling, so the hole below is exaxtly paralel to the notches above...
Source: Babylon Bee. Sponsored by BRAWNDO, its got what you need!
Back to Top
John426 View Drop Down
Silver Level
Silver Level


Joined: 14 Aug 2012
Location: France
Points: 302 		Post Options Post Options   Thanks (0) Thanks(0)   Quote John426 Quote  Post ReplyReply Direct Link To This Post Posted: 26 Mar 2023 at 7:39am
May be, but the 2 rods seem to work the same way, with a ball to do the indexing. So a hole is suitable and with a greater depth for the ball. So a stronger indexing in position. What would avoid the gear jumping out , may be?
