Rod bolt/main bearing thread stretch?

 Post Reply Post Reply
Author
Message
Hunt4Allis View Drop Down
Orange Level
Orange Level


Joined: 13 Mar 2018
Location: Ohio
Points: 1160
Post Options Post Options   Thanks (0) Thanks(0)   Quote Hunt4Allis Quote  Post ReplyReply Direct Link To This Post Topic: Rod bolt/main bearing thread stretch?
    Posted: 23 Sep 2022 at 8:54pm
When reassembling an engine can I reuse the rod bolts and nuts and main bearing cap bolts and also the head bolts? I've been watching some rebuild videos and they're talking about thread stretch so in other words only using them or torquing them once and not reusing them when rebuilding?
I guess now that I've watched the video again it sounds like it's only talking about when it's a bolt and nut which would only be the rod bolts, but I'm just trying to get people's thoughts here before I put it back together... It's on a 1972 60 horsepower diesel 4 cylinder that I'm rebuilding in frame.

Thanks Matt

Edited by Hunt4Allis - 23 Sep 2022 at 9:09pm
Back to Top
Sponsored Links


Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 68893
Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 23 Sep 2022 at 9:33pm
I think most of that " stretch to yield " bolt spec happened in the last 20 years.. I dont remember any ( off hand) for the 1950-70 era that recommended changing out the bolts.

i think most of that had to do with new aluminum heads on engines.... not rod bolts.


Edited by steve(ill) - 23 Sep 2022 at 9:36pm
Like them all, but love the "B"s.
Back to Top
wjohn View Drop Down
Orange Level
Orange Level
Avatar

Joined: 19 Jan 2010
Location: KS
Points: 1594
Post Options Post Options   Thanks (0) Thanks(0)   Quote wjohn Quote  Post ReplyReply Direct Link To This Post Posted: 23 Sep 2022 at 11:01pm
What's the service manual for your engine say?
1939 B, 1940 B, 1941 WC, 1951 WD, 1952 CA, 1956 WD-45
Back to Top
DMiller View Drop Down
Orange Level Access
Orange Level Access


Joined: 14 Sep 2009
Location: Hermann, Mo
Points: 23802
Post Options Post Options   Thanks (0) Thanks(0)   Quote DMiller Quote  Post ReplyReply Direct Link To This Post Posted: 24 Sep 2022 at 5:23am
All fasteners do stretch, some acceptance criteria was established as to bolt shank thickness or thread departure from concentric or depression at Detroit Diesel and Cummins engines when I was first learning engines.  As little as .002 in thread region as to that was the max allowable for rod or smaller fasteners on engines.  Head Bolts, Main Cap Screws, Stud  systems were all inspected similarly, where those were based on Shank Length.  Cummins allowed .015 stretch on Main Bolts, Detroit allowed .012 according to what I had in some old class room notes I found on Head Studs.  Would require engineering dimensions of which not many still remain for Allis machines.

For a long time simple departures from normal were as detectable pitting or hairline crack development on non threaded shanks, any damage to threads as galled or missing thread portions in the fastener torque regions.  Many of the older Factory Service manuals simply stated Discard Old Fasteners/Replace All as was too labor intensive to inspect them all or to put any level of value of reuse.  Caterpillar still notes in their manuals as to which fasteners are ONE TIME USE, once torqued are thrown out.  Head Bolts, Rocker Arm bolts and Studs, even gear train fasteners.
Back to Top
B26240 View Drop Down
Orange Level
Orange Level


Joined: 21 Nov 2009
Location: mn
Points: 3833
Post Options Post Options   Thanks (0) Thanks(0)   Quote B26240 Quote  Post ReplyReply Direct Link To This Post Posted: 24 Sep 2022 at 6:05am
When I was a young guy in the 70's I worked for a road contractor that had a crusher ran by a Murphy diesel. One spring they overhauled it mechanic and shop forman argued about changing rod bolts as repair mannual said " use new rod bolts " shop forman won mechanic reused old bolts.   Engine came back to shop with big hole in side of block after less than one shift.   That was my first lesson about bolt stretch and reading repaire manual carefully.    Side note company replaced engine with a Detroit then several months later welded hole in the Murphy and used it on annother application
Back to Top
Les Kerf View Drop Down
Silver Level
Silver Level


Joined: 08 May 2020
Location: Idaho
Points: 310
Post Options Post Options   Thanks (0) Thanks(0)   Quote Les Kerf Quote  Post ReplyReply Direct Link To This Post Posted: 24 Sep 2022 at 7:24am
Originally posted by Hunt4Allis Hunt4Allis wrote:

r... It's on a 1972 60 horsepower diesel 4 cylinder that I'm rebuilding in frame.

Thanks Matt


Modern high performance engine builders (think NASCAR, etc.) don't use torque wrenches on rod bolts, they use a special tool that measures the actual stretch of each (always brand new) bolt as it is tightened.

Your 1972 60 horsepower diesel 4 cylinder engine 'may' fit that criterion Wink
Back to Top
Hunt4Allis View Drop Down
Orange Level
Orange Level


Joined: 13 Mar 2018
Location: Ohio
Points: 1160
Post Options Post Options   Thanks (0) Thanks(0)   Quote Hunt4Allis Quote  Post ReplyReply Direct Link To This Post Posted: 24 Sep 2022 at 7:28am
I don't remember reading in the manual if it calls out for replacement of rod bolts but I'll have to check
Back to Top
Hunt4Allis View Drop Down
Orange Level
Orange Level


Joined: 13 Mar 2018
Location: Ohio
Points: 1160
Post Options Post Options   Thanks (0) Thanks(0)   Quote Hunt4Allis Quote  Post ReplyReply Direct Link To This Post Posted: 24 Sep 2022 at 7:44am
These connecting rod bolts may not be available, unless I'm just that terrible at searching for them?
Back to Top
Hunt4Allis View Drop Down
Orange Level
Orange Level


Joined: 13 Mar 2018
Location: Ohio
Points: 1160
Post Options Post Options   Thanks (0) Thanks(0)   Quote Hunt4Allis Quote  Post ReplyReply Direct Link To This Post Posted: 24 Sep 2022 at 7:48am

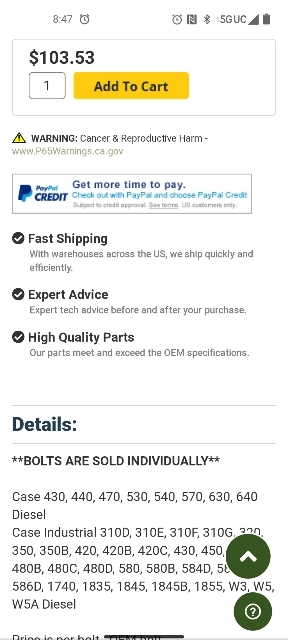

I cannot believe these are over $100 per bolt? That seems a bit insane, I could see if it were a NASCAR rod bolt or something...
Back to Top
AaronSEIA View Drop Down
Orange Level
Orange Level


Joined: 11 Sep 2009
Location: Mt Pleasant, IA
Points: 2467
Post Options Post Options   Thanks (0) Thanks(0)   Quote AaronSEIA Quote  Post ReplyReply Direct Link To This Post Posted: 24 Sep 2022 at 7:53am
Originally posted by Hunt4Allis Hunt4Allis wrote:


I cannot believe these are over $100 per bolt? That seems a bit insane, I could see if it were a NASCAR rod bolt or something...


Thats gotta be a typo.
AaronSEIA
Back to Top
injpumpEd View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 13 Sep 2009
Location: Walnut IL
Points: 4409
Post Options Post Options   Thanks (1) Thanks(1)   Quote injpumpEd Quote  Post ReplyReply Direct Link To This Post Posted: 24 Sep 2022 at 10:28am
you'll need to use the paypal credit to pay for those lmao! Old low rpm engines don't need the rod bolts, main bolts or head bolts replaced unless there's something wrong with them. You'll know when torqueing them if they are good, as mentioned above, all bolts are designed to stretch a small amount and torqueing them is a simple universal method of achieving that stretch. If a bolt "goes plastic" while torqueing it, in other words, just keeps stretching, it's junk, unless it's designed as a stretch bolt, like the old VW head bolts. The old Case is not like that though.
210 "too hot to farm" puller, part of the "insane pumpkin posse". Owner of Guenther Heritage Diesel, specializing in fuel injection systems on heritage era tractors. stock rebuilds to all out pullers!
Back to Top
Hunt4Allis View Drop Down
Orange Level
Orange Level


Joined: 13 Mar 2018
Location: Ohio
Points: 1160
Post Options Post Options   Thanks (0) Thanks(0)   Quote Hunt4Allis Quote  Post ReplyReply Direct Link To This Post Posted: 24 Sep 2022 at 11:25am
I've read to use blue medium loctite on these bolts when reassembling? I'm assuming they should be completely dry and free of oil when I do that correct?
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 68893
Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 24 Sep 2022 at 4:00pm
yes... loctite will only work on clean, dry steel........ i think the blue is a low / medium strength... in place of lock washers..


if thats what the book says, OK... some use sealastic type nuts, some use lock washers, some use lock wire, some use steel tab washers..


Edited by steve(ill) - 24 Sep 2022 at 4:07pm
Like them all, but love the "B"s.
Back to Top
Hunt4Allis View Drop Down
Orange Level
Orange Level


Joined: 13 Mar 2018
Location: Ohio
Points: 1160
Post Options Post Options   Thanks (0) Thanks(0)   Quote Hunt4Allis Quote  Post ReplyReply Direct Link To This Post Posted: 24 Sep 2022 at 4:40pm
Okay when I removed them there was no lock washers or any type of mechanical fasteners on the rod bolts.(other than the nuts which I'm unsure of their type, I think some had slits cut in them about halfway)
Using blue loctite is something someone told me to do, I will look in the manual

Edited by Hunt4Allis - 24 Sep 2022 at 4:41pm
Back to Top
injpumpEd View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 13 Sep 2009
Location: Walnut IL
Points: 4409
Post Options Post Options   Thanks (0) Thanks(0)   Quote injpumpEd Quote  Post ReplyReply Direct Link To This Post Posted: 24 Sep 2022 at 4:47pm
normally rod, main and head bolts need oiled so they torque properly. No loctite, unless specified.
210 "too hot to farm" puller, part of the "insane pumpkin posse". Owner of Guenther Heritage Diesel, specializing in fuel injection systems on heritage era tractors. stock rebuilds to all out pullers!
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 68893
Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 24 Sep 2022 at 4:48pm
yes, there are various ways to make a nut LOCK onto the bolt.... the book should say to replace the nuts after use... or add loctite to OLD nuts, etc...

...Cutting slots and distorting the end thread is one way
...putting a DIMPLE in the center of the flat on each side to distort the thread is another
...adding a  star washer to the bottom to dig into the metal
...external lockwasher
...locktite
... lock wire


Like them all, but love the "B"s.
Back to Top
MACK View Drop Down
Orange Level
Orange Level


Joined: 17 Nov 2009
Points: 7399
Post Options Post Options   Thanks (0) Thanks(0)   Quote MACK Quote  Post ReplyReply Direct Link To This Post Posted: 24 Sep 2022 at 8:58pm
If a rod or main bolt is properly torqued, it won't come loose unless bolt stretches or brakes.                      MACK
Back to Top
Hunt4Allis View Drop Down
Orange Level
Orange Level


Joined: 13 Mar 2018
Location: Ohio
Points: 1160
Post Options Post Options   Thanks (0) Thanks(0)   Quote Hunt4Allis Quote  Post ReplyReply Direct Link To This Post Posted: 24 Sep 2022 at 9:06pm
Gotcha
Back to Top
Calvin Schmidt View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Ontario Can.
Points: 4395
Post Options Post Options   Thanks (0) Thanks(0)   Quote Calvin Schmidt Quote  Post ReplyReply Direct Link To This Post Posted: 26 Sep 2022 at 7:20am
When we rebuilt my D21 engine, the new rod bolts came from AGCO. They were actually ARP bolts. Instructions were to torque to yield and do not reuse.
Nothing is impossible if it is properly financed
Back to Top
injpumpEd View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 13 Sep 2009
Location: Walnut IL
Points: 4409
Post Options Post Options   Thanks (0) Thanks(0)   Quote injpumpEd Quote  Post ReplyReply Direct Link To This Post Posted: 26 Sep 2022 at 7:30am
Those ARP bolts are not torque to yield. They are simply torqued to a certain stretch, of .008" and 80ft lbs is what it takes to make them stretch that much. In my puller, I've reused those AGCO/ARP bolts numerous times. I also check the bolt stretch with my stretch gauge. Torque to yield bolts would have you torque to say 50 ft lbs, then turn them a half round stretching the bolt in the process. Special bolts made to work that way, and are one and done. People tend to mix up torque/turn method, and torque to yield, which is stretch bolts. You can definitely feel the stretch bolts stretching while turning them the half turn.

Edited by injpumpEd - 26 Sep 2022 at 8:00am
210 "too hot to farm" puller, part of the "insane pumpkin posse". Owner of Guenther Heritage Diesel, specializing in fuel injection systems on heritage era tractors. stock rebuilds to all out pullers!
Back to Top
Hunt4Allis View Drop Down
Orange Level
Orange Level


Joined: 13 Mar 2018
Location: Ohio
Points: 1160
Post Options Post Options   Thanks (0) Thanks(0)   Quote Hunt4Allis Quote  Post ReplyReply Direct Link To This Post Posted: 26 Sep 2022 at 7:37am
My manual just says torque to 45-50ft/lbs.so I'd say as long as there looking ok I can re-use them as they not torque to yield before.
It doesn't say to add oil before torquing so is that just a standard to do as opposed to being dry and using locktight?
Back to Top
Boss Man View Drop Down
Orange Level
Orange Level


Joined: 03 Mar 2018
Location: Greenleaf, WI
Points: 600
Post Options Post Options   Thanks (0) Thanks(0)   Quote Boss Man Quote  Post ReplyReply Direct Link To This Post Posted: 26 Sep 2022 at 3:32pm
Problem with loctite is unless the blocks been boiled theres still oil in the main cap holes. A drop of oil on the threads and under the bolt head is all you need. This ensures the torque is true. I've never took an older engine apart that had loctite on mains or rods. Timing gears yes, never bottom end. The disposable bolts have a narrowed shank. That enegine shouldn't and that why they're expensive. Dont sell enough.
