Rake Model?
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
AJ View Drop Down
Orange Level
Orange Level


Joined: 31 Oct 2010
Location: mo
Points: 5244 		Post Options Post Options   Thanks (0) Thanks(0)   Quote AJ Quote  Post ReplyReply Direct Link To This Post Topic: Rake Model?
    Posted: 26 Mar 2016 at 1:05pm

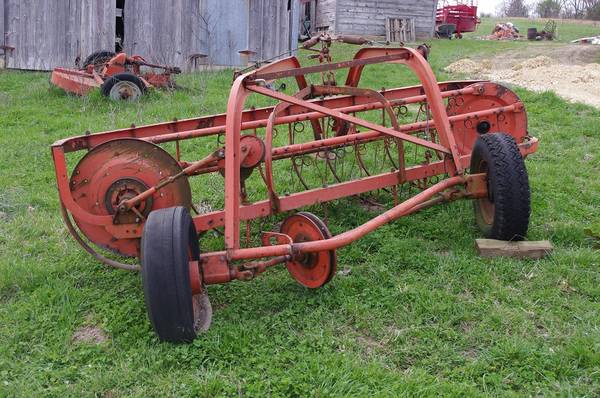

Can anyone tell me what model rake this is? I can't find an ID tag anywhere or anything.

Edited by AJ - 26 Mar 2016 at 1:05pm
Can't fix stupid
Back to Top
Sponsored Links


Back to Top
PaulB View Drop Down
Orange Level
Orange Level


Joined: 12 Sep 2009
Location: Rocky Ridge Md
Points: 4841 		Post Options Post Options   Thanks (0) Thanks(0)   Quote PaulB Quote  Post ReplyReply Direct Link To This Post Posted: 26 Mar 2016 at 1:09pm
I'm not the expert on the newer rakes, but my guess is that since it's a 4 bar one it is a 77G
If it was fun to pull in LOW gear, I could have a John Deere.
Real pullers don't have speed limits.
If you can't make it GO... make it SHINY
Back to Top
Bill Deppe/AC Salvag View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Location: Maquoketa, Iowa
Points: 972 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Bill Deppe/AC Salvag Quote  Post ReplyReply Direct Link To This Post Posted: 26 Mar 2016 at 1:13pm
Agree with PaulB, have a couple that I use and added the fifth bar
Back to Top
ctbowles58 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 17 Jun 2011
Location: Clarksville, MO
Points: 2249 		Post Options Post Options   Thanks (0) Thanks(0)   Quote ctbowles58 Quote  Post ReplyReply Direct Link To This Post Posted: 26 Mar 2016 at 1:51pm
yes it is a 77G......The model 78G had a crooked rear axel..77 Is straight. and it could of been either a 4 or 5 bar, the 5 bar was a option.............I have a 77G, and just bought another one this morning.

Edited by ctbowles58 - 26 Mar 2016 at 1:55pm
190XT 2WD45 WF D15 D14 CA BIG10 302 & 303 bailers 77G rake 80R mower 6 plows and alot more
Back to Top
AJ View Drop Down
Orange Level
Orange Level


Joined: 31 Oct 2010
Location: mo
Points: 5244 		Post Options Post Options   Thanks (0) Thanks(0)   Quote AJ Quote  Post ReplyReply Direct Link To This Post Posted: 26 Mar 2016 at 2:58pm
Was that the only difference between the two was the rear axles? This one needs a part or two for the drive pulley. Anyone have any parts for them?

Edited by AJ - 26 Mar 2016 at 2:59pm
Can't fix stupid
Back to Top
ctbowles58 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 17 Jun 2011
Location: Clarksville, MO
Points: 2249 		Post Options Post Options   Thanks (0) Thanks(0)   Quote ctbowles58 Quote  Post ReplyReply Direct Link To This Post Posted: 26 Mar 2016 at 3:21pm
Originally posted by AJ AJ wrote:

Was that the only difference between the two was the rear axles? This one needs a part or two for the drive pulley. Anyone have any parts for them?
yes that was the only difference, i think the idea behind the crooked axel was so you could make the Conrnors more square, I have a spare rear axel and clutch, but i am not sure i want to part with it at this time.
190XT 2WD45 WF D15 D14 CA BIG10 302 & 303 bailers 77G rake 80R mower 6 plows and alot more
Back to Top
ctbowles58 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 17 Jun 2011
Location: Clarksville, MO
Points: 2249 		Post Options Post Options   Thanks (0) Thanks(0)   Quote ctbowles58 Quote  Post ReplyReply Direct Link To This Post Posted: 26 Mar 2016 at 3:26pm

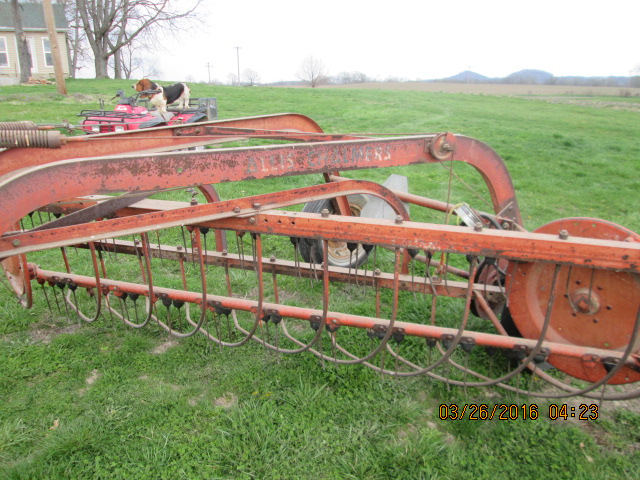

Here is a pic. of my 77G....
190XT 2WD45 WF D15 D14 CA BIG10 302 & 303 bailers 77G rake 80R mower 6 plows and alot more
Back to Top
AJ View Drop Down
Orange Level
Orange Level


Joined: 31 Oct 2010
Location: mo
Points: 5244 		Post Options Post Options   Thanks (0) Thanks(0)   Quote AJ Quote  Post ReplyReply Direct Link To This Post Posted: 26 Mar 2016 at 3:51pm
Does anyone have a dealer PDF parts manual they could email me? What were the factory tire size for these?
Can't fix stupid
Back to Top
Ky.Allis View Drop Down
Orange Level
Orange Level
Avatar

Joined: 31 Jan 2010
Location: Kentucky
Points: 1012 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Ky.Allis Quote  Post ReplyReply Direct Link To This Post Posted: 26 Mar 2016 at 5:01pm
The purpose of the offset(crooked) axle is by being closer to the basket it will follow ground contour better. At least that's what NH said when they went to the offset axle. I've used both styles of NH rakes and see very little difference. I would like to have a AC rake but since parts are impossible to find I will stick to my old NH 55 rake.
Back to Top
CTuckerNWIL View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: NW Illinois
Points: 22823 		Post Options Post Options   Thanks (0) Thanks(0)   Quote CTuckerNWIL Quote  Post ReplyReply Direct Link To This Post Posted: 26 Mar 2016 at 5:12pm
My neighbor has a 77 rake and the clutch is shot on it. They put a hose clamp on it to keep it engaged and just derail the belt to take it down the road if they have to. I've been after him for years to let me tear it apart and make a new clutch for it. He just says , "it's no big deal, works OK like it is."
http://www.ae-ta.com
Lena 1935 WC12xxx, Willie 1951 CA6xx Dad bought new, 1954WD45 PS, 1960 D17 NF
Back to Top
ctbowles58 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 17 Jun 2011
Location: Clarksville, MO
Points: 2249 		Post Options Post Options   Thanks (0) Thanks(0)   Quote ctbowles58 Quote  Post ReplyReply Direct Link To This Post Posted: 26 Mar 2016 at 6:12pm
Originally posted by AJ AJ wrote:

Does anyone have a dealer PDF parts manual they could email me? What were the factory tire size for these?
I will have to look, but the tire size is either 5.00x15 or 5.50x15
190XT 2WD45 WF D15 D14 CA BIG10 302 & 303 bailers 77G rake 80R mower 6 plows and alot more
Back to Top
ctbowles58 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 17 Jun 2011
Location: Clarksville, MO
Points: 2249 		Post Options Post Options   Thanks (0) Thanks(0)   Quote ctbowles58 Quote  Post ReplyReply Direct Link To This Post Posted: 26 Mar 2016 at 6:20pm

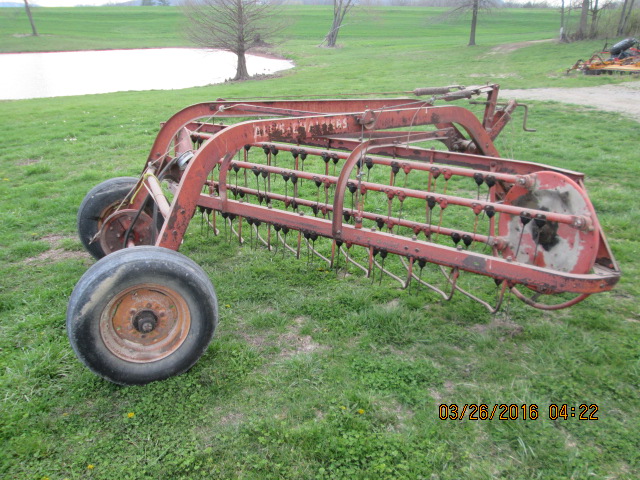

Here is a pic of the one I bought today, I got lucky it has a good clutch.
190XT 2WD45 WF D15 D14 CA BIG10 302 & 303 bailers 77G rake 80R mower 6 plows and alot more
Back to Top
Dave (NE) View Drop Down
Orange Level
Orange Level


Joined: 12 Sep 2009
Location: Eagle Nebraska
Points: 2152 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Dave (NE) Quote  Post ReplyReply Direct Link To This Post Posted: 26 Mar 2016 at 6:49pm
Well, per my 77G manual, it lists tire sizes as: 5x15, 5.90x15, 6.40x15 and 6.70x15. I'd have to go out and look at mine to see what size tires are on it, if you are interested. Let me know. Dave
Back to Top
ctbowles58 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 17 Jun 2011
Location: Clarksville, MO
Points: 2249 		Post Options Post Options   Thanks (0) Thanks(0)   Quote ctbowles58 Quote  Post ReplyReply Direct Link To This Post Posted: 26 Mar 2016 at 9:41pm

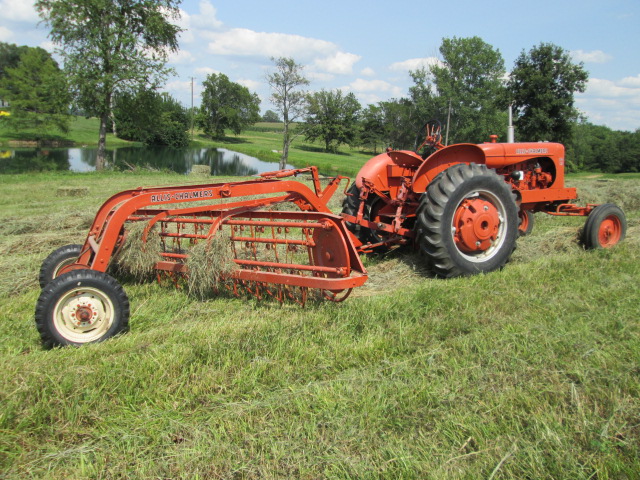

Here is a pic of a 78G
190XT 2WD45 WF D15 D14 CA BIG10 302 & 303 bailers 77G rake 80R mower 6 plows and alot more
Back to Top
Don Jr NY View Drop Down
Silver Level
Silver Level


Joined: 11 Sep 2009
Location: Waterloo NY
Points: 342 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Don Jr NY Quote  Post ReplyReply Direct Link To This Post Posted: 27 Mar 2016 at 5:33am
You have the later model 77G as others have said because it has the belt drive like the 78G. The early 77G had a chain drive to a gearbox that was on the basket similar the the New Holland setup. HTH. Don Jr.
Back to Top
ctbowles58 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 17 Jun 2011
Location: Clarksville, MO
Points: 2249 		Post Options Post Options   Thanks (0) Thanks(0)   Quote ctbowles58 Quote  Post ReplyReply Direct Link To This Post Posted: 27 Mar 2016 at 10:15am
Originally posted by ctbowles58 ctbowles58 wrote:

Here is a pic. of my 77G....
I looked at the tire size on mine and they are OEM tires and they are 5.00x15
190XT 2WD45 WF D15 D14 CA BIG10 302 & 303 bailers 77G rake 80R mower 6 plows and alot more
Back to Top
TedBuiskerN.IL. View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Davis, IL.
Points: 1959 		Post Options Post Options   Thanks (0) Thanks(0)   Quote TedBuiskerN.IL. Quote  Post ReplyReply Direct Link To This Post Posted: 27 Mar 2016 at 3:55pm
I put the 5th bar in my 77G, then went to larger tires.  Better traction, and it slowed the rake a bit which was OK with the fifth bar.  I had the same problem with the clutch wearing out and solved it the same way.  I used muffler clamps and took them loose when I needed to go down the road.
I also have a 77M with all new teeth.
Most problems can be solved with the proper application of high explosives.
Back to Top
Dave (NE) View Drop Down
Orange Level
Orange Level


Joined: 12 Sep 2009
Location: Eagle Nebraska
Points: 2152 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Dave (NE) Quote  Post ReplyReply Direct Link To This Post Posted: 27 Mar 2016 at 6:42pm
I checked the tire sizes on my 77G rake. One was apparently an old vehicle P195/75-R15 and the other an old truck tire 78-15. I don't know how all these crazy tire sizes translate, but the 78-15 stands a little higher than the other throwing off the level adjustment. I also have a 77M. The tires were shot on it when I got it and I found a couple NOS 16x6.50-8 tires and put them on. Manual says to use a 4.0 - 8 size tire, so don't know how this affects the operation of the rake. I have had trouble with the lift arms of the rake popping out of the tractor lift arm latches. Don't know if this is due to uneven ground surface, tires/tire adjustment or something else, but usually just use my 77G instead. It is a nice working rake. Dave
Back to Top
Trinity45 View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 17 Mar 2014
Location: Kentucky
Points: 1734 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Trinity45 Quote  Post ReplyReply Direct Link To This Post Posted: 28 Mar 2016 at 6:47am
We had one that looked just like that except it was chain drive, good ole rake, sold it to a man down the road, still going strong.
Back to Top
Dave (NE) View Drop Down
Orange Level
Orange Level


Joined: 12 Sep 2009
Location: Eagle Nebraska
Points: 2152 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Dave (NE) Quote  Post ReplyReply Direct Link To This Post Posted: 28 Mar 2016 at 10:39am
Yeah, my 77G is chain drive. Why did they change that and go to belt drive? Always kinda wondered why. Dave
Back to Top
CTuckerNWIL View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: NW Illinois
Points: 22823 		Post Options Post Options   Thanks (0) Thanks(0)   Quote CTuckerNWIL Quote  Post ReplyReply Direct Link To This Post Posted: 28 Mar 2016 at 4:46pm
Originally posted by Dave (NE) Dave (NE) wrote:

Yeah, my 77G is chain drive. Why did they change that and go to belt drive? Always kinda wondered why. Dave

 Maybe a couple reasons, cheaper first and second, it might lend to a "softer" drive in case something needed to slip. Just my guess.
http://www.ae-ta.com
Lena 1935 WC12xxx, Willie 1951 CA6xx Dad bought new, 1954WD45 PS, 1960 D17 NF
Back to Top
Dave (NE) View Drop Down
Orange Level
Orange Level


Joined: 12 Sep 2009
Location: Eagle Nebraska
Points: 2152 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Dave (NE) Quote  Post ReplyReply Direct Link To This Post Posted: 28 Mar 2016 at 7:01pm
Some pix of the 77M
Back to Top
Dave (NE) View Drop Down
Orange Level
Orange Level


Joined: 12 Sep 2009
Location: Eagle Nebraska
Points: 2152 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Dave (NE) Quote  Post ReplyReply Direct Link To This Post Posted: 28 Mar 2016 at 7:09pm
77G with chain drive
Back to Top
Tracy Martin TN View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: Gallatin,TN
Points: 10665 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Tracy Martin TN Quote  Post ReplyReply Direct Link To This Post Posted: 28 Mar 2016 at 8:17pm
Originally posted by Dave (NE) Dave (NE) wrote:

Yeah, my 77G is chain drive. Why did they change that and go to belt drive? Always kinda wondered why. Dave

You can change the speed of a belt drive by moving shims on the sheaves. HTH Tracy
No greater gift than healthy grandkids!
