Power director delete for 200
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
200puller View Drop Down
Bronze Level
Bronze Level


Joined: 28 Aug 2021
Location: Edinburg va
Points: 3 		Post Options Post Options   Thanks (0) Thanks(0)   Quote 200puller Quote  Post ReplyReply Direct Link To This Post Topic: Power director delete for 200
    Posted: 28 Aug 2021 at 4:39pm
Is there any way to delete the power director from a 200 found out it was my problem with slipping and wondering if there is a gearbox to do away with this problem thanks in advance
Back to Top
Sponsored Links


Back to Top
brad durst View Drop Down
Bronze Level
Bronze Level


Joined: 20 Aug 2018
Location: richland center
Points: 85 		Post Options Post Options   Thanks (0) Thanks(0)   Quote brad durst Quote  Post ReplyReply Direct Link To This Post Posted: 08 Sep 2021 at 11:03am
dennis at fvp has a manual shift couplers that he had made. works well thats where i got mine
Back to Top
DougG View Drop Down
Orange Level
Orange Level


Joined: 20 Sep 2009
Location: Mo
Points: 8106 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DougG Quote  Post ReplyReply Direct Link To This Post Posted: 09 Sep 2021 at 5:56pm
Id be interested in how this is done - pics would be great
Back to Top
brad durst View Drop Down
Bronze Level
Bronze Level


Joined: 20 Aug 2018
Location: richland center
Points: 85 		Post Options Post Options   Thanks (0) Thanks(0)   Quote brad durst Quote  Post ReplyReply Direct Link To This Post Posted: 09 Sep 2021 at 6:28pm
i never took pictures. i can if i have it apart again. its basically the same as years ago when they would take the power director apart and use nickel rod and weld the two gears together you have to machine the outer hollow shaft tho. the ones dennis has are made out of billet. i think there are pictures on face book on the allis pullers sight. i thought i took pictures but if i did i cant find them. my buddy has been running his for a couple years now.
Back to Top
DougG View Drop Down
Orange Level
Orange Level


Joined: 20 Sep 2009
Location: Mo
Points: 8106 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DougG Quote  Post ReplyReply Direct Link To This Post Posted: 11 Sep 2021 at 10:00am
Ok thanks for the info
Back to Top
KevinON View Drop Down
Orange Level
Orange Level


Joined: 07 Dec 2009
Location: Schomberg, ON
Points: 786 		Post Options Post Options   Thanks (0) Thanks(0)   Quote KevinON Quote  Post ReplyReply Direct Link To This Post Posted: 08 Jan 2022 at 6:23am
So can you still shift with this set up? I mean shift manually when stopped?
Back to Top
brad durst View Drop Down
Bronze Level
Bronze Level


Joined: 20 Aug 2018
Location: richland center
Points: 85 		Post Options Post Options   Thanks (0) Thanks(0)   Quote brad durst Quote  Post ReplyReply Direct Link To This Post Posted: 21 Jan 2022 at 2:30pm
yes it is a manual shifting coupler that can only be shifted with the engine off
Back to Top
DougG View Drop Down
Orange Level
Orange Level


Joined: 20 Sep 2009
Location: Mo
Points: 8106 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DougG Quote  Post ReplyReply Direct Link To This Post Posted: 21 Jan 2022 at 2:51pm
Like some pictures !
Back to Top
brad durst View Drop Down
Bronze Level
Bronze Level


Joined: 20 Aug 2018
Location: richland center
Points: 85 		Post Options Post Options   Thanks (0) Thanks(0)   Quote brad durst Quote  Post ReplyReply Direct Link To This Post Posted: 22 Jan 2022 at 2:59pm
Back to Top
DougG View Drop Down
Orange Level
Orange Level


Joined: 20 Sep 2009
Location: Mo
Points: 8106 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DougG Quote  Post ReplyReply Direct Link To This Post Posted: 23 Jan 2022 at 9:26am
Hey thats neat, thanks
Back to Top
estout81 View Drop Down
Bronze Level
Bronze Level


Joined: 15 Mar 2022
Location: Utica Ohio
Points: 34 		Post Options Post Options   Thanks (0) Thanks(0)   Quote estout81 Quote  Post ReplyReply Direct Link To This Post Posted: 27 Mar 2022 at 2:24pm
I made a power director delete back in the late '70's that worked well. Would post pictures if I new how but, I' new to this forum.
Back to Top
DougG View Drop Down
Orange Level
Orange Level


Joined: 20 Sep 2009
Location: Mo
Points: 8106 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DougG Quote  Post ReplyReply Direct Link To This Post Posted: 27 Mar 2022 at 2:32pm
Youll figure it out - keep trying
Back to Top
estout81 View Drop Down
Bronze Level
Bronze Level


Joined: 15 Mar 2022
Location: Utica Ohio
Points: 34 		Post Options Post Options   Thanks (0) Thanks(0)   Quote estout81 Quote  Post ReplyReply Direct Link To This Post Posted: 27 Mar 2022 at 3:17pm
uploads/22870/Scan_20220316_4.jpg
Back to Top
estout81 View Drop Down
Bronze Level
Bronze Level


Joined: 15 Mar 2022
Location: Utica Ohio
Points: 34 		Post Options Post Options   Thanks (0) Thanks(0)   Quote estout81 Quote  Post ReplyReply Direct Link To This Post Posted: 27 Mar 2022 at 3:19pm

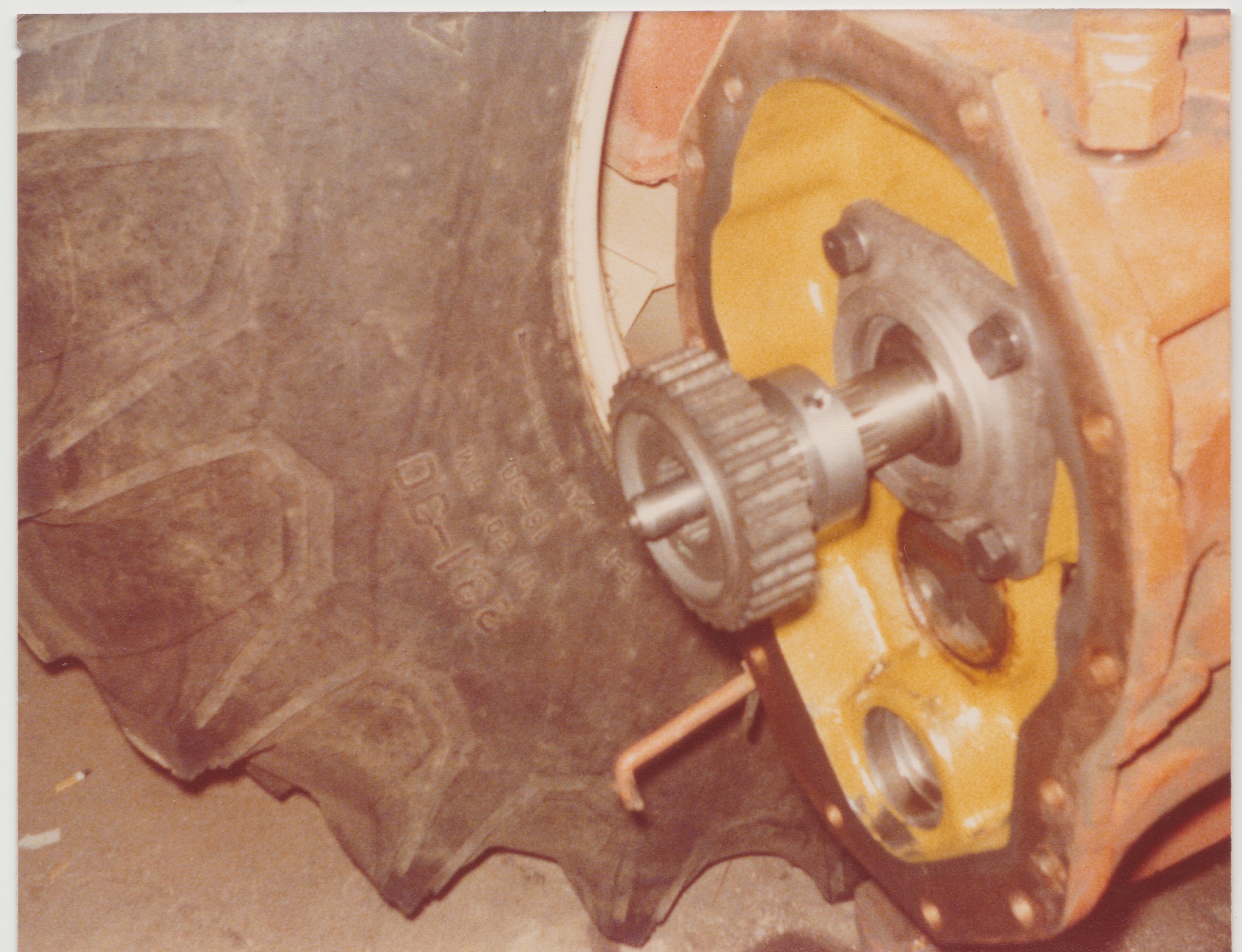

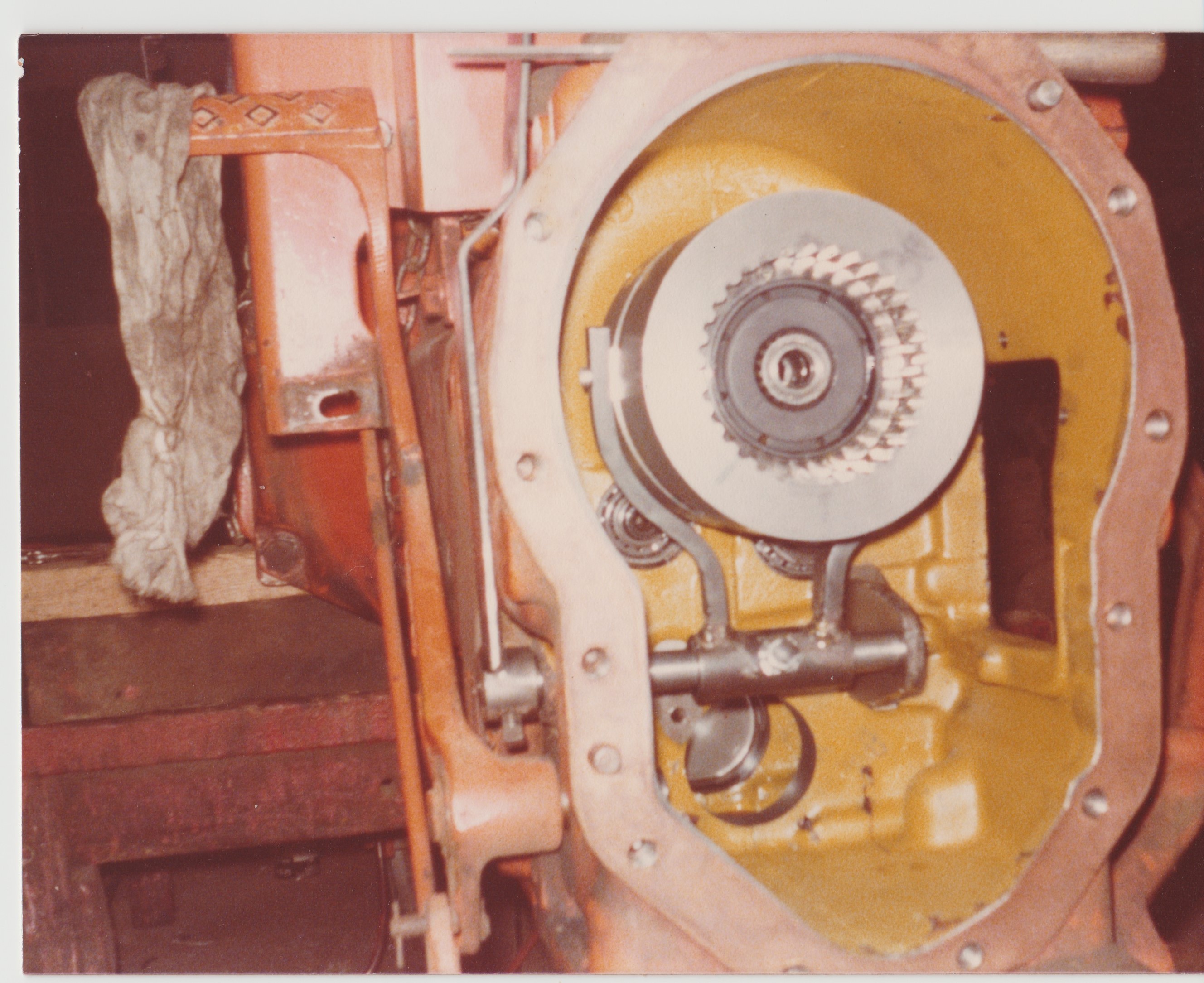

uploads/22870/Scan_20220316.jpguploads/22870/Scan_20220316_2.jpguploads/22870/Scan_20220316_3.jpg
Back to Top
DougG View Drop Down
Orange Level
Orange Level


Joined: 20 Sep 2009
Location: Mo
Points: 8106 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DougG Quote  Post ReplyReply Direct Link To This Post Posted: 27 Mar 2022 at 3:46pm
Looks great! Let's hear some history on this design!
Back to Top
estout81 View Drop Down
Bronze Level
Bronze Level


Joined: 15 Mar 2022
Location: Utica Ohio
Points: 34 		Post Options Post Options   Thanks (0) Thanks(0)   Quote estout81 Quote  Post ReplyReply Direct Link To This Post Posted: 27 Mar 2022 at 4:13pm
Doug G,

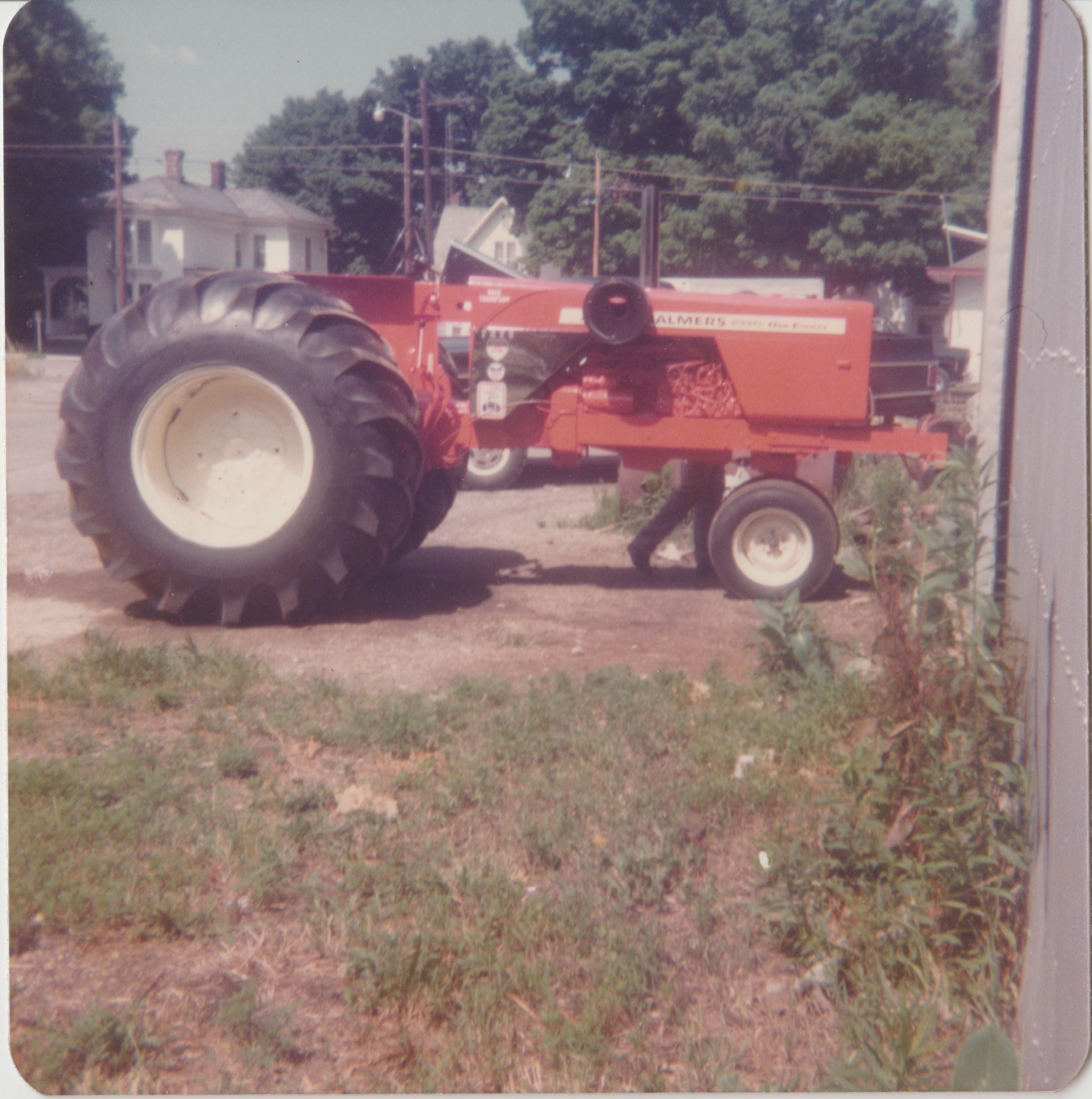

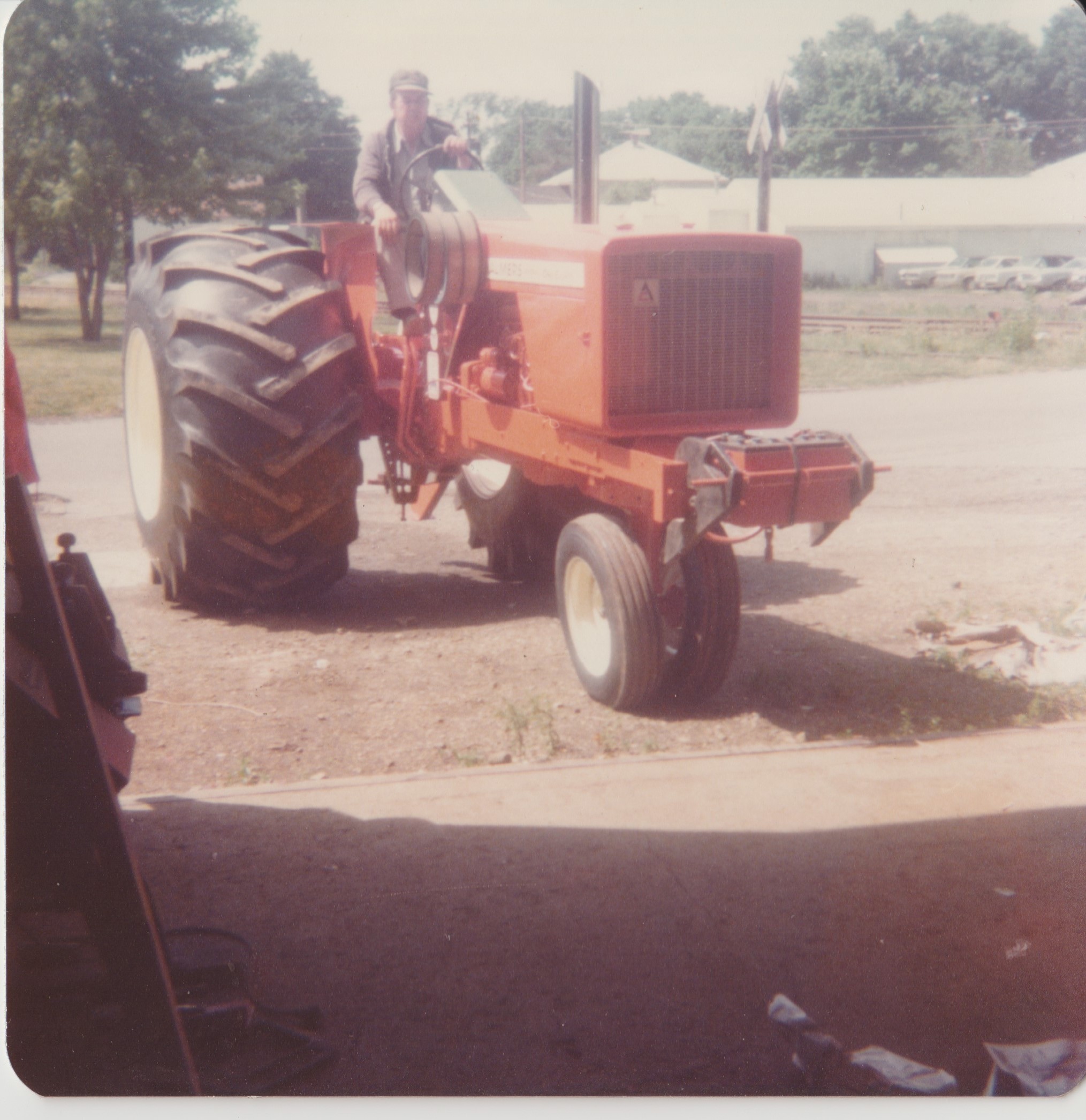

I designed and built this unit back in 1976, I think. Gettin' old and can't remember! It was an 180 that I built for a local farmer. He called it "Little Allis. Won state and national championship in I think 1978. If you look at the front end you will see a modified Oliver 60 front end. Later had to make a wide front due to rule changes. I was also the first to put a Bosch inline pump in place of the rosamaster in the stock location. The power director shifter is a sore subject for me. That's another story!
                                                     Em
Back to Top
DougG View Drop Down
Orange Level
Orange Level


Joined: 20 Sep 2009
Location: Mo
Points: 8106 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DougG Quote  Post ReplyReply Direct Link To This Post Posted: 27 Mar 2022 at 7:14pm
Wow! Very nice! Thanks for the info! Bet that 301 was singing a nice tune!
Back to Top
NEVER green View Drop Down
Orange Level Access
Orange Level Access


Joined: 28 Feb 2013
Location: MN.
Points: 7490 		Post Options Post Options   Thanks (0) Thanks(0)   Quote NEVER green Quote  Post ReplyReply Direct Link To This Post Posted: 28 Mar 2022 at 10:30am

  Inside splines, nobody around here locally can do them.  Looks nice.
2-8050 1-7080 6080 D-19 modelE & A 7040   R50
Back to Top
DougG View Drop Down
Orange Level
Orange Level


Joined: 20 Sep 2009
Location: Mo
Points: 8106 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DougG Quote  Post ReplyReply Direct Link To This Post Posted: 28 Mar 2022 at 6:38pm
Emerson, what was you guys using for the engine clutch back then ?
