 Topic: Model B Steering Support pin
Posted: 21 Jul 2015 at 7:01pm |

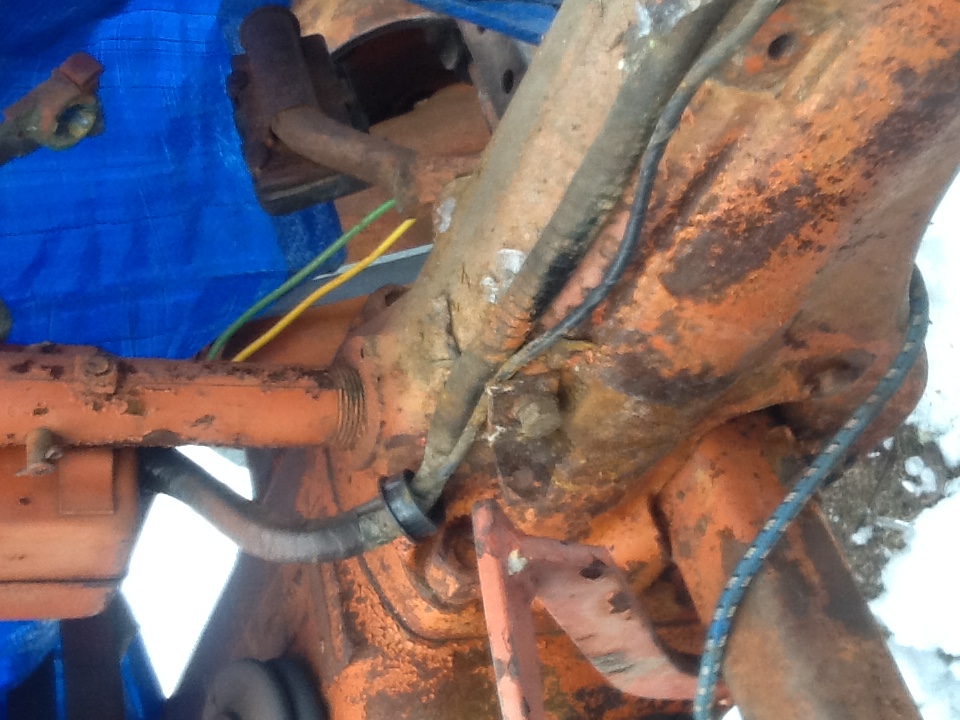

Anyone know what this pin behind the control box is for? It goes through the steering support tube, has cotter pins on either side. It's not drilled for the choke rod. Any ideas? It is at the very top of the picture. Thanks!
|
 |
|
Sponsored Links
|
|
|
1939Dodge
Orange Level
Joined: 18 Jan 2014
Location: Pa.
Points: 553
|
Post Options
Thanks(0)
Quote Reply
Posted: 21 Jul 2015 at 7:02pm |
|
I hate this laptop...
The pin is at the very far left in the otherwise turned over picture....
|
|
Chalmersbob
Orange Level
Joined: 11 Sep 2009
Location: Pennsylvania
Points: 2122
|
Post Options
Thanks(0)
Quote Reply
Posted: 21 Jul 2015 at 9:03pm |
|
I never saw that before. Mine have a bolt and nut and the ground strap is mounted on the other side. Bob
|
|
4 B's, 1 C's,3 CA's, 2 G's WD, D14, D15, B-1, B10, B12, 712S,
|
|
Rog(NCWI)
Orange Level
Joined: 12 Sep 2009
Location: Aniwa.WI
Points: 243
|
Post Options
Thanks(0)
Quote Reply
Posted: 21 Jul 2015 at 9:32pm |
|
That is where the grounding strap is attach to when you have starter and lights on your tractor.
|
|
1939Dodge
Orange Level
Joined: 18 Jan 2014
Location: Pa.
Points: 553
|
Post Options
Thanks(0)
Quote Reply
Posted: 22 Jul 2015 at 6:52am |
|
The battery ground isn't in the picture, but it's above the control box. Does the starter have a separate ground? I thought it grounded through the frame...
|
|
Chalmersbob
Orange Level
Joined: 11 Sep 2009
Location: Pennsylvania
Points: 2122
|
Post Options
Thanks(0)
Quote Reply
Posted: 22 Jul 2015 at 9:20pm |
|
Yes, the starter is grounded through the torque tube. but the battery is grounded to the post in your picture with a bolt and nut. After the old rust and paint are removed. LOL Bob
|
|
4 B's, 1 C's,3 CA's, 2 G's WD, D14, D15, B-1, B10, B12, 712S,
|
|
Ken in Texas
Orange Level
Joined: 11 Sep 2009
Location: Henderson, TX
Points: 5919
|
Post Options
Thanks(0)
Quote Reply
Posted: 23 Jul 2015 at 5:47am |
|
Could be the B may have been a handcranker at one time. The steering support post on a handcrank is drilled with a different set of holes than one with electric start. The throttle Quadrant on a handcranker was mounted where the electric box is mounted on a electric start B.
|
|
john2189
Silver Level
Joined: 11 Sep 2009
Location: Minerva,Ohio
Points: 290
|
Post Options
Thanks(0)
Quote Reply
Posted: 24 Jul 2015 at 3:56pm |
|
The battery box has a tab that is bolted there on my 41 and 42
John
|
|
'41 Allis B
'45 Allis B
'49 Farmall Cub
'72 IH Cub
|
|
