How manay spleene on pump shaft
|
 |
|
Sponsored Links
|
|
|
Ray54
Orange Level Access
Joined: 22 Nov 2009
Location: Paso Robles, Ca
Points: 4547
|
Post Options
Thanks(0)
Quote Reply
Posted: 17 Aug 2022 at 10:17am |
Thanks for explaining farther Codger. I just wanted to make sure the problem did not get bigger.
Mel you have it, but even more you found it and got pictures over her too.
Edited by Ray54 - 17 Aug 2022 at 10:18am
|
|
AC Mel
Orange Level Access
Joined: 23 Jan 2010
Location: N.Ca.
Points: 1101
|
Post Options
Thanks(0)
Quote Reply
Posted: 17 Aug 2022 at 11:10am |
Yes...I was going to mention to Cal...we started buying those books probably 20 years ago on ebay....they were cheap to almost free....we bought everything we could get our hands on if we thought we didn't have it.....brochures..flyers...service bulletins...parts ...service...Garwood..Caro...Baker. People were cleaning there shelves and we filled ours up. It's all gone now..seems like...occasionally some will show up...and of course there's lots of the common stuff that's helpful...but sellers appear to be emotionally attached to it...probably not having a clue what it's for. Don't know if I'll ever get it all sorted...but it's fun to look through it if I think It will help someone.
Hector...not sure about the pump splines...looking at the book of the picture I posted...it appears the pump shaft is plain and keyed to match a splined insert (2) to the drive shaft yoke. Looks like the splined insert might be 10 splines.....but we don't know if that's what he has...can't tell by the pictures he has posted
|
|
danny1954
Bronze Level
Joined: 15 Aug 2022
Location: texas
Points: 32
|
Post Options
Thanks(0)
Quote Reply
Posted: 17 Aug 2022 at 11:13am |
|
thank you for the help. is there a picture i could take that would give you a better idea of what we are looking at?? i greatly appreciate all of the help
|
|
AC Mel
Orange Level Access
Joined: 23 Jan 2010
Location: N.Ca.
Points: 1101
|
Post Options
Thanks(0)
Quote Reply
Posted: 17 Aug 2022 at 2:59pm |

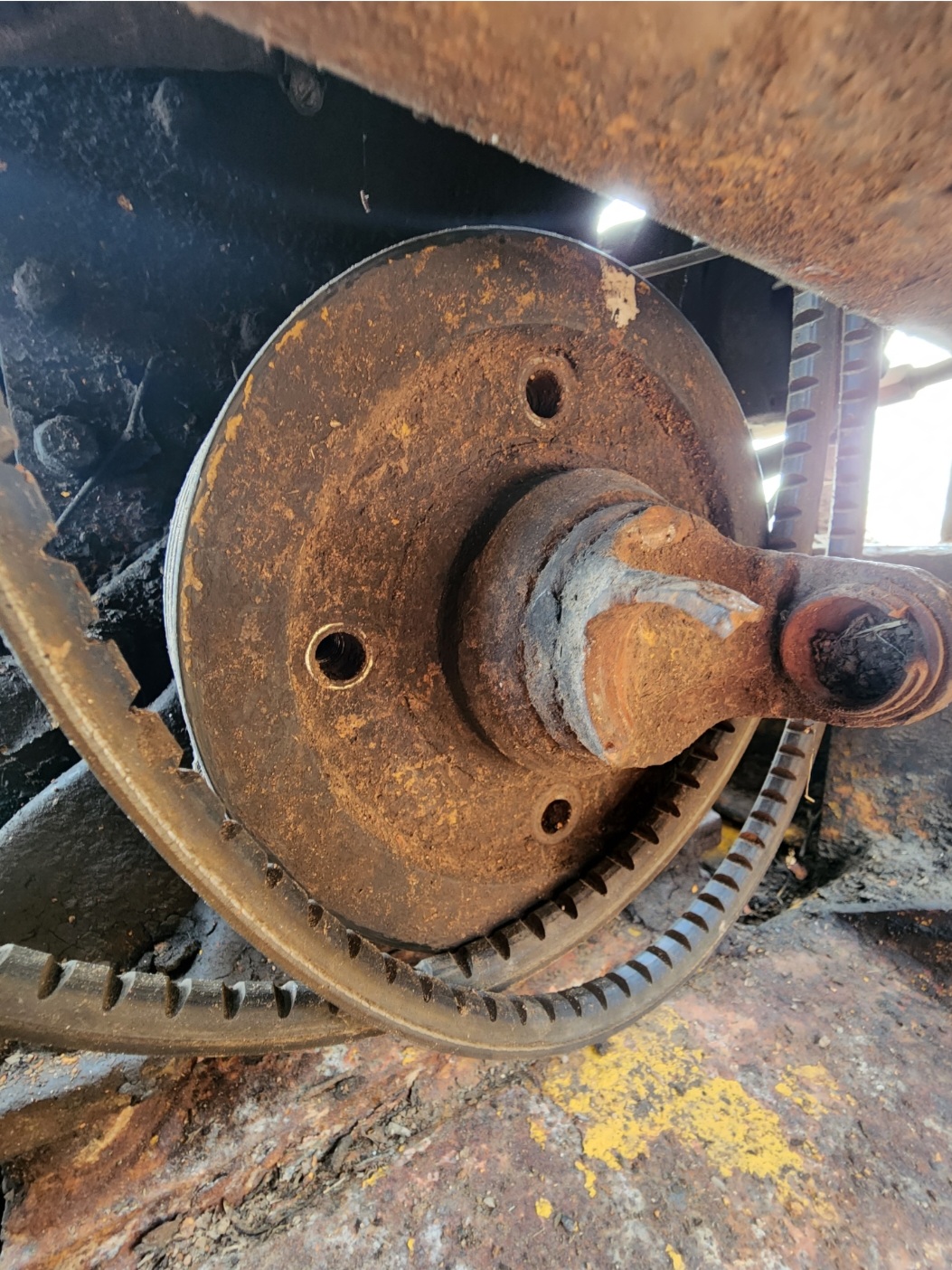

Danny...I think Hector (GEMDOZER) was thinking he might have some parts that would help you...was interested in how many splines on the pump? Can you get the yoke of the end of the pump and take pictures of the pump or those parts maybe? Here are pictures of an HD9 crankshaft pulley...it should be the same as yours....all the HD9s should have come to there dealers with no blades...so all of these were the same. 1 picture is straight on....one a little from the side hoping to show some depth...as per Cal...it covers the bolt that holds the pulley on.....and of course someone might have modified something in the last 60 years....that would of course void the warranty...LOL
|
|
danny1954
Bronze Level
Joined: 15 Aug 2022
Location: texas
Points: 32
|
Post Options
Thanks(0)
Quote Reply
Posted: 18 Aug 2022 at 8:03am |

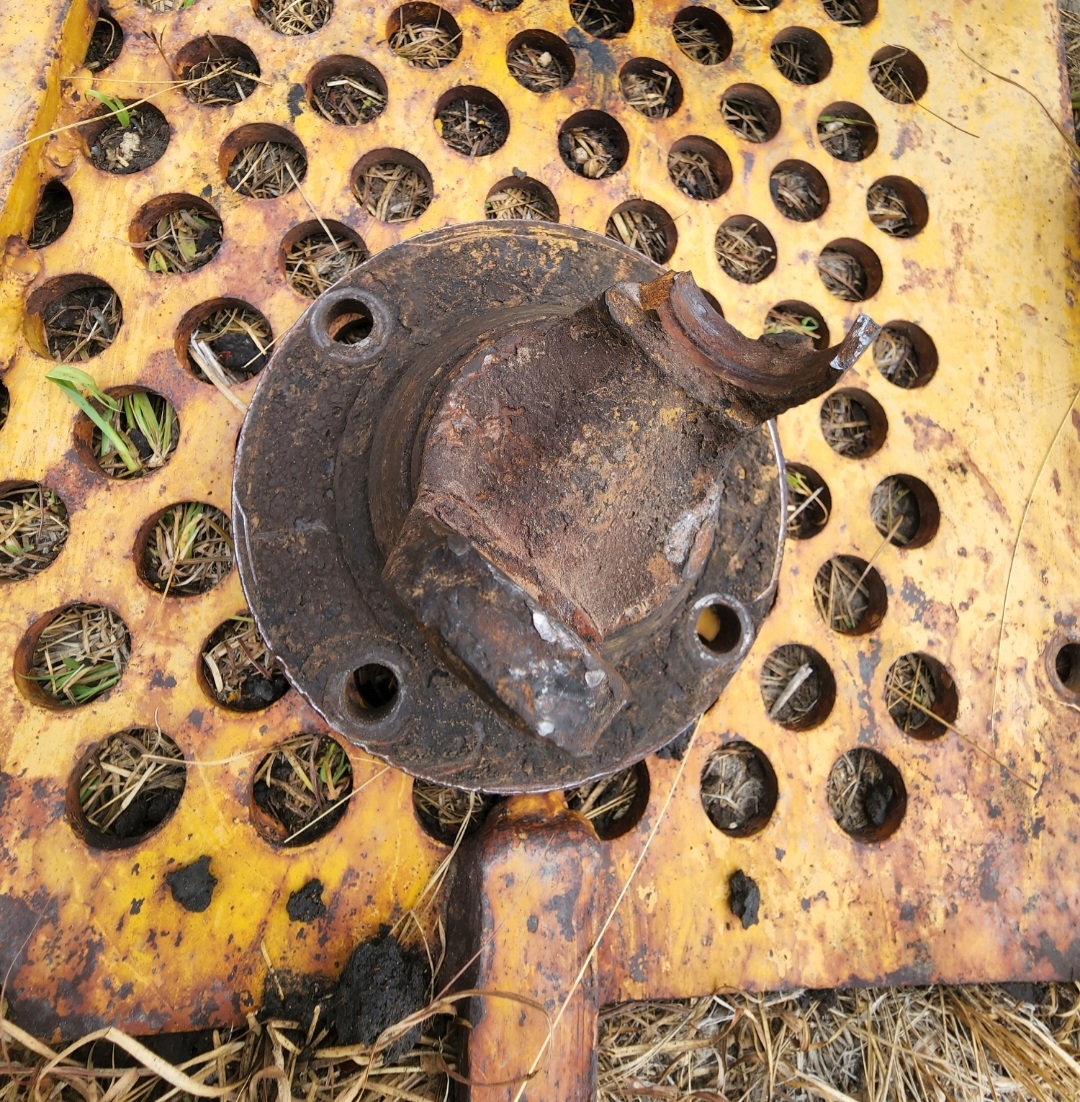

so mine does not have the bolt on the front of the crankshaft like your picture. mine has the u joint that is broken off and i do not know how to remove it. that is the problem
|
|
Codger
Orange Level
Joined: 23 Dec 2020
Location: Utopia
Points: 2041
|
Post Options
Thanks(1)
Quote Reply
Posted: 18 Aug 2022 at 8:09am |
|
I think you do have the setup Mel shows but it is behind the plate the broken part is attached to. From the side smack the broken u joint flange on both sides and that front plate should start to break free. Rust is holding it fast in place.
|
|
Lee Bradley
Bronze Level
Joined: 13 Oct 2009
Location: Kingston, WA
Points: 117
|
Post Options
Thanks(0)
Quote Reply
Posted: 18 Aug 2022 at 10:06am |
|
Welded to the bolt? Maybe try unsrcewing it. Didn't think 'B's were that early.
|
|
danny1954
Bronze Level
Joined: 15 Aug 2022
Location: texas
Points: 32
|
Post Options
Thanks(0)
Quote Reply
Posted: 18 Aug 2022 at 2:02pm |
by george we got it!!!!! thank you thank you thank you for the tips. Codger it broke loose just like you said it would
|
|
danny1954
Bronze Level
Joined: 15 Aug 2022
Location: texas
Points: 32
|
Post Options
Thanks(0)
Quote Reply
Posted: 18 Aug 2022 at 2:03pm |
|
|
|
danny1954
Bronze Level
Joined: 15 Aug 2022
Location: texas
Points: 32
|
Post Options
Thanks(0)
Quote Reply
Posted: 18 Aug 2022 at 2:04pm |
|
|
|
danny1954
Bronze Level
Joined: 15 Aug 2022
Location: texas
Points: 32
|
Post Options
Thanks(0)
Quote Reply
Posted: 18 Aug 2022 at 2:04pm |
|
|
|
danny1954
Bronze Level
Joined: 15 Aug 2022
Location: texas
Points: 32
|
Post Options
Thanks(0)
Quote Reply
Posted: 18 Aug 2022 at 2:06pm |
|

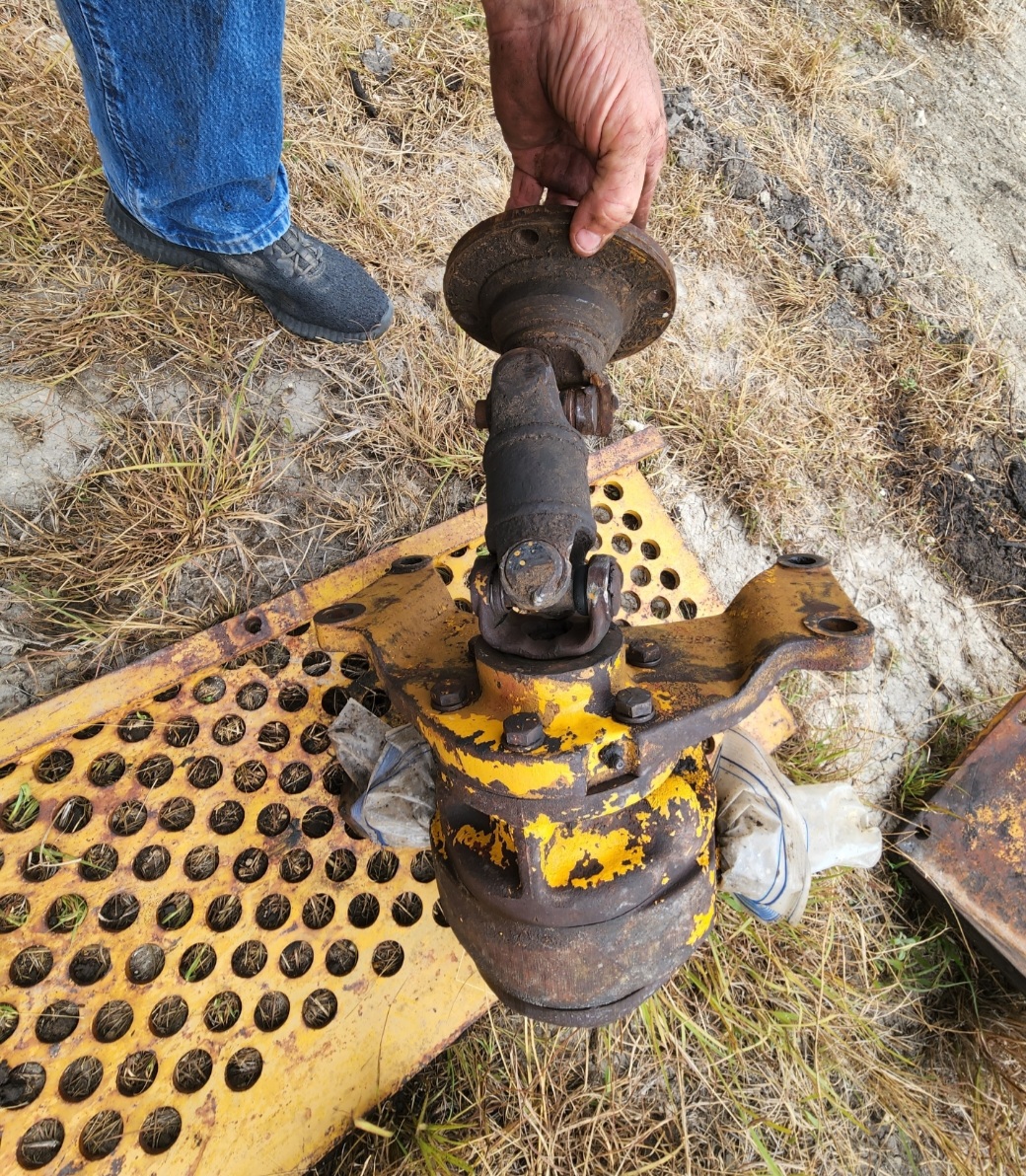

anybody have this whole driveshaft with the fittings on both ends they are looking to get rid of. Need the shaft, 2 ujoints, and both ends! see pics
|
|
Codger
Orange Level
Joined: 23 Dec 2020
Location: Utopia
Points: 2041
|
Post Options
Thanks(0)
Quote Reply
Posted: 18 Aug 2022 at 2:39pm |
|
Thank you to AC Mel for tipping me off and thanks to you for the follow up.
|
|
AC Mel
Orange Level Access
Joined: 23 Jan 2010
Location: N.Ca.
Points: 1101
|
Post Options
Thanks(0)
Quote Reply
Posted: 18 Aug 2022 at 8:48pm |
|
Danny....were getting close....I'm still curious about the end of the yoke that goes into the pump? Can you get that off...lets see how that looks...splines...straight shaft with keyway? If we can see that then everyone knows what you need. Hector (Gemdozer) said he might have some parts...and if not....I know Codger and I would concur with Cal that all of that could be fabricated up pretty easy.
|
|
Lee Bradley
Bronze Level
Joined: 13 Oct 2009
Location: Kingston, WA
Points: 117
|
Post Options
Thanks(0)
Quote Reply
Posted: 18 Aug 2022 at 9:20pm |
|
You can see the grease fitting on the housing to grease the shaft going through that housing. Pull those six bolts and split the house off the pump.
|
|
danny1954
Bronze Level
Joined: 15 Aug 2022
Location: texas
Points: 32
|
Post Options
Thanks(0)
Quote Reply

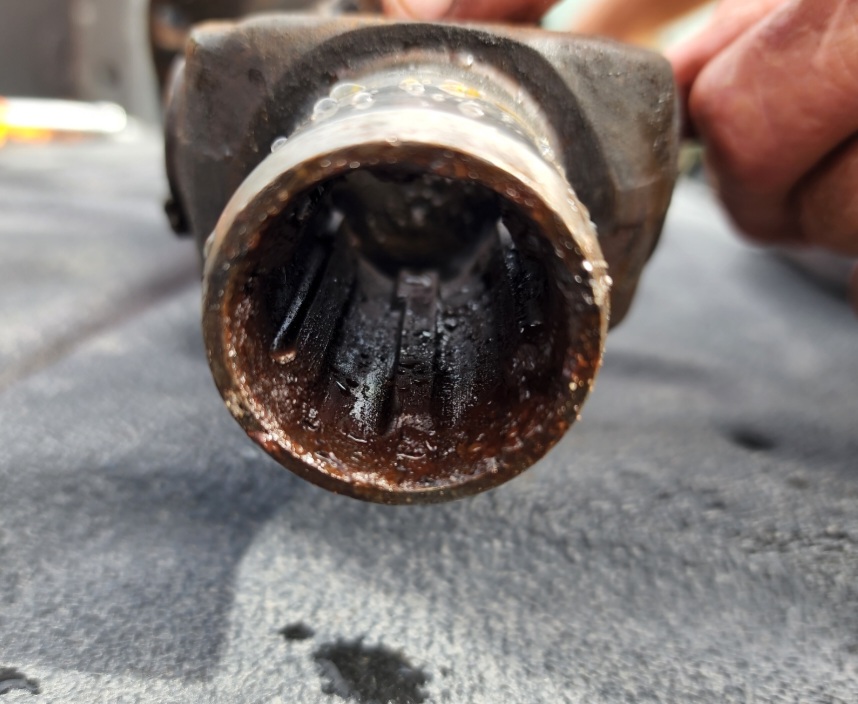

Posted: 19 Aug 2022 at 10:56am |
|
|
|
danny1954
Bronze Level
Joined: 15 Aug 2022
Location: texas
Points: 32
|
Post Options
Thanks(0)
Quote Reply
Posted: 19 Aug 2022 at 10:57am |
|
|
|
danny1954
Bronze Level
Joined: 15 Aug 2022
Location: texas
Points: 32
|
Post Options
Thanks(0)
Quote Reply
Posted: 19 Aug 2022 at 10:58am |
|
|
|
danny1954
Bronze Level
Joined: 15 Aug 2022
Location: texas
Points: 32
|
Post Options
Thanks(0)
Quote Reply
Posted: 19 Aug 2022 at 10:59am |
|
|
|
danny1954
Bronze Level
Joined: 15 Aug 2022
Location: texas
Points: 32
|
Post Options
Thanks(0)
Quote Reply
Posted: 19 Aug 2022 at 10:59am |
|
|
|
Codger
Orange Level
Joined: 23 Dec 2020
Location: Utopia
Points: 2041
|
Post Options
Thanks(0)
Quote Reply
Posted: 19 Aug 2022 at 11:02am |
|
If'n it were me, and looking at those splines, I'd replace the pump also as it's splines are also beaten upon. The original pump may have parts available and could be rebuilt; this is possibility also.
|
|
gemdozer
Orange Level
Joined: 17 Sep 2009
Points: 989
|
Post Options
Thanks(0)
Quote Reply
Posted: 19 Aug 2022 at 2:56pm |
|
I recheck tomorrow for a 6 spleene yoke
|
|
gemdozer
Orange Level
Joined: 17 Sep 2009
Points: 989
|
Post Options
Thanks(0)
Quote Reply
Posted: 20 Aug 2022 at 8:49am |
|
you could gogul yoke and joint the should have new parts and in 3701 holmes road in houston +713-731-0030
|
|
doctorcorey
Orange Level
Joined: 17 Jul 2011
Location: S. KC Missouri
Points: 589
|
Post Options
Thanks(0)
Quote Reply
Posted: 10 Sep 2022 at 10:38pm |
|
What other AC crawlers used this driveshaft setup?
|
|
