Disc brakes |
Post Reply |
Author | |
Acllss puller
Bronze Level Joined: 02 Oct 2013 Location: Ny Points: 181 |
Post Options
Thanks(0)
Posted: 04 Mar 2016 at 9:09pm |
What are you guys using for a hubs to use as disc brakes on a190 rear end and how big of a diameter rotor can be used. Any ideas would be helpful thanks.I was thinking of machining the factory hub off then drilling it for whatever rotor we use.
|
|
Sponsored Links | |
DrAllis
Orange Level Access Joined: 12 Sep 2009 Points: 20191 |
Post Options
Thanks(0)
|
That would be OK fine. Use the largest diameter you can for best results.
|
|
Larry W.
Silver Level Joined: 07 Nov 2010 Location: Luck, WI Points: 280 |
Post Options
Thanks(0)
|
I just saw a settup on a 190 today, they utilized crower clutch discs for the rotors , worked really well, and a very successful tractor.
|
|
bsallis180
Silver Level Joined: 29 Jul 2013 Location: Pennsylvania Points: 209 |
Post Options
Thanks(0)
|
http://www.allischalmers.com/forum/forum_posts.asp?TID=67825&title=190-brakes
|
|
Acllss puller
Bronze Level Joined: 02 Oct 2013 Location: Ny Points: 181 |
Post Options
Thanks(0)
|
Brett did you post something or pics didn't come through
|
|
bsallis180
Silver Level Joined: 29 Jul 2013 Location: Pennsylvania Points: 209 |
Post Options
Thanks(0)
|
Just a link of a old thred " copy and paste" Not sure how to make it a "true" link
|
|
bradley6874
Orange Level Joined: 05 Sep 2010 Location: salisbury md Points: 1344 |
Post Options
Thanks(0)
|
I asked about this that was the post from the past I used the old inner hub as a pattern and made an adapter to put ford Tauris rooters and calipers on used summit master cylinders they will lock the wheels up instantly
the only draw back is I have no parking brake
|
|
You can wash the dirt off the body but you can’t wash the farmer out of the heart and soul
|
|
Bob C IL
Orange Level Joined: 25 Sep 2009 Location: Paris IL Points: 369 |
Post Options
Thanks(0)
|
if I could get pics to send off phone I'd send my homemade setup and works great!!
|
|
Bob C IL
Orange Level Joined: 25 Sep 2009 Location: Paris IL Points: 369 |
Post Options
Thanks(0)
|
I could text or email if someone wants to post em
|
|
Bob C IL
Orange Level Joined: 25 Sep 2009 Location: Paris IL Points: 369 |
Post Options
Thanks(0)
|
|
|
Bob C IL
Orange Level Joined: 25 Sep 2009 Location: Paris IL Points: 369 |
Post Options
Thanks(0)
|

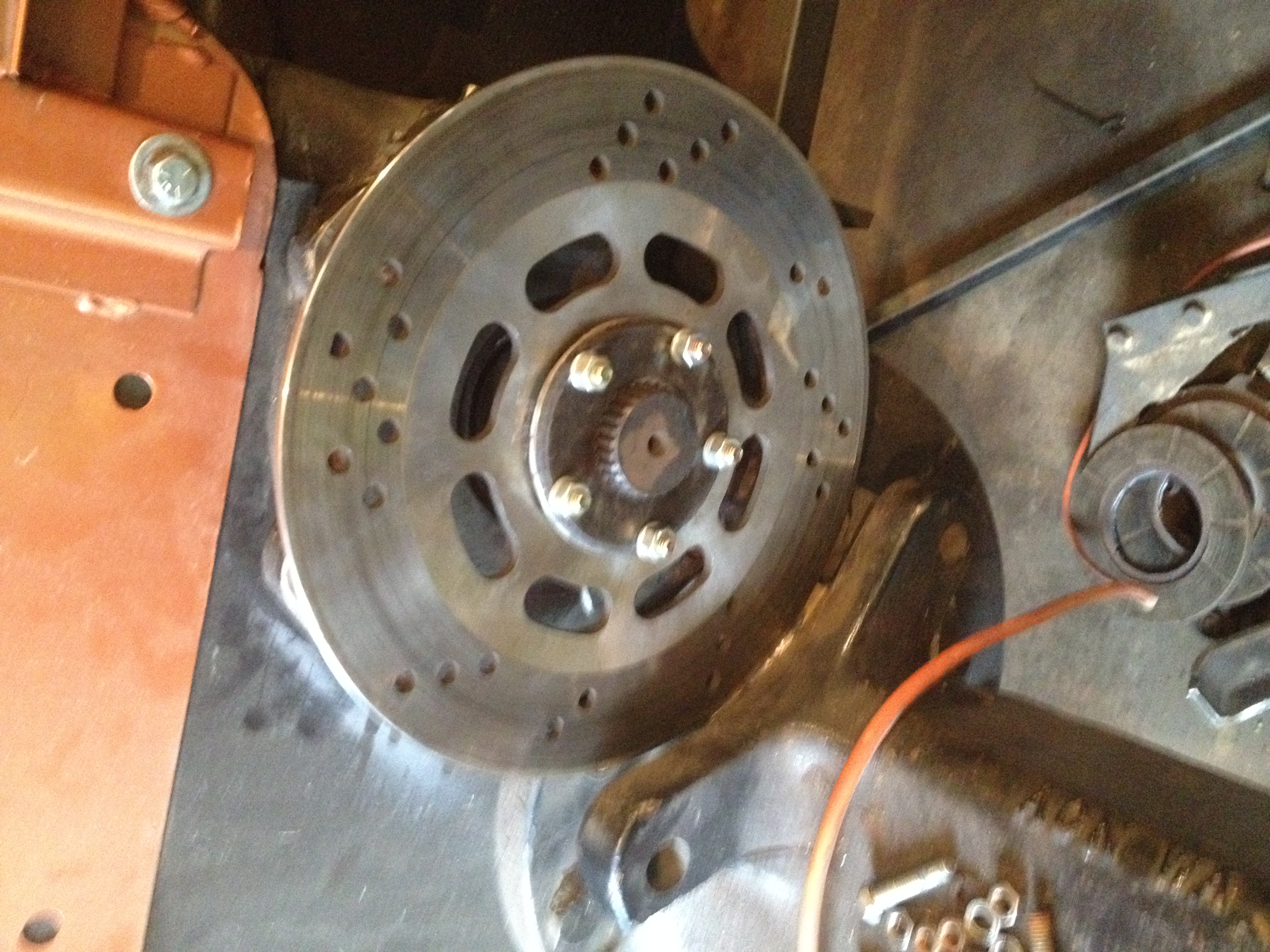

It let me do one pic only but it's Harley rotor and 4 piston caliper from a road glide and master cylinders from jegs
Edited by Bob C IL - 08 Mar 2016 at 11:47am |
|
bradley6874
Orange Level Joined: 05 Sep 2010 Location: salisbury md Points: 1344 |
Post Options
Thanks(0)
|
if I do it again I'm going to use international rotors mounted to the back of my wheel hub hopefully I will have a better feel as the current set up has induction factor
|
|
You can wash the dirt off the body but you can’t wash the farmer out of the heart and soul
|
|
AaronSEIA
Orange Level Joined: 11 Sep 2009 Location: Mt Pleasant, IA Points: 2543 |
Post Options
Thanks(0)
|
You could put a microlock in to have a park brake, couldn't you?
AaronSEIA |
|
MACK
Orange Level Joined: 17 Nov 2009 Points: 7664 |
Post Options
Thanks(0)
|
I used rooters from VW rabbit bolted to 190 disc splines. MACK
|
|
