Hello,

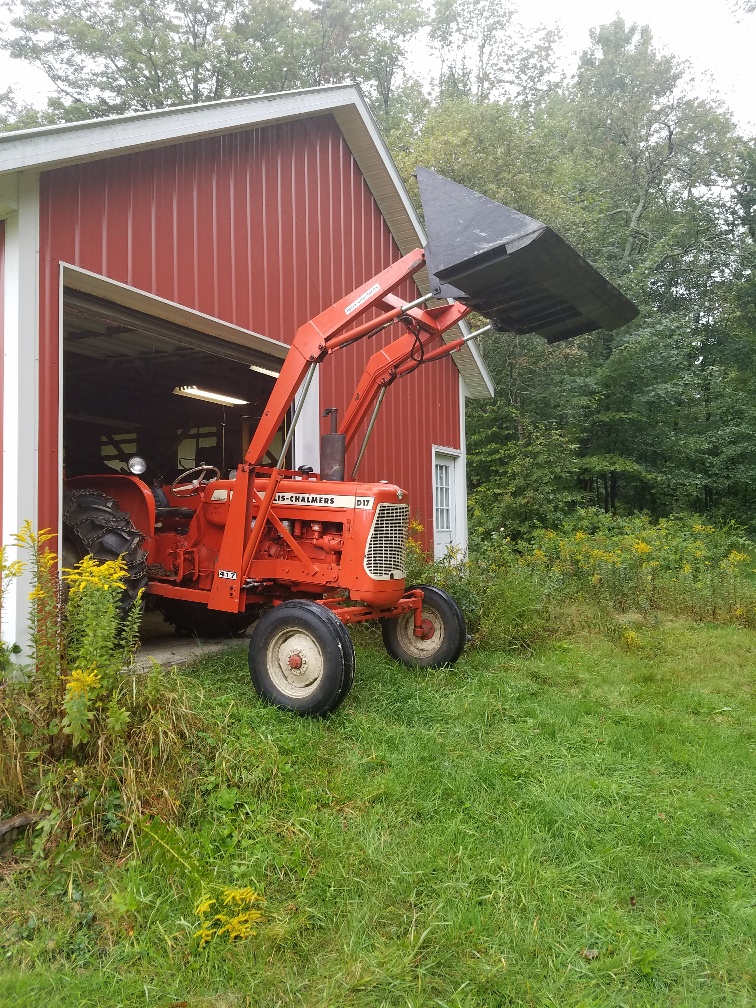

My father owns a 1967 D17 Series IV. It has live hydraulics and a 417 front end loader.
http://williampowell.net/images/d17/D17S4.jpg

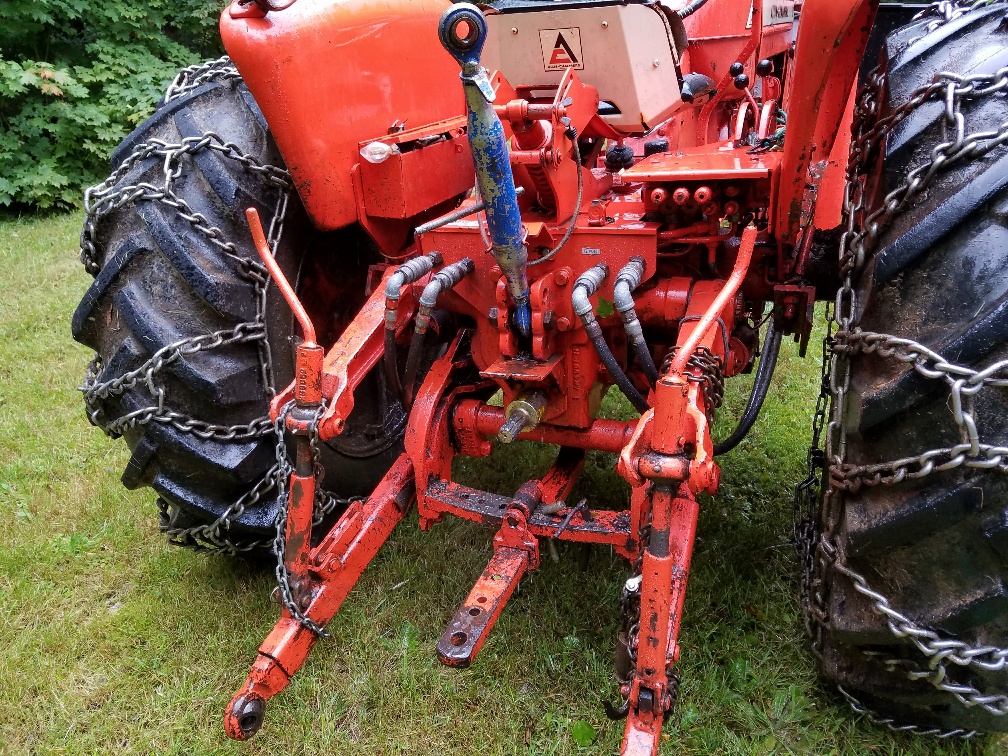

He bought a 3pt log splitter and connected the splitter to the hydraulic coupling in the rear of the tractor.  He ran the return into the fill area of the tractors hydraulics.
http://williampowell.net/images/d17/D17Ser43pt.jpg

He's been using the splitter for years without issue. This year he got into some tough wood and pushed the splitter too hard. Two lines burst on his front end loader.

He repaired the lines and says that now the loader will only raise about 1/2 way. He says that it sounds like its laboring, he doe not believe its cavitation.  He said he filled the system back up after the lines broke.

Has he messed up the control unit? Could it be the loader's cylinders?

Any ideas?

Regards,

acisbest

	This site is not affiliated with AGCO Inc., Duluth GA., Allis-Chalmers Co., Milwaukee, WI., or any surviving or related corporate entity. All trademarks remain the property of their respective owners. All information presented herein should be considered the result of an un-moderated public forum with no responsibility for its accuracy or usability assumed by the users and sponsors of this site or any corporate entity.
	The Forum	Parts and Services	Unofficial Allis Store	Tractor Shows	Serial Numbers	History

Author	Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic
acisbest Members Profile Send Private Message Find Members Posts Add to Buddy List Bronze Level Joined: 09 Oct 2009 Location: SE, PA Points: 140	Post Options Post Reply Quote acisbest Report Post Thanks(0) Quote Reply Topic: D17 Series 4 will not raise 417 loader Posted: 18 Aug 2017 at 8:11am
	Hello, My father owns a 1967 D17 Series IV. It has live hydraulics and a 417 front end loader. http://williampowell.net/images/d17/D17S4.jpg He bought a 3pt log splitter and connected the splitter to the hydraulic coupling in the rear of the tractor. He ran the return into the fill area of the tractors hydraulics. http://williampowell.net/images/d17/D17Ser43pt.jpg He's been using the splitter for years without issue. This year he got into some tough wood and pushed the splitter too hard. Two lines burst on his front end loader. He repaired the lines and says that now the loader will only raise about 1/2 way. He says that it sounds like its laboring, he doe not believe its cavitation. He said he filled the system back up after the lines broke. Has he messed up the control unit? Could it be the loader's cylinders? Any ideas? Regards, acisbest

Sponsored Links

DrAllis Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Access Joined: 12 Sep 2009 Points: 21170	Post Options Post Reply Quote DrAllis Report Post Thanks(0) Quote Reply Posted: 18 Aug 2017 at 9:15am
	He's low on hyd oil still. Dipstick/fill hole is to the LEFT of the gearshift when sitting in the seat.

tbran Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Joined: 14 Sep 2009 Location: Paris Tn Points: 3446	Post Options Post Reply Quote tbran Report Post Thanks(0) Quote Reply Posted: 20 Aug 2017 at 2:51pm
	Tend to agree with Dr. - but what does the log splitter have to do with the loader. If the splitter is run off the remote it can't be 'pushed to hard' as the relief valve will take care of the system.
	When told "it's not the money,it's the principle", remember, it's always the money..

waltw Members Profile Send Private Message Find Members Posts Add to Buddy List Bronze Level Joined: 17 Sep 2009 Location: williston Fl Points: 39	Post Options Post Reply Quote waltw Report Post Thanks(0) Quote Reply Posted: 20 Aug 2017 at 8:22pm
	Hoses might be swapped around. Two lines failed if one was for cylinders lifting boom and the other was for tilting bucket, it's possible the two lines were switched by mistake during reassembling. Mystery still is how lines failed while log splitter was being used.

Too Tall Members Profile Send Private Message Find Members Posts Add to Buddy List Bronze Level Joined: 18 Sep 2016 Location: Illinois Points: 43	Post Options Post Reply Quote Too Tall Report Post Thanks(0) Quote Reply Posted: 28 Aug 2017 at 9:57pm
	I don't know if it is normal but on my D17 series !V I have to overfill the hyd. oil according to the dip stick for my 500 loader to work properly. Fill it to the line and then add a half gal. Works great then

DonDittmar Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Joined: 15 Sep 2009 Location: MIllersburg, MI Points: 2491	Post Options Post Reply Quote DonDittmar Report Post Thanks(0) Quote Reply Posted: 29 Aug 2017 at 8:11am
	Can you show us a picture of exactly how he ran the return line and how the splitter and loader pressure lines are hooked up. Sounds like to me he has it hooked up in a way that the splitter hydraulics back fed to the loader side of the hydraulics bursting the lines. I need to see how everything is hooked up in order to verify this
	Experience is a fancy name for past mistakes. "Great moments are born from great opportunity" 1968 D15D,1962 D19D Also 1965 Cub Loboy and 1958 JD 720 Diesel Pony Start

JC-WI Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Access Joined: 11 Sep 2009 Location: wisconsin Points: 34037	Post Options Post Reply Quote JC-WI Report Post Thanks(0) Quote Reply Posted: 29 Aug 2017 at 11:07am
	Think he was lines hooked wrong when replacing hoses... You say he has the return line running back to the fill hole... so did he just remove one loader line and then pressure that one line to run through another valve for splitter? Or did he T into a loader line for the wood spitter power, I see the bucket rolled backwards. Something sures not right.
	He who says there is no evil has already deceived himself The truth is the truth, sugar coated or not. Trawler II says, "Remember that."

DrAllis Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Access Joined: 12 Sep 2009 Points: 21170	Post Options Post Reply Quote DrAllis Report Post Thanks(0) Quote Reply Posted: 29 Aug 2017 at 12:20pm
	There are TWO full marks on a D-17 IV hydraulic dipstick. Always use the higher full mark and disregard the lower mark.

acisbest Members Profile Send Private Message Find Members Posts Add to Buddy List Bronze Level Joined: 09 Oct 2009 Location: SE, PA Points: 140	Post Options Post Reply Quote acisbest Report Post Thanks(0) Quote Reply Posted: 11 Sep 2017 at 10:48am
	Was up at our cabin and had a chance to look at the tractor. Checked the fluid, was a little low, but still reading on the dipstick. Filled it. Started it up and found that it was binding, not starving for fluid on the up movement. Followed the lines to the rear connectors. The out pressure line was secure. The return line was in the connector but it was not fully in. Tried pushing it in but the pressure was too great from binding. Hit the nub on the line with a hammer a few times which released most of the high pressure. Then I pushed the tab on the side of the frame and relieved all of the pressure. It coupled right in and everything is working fine now. Thanks for the help in narrowing down the problem. Regards, acisbest. Edited by acisbest - 11 Sep 2017 at 11:02am
