 Topic: D14 Linkage spring
Posted: 30 Aug 2017 at 7:06pm |
|
Trying to find a picture of where the governor linkage spring connects on the carburetor side of a D14. Any help?
|
 |
|
Sponsored Links
|
|
|
jaybmiller
Orange Level Access
Joined: 12 Sep 2009
Location: Greensville,Ont
Points: 21502
|
Post Options
Thanks(0)
Quote Reply
Posted: 30 Aug 2017 at 7:38pm |
|
There's a small hole in the rod that connects carb to govenor,closer to the carb ,maybe 4" away. The big hook end goes there, the smaller end goes around a manifold stud. Fun part is to put it on the correct stud ! one way it's full throttle, the right way it works properly.
i can NEVER remember..maybe that's why I have 4 D-14s to see what's right !
Jay
|
|
3 D-14s,A-C forklift, B-112
Kubota BX23S lil' TOOT( The Other Orange Tractor)
Never burn your bridges, unless you can walk on water
|
|
squirt239
Bronze Level
Joined: 12 May 2017
Location: Brownsburg, IN
Points: 69
|
Post Options
Thanks(0)
Quote Reply
Posted: 30 Aug 2017 at 7:49pm |
 jaybmiller wrote:
There's a small hole in the rod that connects carb to govenor,closer to the carb ,maybe 4" away. The big hook end goes there, the smaller end goes around a manifold stud. Fun part is to put it on the correct stud ! one way it's full throttle, the right way it works properly.
i can NEVER remember..maybe that's why I have 4 D-14s to see what's right !
Jay
|
Thanks Jay! This one didn't have one, so I guess I will have to figure it out!
|
|
squirt239
Bronze Level
Joined: 12 May 2017
Location: Brownsburg, IN
Points: 69
|
Post Options
Thanks(0)
Quote Reply
Posted: 31 Aug 2017 at 8:55am |
|
Does it go to the top or bottom stud?
|
|
jaybmiller
Orange Level Access
Joined: 12 Sep 2009
Location: Greensville,Ont
Points: 21502
|
Post Options
Thanks(0)
Quote Reply
Posted: 31 Aug 2017 at 9:04am |
|
whichever it fits without being to stretched.
not being 'smart' but it needs light tension, just enough but not too much...
all my D-14s have different 'springs' and 'mounting positions', sigh....
I've never seen an official, factory fresh picture of the setup either !!
Now THAT would be nice to have posted !!
Jay
|
|
3 D-14s,A-C forklift, B-112
Kubota BX23S lil' TOOT( The Other Orange Tractor)
Never burn your bridges, unless you can walk on water
|
|
dt1050
Orange Level
Joined: 05 Jul 2011
Location: central pa
Points: 1078
|
Post Options
Thanks(0)
Quote Reply
Posted: 31 Aug 2017 at 10:10am |

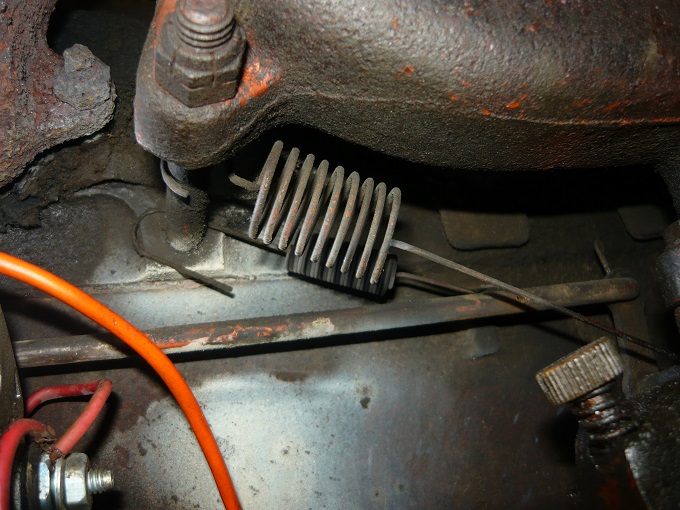

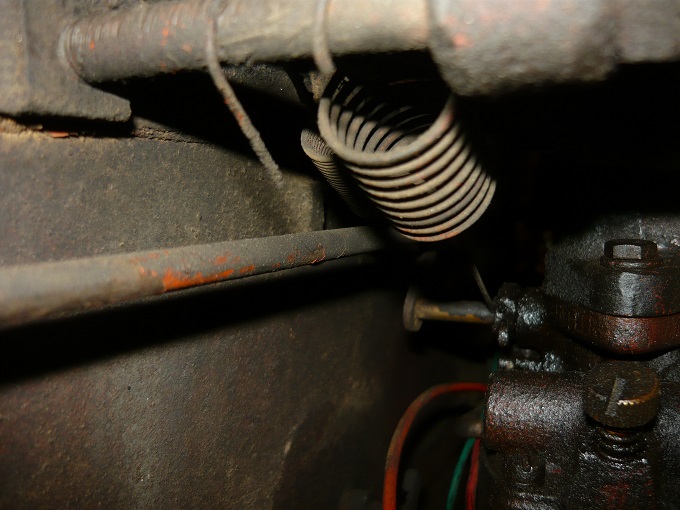

here's how it is on my 1960 d14
|
|
Just cause it's orange don't make it a tractor, there's only one..Allis Chalmers
|
|
squirt239
Bronze Level
Joined: 12 May 2017
Location: Brownsburg, IN
Points: 69
|
Post Options
Thanks(0)
Quote Reply
Posted: 31 Aug 2017 at 11:04am |
|
Awesome! That's what I needed!
|
|
mhbier
Bronze Level
Joined: 17 Feb 2015
Location: Montrose, co
Points: 33
|
Post Options
Thanks(0)
Quote Reply
Posted: 02 Mar 2024 at 4:58pm |
|
In the pic of the "governor rod linkage spring" it shows two springs. I think the inside one the "governor rod linkage spring" and is the outside one the "throttle control lever spring"? I know where the "governor rod linkage spring" connects to the little hole in the governor rod and the bolt but what is the use of the outer spring and where does it connect?
|
|
PaulB
Orange Level
Joined: 12 Sep 2009
Location: Rocky Ridge Md
Points: 4427
|
Post Options
Thanks(0)
Quote Reply
Posted: 02 Mar 2024 at 5:47pm |
The picture shown is not correct. The spring in the picture is the choke return spring, not the surge spring. People hook the spring incorrectly when they don't have the governor linkage set correctly. This happens when they go by what somebody said, instead of following the instructions in a service manual. The surge spring is a small wire spring with very low pull. It has a shepherd's hook on one end which is hooked up over the top/forward manifold stud. The other end has a tight loop that is to be connected in the hole in the governor rod that goes to the carburetor. The choke return spring shown in the picture has only a few coils with a long end and a small loop. The small loop hooks at the choke rod connection at the carburetor. The end near the coils hooks in the hole on the generator bracket.
|
|
If it was fun to pull in LOW gear, I could have a John Deere.
If you can't make it GO... make it SHINY
|
|
mhbier
Bronze Level
Joined: 17 Feb 2015
Location: Montrose, co
Points: 33
|
Post Options
Thanks(0)
Quote Reply
Posted: 05 Mar 2024 at 12:47pm |
|
Thanks, that is very helpful
|
|
DSeries4
Orange Level
Joined: 12 Sep 2009
Location: Ontario, Canada
Points: 7204
|
Post Options
Thanks(0)
Quote Reply
Posted: 05 Mar 2024 at 3:05pm |
PaulB wrote:
The picture shown is not correct. The spring in the picture is the choke return spring, not the surge spring. People hook the spring incorrectly when they don't have the governor linkage set correctly. This happens when they go by what somebody said, instead of following the instructions in a service manual. The surge spring is a small wire spring with very low pull. It has a shepherd's hook on one end which is hooked up over the top/forward manifold stud. The other end has a tight loop that is to be connected in the hole in the governor rod that goes to the carburetor. The choke return spring shown in the picture has only a few coils with a long end and a small loop. The small loop hooks at the choke rod connection at the carburetor. The end near the coils hooks in the hole on the generator bracket. |

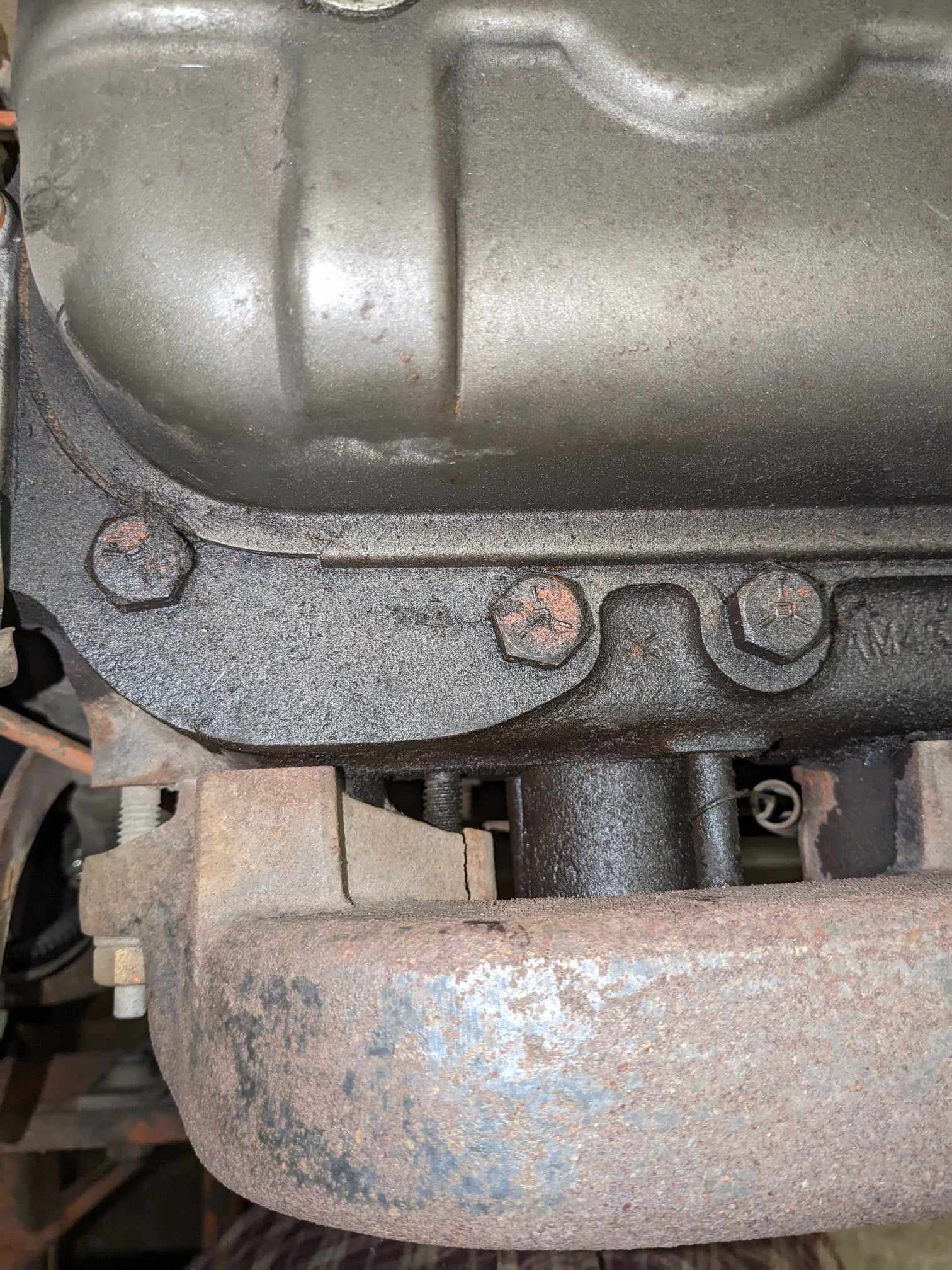

This is where the anti surge spring goes.
|
|
