D 15 final drive

 Post Reply Post Reply Page  12>
Author
Message
ACinSC View Drop Down
Orange Level
Orange Level


Joined: 16 Dec 2015
Location: South Carolina
Points: 1307
Post Options Post Options   Thanks (0) Thanks(0)   Quote ACinSC Quote  Post ReplyReply Direct Link To This Post Topic: D 15 final drive
    Posted: 20 Apr 2021 at 7:07am
About a year ago I found my D 15 has a bent rear axle shaft and a chipped bull gear tooth . I now have a good donor that I plan to put new seals , etc in and then swap the final drive out . I'm sure to have questions along the way . Thanks in advance !
Back to Top
Sponsored Links


Back to Top
jaybmiller View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Location: Greensville,Ont
Points: 15747
Post Options Post Options   Thanks (0) Thanks(0)   Quote jaybmiller Quote  Post ReplyReply Direct Link To This Post Posted: 20 Apr 2021 at 8:34am
While a strong strap sling will support it, I made a steel  one, bolts to the FD. Made it easier to get the right height and 'angles' to slide it back in....
I have an overhead beam, trolleys and chain hoists...make the job pleasant....
I will take pictures IF I can find the silly 'jig'......

Jay
3 D-14s,A-C forklift, B-112
Kubota BX23S lil' TOOT( The Other Orange Tractor)

Never burn your bridges, unless you can walk on water
Back to Top
Fred in Pa View Drop Down
Orange Level
Orange Level
Avatar

Joined: 13 Sep 2009
Location: Hanover Pa.
Points: 7840
Post Options Post Options   Thanks (0) Thanks(0)   Quote Fred in Pa Quote  Post ReplyReply Direct Link To This Post Posted: 20 Apr 2021 at 11:04am
And new brakes
He who dies with the most toys is,
nonetheless ,still dead.
If all else fails ,Read all that is PRINTED.
Just because you do not have the tools for job , it dose not make it a bad design.
Back to Top
ACinSC View Drop Down
Orange Level
Orange Level


Joined: 16 Dec 2015
Location: South Carolina
Points: 1307
Post Options Post Options   Thanks (0) Thanks(0)   Quote ACinSC Quote  Post ReplyReply Direct Link To This Post Posted: 20 Apr 2021 at 11:46am
Thanks Jay and Fred . I did the brakes when I pulled the final drive last year . Have the donor bull gear and bearings out now . Next up is the pinion shaft . So far , so good .
Back to Top
john(MI) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: SE MI
Points: 9010
Post Options Post Options   Thanks (0) Thanks(0)   Quote john(MI) Quote  Post ReplyReply Direct Link To This Post Posted: 20 Apr 2021 at 11:59am
I'm sure you are knowledgeable of this but, you should only do one side at a time.  Put it all back together and then the other side.
D14, D17, 5020, 612H, CASE 446
Back to Top
ACinSC View Drop Down
Orange Level
Orange Level


Joined: 16 Dec 2015
Location: South Carolina
Points: 1307
Post Options Post Options   Thanks (0) Thanks(0)   Quote ACinSC Quote  Post ReplyReply Direct Link To This Post Posted: 20 Apr 2021 at 3:42pm
Yeah thanks John . I'm just doing the left side .
Back to Top
ACinSC View Drop Down
Orange Level
Orange Level


Joined: 16 Dec 2015
Location: South Carolina
Points: 1307
Post Options Post Options   Thanks (0) Thanks(0)   Quote ACinSC Quote  Post ReplyReply Direct Link To This Post Posted: 21 Apr 2021 at 6:36am
Having a hard time getting the lock ring off the pinion shaft that's behind the brake drum . Anyone have any advice ? Thanks !
Back to Top
MACK View Drop Down
Orange Level
Orange Level


Joined: 17 Nov 2009
Points: 6660
Post Options Post Options   Thanks (0) Thanks(0)   Quote MACK Quote  Post ReplyReply Direct Link To This Post Posted: 21 Apr 2021 at 7:14am
Cut it off with cut off grinder wheel. Then use new snap ring.          MACK
Back to Top
ACinSC View Drop Down
Orange Level
Orange Level


Joined: 16 Dec 2015
Location: South Carolina
Points: 1307
Post Options Post Options   Thanks (0) Thanks(0)   Quote ACinSC Quote  Post ReplyReply Direct Link To This Post Posted: 21 Apr 2021 at 7:45am
Thanks Mack ! Didn't think about that .
Back to Top
ACinSC View Drop Down
Orange Level
Orange Level


Joined: 16 Dec 2015
Location: South Carolina
Points: 1307
Post Options Post Options   Thanks (0) Thanks(0)   Quote ACinSC Quote  Post ReplyReply Direct Link To This Post Posted: 21 Apr 2021 at 2:40pm
Seems kinda expensive to me . Agco lists that lock ring for $22 . Still don't have mine off but haven't cut it yet . Thanks
Back to Top
jaybmiller View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Location: Greensville,Ont
Points: 15747
Post Options Post Options   Thanks (0) Thanks(0)   Quote jaybmiller Quote  Post ReplyReply Direct Link To This Post Posted: 21 Apr 2021 at 3:01pm
been looking at the drawings, the snapring seems like an 'infernal' one.... maybe 2 slotted screwdrivers, to pry it up ,once you get it started, 'tease' it out of the slot ? Never had mine that far apart.....
it looks easier than doing my taxes though..... 4 hrs labour AND I had to pay.....
3 D-14s,A-C forklift, B-112
Kubota BX23S lil' TOOT( The Other Orange Tractor)

Never burn your bridges, unless you can walk on water
Back to Top
Gary View Drop Down
Orange Level Access
Orange Level Access


Joined: 13 Sep 2009
Location: Peterborough,On
Points: 4644
Post Options Post Options   Thanks (0) Thanks(0)   Quote Gary Quote  Post ReplyReply Direct Link To This Post Posted: 21 Apr 2021 at 4:12pm

Jay

Those 'F n T' keys do look similar, don't they ! F..N thing.

G
Back to Top
ACinSC View Drop Down
Orange Level
Orange Level


Joined: 16 Dec 2015
Location: South Carolina
Points: 1307
Post Options Post Options   Thanks (0) Thanks(0)   Quote ACinSC Quote  Post ReplyReply Direct Link To This Post Posted: 21 Apr 2021 at 4:24pm
I actually have my favorite son's lock ring pliers . Haven't done the trick yet , but I'll keep trying .
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 57028
Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 21 Apr 2021 at 4:50pm
ALLIS did not make snap rings ... they bought them as hardware.. Do the same.
Like them all, but love the "B"s.
Back to Top
ACinSC View Drop Down
Orange Level
Orange Level


Joined: 16 Dec 2015
Location: South Carolina
Points: 1307
Post Options Post Options   Thanks (0) Thanks(0)   Quote ACinSC Quote  Post ReplyReply Direct Link To This Post Posted: 21 Apr 2021 at 4:59pm
Yeah Steve . Plan to ask Brenda if they have a generic lock ring when I order the bearings and seals . Thanks
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 57028
Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 21 Apr 2021 at 5:14pm
ALLIS will charge 5 x as much as you can get one at the hardware store.

ALLIS did not make bearings or seals either..


Edited by steve(ill) - 21 Apr 2021 at 5:14pm
Like them all, but love the "B"s.
Back to Top
ACinSC View Drop Down
Orange Level
Orange Level


Joined: 16 Dec 2015
Location: South Carolina
Points: 1307
Post Options Post Options   Thanks (0) Thanks(0)   Quote ACinSC Quote  Post ReplyReply Direct Link To This Post Posted: 21 Apr 2021 at 5:18pm
Have wondered if Napa could match bearings and seals if I have a number ? Thanks
Back to Top
WeisAC2 View Drop Down
Bronze Level
Bronze Level


Joined: 02 Feb 2017
Location: Aiken SC
Points: 36
Post Options Post Options   Thanks (0) Thanks(0)   Quote WeisAC2 Quote  Post ReplyReply Direct Link To This Post Posted: 21 Apr 2021 at 5:18pm
Back to Top
ACinSC View Drop Down
Orange Level
Orange Level


Joined: 16 Dec 2015
Location: South Carolina
Points: 1307
Post Options Post Options   Thanks (0) Thanks(0)   Quote ACinSC Quote  Post ReplyReply Direct Link To This Post Posted: 21 Apr 2021 at 7:13pm

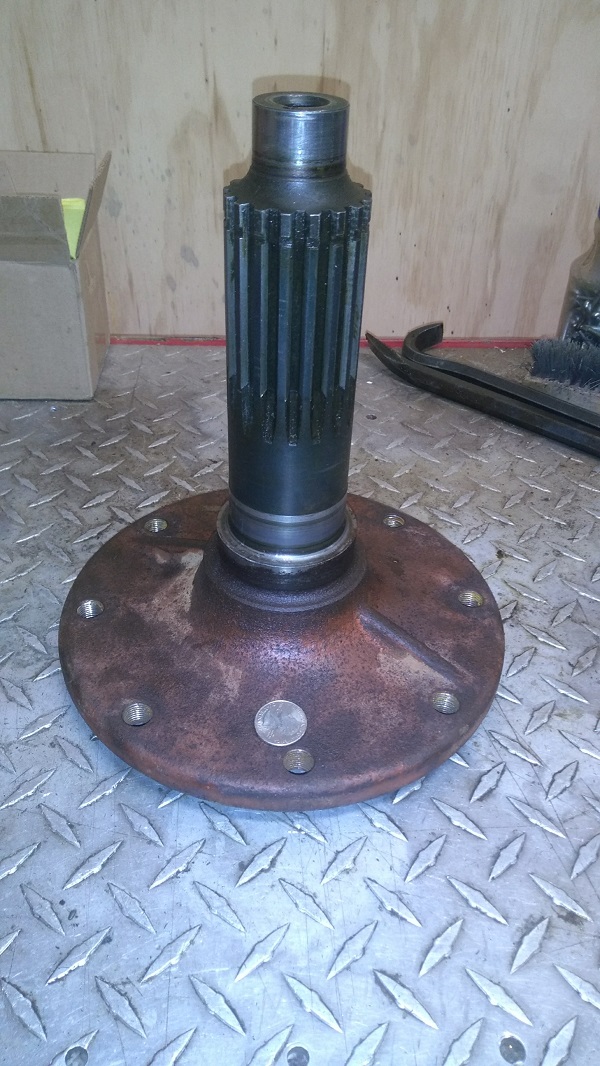

My favorite son posted a picture for me . Hard to believe that something this size could be bent . This is the good one . Thanks
Back to Top
jaybmiller View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Location: Greensville,Ont
Points: 15747
Post Options Post Options   Thanks (0) Thanks(0)   Quote jaybmiller Quote  Post ReplyReply Direct Link To This Post Posted: 26 Apr 2021 at 6:16pm
Here's the 'final drive lifting plate' in action ! Simple really, flat plate of steel with 6 holes, 2" sq tubing about a foot long, with 2 'eyes' welded to it. With 2 chain hoists I can get it 'aligned' very well to slide back on. chain hoists are on trolleys on an overhead 8" Ibeam. yellow tubing are '1x2 spacers'. It's a lot safer than the single sling,easy 1 man operation.
Jay
3 D-14s,A-C forklift, B-112
Kubota BX23S lil' TOOT( The Other Orange Tractor)

Never burn your bridges, unless you can walk on water
Back to Top
ACinSC View Drop Down
Orange Level
Orange Level


Joined: 16 Dec 2015
Location: South Carolina
Points: 1307
Post Options Post Options   Thanks (0) Thanks(0)   Quote ACinSC Quote  Post ReplyReply Direct Link To This Post Posted: 26 Apr 2021 at 6:54pm
That's a nice setup Jay . I'll just use the wide strap I have . I'm still redoing the donor final drive and a long way from installing it . Thanks for sharing !
Back to Top
ACinSC View Drop Down
Orange Level
Orange Level


Joined: 16 Dec 2015
Location: South Carolina
Points: 1307
Post Options Post Options   Thanks (0) Thanks(0)   Quote ACinSC Quote  Post ReplyReply Direct Link To This Post Posted: 29 Apr 2021 at 10:54am
Finally got the lock ring off . Came off easy after I cut it , like Mack suggested . Now to remove these 2 bearings and the seal . Thanks !
Back to Top
CTuckerNWIL View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: NW Illinois
Points: 22730
Post Options Post Options   Thanks (0) Thanks(0)   Quote CTuckerNWIL Quote  Post ReplyReply Direct Link To This Post Posted: 30 Apr 2021 at 9:24am
Originally posted by ACinSC ACinSC wrote:

Have wondered if Napa could match bearings and seals if I have a number ? Thanks

 Google Motion Industries store locator. Take your old bearings and seals with and they will match them up. The best 'bang for your buck' in my opinion.
http://www.ae-ta.com
Lena 1935 WC12xxx, Willie 1951 CA6xx Dad bought new, 1954WD45 PS, 1960 D17 NF
Back to Top
ACinSC View Drop Down
Orange Level
Orange Level


Joined: 16 Dec 2015
Location: South Carolina
Points: 1307
Post Options Post Options   Thanks (0) Thanks(0)   Quote ACinSC Quote  Post ReplyReply Direct Link To This Post Posted: 30 Apr 2021 at 11:17am
Thanks , Charles . May check them out if I can ever get this last bearing off .
Back to Top
jaybmiller View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Location: Greensville,Ont
Points: 15747
Post Options Post Options   Thanks (0) Thanks(0)   Quote jaybmiller Quote  Post ReplyReply Direct Link To This Post Posted: 30 Apr 2021 at 11:27am
FYI the seals on the diff case where the axle goes in are National #471765. You can put TWO of them in place of the 'wider' OEM ones. This should prevent oil from getting onto the brake shoes....
Sad thing is I have 2 sitting here in front on me....
3 D-14s,A-C forklift, B-112
Kubota BX23S lil' TOOT( The Other Orange Tractor)

Never burn your bridges, unless you can walk on water
Back to Top
Eric B View Drop Down
Orange Level
Orange Level
Avatar

Joined: 09 Feb 2012
Location: British Columbi
Points: 696
Post Options Post Options   Thanks (0) Thanks(0)   Quote Eric B Quote  Post ReplyReply Direct Link To This Post Posted: 30 Apr 2021 at 11:48am
The seals Jay mention can also be had as SKF 12458. I only used one per side and had no leaks... been several years now.
Currently- WD,WC,3WF's,2 D14's B. Previously- I 600,TL745,200,FL9,FR12,H3,816 LBH. Earth has no sorrow that Heaven cannot heal!
Back to Top
jaybmiller View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Location: Greensville,Ont
Points: 15747
Post Options Post Options   Thanks (0) Thanks(0)   Quote jaybmiller Quote  Post ReplyReply Direct Link To This Post Posted: 30 Apr 2021 at 12:38pm
I tossed (er, carefully installed...) two in per side  on the theory they'd be on 'new' part of the shafting, 2 is better than 1 and ,well, only $4 a piece and I 'hopefully' won't ever have 'wet' brakes again.........
3 D-14s,A-C forklift, B-112
Kubota BX23S lil' TOOT( The Other Orange Tractor)

Never burn your bridges, unless you can walk on water
Back to Top
ACinSC View Drop Down
Orange Level
Orange Level


Joined: 16 Dec 2015
Location: South Carolina
Points: 1307
Post Options Post Options   Thanks (0) Thanks(0)   Quote ACinSC Quote  Post ReplyReply Direct Link To This Post Posted: 30 Apr 2021 at 12:41pm
Thanks Jay and Eric . Think I bought a extra seal last time . Now if I can only find it .
Back to Top
jaybmiller View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Location: Greensville,Ont
Points: 15747
Post Options Post Options   Thanks (0) Thanks(0)   Quote jaybmiller Quote  Post ReplyReply Direct Link To This Post Posted: 30 Apr 2021 at 12:45pm
2nd drawer down on the left...
er.
no, 3rd drawer,
hmm
maybe 3rd on the right
no wait, it's on the btm of the right upper cabinet,yeah, a um...
dang ! 'someone' removed that cabinet to make room for 'stuff' from next door.
sigh......
NOW I know WHY those seals are in front of me !!!
3 D-14s,A-C forklift, B-112
Kubota BX23S lil' TOOT( The Other Orange Tractor)

Never burn your bridges, unless you can walk on water
Back to Top
ACinSC View Drop Down
Orange Level
Orange Level


Joined: 16 Dec 2015
Location: South Carolina
Points: 1307
Post Options Post Options   Thanks (0) Thanks(0)   Quote ACinSC Quote  Post ReplyReply Direct Link To This Post Posted: 30 Apr 2021 at 2:31pm
Maybe we're on a different page ? My old seal is National 50055 L 60 . Gonna check the Agco site and see what they list . THANKS !
