OK Tractor has this one with an option premade for non-snap-coupler (that I missed before).  Like I said, didn't like the design of it, but when time comes I might choose the easy out.

I'll add that OK Tractor seems to have this one for about half the price of Steiner...

One of dislikes about the design is that I would prefer that both arms pivot separately.  In the snap coupler design, pivot of the fixed arm is relative to the moveable snap coupler tongue.  In the non-snap coupler design, it has a pipe welded across the tongue.  Unless there is a lot of slop in the size of the hole, there would not be proper pivoting of the "fixed" arm.  And I don't think you want a lot of slop in the hole for the pin hitch.

Yes, but this would be the non-snap coupler version with a weld on mod which would prevent left to right swing as well as rotational swing.

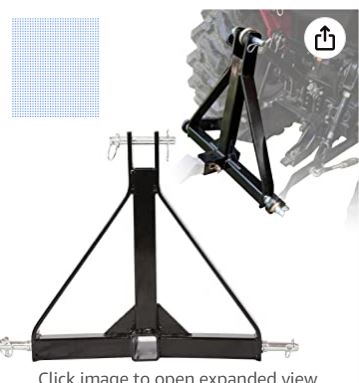

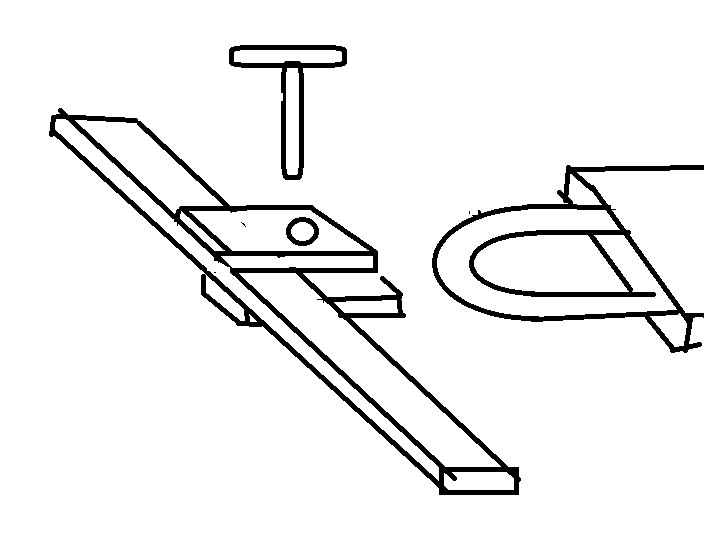

possible hitch design for snap coupler loop.

make sure when in Neutral that the tire will move.. That tells you the transmission is not locked up also..

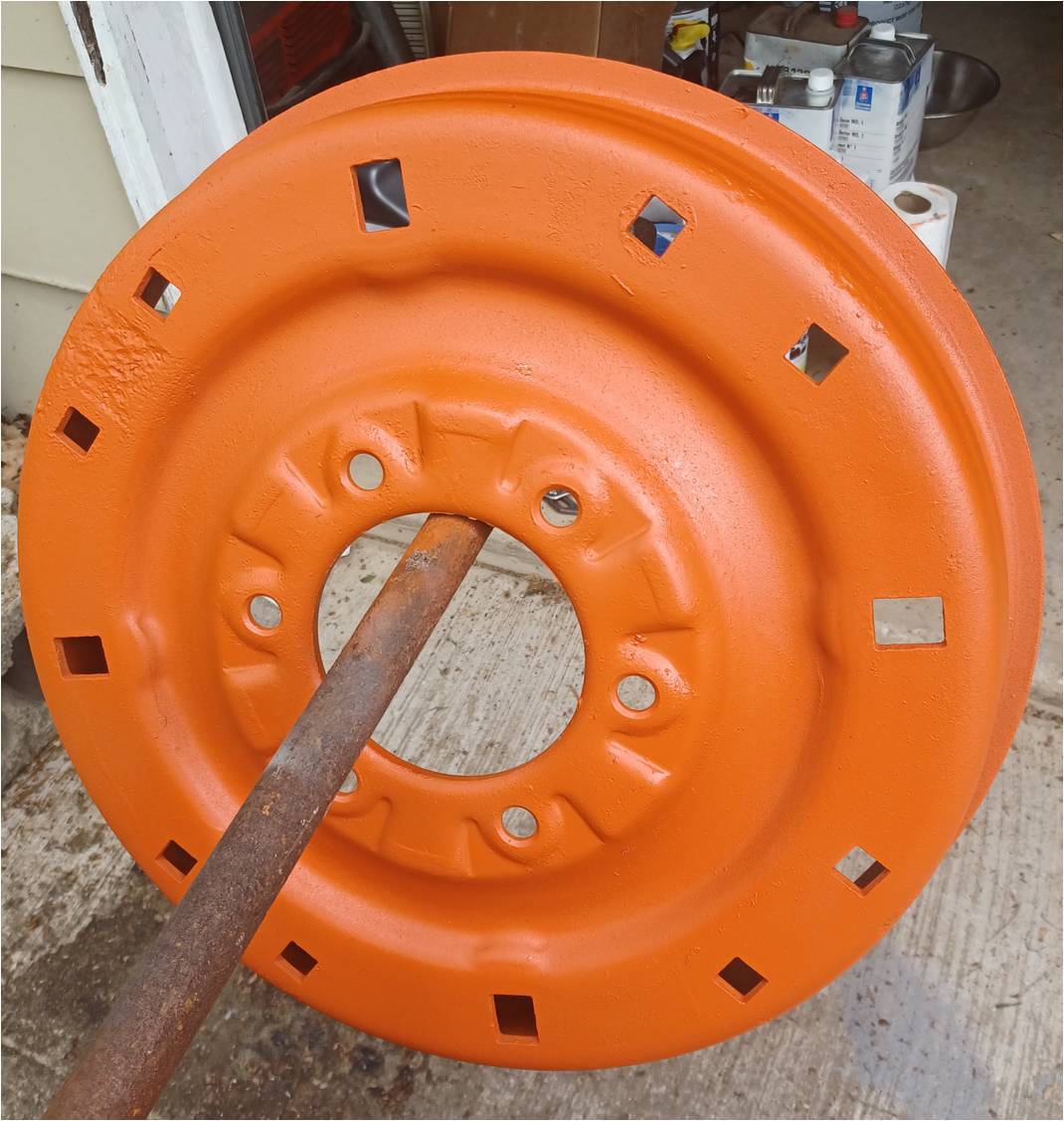

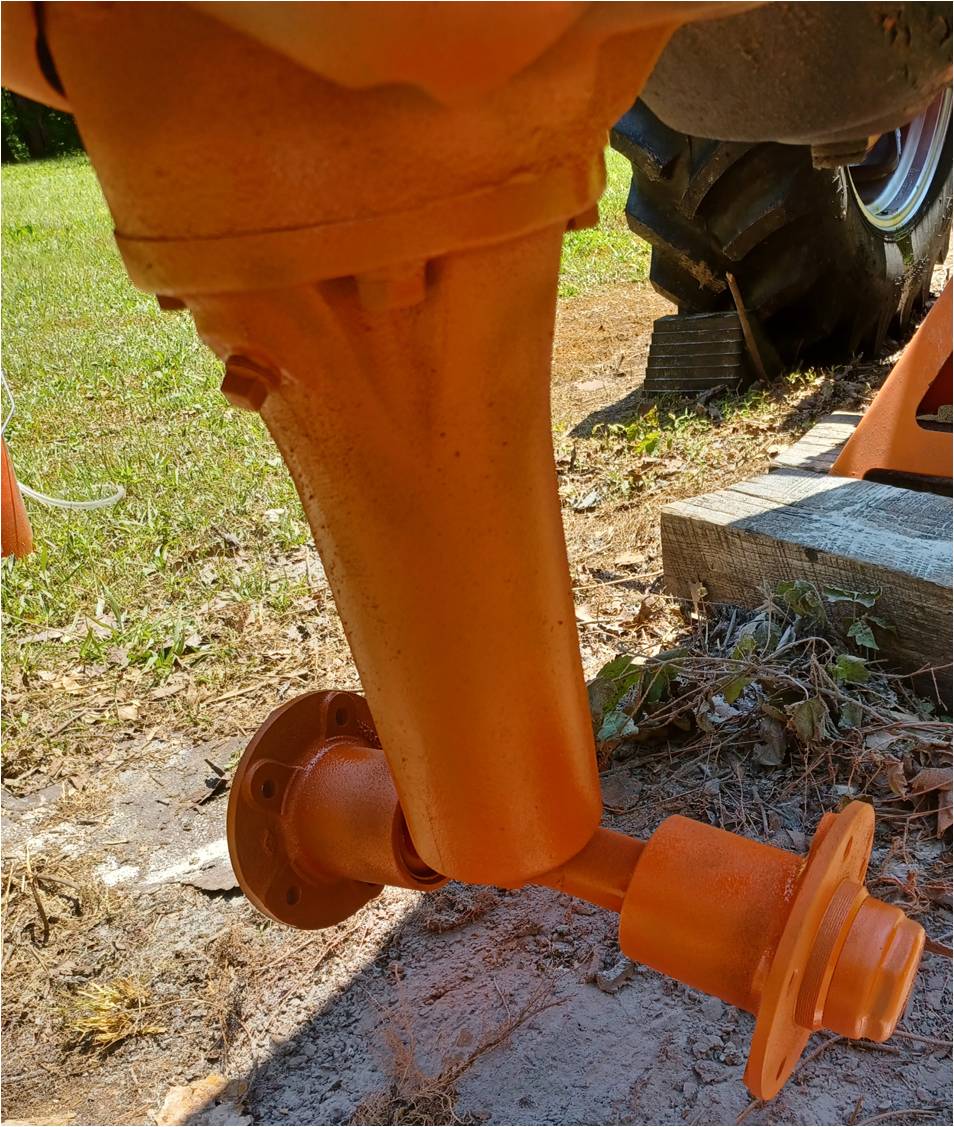

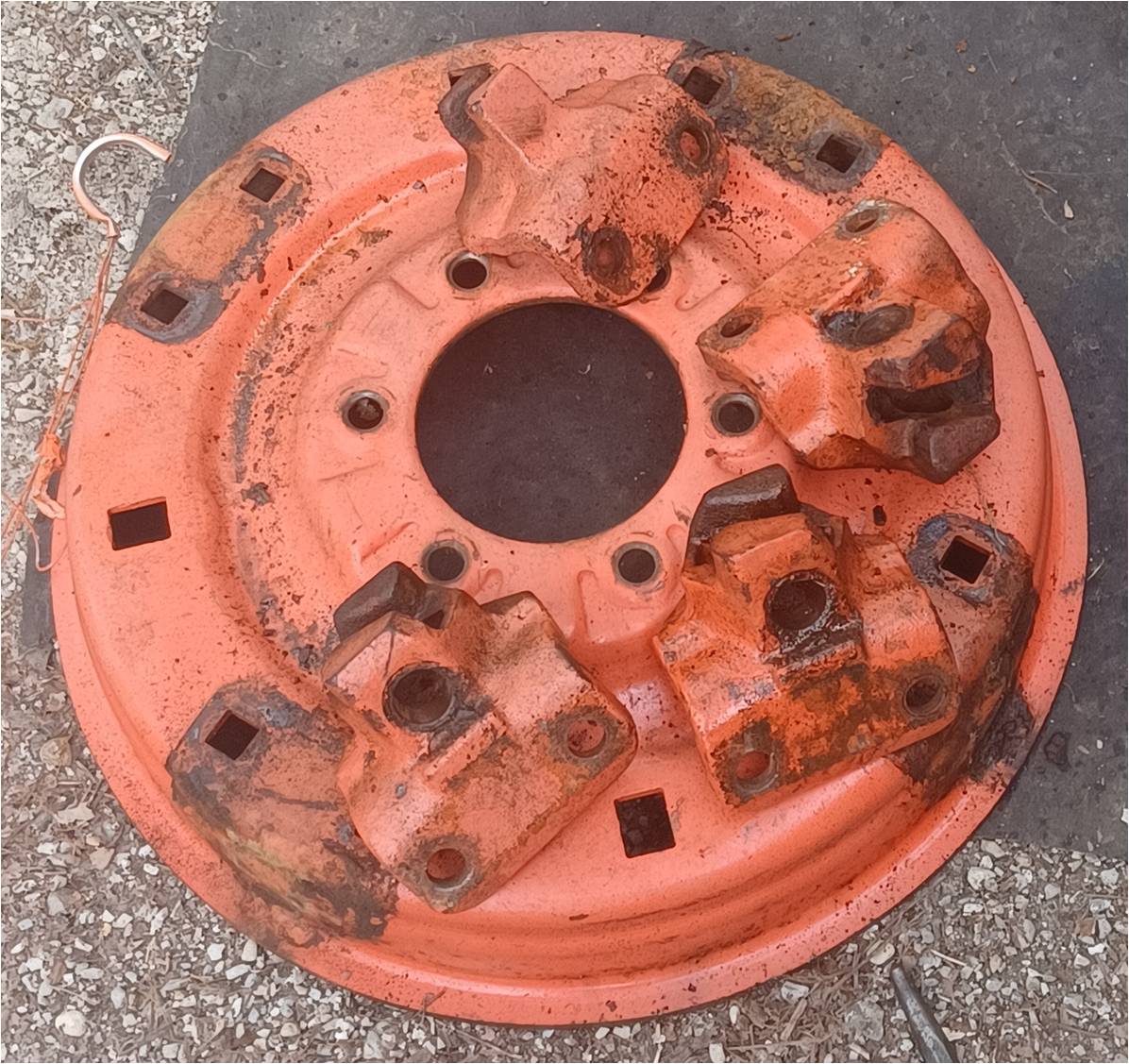

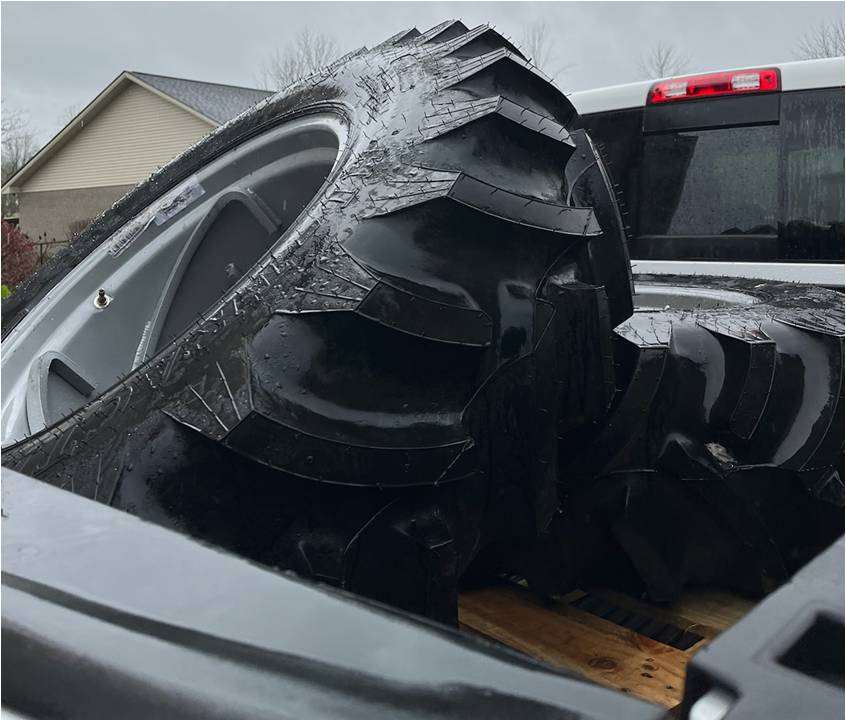

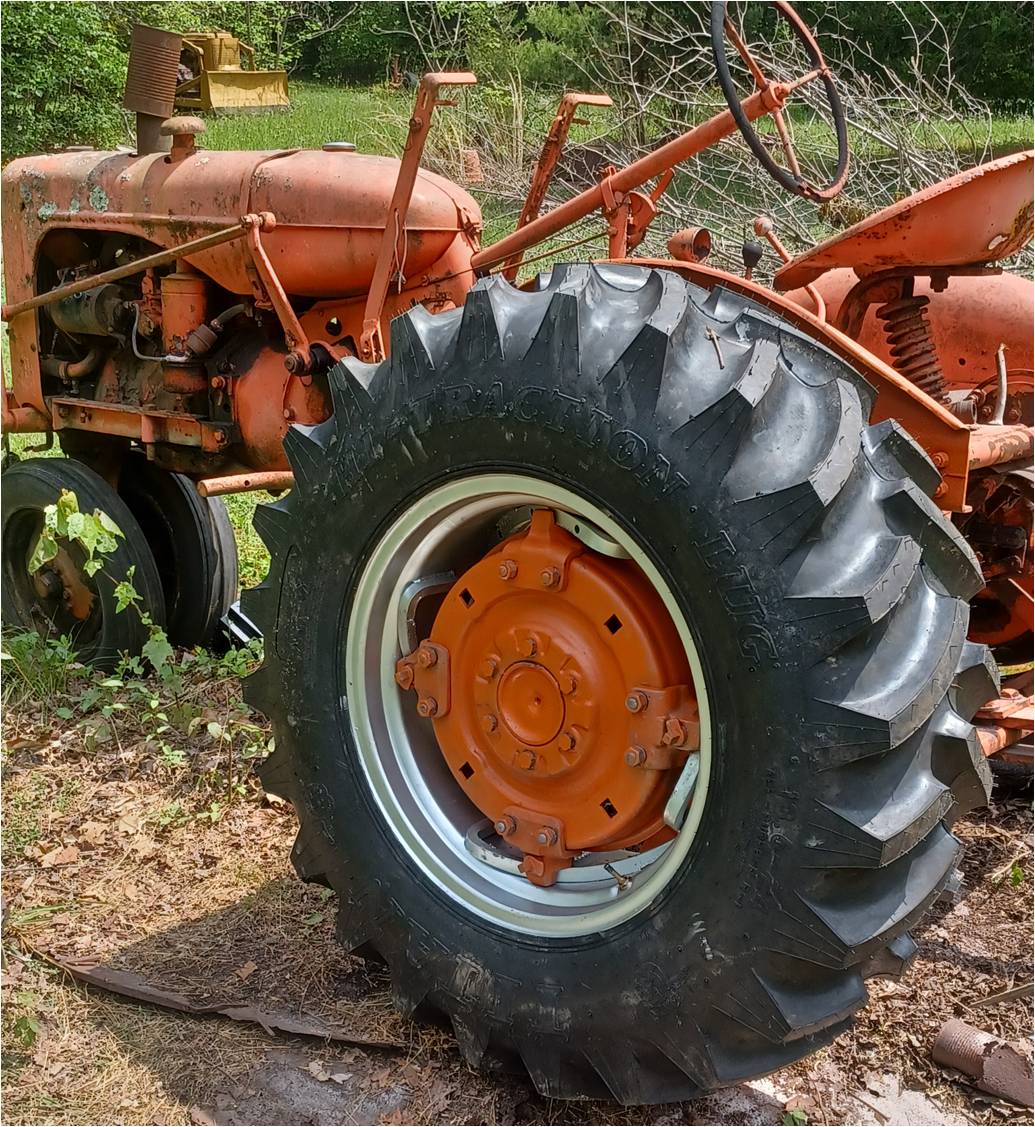

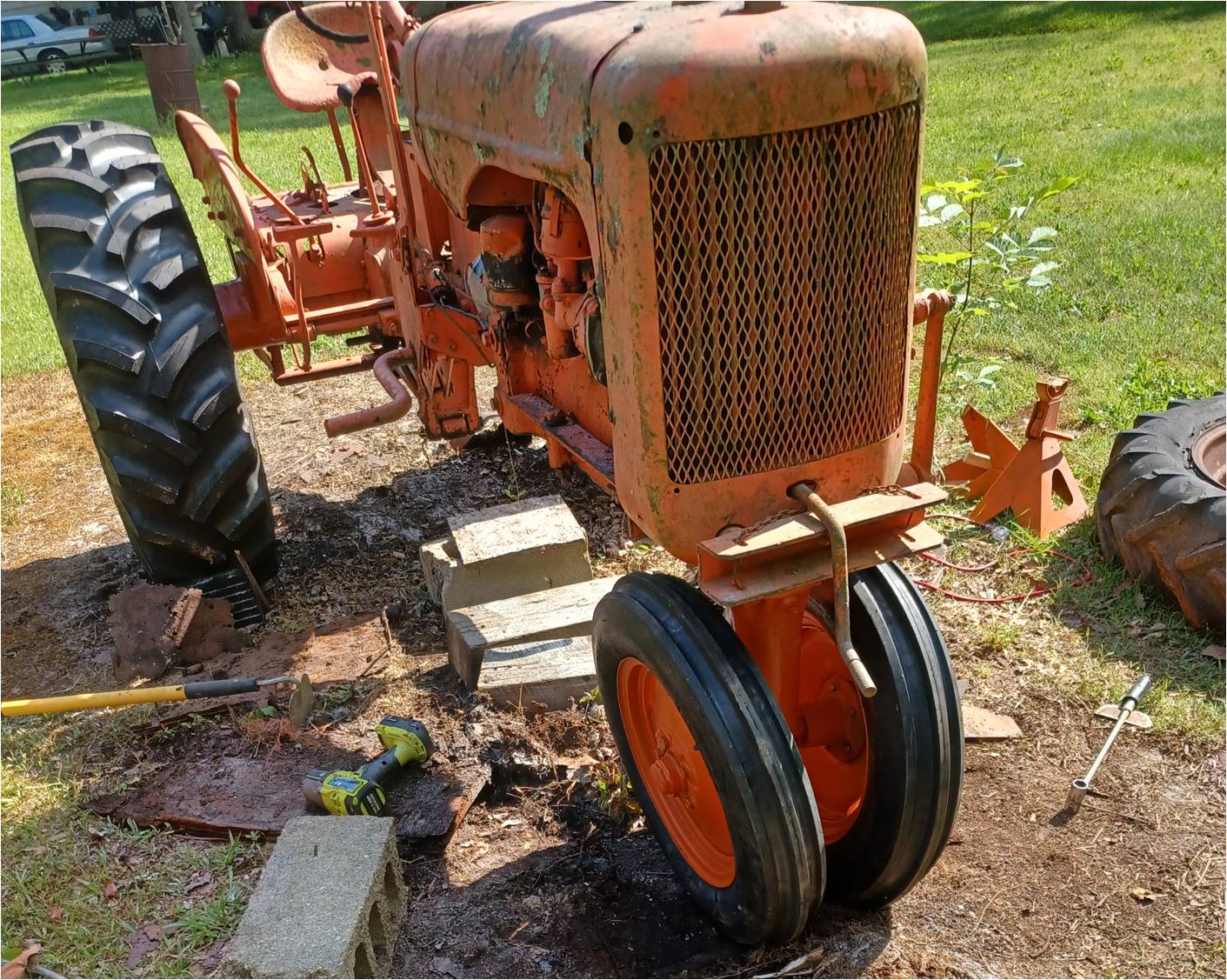

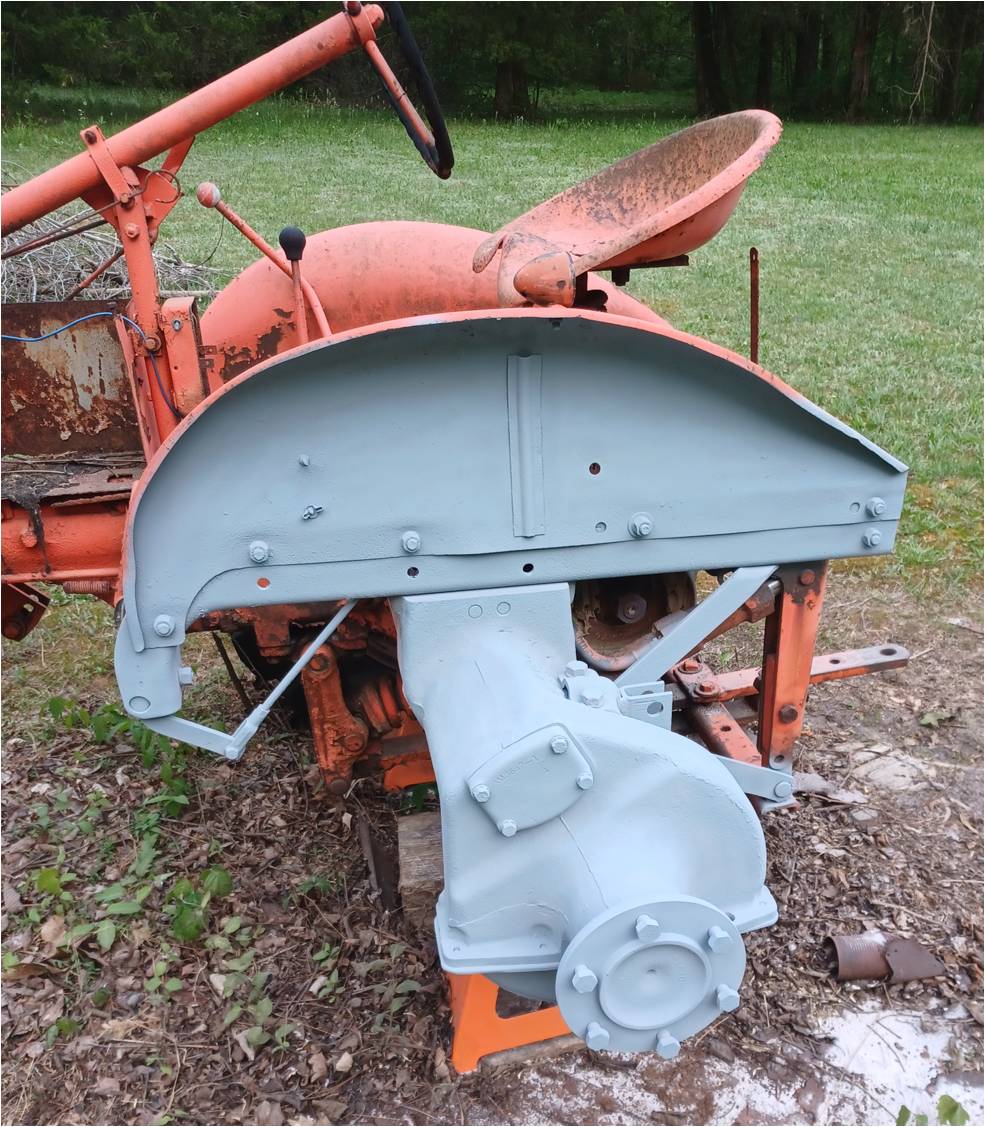

Some selected progress pics.  New front and rear tires.  New 12 inch rims on back with 13.6 Titans.  New tires on front.  Rims and front pedestal were sand blasted as was rear hubs and final drive near the wheels.  One front rim was welded by dad in the mid 1960s.  It's amazing that there's been almost no major deterioration since then.  Only a few tiny pin holes near the original welds.  The rear hubs and locks cleaned up very nicely.  Only one of the lock bearing surfaces was slightly pock marked.  All were very usable.  All reassembled with anti-seize lube.  The locks locked up tight.  I was amazed how smoothly they operated.  I stumbled upon the lock/lug wrench in the garage, and also the associated 5/8 inch lever bar.  I painted them orange so I can remember them :)  Everything was sand blasted primed and painted.  Some key areas like inside the front rims have approximately 10 coats rust reformer and of paint in total.  The inside of the front rims were a bit flakey (rust) but with angle grinder, wire brush, and sand blaster, they came out decent and smooth.  Tire guy had no qualms with them.  I may eventually replace the front rims, or maybe just the welded one which doesn't look as nice.  The tractor has been moved to a garage for engine assessment.  It will get rebuilt regardless, but there may need to be a section of the block re-welded.  Dad welded it in the early 70's (or thereabouts) but did not have the right welding equipment on-site at the time so it continued to have a slow coolant leak.  Believe the weld is intact though.

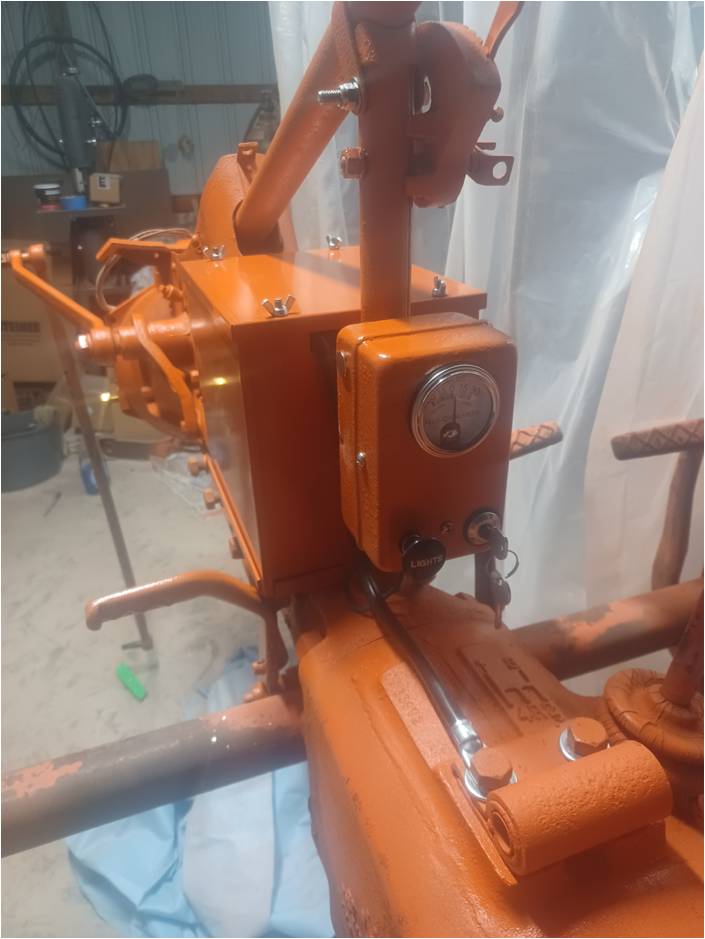

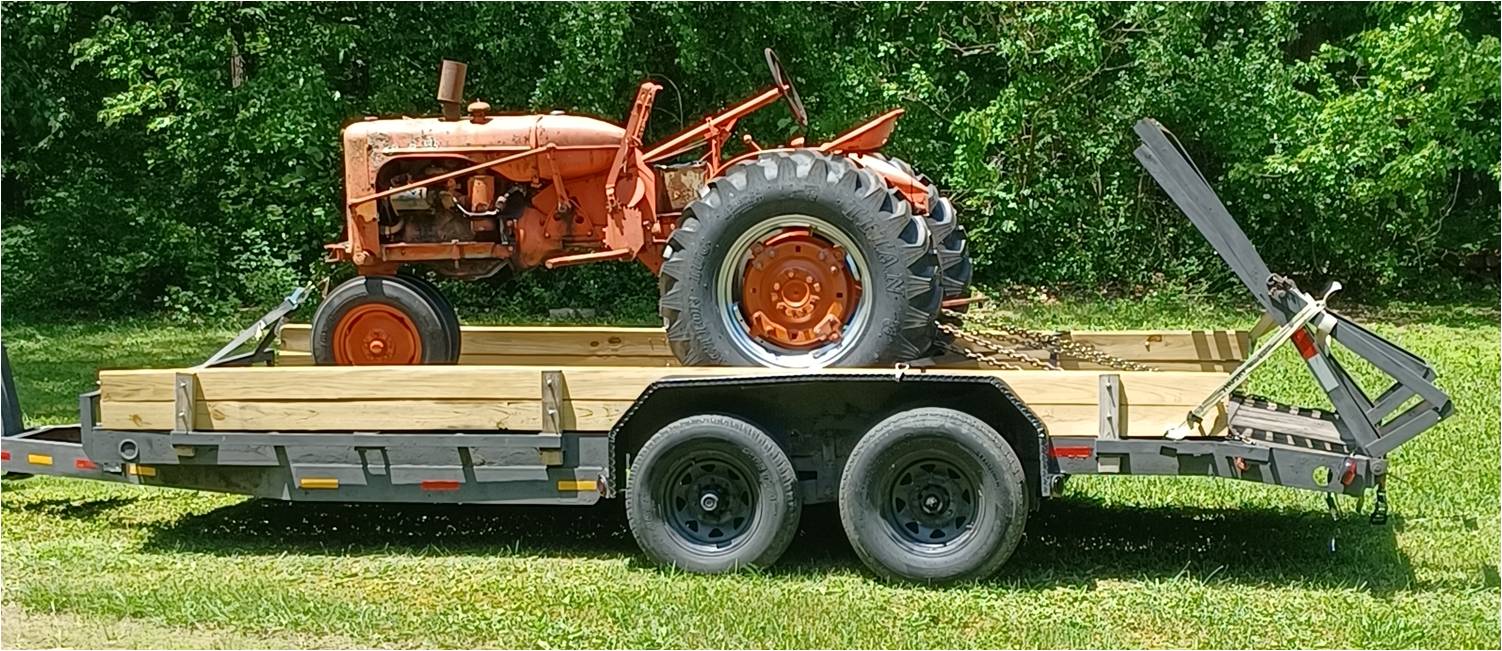

The starter motor was removed for unknown reason, but I tested it and it is fine with not a single issue with the gear teeth or throwout.  Was inside the garage for 40 years.   The original generator is another story.  Was in pieces with coils toasted and loose.  Believe I can get it rewound locally.  I inspected part of the flywheel which seems fine where I could view.  I think the transmission is ok but could only get it into reverse for the trailer ride.  One brake seems functional, sort of, the other seems to be rubbing full time but not forcefully and the pedal won't depress beyond an inch or so.  I can see a broken spring which may be wedged in the way.  Steering play seems no worse than I remember it.  I remember that the front rim welds were heavy enough to cause a little wobble at full speed.  I found the ammeter and control panel.  The control panel  cleaned up nicely, but all switches and ammeter were toast so I'll be rebuilding that, cleaning up the starter (maybe more if needed), and the generator if I can.  I'll probably use stainless fasteners in key exposed places.  Nearly all electrical wiring seems haphazard.  It seems to have had a regulator installed at some point, but no reference in my service manual so I'll have to research that further.

It was not uncommon to remove the light switch and put a 6 volt regulator near the generator and let it do the job.... If the battery was changed to 12v, then yes, you need a regulator to handle the job.

It's 6 volt.  Plan to keep it that way.  The regulator was mounted just behind the starter motor.  I don't remember it at all, so maybe my uncle added it in the 70s.

if you need a new wiring system for that project, visit our website. We do everything electrical and touch on each area of the Tractor. I do Carb, Generator, Alternator, 3 position switch and Starter rebuilding. Be happy to help you out with anything....

Steve@B&B

bb-customcircuits.com

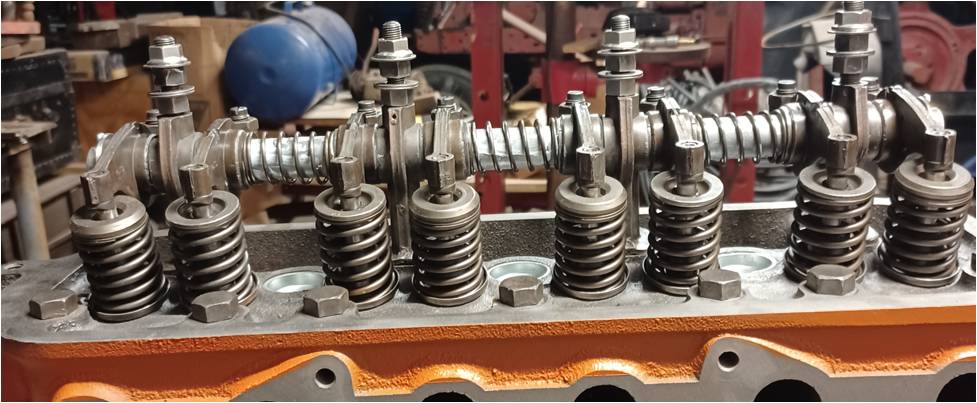

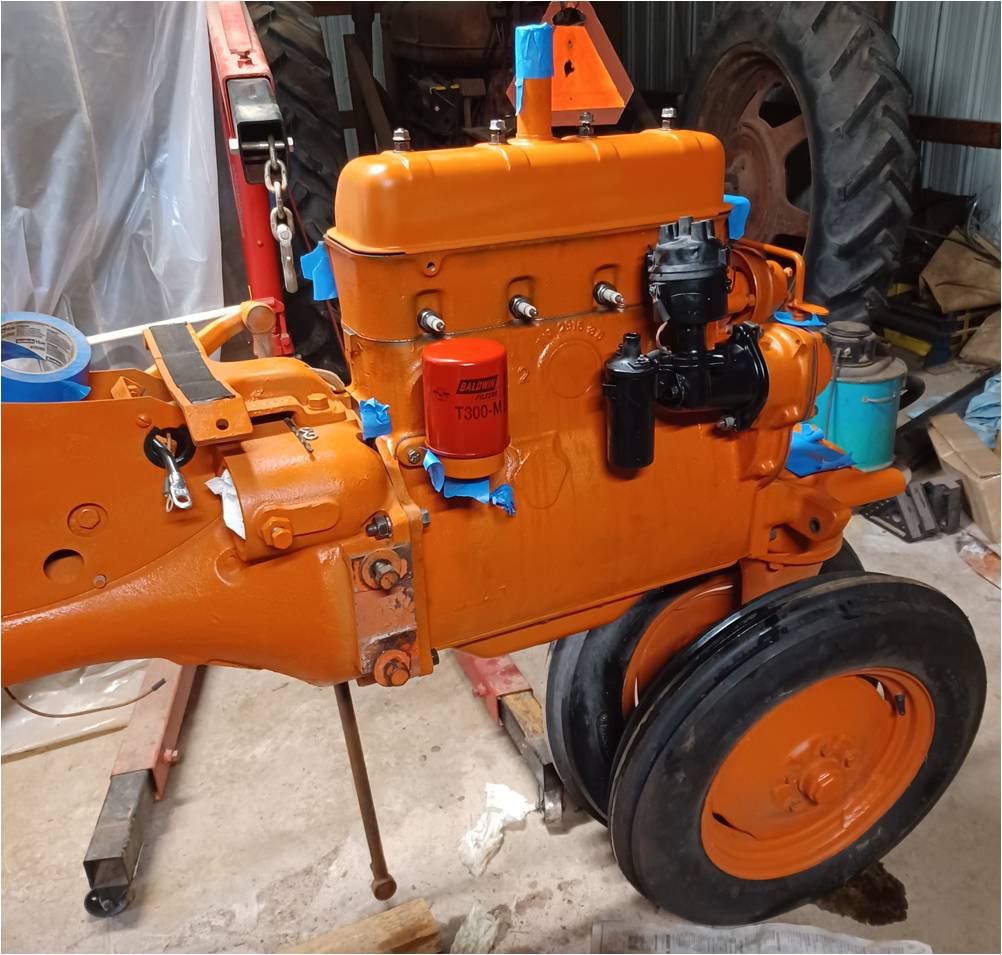

While engine block was out to the machine shop, I prepared the front half.  Sheet metal was taken to a body shop for some rip and dent repairs.  Installed a new throwout bearing although the old one wasnt really very bad.  Clutch plate was relatively new.  Also ran a new wiring harness.

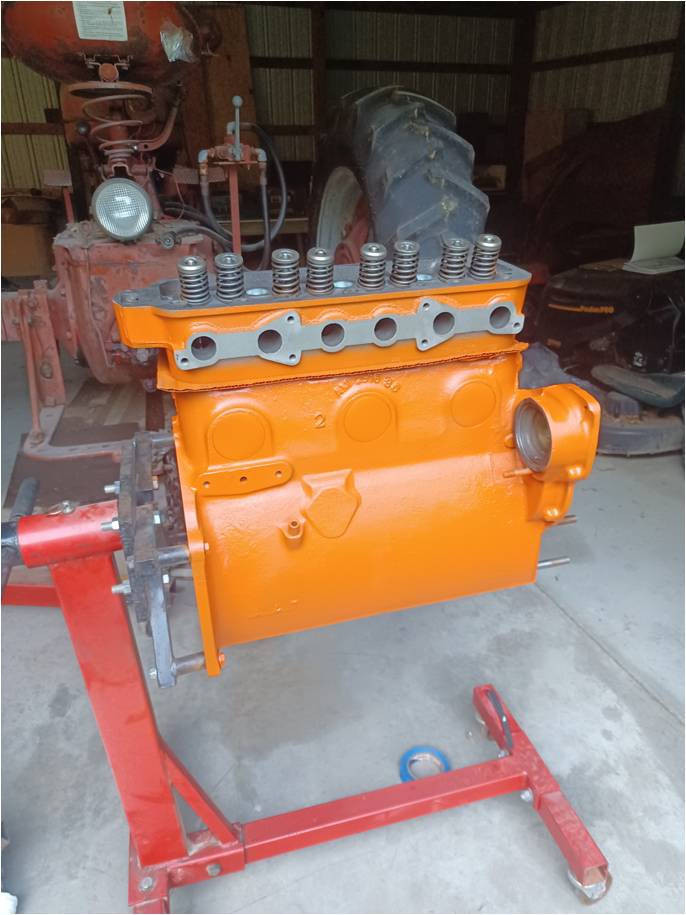

Crankshaft had some minor pitting but overall wasnt that bad.  Machined everywhere needed.  Had too much end play when we got it back so we sent it back out for more work.  Originally, the machine shop documented the wrong specs on the work tag so we ordered the wrong bearings and had to do that over as well.  Those issues were the source of most of the delay in getting the engine going.  I had high hopes, but it didn't happen.  Work is ongoing as time permits.  No the M doesn't run either :(

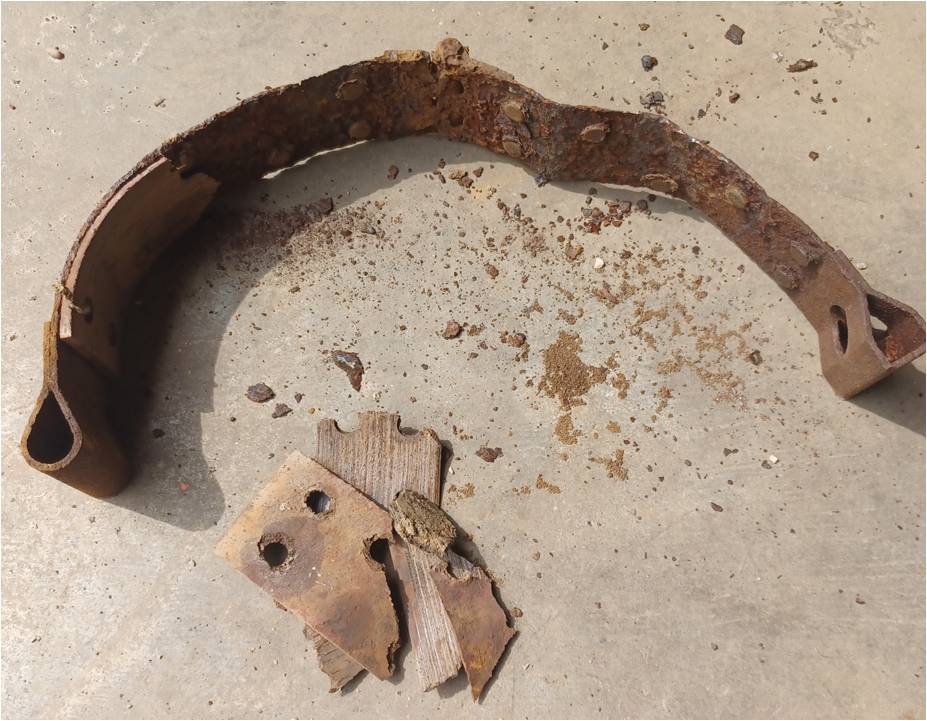

After I got most of the front half ready for the engine install (minus sheet metal), I replaced the brake pads.  This is the "good" one.   The left one was rusted in two at the hinge.  Kind of a chore to get all the rat and mud dauber nests out through those cubby holes.  Must have pulled 2 gallons of junk out of there.  The drums should probably be worked on but I think they'll be fine besides wearing the pads out a little faster.  There was plenty of metal left.  Probably because it hasn't had properly adjusted brakes since the 60s (i.e. little contact).

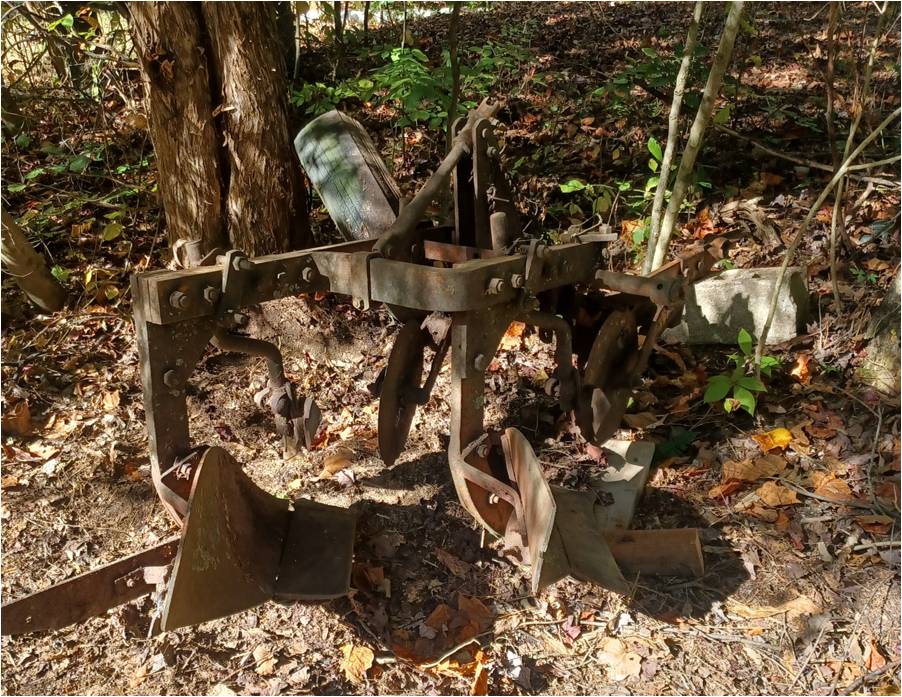

I was able to get the plow up out of the dirt and on some temporary blocks (I ran out of time and just used whatever I could find).  The frame looks like it will clean up ok.  The plowshare/moldboards are broken.  The pieces seem to be lying around in the garage, could probably be welded up (or replaced).

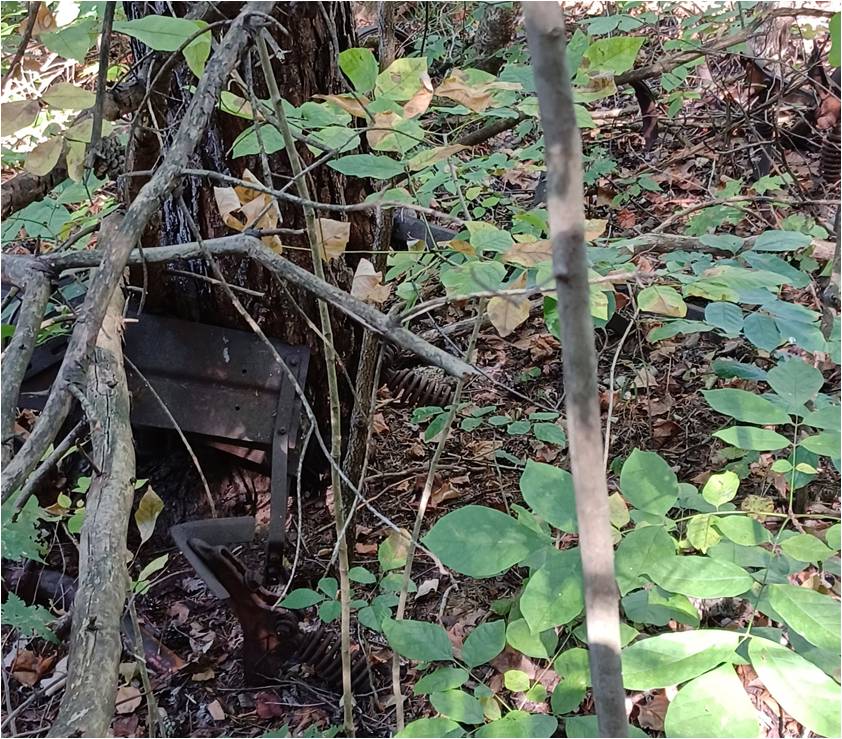

Here's the cultivator previously mentioned as having a tree growing around it.  That will be fun to remove.

And the disk.  Didn't get a picture of the planter (forgot when I decided to de-tree the bulldozer).
