ALLIS CHALMERS CA?

 Post Reply Post Reply Page  12>
Author
Message
R.W View Drop Down
Orange Level
Orange Level


Joined: 31 Dec 2010
Location: Swanton, OH
Points: 2975
Post Options Post Options   Thanks (0) Thanks(0)   Quote R.W Quote  Post ReplyReply Direct Link To This Post Topic: ALLIS CHALMERS CA?
    Posted: 02 Feb 2011 at 7:03pm

What are your oppions, comments, things to look for, good price, and maby some photos?

In Search Of: 1958 Allis Chalmers D17 Diesel serial #9643D
Back to Top
Sponsored Links


Back to Top
jaybmiller View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Location: Greensville,Ont
Points: 21333
Post Options Post Options   Thanks (0) Thanks(0)   Quote jaybmiller Quote  Post ReplyReply Direct Link To This Post Posted: 02 Feb 2011 at 7:13pm
I had a real nice '55 couple of years ago.Good on power, better than the 'off colour 2n ' I had.I like the 4 speed.Hand clutch,some work some don't, mine did fine.Probably a '2 bottom plow' tractor powerwise.Bit of a challenge to climb on and off,course that might be my old tired bones ! I paid $1500 for mine,all original, was 6 volt,had PTO pulley. Needed serious cleaning(only) of the hydraulic pump,ran fine afterwards.More power than a B and a 4 gear making it more useful for all around work.
3 D-14s,A-C forklift, B-112
Kubota BX23S lil' TOOT( The Other Orange Tractor)

Never burn your bridges, unless you can walk on water
Back to Top
allis restorer View Drop Down
Silver Level
Silver Level
Avatar

Joined: 05 Dec 2010
Location: Rib Lake, WI
Points: 184
Post Options Post Options   Thanks (0) Thanks(0)   Quote allis restorer Quote  Post ReplyReply Direct Link To This Post Posted: 02 Feb 2011 at 7:14pm
CA's in my opinion are one of the handiest tractors to have, they run well and have about 26hp, and they can be used for almost anything, there small but have alot of power for there size. I wouldnt pay more than $1,500 for one. heres a picture of mine
Back to Top
DennisA (IL) View Drop Down
Orange Level
Orange Level


Joined: 11 Sep 2009
Location: Ridott IL.
Points: 2064
Post Options Post Options   Thanks (0) Thanks(0)   Quote DennisA (IL) Quote  Post ReplyReply Direct Link To This Post Posted: 02 Feb 2011 at 7:59pm
Thanks & God Bless

Dennis
Back to Top
DennisA (IL) View Drop Down
Orange Level
Orange Level


Joined: 11 Sep 2009
Location: Ridott IL.
Points: 2064
Post Options Post Options   Thanks (0) Thanks(0)   Quote DennisA (IL) Quote  Post ReplyReply Direct Link To This Post Posted: 02 Feb 2011 at 8:06pm
Thanks & God Bless

Dennis
Back to Top
Brian Jasper co. Ia View Drop Down
Orange Level
Orange Level


Joined: 11 Sep 2009
Location: Prairie City Ia
Points: 10508
Post Options Post Options   Thanks (0) Thanks(0)   Quote Brian Jasper co. Ia Quote  Post ReplyReply Direct Link To This Post Posted: 02 Feb 2011 at 8:07pm
I have one that has been converted to snap coupler. I would say around here $1500 would buy one that is in dire need of some TLC. $2000-$2500 would get one in good condition. I agree with Jay. The N series Fords WISHED they were as good a tractor as the CA...
"Any man who thinks he can be happy and prosperous by letting the government take care of him better take a closer look at the American Indian." Henry Ford
Back to Top
R.W View Drop Down
Orange Level
Orange Level


Joined: 31 Dec 2010
Location: Swanton, OH
Points: 2975
Post Options Post Options   Thanks (0) Thanks(0)   Quote R.W Quote  Post ReplyReply Direct Link To This Post Posted: 02 Feb 2011 at 8:13pm
Dennis that is an enpressive CA!
In Search Of: 1958 Allis Chalmers D17 Diesel serial #9643D
Back to Top
Claus View Drop Down
Orange Level
Orange Level
Avatar

Joined: 09 Dec 2009
Location: Hebron In
Points: 1150
Post Options Post Options   Thanks (0) Thanks(0)   Quote Claus Quote  Post ReplyReply Direct Link To This Post Posted: 02 Feb 2011 at 8:29pm
Back to Top
Harvey/pa View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: York Co. Pa.
Points: 1011
Post Options Post Options   Thanks (0) Thanks(0)   Quote Harvey/pa Quote  Post ReplyReply Direct Link To This Post Posted: 02 Feb 2011 at 9:27pm
 Always wanted a CA since my Uncle had one when I was a teenager. A few years ago the guy across the road got one & told me to take it to rake hay, just so it got used. Well Jay you are right on about getting on & off as we get older, I thanked him and went back to the WD for raking since. Advise climbing on & off before buying. That said I wonder if my front steps on the 45 would work on a CA, Uncle wants to sell his wide front?...Harvey
Back to Top
BennyLumpkin View Drop Down
Orange Level
Orange Level
Avatar

Joined: 22 Mar 2010
Location: Centre Hall, PA
Points: 2657
Post Options Post Options   Thanks (0) Thanks(0)   Quote BennyLumpkin Quote  Post ReplyReply Direct Link To This Post Posted: 02 Feb 2011 at 9:28pm
My buddy brought a wide front CA home from Montana with an Allis Belly Sickle and the wide front thats on my WD45....that little CA is super handy and a powerhouse.....just think, a Farmall Cub is 9.5 HP, a CA is 26 and they are very close in size.....
Central PA Allis Express
1934 WC254
1945 WF
1945 WC135755
1951 WD68085
1953 WD45-150217
1957 WD45D-230744D
B110
Back to Top
Eldon (WA) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Spokane, WA
Points: 7765
Post Options Post Options   Thanks (0) Thanks(0)   Quote Eldon (WA) Quote  Post ReplyReply Direct Link To This Post Posted: 02 Feb 2011 at 9:32pm
I think a sf CA is worth a little more since there were only around 400 made...who knows how many survived....this one is my tractor drive tractor...goes down the road nice and straight!

ALLIS EXPRESS!
This year:
Back to Top
Pipe View Drop Down
Silver Level
Silver Level


Joined: 12 Sep 2009
Location: Mi
Points: 140
Post Options Post Options   Thanks (0) Thanks(0)   Quote Pipe Quote  Post ReplyReply Direct Link To This Post Posted: 02 Feb 2011 at 9:38pm
My son has two Ca that he is going to post for sale this weekend as a pair  one with a loader , both tricycle fronts in Michigan . keep a look out for them .
Back to Top
CTuckerNWIL View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: NW Illinois
Points: 22807
Post Options Post Options   Thanks (0) Thanks(0)   Quote CTuckerNWIL Quote  Post ReplyReply Direct Link To This Post Posted: 02 Feb 2011 at 9:39pm
I never had a problem getting on my CA but I haven't been on her in about 3 years now. I have been on the B lately and it's way harder than the CA. Harvey, several guys on here have steps on their CA's. If you don't plan to cultivate with it, steps would be real handy for us old pharts.  Charlie
http://www.ae-ta.com
Lena 1935 WC12xxx, Willie 1951 CA6xx Dad bought new, 1954WD45 PS, 1960 D17 NF
Back to Top
BILLP-SE-MI View Drop Down
Orange Level
Orange Level
Avatar

Joined: 13 Sep 2009
Location: SE Michigan
Points: 662
Post Options Post Options   Thanks (0) Thanks(0)   Quote BILLP-SE-MI Quote  Post ReplyReply Direct Link To This Post Posted: 02 Feb 2011 at 9:47pm

The CA is the winter project in the shop now. I wish the green grass was outside now instead of the snow.  Have a good one  BILL P

Back to Top
R.W View Drop Down
Orange Level
Orange Level


Joined: 31 Dec 2010
Location: Swanton, OH
Points: 2975
Post Options Post Options   Thanks (0) Thanks(0)   Quote R.W Quote  Post ReplyReply Direct Link To This Post Posted: 03 Feb 2011 at 10:23am
Hey Dennis what was your tep gauge reading when you were pulling them 3-14's?
In Search Of: 1958 Allis Chalmers D17 Diesel serial #9643D
Back to Top
GregLawlerMinn View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Lawler, Mn
Points: 1226
Post Options Post Options   Thanks (0) Thanks(0)   Quote GregLawlerMinn Quote  Post ReplyReply Direct Link To This Post Posted: 03 Feb 2011 at 10:57am
The CA is the "Little Allis with the big Allis features"; 4 spd tranny, "live" hyd and PTO (with the hand clutch), PAW rear wheels, "traction booster", and same hydraulics as the WD/WD45. They are a honest  2 bottom plow machine; and properly setup for plowing (weights on rear tires, engine weights, and plow/tires adjusted), can pull a 2X14 plow in third gear. They use approx 1 gallon of fuel/hour when working pretty hard, less for raking and lawn mowing.

A foot step can be added to the left brace fairly easily (there is an ad on this forum for a nice one). With the platform over the axles, they can be accessed rather easily with the step.
Parts are fairly easy to obtain, so rehabbing a tired one is not too much of a hassle. However, one should plan on spending $1,000-$2,000 for a decent rehab job; more if you need to get into the engine.
In my opinion, it is much more verstile than the Ford and Farmall and are less expensive
than the Fords. Currently have a CA in the shop being rehabbed to replace the one I have been using for lawnmowing.
Two of the several CA's I have rehabbed and are now with new owners.

A link to a PDF file containing useful info on the B/C/CA tractors below:


What this country needs is more unemployed politicians-and lawyers.
Currently have: 1 D14 and a D15S2.
With new owners: 2Bs,9CAs,1WD,2 D12s,5D14s,3D15S2s, 2D17SIVs,D17D,1D19D;1 Unstyled WC
Back to Top
GregLawlerMinn View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Lawler, Mn
Points: 1226
Post Options Post Options   Thanks (0) Thanks(0)   Quote GregLawlerMinn Quote  Post ReplyReply Direct Link To This Post Posted: 03 Feb 2011 at 11:08am
For those who are interested; link to the post on steps available for the CA:

What this country needs is more unemployed politicians-and lawyers.
Currently have: 1 D14 and a D15S2.
With new owners: 2Bs,9CAs,1WD,2 D12s,5D14s,3D15S2s, 2D17SIVs,D17D,1D19D;1 Unstyled WC
Back to Top
DennisA (IL) View Drop Down
Orange Level
Orange Level


Joined: 11 Sep 2009
Location: Ridott IL.
Points: 2064
Post Options Post Options   Thanks (0) Thanks(0)   Quote DennisA (IL) Quote  Post ReplyReply Direct Link To This Post Posted: 03 Feb 2011 at 11:10am
 Temp has always been in the normal range no matter what it was doing. My "CA" only has a 1/16 over bore kit in it. The engine runs at stock RPMs. The only thing I have added is weight. You need weight for traction, so I have 1 set of inner & outer front & rear weights. If I ever wanted to replace the "CA" I would look for a "D-14", but I have no need to.
Thanks & God Bless

Dennis
Back to Top
R.W View Drop Down
Orange Level
Orange Level


Joined: 31 Dec 2010
Location: Swanton, OH
Points: 2975
Post Options Post Options   Thanks (0) Thanks(0)   Quote R.W Quote  Post ReplyReply Direct Link To This Post Posted: 03 Feb 2011 at 12:58pm
Mark I sent you a pm....
In Search Of: 1958 Allis Chalmers D17 Diesel serial #9643D
Back to Top
Reeseholler View Drop Down
Orange Level
Orange Level
Avatar

Joined: 28 Mar 2010
Location: Port Matilda PA
Points: 294
Post Options Post Options   Thanks (0) Thanks(0)   Quote Reeseholler Quote  Post ReplyReply Direct Link To This Post Posted: 03 Feb 2011 at 4:40pm
You know how I feel about my CA. It is a little awkward getting on and off but I just get on and off the back. Never tried the front before.
Back to Top
Dakota Dave View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: ND
Points: 3892
Post Options Post Options   Thanks (0) Thanks(0)   Quote Dakota Dave Quote  Post ReplyReply Direct Link To This Post Posted: 03 Feb 2011 at 6:13pm
My CA is real easy to get on and off. I step on the mower deck . Step up to the Loader Frame and step up to the platform. I haven't needed the loader in a while but left the frame on it a nice step. I haven't taken the Woods Mower off in a couple years. Its a very handy tractor.
Back to Top
super71bee View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 30 Jul 2019
Location: Wisconsin
Points: 5
Post Options Post Options   Thanks (0) Thanks(0)   Quote super71bee Quote  Post ReplyReply Direct Link To This Post Posted: 14 Aug 2019 at 7:25pm

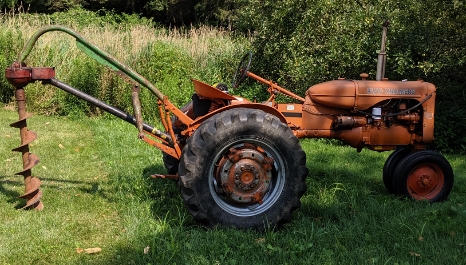

I just obtained a CA. I cannot seem to figure out what year it is. I know the serial number, it is CA 635. I know it has to be between 50 - 53 because it has the pin style receiver.
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 77241
Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 14 Aug 2019 at 7:37pm
YearStarting Serial Number
195014
1951305
195210395
195322181
195431424
195532907
195637203
195738618
Like them all, but love the "B"s.
Back to Top
super71bee View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 30 Jul 2019
Location: Wisconsin
Points: 5
Post Options Post Options   Thanks (0) Thanks(0)   Quote super71bee Quote  Post ReplyReply Direct Link To This Post Posted: 14 Aug 2019 at 7:42pm
Thank you for the fast reply. I've seen the serial number chart you have posted. Because I have never restored tractors I am truly uncertain of the serial number. So, is my tractor a 1951 based on the starting numbers for 1951 and 1952?
Back to Top
DSpears N IL View Drop Down
Silver Level Access
Silver Level Access
Avatar

Joined: 11 Sep 2009
Location: Rockford,Ill
Points: 397
Post Options Post Options   Thanks (0) Thanks(0)   Quote DSpears N IL Quote  Post ReplyReply Direct Link To This Post Posted: 14 Aug 2019 at 8:17pm
I would call it a 1951.

I have SN 39086 on my CA with Snap Coupler drawbar

Back to Top
Gerald J. View Drop Down
Orange Level
Orange Level


Joined: 12 Sep 2009
Location: Hamilton Co, IA
Points: 5636
Post Options Post Options   Thanks (0) Thanks(0)   Quote Gerald J. Quote  Post ReplyReply Direct Link To This Post Posted: 14 Aug 2019 at 9:29pm
Back to Top
super71bee View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 30 Jul 2019
Location: Wisconsin
Points: 5
Post Options Post Options   Thanks (0) Thanks(0)   Quote super71bee Quote  Post ReplyReply Direct Link To This Post Posted: 15 Aug 2019 at 3:55pm
Does anyone know if I can swap to a snap couple setup using the parts from a later model Can?
Back to Top
Hunt4Allis View Drop Down
Orange Level
Orange Level


Joined: 13 Mar 2018
Location: Ohio
Points: 1160
Post Options Post Options   Thanks (0) Thanks(0)   Quote Hunt4Allis Quote  Post ReplyReply Direct Link To This Post Posted: 15 Aug 2019 at 10:52pm
Love my CA
Narrow front now but have everything to change over to a wide w/ trip loader bucket soon and from pulling a 6' BH to drilling fence posts(10") auger, really can find anything it complains about doing( lots of power to size ratio and like all has said very handy tractor- especially when ya buy em cheap,($400) mine needed new rear rims and front rims but motor is strong through all the paces I've put it through so far...
Back to Top
JohnCO View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Niwot Colo
Points: 8992
Post Options Post Options   Thanks (0) Thanks(0)   Quote JohnCO Quote  Post ReplyReply Direct Link To This Post Posted: 15 Aug 2019 at 11:32pm
I've got two CA's, a wide front I bought when I was 17 (53 years ago!) and a narrow one that is kind of free until the owner comes back from Europe someday.  I used the CA for haying, cutting, raking and baling with a MF #10 baler.  We don't pull wagons out here, use bale wagons to pick up and stack the hay.  I'll be taking the narrow front to our Yesteryear Farm show next weekend, Aug 23, 24 & 25th, Just south of Longmont Colorado on US 287 at the Doughty Museum.
"If at first you don't succeed, get a bigger hammer"
Allis Express participant
Back to Top
CTuckerNWIL View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: NW Illinois
Points: 22807
Post Options Post Options   Thanks (0) Thanks(0)   Quote CTuckerNWIL Quote  Post ReplyReply Direct Link To This Post Posted: 16 Aug 2019 at 8:12am
Originally posted by super71bee super71bee wrote:

Does anyone know if I can swap to a snap couple setup using the parts from a later model Can?

 Yes you can. The lift arms are different and would have to be either changed, or cut off to fit the proper lift latches.
http://www.ae-ta.com
Lena 1935 WC12xxx, Willie 1951 CA6xx Dad bought new, 1954WD45 PS, 1960 D17 NF
Back to Top
