Allis Chalmer 6138LT engine

 Post Reply Post Reply
Author
Message
DIEMA185 View Drop Down
Bronze Level
Bronze Level


Joined: 05 Dec 2019
Location: France
Points: 7
Post Options Post Options   Thanks (0) Thanks(0)   Quote DIEMA185 Quote  Post ReplyReply Direct Link To This Post Topic: Allis Chalmer 6138LT engine
    Posted: 05 Dec 2019 at 7:25am
Hello everybody!

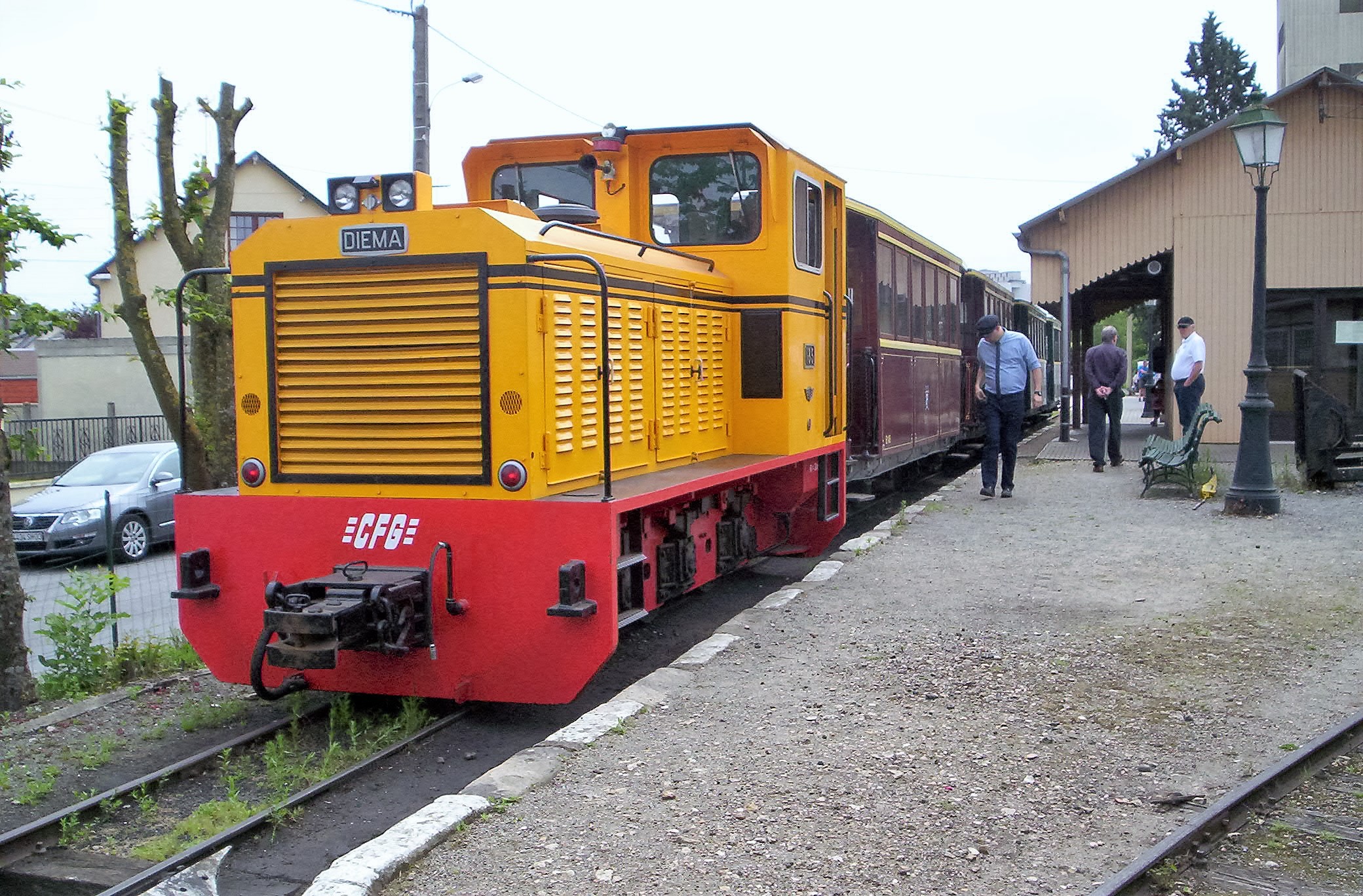

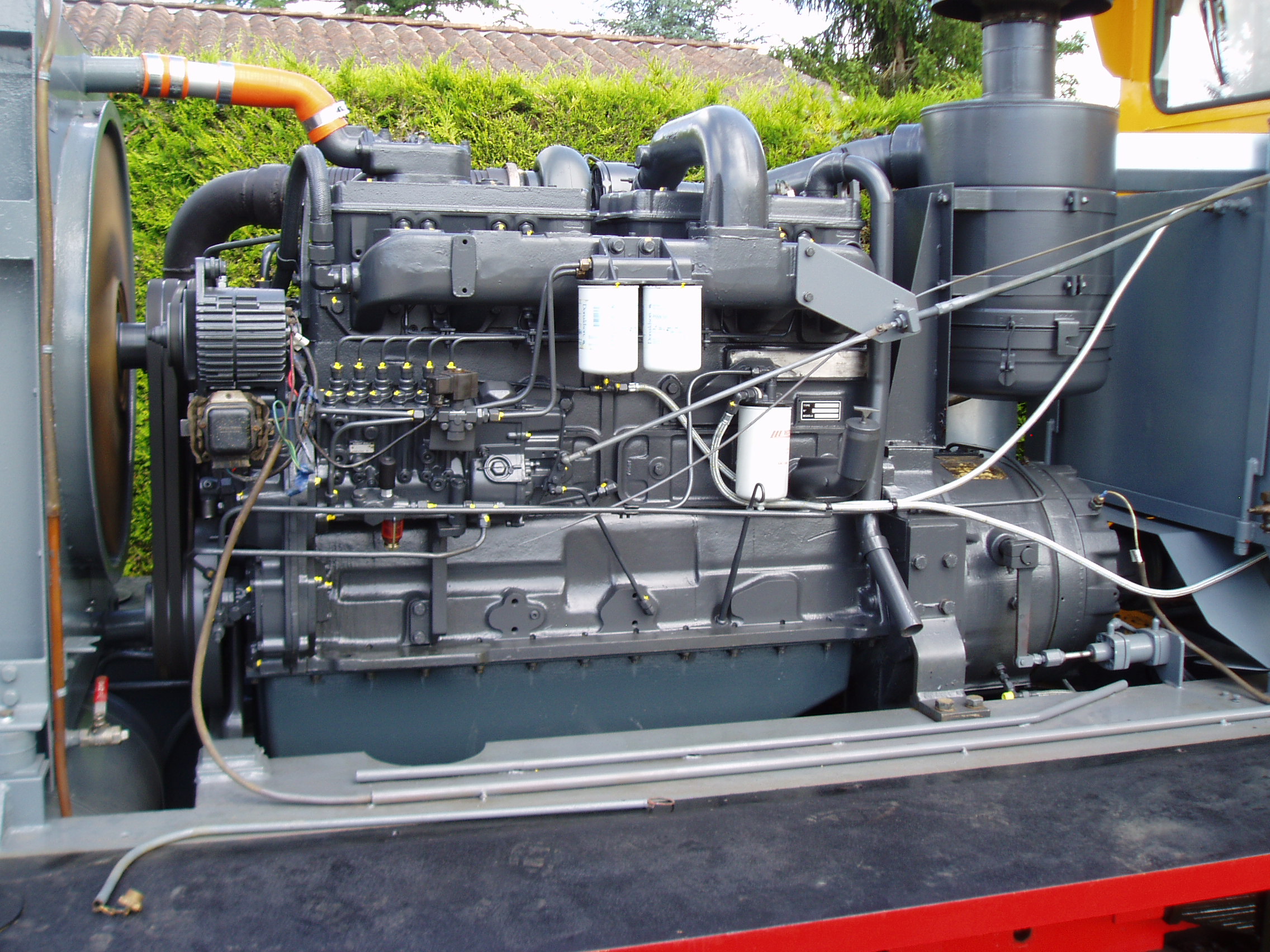

My name is Cyril. I'm now repairing a small locomotive equiped with an Allis Chalmer diesel engine 6138LT. I have done the overhaul of the engine but I need your help.

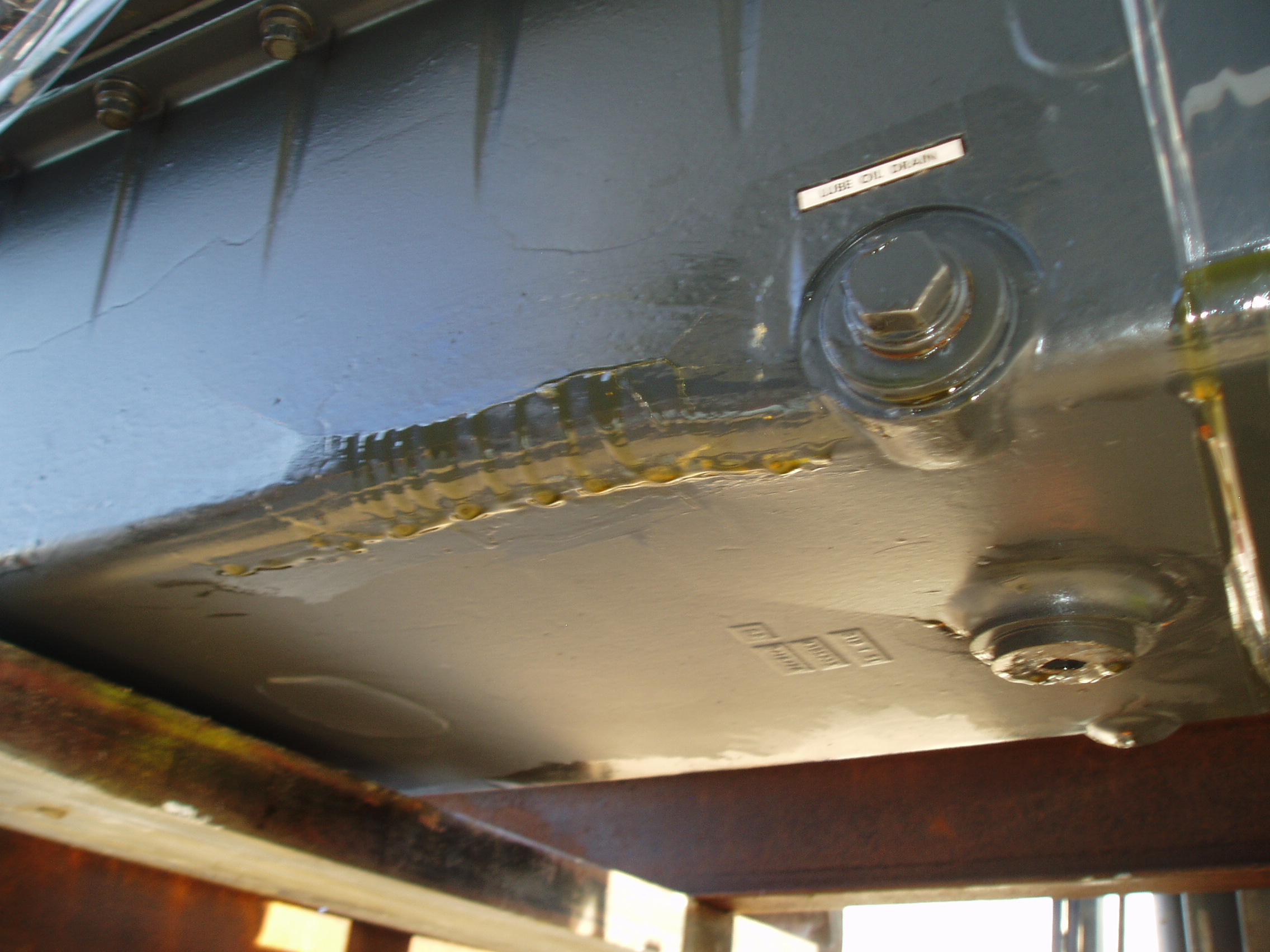

During the transportation from the engine repair workshop to home, the carrier has broken the oil pan of the engine.
I'm looking for a new oil pan or a good second hand.
Do you know where I can find & buy it?

Thanks in advance for your help.

Best regards.

Cyril
Back to Top
Sponsored Links


Back to Top
CAL(KS) View Drop Down
Orange Level
Orange Level


Joined: 18 Sep 2009
Location: Chapman, KS
Points: 3265
Post Options Post Options   Thanks (0) Thanks(0)   Quote CAL(KS) Quote  Post ReplyReply Direct Link To This Post Posted: 05 Dec 2019 at 9:00am
Many models used essentially the same base block.  HD16, HD21, and some TS scrapers used the 6138 in different power variations but should all fit same or very similar oil pan.  i would guess all these models used the same deep oil pan and scavange pump system.  Now being a locomotive engine, its possible the deep pan is not used, in which case could possibly be found on power unit engines, generator etc.   The shallow flat bottom pan was used on american tractor models 8550 and 4w-305.  I would not think difficult to find either way in the USA, France who knows.

Edited by CAL(KS) - 05 Dec 2019 at 9:02am
Me -C,U,UC,WC,WD45,190XT,TL-12,145T,HD6G,HD10W,HD16

Dad- WD, D17D, D19D, RT100A, 7020, 7080,7580, 2-8550's, R62, R72 HD15
Back to Top
DIEMA185 View Drop Down
Bronze Level
Bronze Level


Joined: 05 Dec 2019
Location: France
Points: 7
Post Options Post Options   Thanks (0) Thanks(0)   Quote DIEMA185 Quote  Post ReplyReply Direct Link To This Post Posted: 05 Dec 2019 at 11:36am
Hello,

Thanks for your prompt reply.
It is what I think so... On my engine, the oil pan bottom is (near) flat...

Back to Top
DIEMA185 View Drop Down
Bronze Level
Bronze Level


Joined: 05 Dec 2019
Location: France
Points: 7
Post Options Post Options   Thanks (0) Thanks(0)   Quote DIEMA185 Quote  Post ReplyReply Direct Link To This Post Posted: 05 Dec 2019 at 11:38am

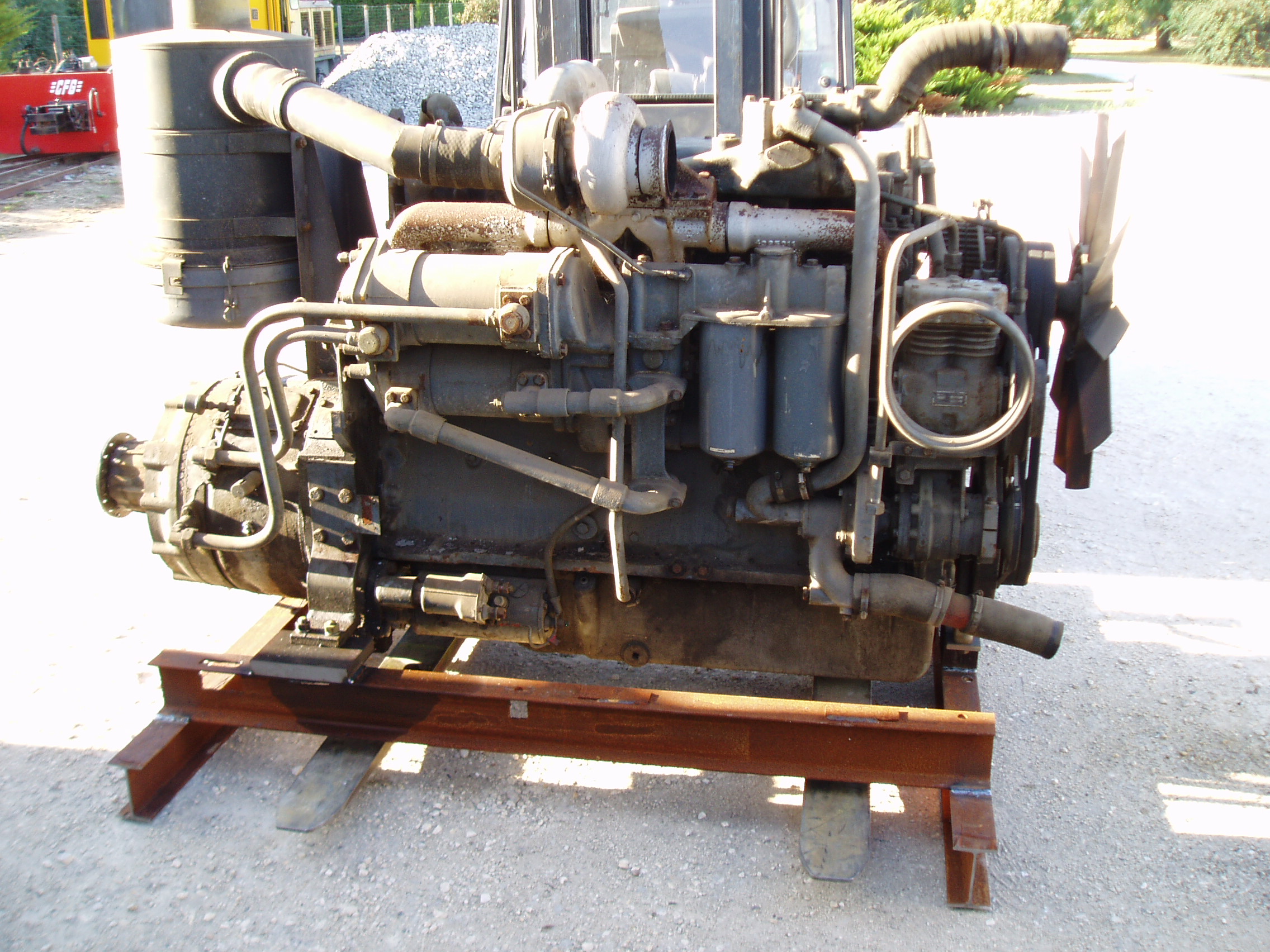

The engine before general overhaul:

Back to Top
DougG View Drop Down
Orange Level
Orange Level


Joined: 20 Sep 2009
Location: Mo
Points: 5419
Post Options Post Options   Thanks (0) Thanks(0)   Quote DougG Quote  Post ReplyReply Direct Link To This Post Posted: 05 Dec 2019 at 11:53am
It must not be cast?
Back to Top
DIEMA185 View Drop Down
Bronze Level
Bronze Level


Joined: 05 Dec 2019
Location: France
Points: 7
Post Options Post Options   Thanks (0) Thanks(0)   Quote DIEMA185 Quote  Post ReplyReply Direct Link To This Post Posted: 05 Dec 2019 at 12:23pm
Hello,

The oil pan is a casted part.
My engine is:
Model: 6138-LT
Serial number: 14-01247
Catalogue: 4395772      9-7451-
If somebody have or can find a part who can suit my need, I'm interested in....
Unfortunatly, Allis Chalmer engines are unknown in France....
Back to Top
CAL(KS) View Drop Down
Orange Level
Orange Level


Joined: 18 Sep 2009
Location: Chapman, KS
Points: 3265
Post Options Post Options   Thanks (0) Thanks(0)   Quote CAL(KS) Quote  Post ReplyReply Direct Link To This Post Posted: 05 Dec 2019 at 12:25pm
looks like tractor oilpan.   AGCO # 74395844

found one in florida  but should verify casting number to be sure

Me -C,U,UC,WC,WD45,190XT,TL-12,145T,HD6G,HD10W,HD16

Dad- WD, D17D, D19D, RT100A, 7020, 7080,7580, 2-8550's, R62, R72 HD15
Back to Top
DIEMA185 View Drop Down
Bronze Level
Bronze Level


Joined: 05 Dec 2019
Location: France
Points: 7
Post Options Post Options   Thanks (0) Thanks(0)   Quote DIEMA185 Quote  Post ReplyReply Direct Link To This Post Posted: 05 Dec 2019 at 12:31pm
Hello,

Thanks for the reply.
You're right, we must check the casting number...
If it's match, you are my heroe!!
Back to Top
DIEMA185 View Drop Down
Bronze Level
Bronze Level


Joined: 05 Dec 2019
Location: France
Points: 7
Post Options Post Options   Thanks (0) Thanks(0)   Quote DIEMA185 Quote  Post ReplyReply Direct Link To This Post Posted: 05 Dec 2019 at 12:40pm

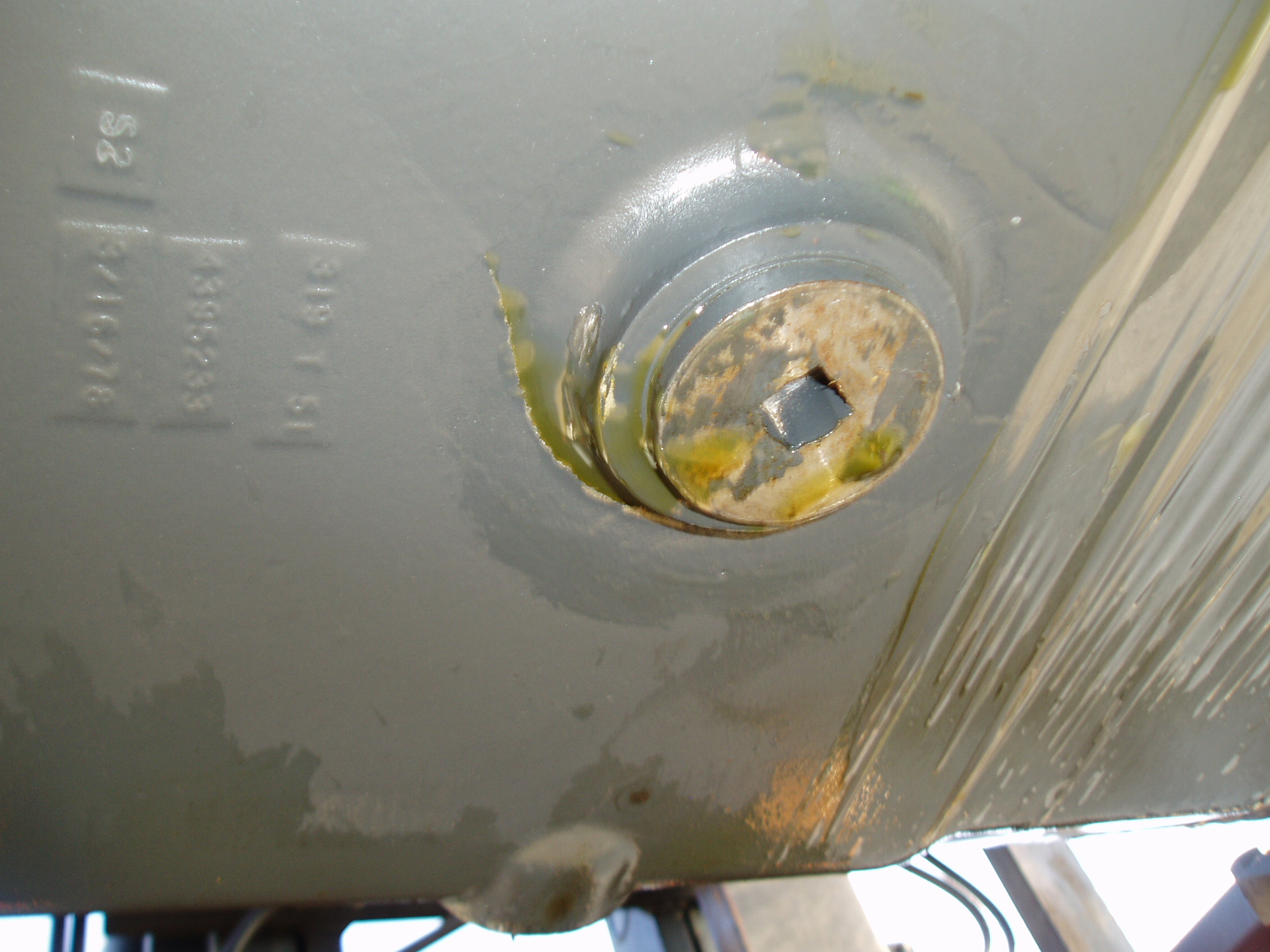

Casting numbers seems to be different:

Back to Top
CAL(KS) View Drop Down
Orange Level
Orange Level


Joined: 18 Sep 2009
Location: Chapman, KS
Points: 3265
Post Options Post Options   Thanks (0) Thanks(0)   Quote CAL(KS) Quote  Post ReplyReply Direct Link To This Post Posted: 05 Dec 2019 at 2:32pm
number i gave is part #.  i do not know casting # or if interchangeable
Me -C,U,UC,WC,WD45,190XT,TL-12,145T,HD6G,HD10W,HD16

Dad- WD, D17D, D19D, RT100A, 7020, 7080,7580, 2-8550's, R62, R72 HD15
