AC 715B - tie rod ends - and steering ?
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
Coke-in-MN View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 12 Sep 2009
Location: Afton MN
Points: 41730 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Coke-in-MN Quote  Post ReplyReply Direct Link To This Post Topic: AC 715B - tie rod ends - and steering ?
    Posted: 10 Jan 2025 at 11:05pm
Need to replace tie rod ends - anyone have a interchange for the parts or a stock number

Also steering seems to wander , and as you correct it the steering wheel will eventually make a full turn just to keep going straight when roading machine .
 Have always thought it was in the steering control hydraulic steering sector , but know wonder if it's the actual steering hydraulic cylinder has internal leakage which causes the wander of machine .
 No problem at slow speed or when working machine turns fine and has power to turn wheels in sand, mud or such . Just this having to constantly correct when on road
Faith isn't a jump in the dark. It is a walk in the light. Faith is not guessing; it is knowing something.
"Challenges are what make life interesting; overcoming them is what makes life meaningful."
Back to Top
Sponsored Links


Back to Top
orangeman View Drop Down
Orange Level
Orange Level


Joined: 12 Sep 2009
Points: 1781 		Post Options Post Options   Thanks (0) Thanks(0)   Quote orangeman Quote  Post ReplyReply Direct Link To This Post Posted: 11 Jan 2025 at 8:49am
AC 715 Tie Rod Ends P/N's as follows:

Number  Qty.    Description

1007069  1 Rod End, Tie (Left Hand Thread)

1007070   1 Rod End, Tie (Right Hand Thread)

Source - AC 715 Loader Backhoe Parts Catalog Form 9003463 12/75.  Note this manual is an early manual so when the AC 715B came along - am wondering if there were any rolling engineering changes that would have been covered by a supplement.

U.S. Manufacturers - Moog and Delphi Technology's - possibly Minn Parr

HTH's ~ Orangeman
Back to Top
Coke-in-MN View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 12 Sep 2009
Location: Afton MN
Points: 41730 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Coke-in-MN Quote  Post ReplyReply Direct Link To This Post Posted: 11 Jan 2025 at 1:16pm
PDF file for the 714 / 715  AC Industrial - CDS parts list
Now just have to figure out how to convert numbers to industry suppliers

https://www.tractorparts.com/PDFs/AC_710C_714C_715C_SN3301-7217_PARTS.PDF
Faith isn't a jump in the dark. It is a walk in the light. Faith is not guessing; it is knowing something.
"Challenges are what make life interesting; overcoming them is what makes life meaningful."
Back to Top
DiyDave View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: Gambrills, MD
Points: 52194 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DiyDave Quote  Post ReplyReply Direct Link To This Post Posted: 11 Jan 2025 at 3:40pm
You might try surplus center, looks like they have quite a variety, from 3/4" down...



Edited by DiyDave - 11 Jan 2025 at 3:41pm
Source: Babylon Bee. Sponsored by BRAWNDO, its got what you need!
Back to Top
Coke-in-MN View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 12 Sep 2009
Location: Afton MN
Points: 41730 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Coke-in-MN Quote  Post ReplyReply Direct Link To This Post Posted: 11 Jan 2025 at 11:28pm
Dave - those are all rod end bearings , the ones used on this tie rod are automotive type and about 1" diameter threads . the stud is a tapered machined surface that wedges into spindle housing
Faith isn't a jump in the dark. It is a walk in the light. Faith is not guessing; it is knowing something.
"Challenges are what make life interesting; overcoming them is what makes life meaningful."
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 82407 		Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 12 Jan 2025 at 7:54am

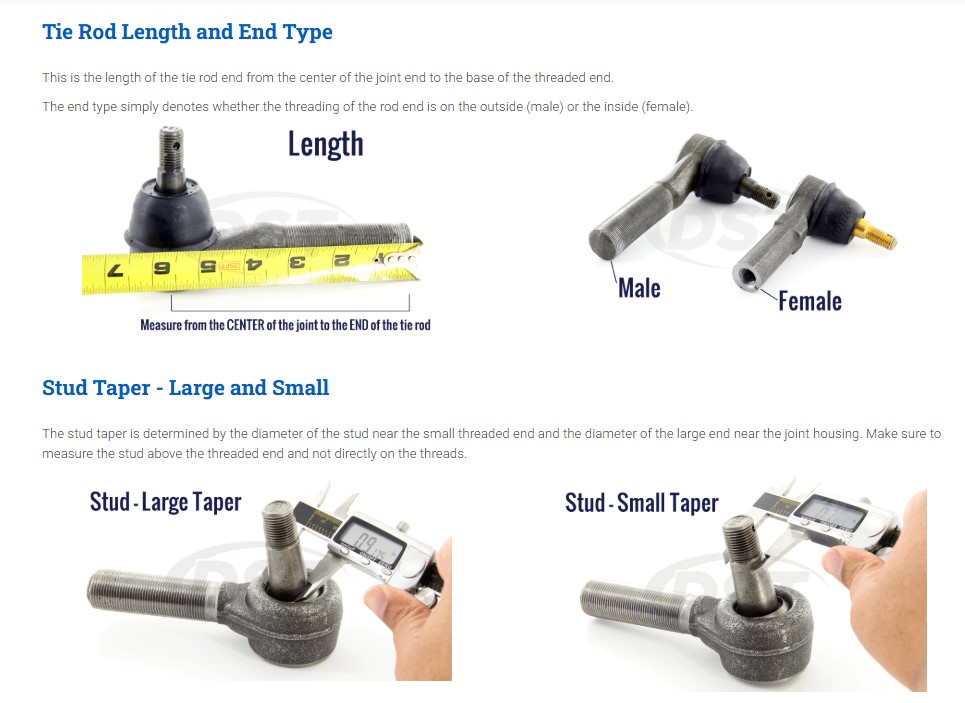

Coke... if the get a couple dimensions, you might match up here..







Edited by steve(ill) - 12 Jan 2025 at 7:58am
Like them all, but love the "B"s.
Back to Top
KRAKMT View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 21 May 2010
Location: MT
Points: 101 		Post Options Post Options   Thanks (0) Thanks(0)   Quote KRAKMT Quote  Post ReplyReply Direct Link To This Post Posted: 6 hours 55 minutes ago at 9:00pm
If anyone finds the correct ends I would Iike a part number, and if anyone sources new kingpins and bushings I really need to rebuild my hubs.
Back to Top
