 Topic: AC 1 row Planter - Sprockets
Posted: 01 Sep 2010 at 11:48am |

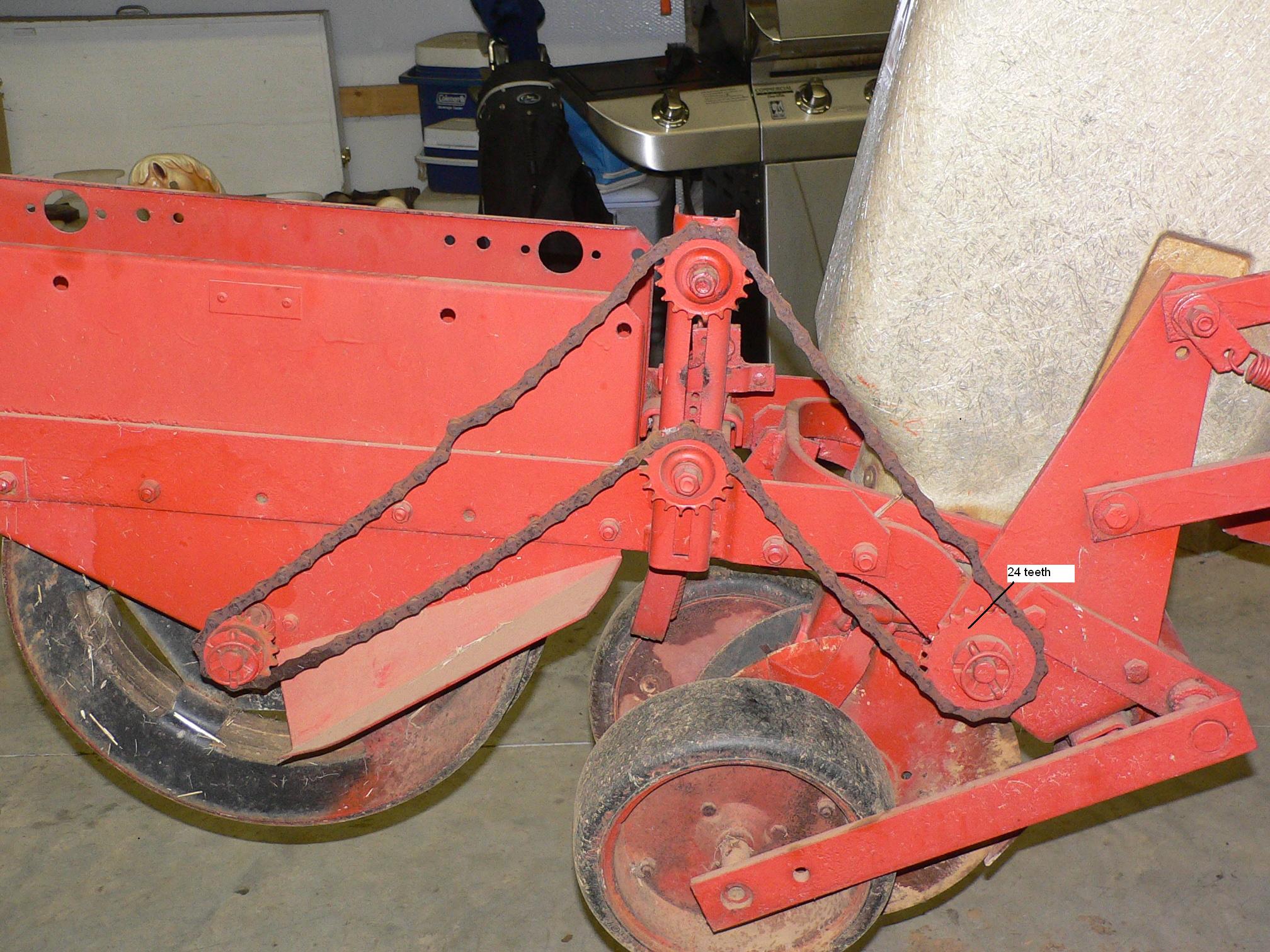

I have a AC 1 row planter that was made from a larger planter. I have a 28, 24 and 20 tooth sprockets. This year I used the 24 tooth with a 24 cell plate to plant sweet corn. Spacing was too far apart, 15 inchs, prefer 9 inches, I will be getting a 16 cell plate from Lincoln Ag Products, but still need help with the sprocket set-up. Do not have a manual. Any help with the setup would be appreciated. The circumference of the drive wheel is 60 inches.
|
 |
|
Sponsored Links
|
|
|
wordman077
Bronze Level
Joined: 01 Sep 2010
Points: 8
|
Post Options
Thanks(0)
Quote Reply
Posted: 01 Sep 2010 at 11:51am |

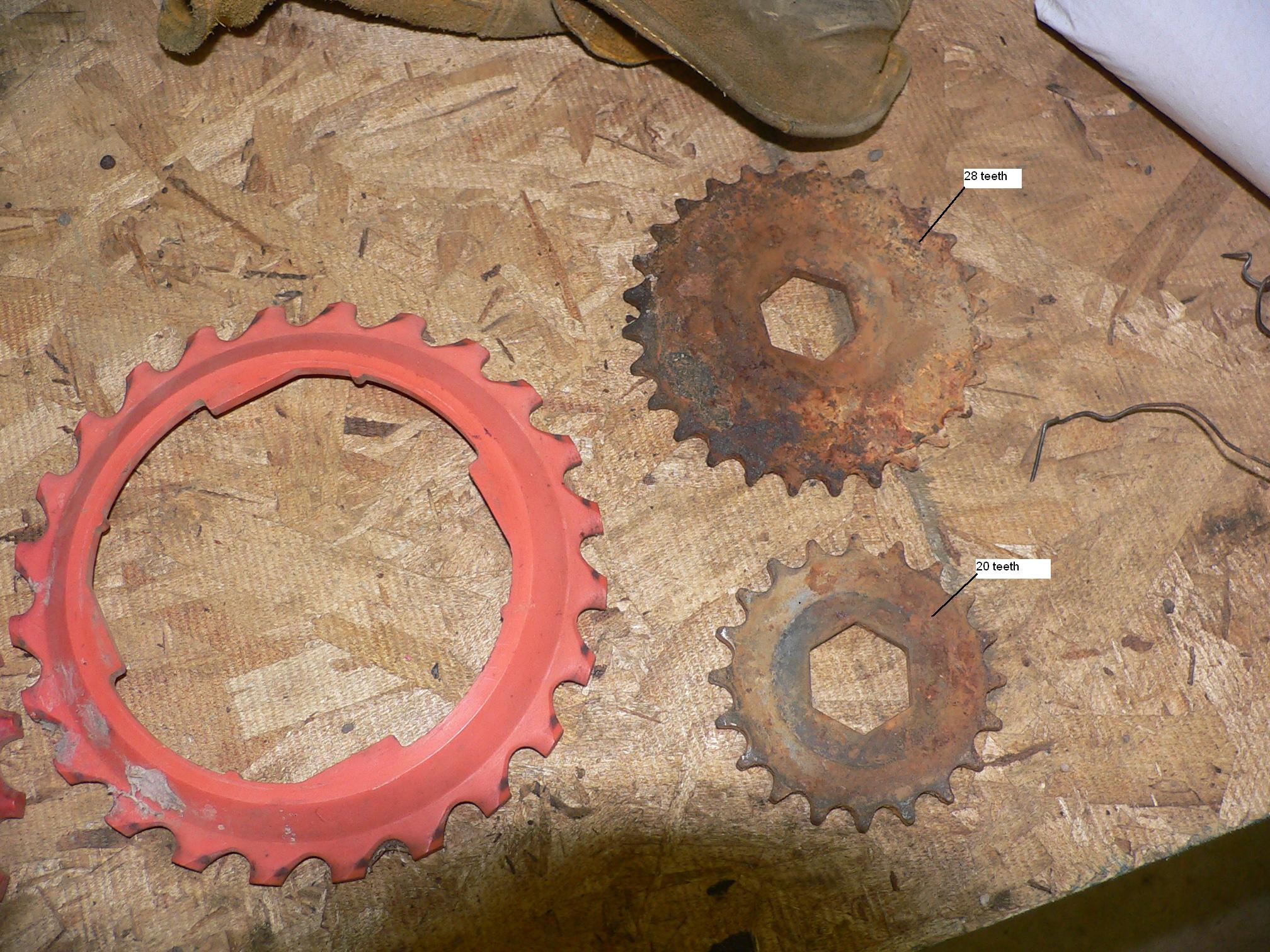

Another picture
|
|
norm [ind]
Orange Level
Joined: 16 Sep 2009
Location: BOURBON,IN.
Points: 667
|
Post Options
Thanks(0)
Quote Reply
Posted: 01 Sep 2010 at 8:21pm |
|
any planter book will give the spac ing you want
|
|
Gerald J.
Orange Level
Joined: 12 Sep 2009
Location: Hamilton Co, IA
Points: 5636
|
Post Options
Thanks(0)
Quote Reply
Posted: 01 Sep 2010 at 8:37pm |
|
Looks like you used a 20 driver and 24 driven. and you got 15 inch spacing or 8 plants per 10 feet of row. So that was with a ratio of 1:1.2 or .8333:1.
For 9" spacing you wish 13.3333 per 10 feet and that would take a ratio increase of 13.333/8 times .8333 or a ratio of 1.389:1. If you use a 28 driver and a 20 driven you get a drive ratio of 1.4:1 and that will get you 13.44 plants per 10 feet or a plant spacing of 8.92".
Gerald J.
|
|
wordman077
Bronze Level
Joined: 01 Sep 2010
Points: 8
|
Post Options
Thanks(0)
Quote Reply
Posted: 02 Sep 2010 at 8:39am |
|
Thanks Gerald J. Just so I am clear, the driver sprocket is on the back drive wheel and the driven is controling the seed drop, correct? Again, thank you
|
|
Gerald J.
Orange Level
Joined: 12 Sep 2009
Location: Hamilton Co, IA
Points: 5636
|
Post Options
Thanks(0)
Quote Reply
Posted: 02 Sep 2010 at 10:04am |
|
Yes.
Gerald J.
|
|
wordman077
Bronze Level
Joined: 01 Sep 2010
Points: 8
|
Post Options
Thanks(0)
Quote Reply
Posted: 03 Sep 2010 at 7:18am |
|
Does a 16 cell or 24 cell plate drop seed closer?
|
|
Gerald J.
Orange Level
Joined: 12 Sep 2009
Location: Hamilton Co, IA
Points: 5636
|
Post Options
Thanks(0)
Quote Reply
Posted: 03 Sep 2010 at 11:39am |
|
24 cell if the chain sprockets are the same. The rate is the same if you turn the 16 cell 50% faster than the 24 cell. Likely big seed won't fit the 24 cell, and two small seed might fit the 16 cell which affects your choice of plate and seed.
Gerald J.
|
|
tfite
Bronze Level
Joined: 25 Mar 2011
Location: tennessee
Points: 4
|
Post Options
Thanks(0)
Quote Reply
Posted: 25 Mar 2011 at 10:33am |
I need some sprockets for my 333 ac planter. 8 tooth and 15 tooth. Please let me know if I can get any .
|
|
Ray
Orange Level
Joined: 21 Sep 2009
Points: 1979
|
Post Options
Thanks(0)
Quote Reply
Posted: 26 Mar 2011 at 11:44pm |
|
i HAVE THE THESE SPROCKETS THAT ON ON SHAFT (3/4IN) FOR aLLIS PLANTERS. 9TOOTH,10TOOTH,12TOOTH,14TOOTH,18TOOTH AND CLUSTER WITH 10,7,14 ON.785-353-2392
|
|
tfite
Bronze Level
Joined: 25 Mar 2011
Location: tennessee
Points: 4
|
Post Options
Thanks(0)
Quote Reply
Posted: 27 Mar 2011 at 8:21am |
Ray
The part numbers (sprockets) I am looking for are 70591561 (8 tooth) and 70591568 (15 tooth). I have a 333 plater with 73 unit number. Seems to wrok best with this setup. Any Ideas where I might find them
Tim Fite
|
|
