 Topic: 8070 Restoration
Posted: 17 Mar 2021 at 1:57pm |
So, I think I'm going to pull the trigger on a low hour 8070 that needs a full restoration and I'm putting together a list everything I'll need. Does anyone know where I could source basically every knob on the right hand console, throttle and all?
The range shifter knob is missing and the remainder are faded really bad. Alternately, does anyone know of a way to get the color back in the knobs?
Also, anyone have a 8000 series temp and fuel gauge in good shape they want to part with?
Thanks!!
|
 |
|
Sponsored Links
|
|
|
Sugarmaker
Orange Level
Joined: 12 Jul 2013
Location: Albion PA
Points: 8167
|
Post Options
Thanks(0)
Quote Reply
Posted: 17 Mar 2021 at 2:32pm |
You might try automotive paint thinner on the knobs. try a spot first. I cant say this will work but it can bring back some vinyl to shine?????? Regards, Chris
|
|
D17 1958 (NFE), WD45 1954 (NFE), WD 1952 (NFE), WD 1950 (WFE), Allis F-40 forklift, Allis CA, Allis D14, Ford Jubilee, Many IH Cub Cadets, 32 Ford Dump, 65 Comet.
|
|
DougG
Orange Level
Joined: 20 Sep 2009
Location: Mo
Points: 7943
|
Post Options
Thanks(1)
Quote Reply
Posted: 17 Mar 2021 at 3:17pm |
|
Mc Master Carr has alot of knobs, latches and stuff like that
|
|
Daehler
Orange Level Access
Joined: 23 Nov 2010
Location: Lexington MO
Points: 1152
|
Post Options
Thanks(1)
Quote Reply
Posted: 17 Mar 2021 at 5:39pm |
|
Agco still has the shifter knob available or did a couple years ago. That's where I got mine.
Someone posted a short time ago that new water temp and fuel gauges like originals can be bought off of ebay.
|
|
8070FWA,7080 BlackBelly, 7045,2 200s,D19,D17,G, WD,45,UC,7 AC mowers and lots more!
"IT TAKES 3 JD's TO OUT DO AN ALLIS, 2 TO MATCH IT IN THE FIELD AND 1 FOR PARTS!"
|
|
PAFarmer
Bronze Level
Joined: 06 Oct 2020
Location: Pennsylvania
Points: 114
|
Post Options
Thanks(0)
Quote Reply
Posted: 17 Mar 2021 at 6:20pm |
I did some digging in the Agco Parts book. Found the following part numbers:
Throttle Knob - 70263940 Shifter Knob - 70273176 Shifter Gate - 70273439 Hydraulic Knob - 70263937 PTO Knob - 70264538 Door Knob - 70263937
The yellow PTO knob is discontinued, but I'll see if I can track one down. McMaster has phenolic resin knobs that are very close to the shifter knobs. The main difference being they are threaded, but I'm sure they could be made to work.
There are some water/fuel gauges on eBay. Will get a new one for our 6060 as well because the original is getting all rusty.
Really grateful for everyone's input! Thank you.
|
|
8070nc
Silver Level Access
Joined: 21 Mar 2019
Location: North Carolina
Points: 400
|
Post Options
Thanks(1)
Quote Reply
Posted: 17 Mar 2021 at 6:51pm |
|
I sprayed my shifter knobs with SEM interior paint
|
|
1984 80780
1957 D14
DES 300 with 25000 engine
616 tractor
|
|
PAFarmer
Bronze Level
Joined: 06 Oct 2020
Location: Pennsylvania
Points: 114
|
Post Options
Thanks(0)
Quote Reply
Posted: 17 Mar 2021 at 7:00pm |
|
Did you also paint the throttle knobs and such with the SEM?
|
|
8070nc
Silver Level Access
Joined: 21 Mar 2019
Location: North Carolina
Points: 400
|
Post Options
Thanks(1)
Quote Reply
Posted: 17 Mar 2021 at 8:30pm |
|
I dont remember but I dont see any reason why it would not work. Be worth a shot
|
|
1984 80780
1957 D14
DES 300 with 25000 engine
616 tractor
|
|
PAFarmer
Bronze Level
Joined: 06 Oct 2020
Location: Pennsylvania
Points: 114
|
Post Options
Thanks(0)
Quote Reply
Posted: 18 Mar 2021 at 9:44am |
So, basically the only things available from Agco are the shifter knobs and the shift gate. This 8070 has no wear on the shift gate, but I want to replace the one on our 8010. It's wore pretty bad.
Guess I'll be trying to dye or paint the other knobs.
|
|
PAFarmer
Bronze Level
Joined: 06 Oct 2020
Location: Pennsylvania
Points: 114
|
Post Options
Thanks(0)
Quote Reply
Posted: 22 Mar 2021 at 9:26am |
|
Been digging around and can't seem to find it, does anyone have the paint code for the tan paint of the 8000 series interior?
|
|
8070nc
Silver Level Access
Joined: 21 Mar 2019
Location: North Carolina
Points: 400
|
Post Options
Thanks(0)
Quote Reply
Posted: 22 Mar 2021 at 10:41am |
|
I know this is not "paint" but I sprayed mine with SEM Camel. I tried saddle tan. Too gray. Palamino. Too yellow. If you will call me I will send you some pictures. 910 824 8856
|
|
1984 80780
1957 D14
DES 300 with 25000 engine
616 tractor
|
|
Daehler
Orange Level Access
Joined: 23 Nov 2010
Location: Lexington MO
Points: 1152
|
Post Options
Thanks(0)
Quote Reply
Posted: 22 Mar 2021 at 7:47pm |
|
Agco has put the saddle tan on permanent back order. I found a krlon color that is a almost perfect match. I'll have to dig through all my stuff from redoing the R50 to find the paint cans. Probably will have a shop day tomorrow so I can get some things organized and found. I've redone a couple 8000 cabs so if you need some help you can call my cell 660 232 4293
|
|
8070FWA,7080 BlackBelly, 7045,2 200s,D19,D17,G, WD,45,UC,7 AC mowers and lots more!
"IT TAKES 3 JD's TO OUT DO AN ALLIS, 2 TO MATCH IT IN THE FIELD AND 1 FOR PARTS!"
|
|
PAFarmer
Bronze Level
Joined: 06 Oct 2020
Location: Pennsylvania
Points: 114
|
Post Options
Thanks(0)
Quote Reply
Posted: 22 Mar 2021 at 8:16pm |
|
Thanks to both of you for the offers for assistance. I'll be sure to keep them handy incase I get in over my head. That Krylon color would be ideal. Right now I'm in the process of amassing the required materials for interior and exterior. I got the upholstery, floor liner and head liner. I've also got all the decals. Still trying to make up my mind on the exterior paint. I also got some fabric of Etsy, I found the link on here, to have the factory "luxury" seat recovered. It's very close to the original pattern. Still some stuff to get, but I'm getting close. Hope to have the restore done in time to run forage harvester on second crop in June.
|
|
PAFarmer
Bronze Level
Joined: 06 Oct 2020
Location: Pennsylvania
Points: 114
|
Post Options
Thanks(0)
Quote Reply
Posted: 22 Mar 2021 at 8:30pm |
|
I went poking around on the Krylon website and found K05356207 which is called "Equestrian". It looks really close. I'll see if my local hardware store can get me a can to try and see if it's close.
|
|
PAFarmer
Bronze Level
Joined: 06 Oct 2020
Location: Pennsylvania
Points: 114
|
Post Options
Thanks(0)
Quote Reply
Posted: 23 Mar 2021 at 7:46pm |

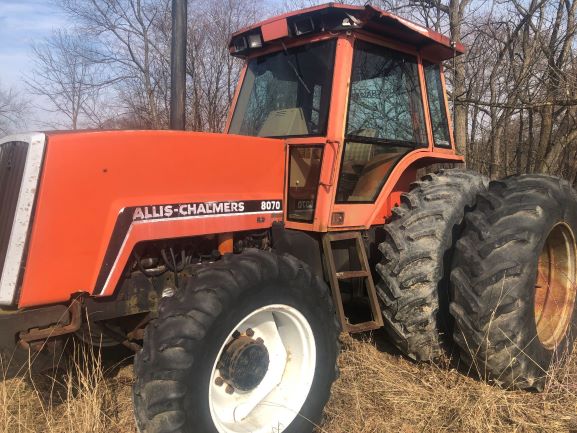

Well, it's officially done. I own the 8070 and I'm going to get it home tomorrow. Here's a photo. Will start on the resto this weekend.
|
|
Leon B MO
Orange Level
Joined: 12 Sep 2009
Location: Old Monroe, Mo
Points: 2070
|
Post Options
Thanks(0)
Quote Reply
Posted: 23 Mar 2021 at 8:57pm |
Personally, I can't wait to see how this poor ol gal looks when your done. I have done 2 of our 8050 cab interiors but not in the factory sense. Leon B MO
|
|
Uncle always said "Fill the back of the shovel and the front will take care of itself".
|
|
PAFarmer
Bronze Level
Joined: 06 Oct 2020
Location: Pennsylvania
Points: 114
|
Post Options
Thanks(0)
Quote Reply
Posted: 23 Mar 2021 at 9:03pm |
 Leon B MO wrote:
Personally, I can't wait to see how this poor ol gal looks when your done. I have done 2 of our 8050 cab interiors but not in the factory sense.Leon B MO |
Thanks, Leon. I'll be sure to post pictures along the way. With my family working on it with me, I hope to have it field ready for second crop hay in June. But, as they say the best laid plans of mice and men. It'll be a good addition to our fleet of AC iron and will help keep the hours down on our 8010 which can officially retire to a hay making tractor now!
|
|
AC720Man
Orange Level
Joined: 10 Oct 2016
Location: Shenandoah, Va
Points: 4635
|
Post Options
Thanks(0)
Quote Reply
Posted: 23 Mar 2021 at 9:05pm |
|
Congratulations on a 8070FWA!!! A little confused so please correct me. You said a full restoration, do you mean cab? Tractor is good to go? That would be great if its just a cab restoration.
|
|
1968 B-208, 1976 720 (2 of them)Danco brush hog, single bottom plow,52" snow thrower, belly mower,rear tine tiller, rear blade, front blade, 57"sickle bar,1983 917 hydro, 1968 7hp sno-bee, 1968 190XTD
|
|
PAFarmer
Bronze Level
Joined: 06 Oct 2020
Location: Pennsylvania
Points: 114
|
Post Options
Thanks(0)
Quote Reply
Posted: 23 Mar 2021 at 9:19pm |
AC720Man wrote:
Congratulations on a 8070FWA!!! A little confused so please correct me. You said a full restoration, do you mean cab? Tractor is good to go? That would be great if its just a cab restoration. |
Thanks! I'm excited to get her back to her former glory and back in the field. Back when I said "full restoration" I was thinking I was dealing with a 13,000+ hour tractor and I was planning on a full overhaul of the engine as well as a full cosmetic restoration. As I looked into the tractor a bit more, I realized it was just under 3400 hours. So my current plans are to fix the cab where it is damaged, then do a full cosmetic restore on the cab interior and the tractor exterior.
Also going to install the 540/1000 PTO while I have all the fluids drained.
Edited by PAFarmer - 23 Mar 2021 at 9:20pm
|
|
xbk9576
Bronze Level
Joined: 16 Jun 2016
Location: iowa
Points: 20
|
Post Options
Thanks(1)
Quote Reply
Posted: 24 Mar 2021 at 10:21am |
|
gauge you still can get from agoc 70277453v $173.00
|
|
PAFarmer
Bronze Level
Joined: 06 Oct 2020
Location: Pennsylvania
Points: 114
|
Post Options
Thanks(0)
Quote Reply
Posted: 24 Mar 2021 at 10:30am |
One thing I can't seem to track down is the decal that goes around the hydraulic, throttle, PTO, etc. Other than finding one laying around NOS at a dealer, would anyone know where I could source one?
|
|
Daehler
Orange Level Access
Joined: 23 Nov 2010
Location: Lexington MO
Points: 1152
|
Post Options
Thanks(0)
Quote Reply
Posted: 24 Mar 2021 at 12:22pm |
PAFarmer wrote:
One thing I can't seem to track down is the decal that goes around the hydraulic, throttle, PTO, etc. Other than finding one laying around NOS at a dealer, would anyone know where I could source one?
|
I have decal shop that does excellent work. I'm going to have a complete set of decals for 8000s made up this spring. I'll get pictures of the speed charts they've done for me.
|
|
8070FWA,7080 BlackBelly, 7045,2 200s,D19,D17,G, WD,45,UC,7 AC mowers and lots more!
"IT TAKES 3 JD's TO OUT DO AN ALLIS, 2 TO MATCH IT IN THE FIELD AND 1 FOR PARTS!"
|
|
Transaxial
Bronze Level
Joined: 19 Apr 2014
Location: Tofield,Alberta
Points: 96
|
Post Options
Thanks(0)
Quote Reply
Posted: 24 Mar 2021 at 3:45pm |
PAFarmer wrote:
One thing I can't seem to track down is the decal that goes around the hydraulic, throttle, PTO, etc. Other than finding one laying around NOS at a dealer, would anyone know where I could source one?
|
I did what Daehler did and it works out very well. If you get a good straight on picture of what you want in a decal a decal shop can make new ones almost as good as OEM. If you get a good side to side and up/down measurement of the actual decal you want made, they can scale it to proper size
|
|
Transaxial
Bronze Level
Joined: 19 Apr 2014
Location: Tofield,Alberta
Points: 96
|
Post Options
Thanks(0)
Quote Reply
Posted: 24 Mar 2021 at 3:50pm |
PAFarmer wrote:
Well, it's officially done. I own the 8070 and I'm going to get it home tomorrow. Here's a photo. Will start on the resto this weekend.
|
Congrats on the 8070! They are cool tractors. How did you get your picture to post? It tells me my file size is too big to load.
|
|
steve(ill)
Orange Level Access
Joined: 11 Sep 2009
Location: illinois
Points: 77629
|
Post Options
Thanks(0)
Quote Reply
Posted: 24 Mar 2021 at 4:31pm |
Barry, down load your photo to your computer. Open with PAINT or similar program. Scale it to 800 x 600 pixels ( or about). then save it to your desktop.... Then go to this site and download it..
Most new cameras are taking photos that are 5000 pixels wide and several MegaBites in size... This site wants a 800 pixel photo with 100 KB size. ( approx).
If your doing everything on a cell phone, then see if you can change the size of pictures it takes ( before you take it, not after)... Most cameras have 5-6 different SIZEs that you can use.. dont know if cell phone can do that or not... Smaller size = more photos per disc.
Edited by steve(ill) - 24 Mar 2021 at 4:34pm
|
|
Like them all, but love the "B"s.
|
|
xbk9576
Bronze Level
Joined: 16 Jun 2016
Location: iowa
Points: 20
|
Post Options
Thanks(0)
Quote Reply
Posted: 25 Mar 2021 at 7:38am |
70264914 prior sn 1711 $41.78 70270999 eff sn1711 discontinued 70264915 eff sn1711 $52.95 all from AGCO
|
|
PAFarmer
Bronze Level
Joined: 06 Oct 2020
Location: Pennsylvania
Points: 114
|
Post Options
Thanks(0)
Quote Reply
Posted: 25 Mar 2021 at 8:07am |
So I found the 70270999 and 70264914 NOS at an AGCO dealer. So that's the last of my decal needs! I got the speed/shift instructions decals from member Gary(WI) on here and they are excellent. While I was at it, I had him make me one for our 8010 as well.
The final things on my list are trying out a couple different paint options for the tan color on the interior and then deciding what paint to use for the exterior. I've been told to use Durathane from PPG. Does anyone have any suggestions?
|
|
PAFarmer
Bronze Level
Joined: 06 Oct 2020
Location: Pennsylvania
Points: 114
|
Post Options
Thanks(0)
Quote Reply
Posted: 25 Mar 2021 at 8:09am |
Transaxial wrote:
PAFarmer wrote:
Well, it's officially done. I own the 8070 and I'm going to get it home tomorrow. Here's a photo. Will start on the resto this weekend.
|
Congrats on the 8070! They are cool tractors. How did you get your picture to post? It tells me my file size is too big to load. |
Thanks!
Regarding the photo, I used the "Photos" program in Windows 10. There is a resize option in there that lets you downscale. I just selected the smallest size.
|
|
Transaxial
Bronze Level
Joined: 19 Apr 2014
Location: Tofield,Alberta
Points: 96
|
Post Options
Thanks(0)
Quote Reply
Posted: 25 Mar 2021 at 2:42pm |
steve(ill) wrote:
Barry, down load your photo to your computer. Open with PAINT or similar program. Scale it to 800 x 600 pixels ( or about). then save it to your desktop.... Then go to this site and download it..
Most new cameras are taking photos that are 5000 pixels wide and several MegaBites in size... This site wants a 800 pixel photo with 100 KB size. ( approx).
If your doing everything on a cell phone, then see if you can change the size of pictures it takes ( before you take it, not after)... Most cameras have 5-6 different SIZEs that you can use.. dont know if cell phone can do that or not... Smaller size = more photos per disc.
|

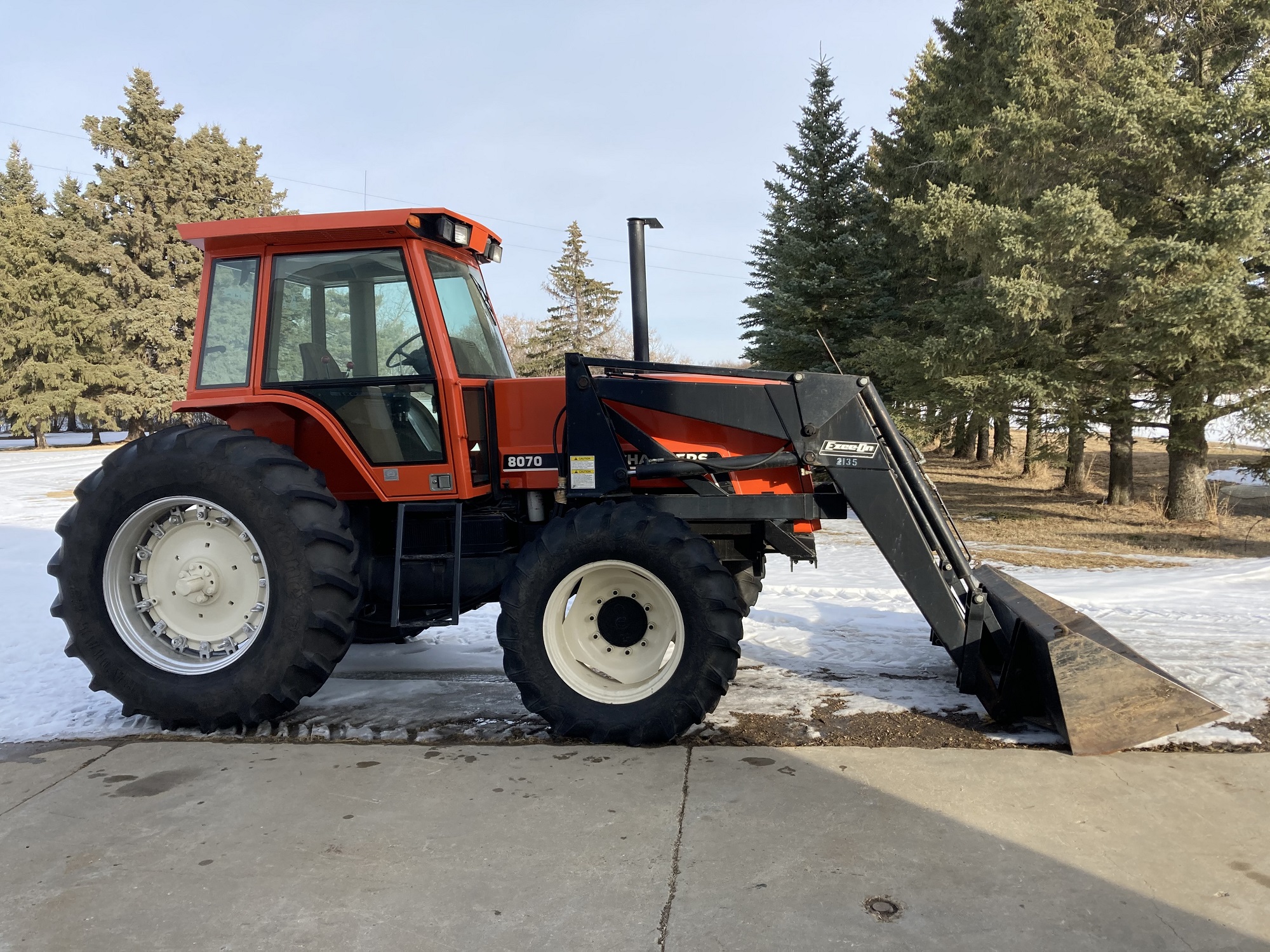

Thanks Steve. I will try posting my restored 8070 just for fun. This computer stuff is about as clear as mud! Sorry, can't get it sized right.  [
|
|
PAFarmer
Bronze Level
Joined: 06 Oct 2020
Location: Pennsylvania
Points: 114
|
Post Options
Thanks(0)
Quote Reply
Posted: 26 Mar 2021 at 10:15am |
|
Looks sharp! What kind of paint did you use on the exterior?
|
|
