190XT Help identifying hanging wires and line?

 Post Reply Post Reply Page  12>
Author
Message
Fantrum View Drop Down
Silver Level Access
Silver Level Access


Joined: 02 Feb 2021
Location: Missouri
Points: 240
Post Options Post Options   Thanks (0) Thanks(0)   Quote Fantrum Quote  Post ReplyReply Direct Link To This Post Topic: 190XT Help identifying hanging wires and line?
    Posted: 05 Feb 2021 at 5:49pm
Hey again, everyone!
I'm assuming a new specific post for each problem is best, when they're different days.. But someone let me know if it's preferred to just ask all questions on one post - I just assume it wouldn't get the same attention.

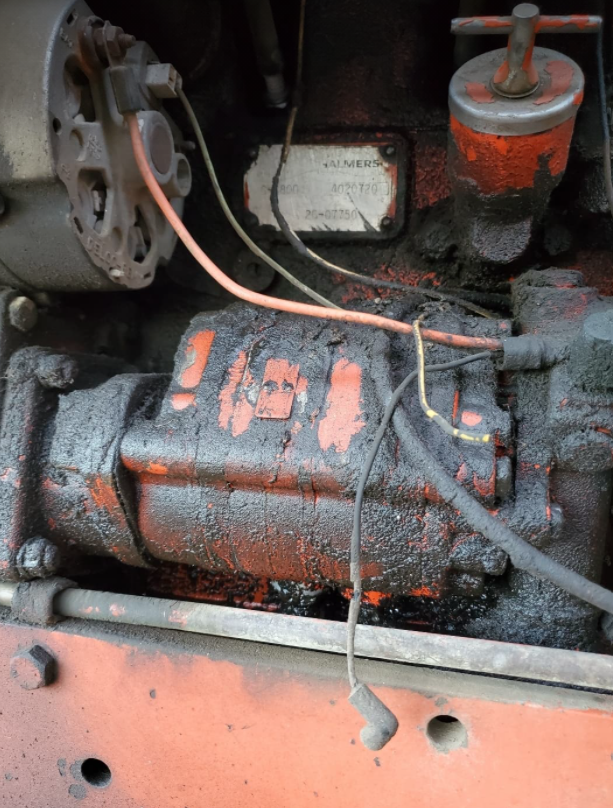

I've got a couple of hanging wires and .. something else .. hanging on my 1968 190XT with the G-2800 engine.
The wires are coming from the same bundle as the wires that lead to the alternator, although I know this doesn't necessarily mean they go there also. I certainly don't see a place for them to go.
One is a wire with a rubber boot elbow. The other is just a hanging yellow wire.

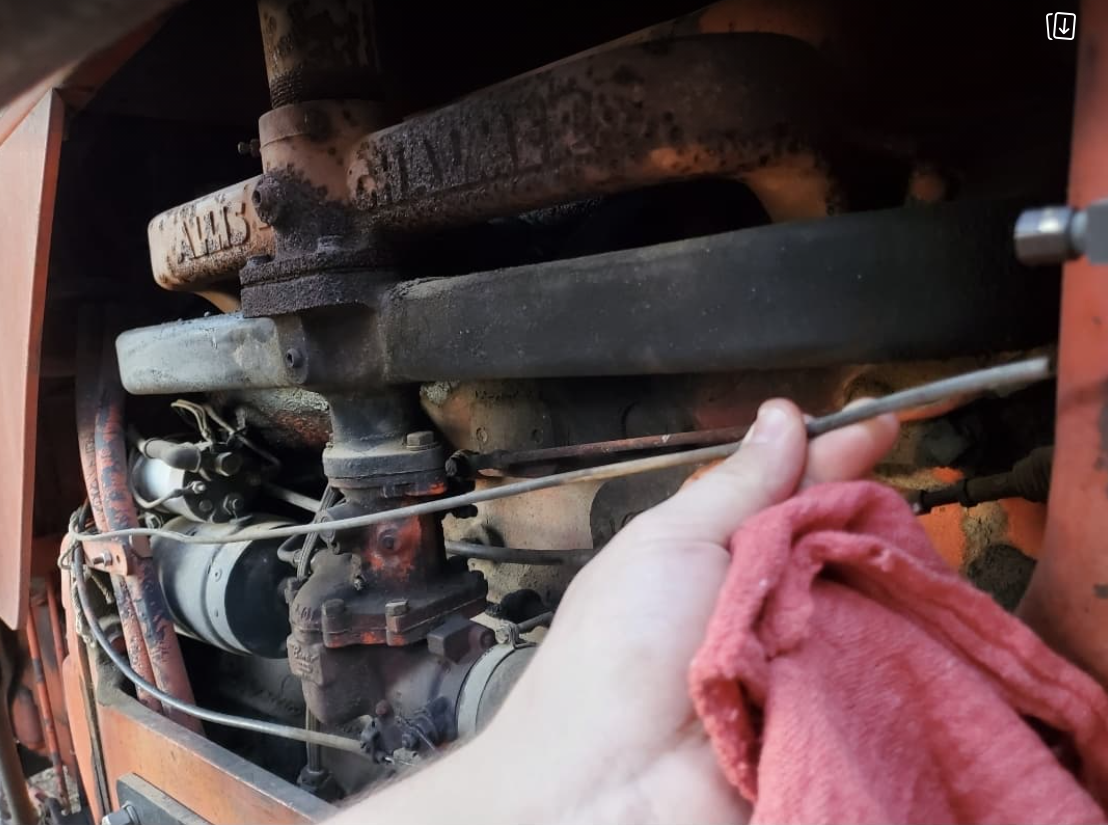

The .. other thing .. hanging confuses me. I don't think it's a wire. More like a very small air line or something. Here's 3 pictures showing it, where it comes from (hidden under the hood though) and where it connects - which is seemingly where it broke, assuming I'm connecting the right dots.






Any thoughts on what any of these are?
Thanks in advance!


Edited by Fantrum - 05 Feb 2021 at 5:50pm
Back to Top
Sponsored Links


Back to Top
FREEDGUY View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 15 Apr 2017
Location: South West Mich
Points: 5391
Post Options Post Options   Thanks (0) Thanks(0)   Quote FREEDGUY Quote  Post ReplyReply Direct Link To This Post Posted: 05 Feb 2021 at 6:04pm
IMO, the "small" wires hanging behind the alternator "USED" to go to the original. Does your tachometer work?? The "big" cable laying on top of the hydraulic pump looks like the tach drive cable ?? The plastic "tube" might be for the air filter restriction "bulb" on the dash ??
Back to Top
Fantrum View Drop Down
Silver Level Access
Silver Level Access


Joined: 02 Feb 2021
Location: Missouri
Points: 240
Post Options Post Options   Thanks (0) Thanks(0)   Quote Fantrum Quote  Post ReplyReply Direct Link To This Post Posted: 05 Feb 2021 at 6:18pm
@FREEDGUY
Noted on the possibility of being old wires!
Yes Sir, the tachometer does work.
Oooh.. Is that what that "bulb" is on my dash.. I was wondering about that. No idea what it does. :D

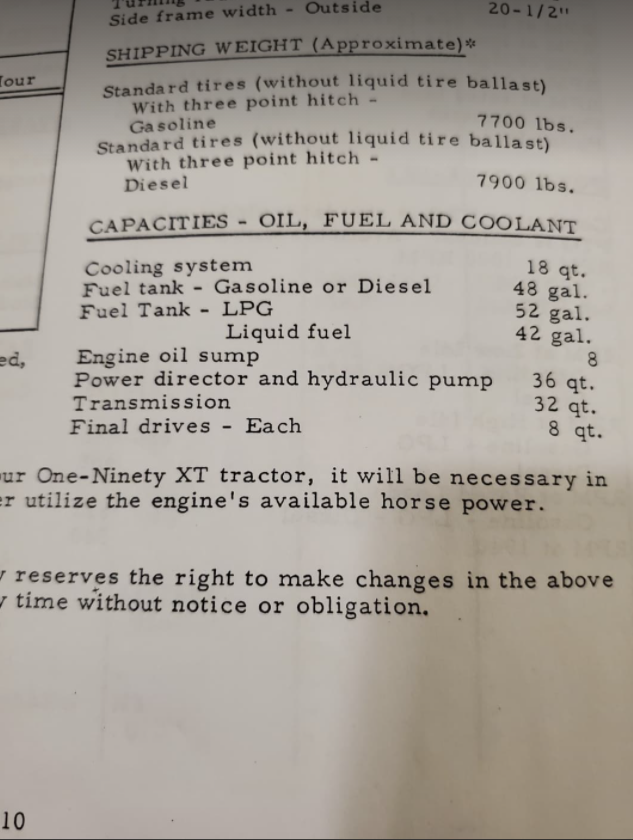

Also, for anyone, do you know if for an engine oil change... Does it take 8 quarts or 12 quarts? The operator manual says 8. Tractordata says 12.



Back to Top
AC720Man View Drop Down
Orange Level
Orange Level
Avatar

Joined: 10 Oct 2016
Location: Shenandoah, Va
Points: 4951
Post Options Post Options   Thanks (0) Thanks(0)   Quote AC720Man Quote  Post ReplyReply Direct Link To This Post Posted: 05 Feb 2021 at 6:57pm

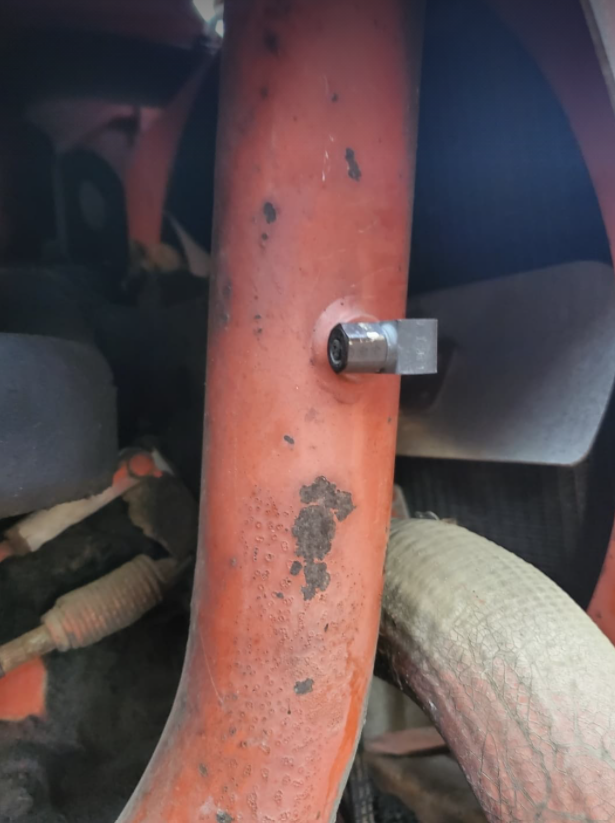

The clear vacuum line goes from the air filter indicator which is black and mounted in the dash. It’s not a bulb, there is a colored flag that will become visible to warn you that you need to clean the air filter. The other end goes to the air filter intake tube.
1968 B-208, 1976 720 (2 of them)Danco brush hog, single bottom plow,52" snow thrower, belly mower,rear tine tiller, rear blade, front blade, 57"sickle bar,1983 917 hydro, 1968 7hp sno-bee, 1968 190XTD
Back to Top
Fantrum View Drop Down
Silver Level Access
Silver Level Access


Joined: 02 Feb 2021
Location: Missouri
Points: 240
Post Options Post Options   Thanks (0) Thanks(0)   Quote Fantrum Quote  Post ReplyReply Direct Link To This Post Posted: 05 Feb 2021 at 7:05pm
@AC720Man
Thank you for that! You're awesome.

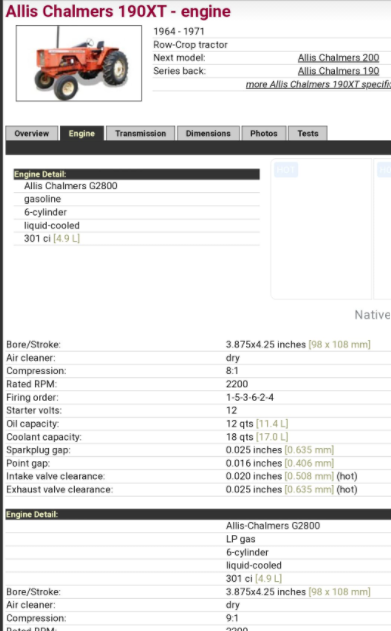

Anyone that might have an answer to the engine oil capacity for an oil change, hoping that someone knows so I can do it tomorrow.
Back to Top
AC720Man View Drop Down
Orange Level
Orange Level
Avatar

Joined: 10 Oct 2016
Location: Shenandoah, Va
Points: 4951
Post Options Post Options   Thanks (0) Thanks(0)   Quote AC720Man Quote  Post ReplyReply Direct Link To This Post Posted: 05 Feb 2021 at 7:22pm
What is your entire serial number? It’s located on the bell housing on the left side of the tractor. I’m suspecting an engine has been changed from a diesel to a gas which uses a different wiring harness.
My factory operator manual says 11 quarts with a filter change.
1968 B-208, 1976 720 (2 of them)Danco brush hog, single bottom plow,52" snow thrower, belly mower,rear tine tiller, rear blade, front blade, 57"sickle bar,1983 917 hydro, 1968 7hp sno-bee, 1968 190XTD
Back to Top
Fantrum View Drop Down
Silver Level Access
Silver Level Access


Joined: 02 Feb 2021
Location: Missouri
Points: 240
Post Options Post Options   Thanks (0) Thanks(0)   Quote Fantrum Quote  Post ReplyReply Direct Link To This Post Posted: 05 Feb 2021 at 7:29pm
@AC720Man
190 20519 XT.

I have wondered about a possible engine swap.. But I don't know. I do have a block heater.. Which I thought was weird when the previous owner mentioned that. Serial number isn't diesel though..
Back to Top
FREEDGUY View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 15 Apr 2017
Location: South West Mich
Points: 5391
Post Options Post Options   Thanks (0) Thanks(0)   Quote FREEDGUY Quote  Post ReplyReply Direct Link To This Post Posted: 05 Feb 2021 at 7:36pm
Originally posted by AC720Man AC720Man wrote:

The clear vacuum line goes from the air filter indicator which is black and mounted in the dash. It’s not a bulb, there is a colored flag that will become visible to warn you that you need to clean the air filter. The other end goes to the air filter intake tube.
Poor choice of words on my part, sorry for the confusion. Seems like the "indicator" is below the steering column ?
Back to Top
AC720Man View Drop Down
Orange Level
Orange Level
Avatar

Joined: 10 Oct 2016
Location: Shenandoah, Va
Points: 4951
Post Options Post Options   Thanks (0) Thanks(0)   Quote AC720Man Quote  Post ReplyReply Direct Link To This Post Posted: 05 Feb 2021 at 7:39pm
Always be on the safe side. Put in 8 with a new filter, check the level. It most likely wont even be touching the dip stick. Add another quart and repeat the process. I feel certain you will wind up putting 11 quarts in. At least this way you wont put too much in it. Always check the level after you have run the engine for a few minutes.
1968 B-208, 1976 720 (2 of them)Danco brush hog, single bottom plow,52" snow thrower, belly mower,rear tine tiller, rear blade, front blade, 57"sickle bar,1983 917 hydro, 1968 7hp sno-bee, 1968 190XTD
Back to Top
AC720Man View Drop Down
Orange Level
Orange Level
Avatar

Joined: 10 Oct 2016
Location: Shenandoah, Va
Points: 4951
Post Options Post Options   Thanks (0) Thanks(0)   Quote AC720Man Quote  Post ReplyReply Direct Link To This Post Posted: 05 Feb 2021 at 7:43pm
Well I was wrong, there isn’t a D at the end XT which would have indicated the tractor came from the factory with a Diesel engine.
Can you clean the oil off the wiring to see the color code of each wire?
1968 B-208, 1976 720 (2 of them)Danco brush hog, single bottom plow,52" snow thrower, belly mower,rear tine tiller, rear blade, front blade, 57"sickle bar,1983 917 hydro, 1968 7hp sno-bee, 1968 190XTD
Back to Top
Fantrum View Drop Down
Silver Level Access
Silver Level Access


Joined: 02 Feb 2021
Location: Missouri
Points: 240
Post Options Post Options   Thanks (0) Thanks(0)   Quote Fantrum Quote  Post ReplyReply Direct Link To This Post Posted: 05 Feb 2021 at 7:45pm
@FREEDGUY
Yes Sir, that's where mine is - now that I know what it is. :D
Haha, thanks!

@AC720Man
Yes Sir, I was figuring that as a worst-case scenario. The oil has read low since I got it, so I added two quarts tonight and it didn't change the level (oddly). I'm used to tearing apart vehicles, so maybe that's why it's odd to me.. But I'd think it should register relatively immediately even with the engine off.
After I ran it for a bit the level read perfectly, but I also realize you're supposed to check it without it running or after a certain time of turning off, etc.

If there's not harm in it, I'll add 8, check, and then go quart by quart. But would it harm the engine being potentially 4 quarts low and running, even if only at an idle?
Back to Top
DSeries4 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: Ontario, Canada
Points: 7346
Post Options Post Options   Thanks (0) Thanks(0)   Quote DSeries4 Quote  Post ReplyReply Direct Link To This Post Posted: 05 Feb 2021 at 8:41pm
Originally posted by Fantrum Fantrum wrote:

@FREEDGUY
Noted on the possibility of being old wires!
Yes Sir, the tachometer does work.
Oooh.. Is that what that "bulb" is on my dash.. I was wondering about that. No idea what it does. :D


Also, for anyone, do you know if for an engine oil change... Does it take 8 quarts or 12 quarts? The operator manual says 8. Tractordata says 12.





The manual is always going to be more correct than the internet!

'49 G, '54 WD45, '55 CA, '56 WD45D, '57 WD45, '58 D14, '59 D14, '60 D14, '61 D15D, '66 D15II, '66 D21II, '67 D17IV, '67 D17IVD, '67 190XTD, '73 620, '76 185, '77 175, '84 8030, '85 6080
Back to Top
Joe(TX) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Weatherford. TX
Points: 1682
Post Options Post Options   Thanks (0) Thanks(0)   Quote Joe(TX) Quote  Post ReplyReply Direct Link To This Post Posted: 05 Feb 2021 at 8:43pm
The plug on the alternator should have 2 wires going to it, The wire with the connector looks li the temperature sensor.

1970 190XT, 1973 200, 1962 D-19 Diesel, 1979 7010, 1957 WD45, 1950 WD, 1961 D17, Speed Patrol, D14, All crop 66 big bin, 180 diesel, 1970 170 diesel, FP80 forklift. Gleaner A
Back to Top
Fantrum View Drop Down
Silver Level Access
Silver Level Access


Joined: 02 Feb 2021
Location: Missouri
Points: 240
Post Options Post Options   Thanks (0) Thanks(0)   Quote Fantrum Quote  Post ReplyReply Direct Link To This Post Posted: 05 Feb 2021 at 8:51pm
@AC720Man
Sorry, just now noticing your last post. I'll get the oil cleaned up and see what is what before long.

@DSeries4
Haha, yes!
Although, interestingly enough... My shop manual says...

"Crankcase Oil, Quarts ... 8-12** ... **Approximate Capacity ."

So, yeah.. Lots of help from the shop manual. Lol.

@Joe(TX)
Ahhh, good catch! I see what you mean. I'll look at it closer tomorrow along with a couple of other things.
...I knew I should have gotten that pigtail electrical tool set for free when I had the opportunity! Ha!
Back to Top
DanWi View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 18 Sep 2009
Location: wttn
Points: 1808
Post Options Post Options   Thanks (0) Thanks(0)   Quote DanWi Quote  Post ReplyReply Direct Link To This Post Posted: 05 Feb 2021 at 9:54pm
The wire with the elbow goes to the alternator also and there should be another wire also going to your temp sending unit. Not sure what the wire on alternator does, maybe goes to the regulator??? Need to see a wiring diagram for the tractor.
Back to Top
Joe(TX) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Weatherford. TX
Points: 1682
Post Options Post Options   Thanks (0) Thanks(0)   Quote Joe(TX) Quote  Post ReplyReply Direct Link To This Post Posted: 05 Feb 2021 at 10:44pm
The wire with the elbow does not go to the regulator. It looks like the temp sensor to me.
1970 190XT, 1973 200, 1962 D-19 Diesel, 1979 7010, 1957 WD45, 1950 WD, 1961 D17, Speed Patrol, D14, All crop 66 big bin, 180 diesel, 1970 170 diesel, FP80 forklift. Gleaner A
Back to Top
Joe(TX) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Weatherford. TX
Points: 1682
Post Options Post Options   Thanks (0) Thanks(0)   Quote Joe(TX) Quote  Post ReplyReply Direct Link To This Post Posted: 05 Feb 2021 at 10:47pm
You need to get an owners manual which has the wiring diagram. I cannot find mind right now to look up the wire colors,
1970 190XT, 1973 200, 1962 D-19 Diesel, 1979 7010, 1957 WD45, 1950 WD, 1961 D17, Speed Patrol, D14, All crop 66 big bin, 180 diesel, 1970 170 diesel, FP80 forklift. Gleaner A
Back to Top
DrAllis View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Points: 20701
Post Options Post Options   Thanks (0) Thanks(0)   Quote DrAllis Quote  Post ReplyReply Direct Link To This Post Posted: 06 Feb 2021 at 7:52am
Hanging wire is for a ground on the alternator that either doesn't have a stud on the backside for it to connect to, or the wire simply isn't slipped onto the ground stud. This wire should be black. The water temp wire is longer so it can reach up higher to its sender.
Back to Top
Fantrum View Drop Down
Silver Level Access
Silver Level Access


Joined: 02 Feb 2021
Location: Missouri
Points: 240
Post Options Post Options   Thanks (0) Thanks(0)   Quote Fantrum Quote  Post ReplyReply Direct Link To This Post Posted: 07 Feb 2021 at 2:06pm
Hey everyone!
Just wanted to update and thank everyone!

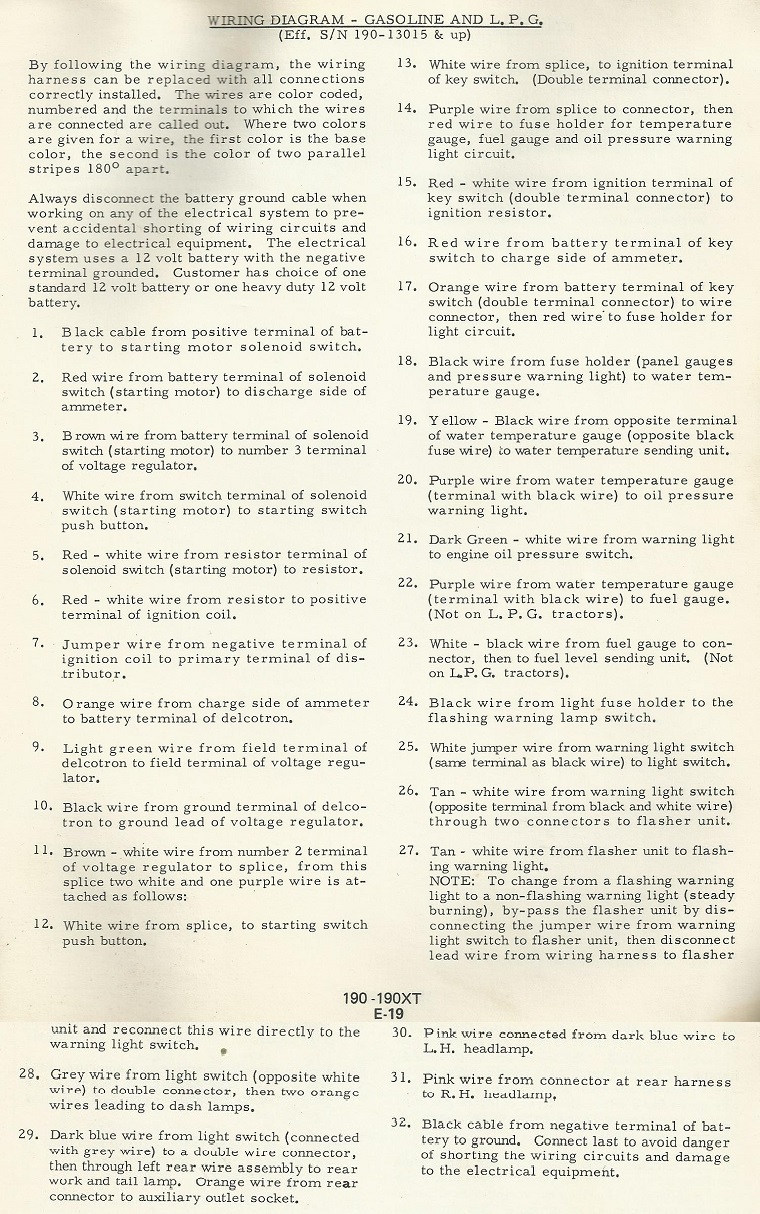

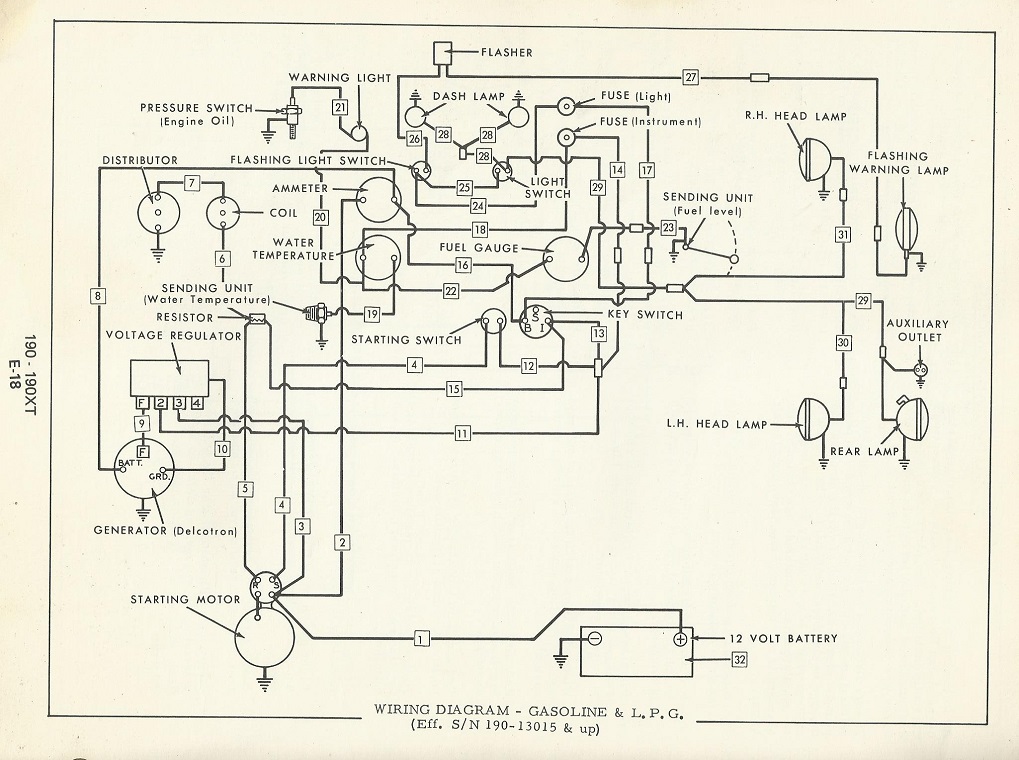

According to the wiring diagram;
-The black wire with the elbow that is hanging is, as DrAllis said, the ground wire. For mine, there is a ground stud on the back of the alternator that isn't attached to anything currently.
-The orange wire goes from the charge side of the ammeter to the battery terminal of alternator.
-Light green wire from field terminal of alternator to field terminal of voltage regulator.
Interestingly enough, the other side of that wiring connector is labeled "R" (instead of "F"), and is unused - even in the wiring diagram.
-Yellow wire is... Unknown... My wiring diagram doesn't even acknowledge a yellow wire exists on this tractor.. So perhaps someone ran some new wires and this one was unneeded. The world may never know, because I hate tracing hidden wires.

Also, on the oil... I did a complete change, including a new filter, and it took 8 quarts to fill up nicely. I'll keep an eye on it to make sure I don't need to top it off later, but so far even after running a couple hours it is good.

Thanks again for all the help!
Back to Top
Joe(TX) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Weatherford. TX
Points: 1682
Post Options Post Options   Thanks (0) Thanks(0)   Quote Joe(TX) Quote  Post ReplyReply Direct Link To This Post Posted: 07 Feb 2021 at 3:19pm
I would unwrap the harness a few inches so you can see if the wires colors have faded. I have found wires that appeared to be white when they were actually another color.
1970 190XT, 1973 200, 1962 D-19 Diesel, 1979 7010, 1957 WD45, 1950 WD, 1961 D17, Speed Patrol, D14, All crop 66 big bin, 180 diesel, 1970 170 diesel, FP80 forklift. Gleaner A
Back to Top
DanWi View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 18 Sep 2009
Location: wttn
Points: 1808
Post Options Post Options   Thanks (0) Thanks(0)   Quote DanWi Quote  Post ReplyReply Direct Link To This Post Posted: 07 Feb 2021 at 4:25pm
Does your diagram show a wire going to the temp sender above the alternator? Or do you have a wire attached to it? It looks like it may be the light tan wire going up there from your pic.

Edited by DanWi - 07 Feb 2021 at 4:27pm
Back to Top
FREEDGUY View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 15 Apr 2017
Location: South West Mich
Points: 5391
Post Options Post Options   Thanks (0) Thanks(0)   Quote FREEDGUY Quote  Post ReplyReply Direct Link To This Post Posted: 07 Feb 2021 at 4:30pm

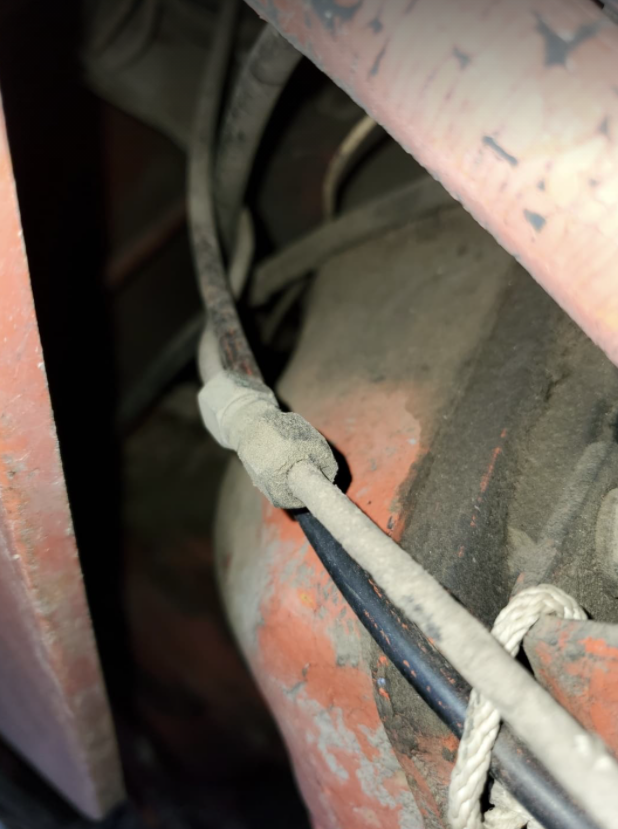

Can someone verify that it's a tach drive cable laying across his hydraulic pump ? The OP says his tach works though Confused ? Thanks
Back to Top
Fantrum View Drop Down
Silver Level Access
Silver Level Access


Joined: 02 Feb 2021
Location: Missouri
Points: 240
Post Options Post Options   Thanks (0) Thanks(0)   Quote Fantrum Quote  Post ReplyReply Direct Link To This Post Posted: 07 Feb 2021 at 5:19pm
@Joe(TX)
Noted, Sir! I will definitely use that, as that's a smart idea.

@DanWi
I'll look at the diagram later and let you know. About to head into town, so hopefully later tonight.

@FREEDGUY
Ummm.. I'll try to look into it! Lol, I may be the wrong person. Tachometer definitely moves though.
Back to Top
Lynn Marshall View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 13 Sep 2009
Location: Dana, Iowa
Points: 2298
Post Options Post Options   Thanks (0) Thanks(0)   Quote Lynn Marshall Quote  Post ReplyReply Direct Link To This Post Posted: 07 Feb 2021 at 9:27pm
Yellow wire should go to temp sending unit in thermostat housing. Someone may have run a new wire to it or even replaced the heat gauge with a mechanical unit.
Back to Top
Fantrum View Drop Down
Silver Level Access
Silver Level Access


Joined: 02 Feb 2021
Location: Missouri
Points: 240
Post Options Post Options   Thanks (0) Thanks(0)   Quote Fantrum Quote  Post ReplyReply Direct Link To This Post Posted: 07 Feb 2021 at 10:53pm
@DanWi
Perhaps this is my ignorance speaking.. But I don't see anything about it on the diagram?


@Lynn Marshall
Thanks! I'll have to look more at it tomorrow to try and verify.


@Anyone.. On this diagram, the fuel gauge and wire 23 don't connect, correct? They just cross each other on the paper, right? Perhaps I am reading the diagram wrong, but I thought it did not mean they connect.. Yet in the manual itself it says the fuel sending unit is on the same fuse as the lights.. Which is good news, since I just got my lights working today with a new fuse! I'll check it tomorrow to see if the gauge works now, although I'm not expecting that to be the problem.



Back to Top
DanWi View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 18 Sep 2009
Location: wttn
Points: 1808
Post Options Post Options   Thanks (0) Thanks(0)   Quote DanWi Quote  Post ReplyReply Direct Link To This Post Posted: 08 Feb 2021 at 2:37pm
Try looking on the diesel wiring diagram or a later model, that diagram isn't showing a temp gauge.
Back to Top
DCAC View Drop Down
Orange Level
Orange Level


Joined: 20 Oct 2018
Location: east central SD
Points: 511
Post Options Post Options   Thanks (0) Thanks(0)   Quote DCAC Quote  Post ReplyReply Direct Link To This Post Posted: 08 Feb 2021 at 4:35pm
If you can find a service manual for your 190, it has a little more detailed explanation of where each wire goes, (from "x" to "y") for instance, along with the color of each wire.  it has this for gas and diesel tractors in it.
Back to Top
JC-WI View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: wisconsin
Points: 33836
Post Options Post Options   Thanks (0) Thanks(0)   Quote JC-WI Quote  Post ReplyReply Direct Link To This Post Posted: 08 Feb 2021 at 7:25pm
Maybe this wiring diagram might help?


He who says there is no evil has already deceived himself
The truth is the truth, sugar coated or not. Trawler II says, "Remember that."
Back to Top
DCAC View Drop Down
Orange Level
Orange Level


Joined: 20 Oct 2018
Location: east central SD
Points: 511
Post Options Post Options   Thanks (0) Thanks(0)   Quote DCAC Quote  Post ReplyReply Direct Link To This Post Posted: 08 Feb 2021 at 10:07pm
That's it JC, thanks!

Back to Top
Fantrum View Drop Down
Silver Level Access
Silver Level Access


Joined: 02 Feb 2021
Location: Missouri
Points: 240
Post Options Post Options   Thanks (0) Thanks(0)   Quote Fantrum Quote  Post ReplyReply Direct Link To This Post Posted: 09 Feb 2021 at 7:09pm
Thanks, everyone! I greatly appreciate all of the help!

@JC(WI)
Thank you very much for that! That's certainly not the wiring diagram in my manual that came with the tractor, but I guess that makes sense if this is an older-style 190XT manual!
Thank you!
Back to Top
 Post Reply Post Reply Page  12>
  Share Topic

Forum Jump Forum Permissions View Drop Down

Forum Software by Web Wiz Forums® version 11.10
Copyright ©2001-2017 Web Wiz Ltd.

This page was generated in 0.094 seconds.


Help Support the
Unofficial Allis Forum
