190 hydraulic leak out of steering column

 Post Reply Post Reply
Author
Message
wf32 View Drop Down
Orange Level
Orange Level


Joined: 13 Sep 2009
Location: Brownsville MN
Points: 445
Post Options Post Options   Thanks (0) Thanks(0)   Quote wf32 Quote  Post ReplyReply Direct Link To This Post Topic: 190 hydraulic leak out of steering column
    Posted: 08 Oct 2019 at 7:30pm
190 has started to leak hydraulic fluid out of the steering column by the steering wheel what is the cause and how bad to repair
Phil
Back to Top
Sponsored Links


Back to Top
DSeries4 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: Ontario, Canada
Points: 5629
Post Options Post Options   Thanks (0) Thanks(0)   Quote DSeries4 Quote  Post ReplyReply Direct Link To This Post Posted: 08 Oct 2019 at 8:41pm
Need new seals in the steering motor.  After 50 years, they may be a little worn out.  I took mine to my local hydraulic shop 2 years ago and haven't had any problems since.  Just remember to label which hydraulic line goes where.
'49 G, '54 WD45, '57 WD45, '58 D14, '59 D14, '61 D15D, '66 D15II, '66 D21II, '67 D17IV, '67 D17IVD, '67 190XTD, '73 620, '76 185, '77 175, '85 6080
Back to Top
MACK View Drop Down
Orange Level
Orange Level


Joined: 17 Nov 2009
Points: 5611
Post Options Post Options   Thanks (0) Thanks(0)   Quote MACK Quote  Post ReplyReply Direct Link To This Post Posted: 08 Oct 2019 at 8:54pm
Getting steering motor out is biggest problem. Don't pull the shaft out.      MACK
Back to Top
JC(WI) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: wisconsin
Points: 26701
Post Options Post Options   Thanks (0) Thanks(0)   Quote JC(WI) Quote  Post ReplyReply Direct Link To This Post Posted: 08 Oct 2019 at 9:51pm

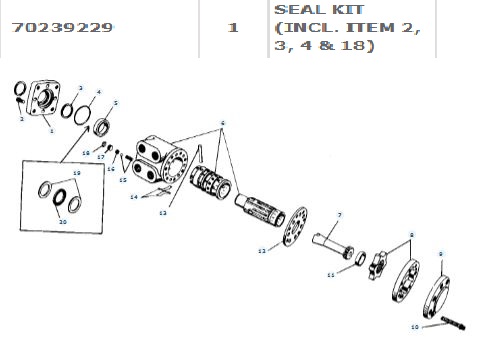

You may be able to get by with a front seal kit for the unit.

He who says there is no evil has already deceived himself
Back to Top
wf32 View Drop Down
Orange Level
Orange Level


Joined: 13 Sep 2009
Location: Brownsville MN
Points: 445
Post Options Post Options   Thanks (0) Thanks(0)   Quote wf32 Quote  Post ReplyReply Direct Link To This Post Posted: 09 Oct 2019 at 12:04pm
to remove steering motor do you have to take out the whole steering column or can you just get motor out
Phil
Back to Top
Joe(TX) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Weatherford. TX
Points: 1049
Post Options Post Options   Thanks (0) Thanks(0)   Quote Joe(TX) Quote  Post ReplyReply Direct Link To This Post Posted: 09 Oct 2019 at 2:19pm
Actually the column and shaft is held by 4 bolts to the steering valve. The shaft splines into the valve. The seal is in the top cap of the valve. The valve will have to be removed from the column. The tilt pivot is on the column.
1970 190XT, 1973 200, 1962 D-19 Diesel, 1979 7010, 1957 WD45, 1950 WD, 1961 D17, Speed Patrol, D14, All crop 66 big bin, 180 diesel, 1970 170 diesel, FP80 forklift. Gleaner A
Back to Top
JC(WI) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: wisconsin
Points: 26701
Post Options Post Options   Thanks (0) Thanks(0)   Quote JC(WI) Quote  Post ReplyReply Direct Link To This Post Posted: 09 Oct 2019 at 10:58pm
Take the top cover off the hood so you can look in and take the right side panels off too so you can reach up in there.  There are four bolts that you take out, the steering column and wheel stay on the tractor. You will have to take the dash gauge panel loose so you can get at some of the bolts from above. You can get a wrench on a couple from underneath..  Like said, don't mix up the hoses.   Once the unit is out  you can change the quad ring and outer seal by removing the 12 point bolts in front casting..
He who says there is no evil has already deceived himself
Back to Top
