 Topic: 185/180/D19 Nelson Mufflers for sale
Posted: 09 Sep 2020 at 3:06pm |

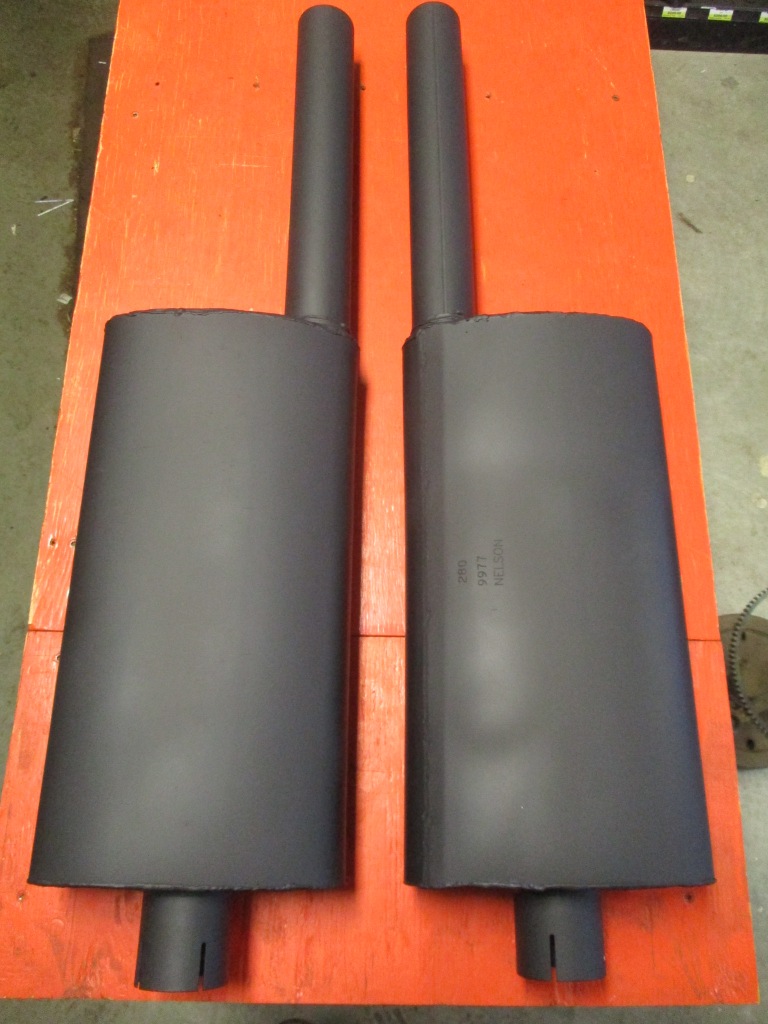

The 180/185 Nelson mufflers are finally available! These are serviceable for the D19 Gas tractors also, as we will not be offering a separate muffler for the D19 gas tractors. Price is $197 each for these mufflers, A-C #248883 Those interested can contact me at 920-598-1287 Thank you
|
|
www.awtractor.com
A&W TRACTOR 920-598-1287
KEEPING ALLIS-CHALMERS IN THE FIELDS THROUGH THE 21ST CENTURY
|
 |
|
Sponsored Links
|
|
|
allisbred
Orange Level Access
Joined: 28 Mar 2015
Location: Hanover Pa
Points: 1011
|
Post Options
Thanks(0)
Quote Reply
Posted: 09 Sep 2020 at 3:11pm |
|
What is different with the 175 diesel muffler? What are the intake & exhaust diameters? Thank you, Kevin
|
|
ac45dave
Orange Level Access
Joined: 23 May 2015
Location: SE(IN)
Points: 1337
|
Post Options
Thanks(0)
Quote Reply
Posted: 09 Sep 2020 at 4:34pm |
|
Alex, just out of curiosity,what was the difference between the d19 and the 180/185 muffler?Also will you be offering the 170/175 gas muffler?
|
|
54 wd-45gas ; 56 wd-45d N/F w/fact p/s ; 63 d-17 sIII N/F gas ; 60 D14 N/F ; 67 d-17 sIV N/F gas ; 63D15 sII W/F; 39rc#667 ; 2021 massey 4710 fwa ; gravely 2 wheel tractors
|
|
Alex09(WI)
Orange Level
Joined: 15 Mar 2012
Location: CECIL WI
Points: 1699
|
Post Options
Thanks(0)
Quote Reply
Posted: 09 Sep 2020 at 5:19pm |
 allisbred wrote:
What is different with the 175 diesel muffler? What are the intake & exhaust diameters? Thank you, Kevin |
From what I can tell, the 170/175 diesel mufflers had a centered outlet and smaller outlet dia. Inlet pipe is same, so is oval body.
|
|
www.awtractor.com
A&W TRACTOR 920-598-1287
KEEPING ALLIS-CHALMERS IN THE FIELDS THROUGH THE 21ST CENTURY
|
|
Alex09(WI)
Orange Level
Joined: 15 Mar 2012
Location: CECIL WI
Points: 1699
|
Post Options
Thanks(0)
Quote Reply
Posted: 09 Sep 2020 at 5:25pm |
ac45dave wrote:
Alex, just out of curiosity,what was the difference between the d19 and the 180/185 muffler?Also will you be offering the 170/175 gas muffler? |
D19 muffler 246130 had a shorter outlet pipe than the 185 muffler and also had a slightly smaller diameter. I will have the 170 gas muffler available, but might have to wait till some of these sell before I order more lol
|
|
www.awtractor.com
A&W TRACTOR 920-598-1287
KEEPING ALLIS-CHALMERS IN THE FIELDS THROUGH THE 21ST CENTURY
|
|
allisbred
Orange Level Access
Joined: 28 Mar 2015
Location: Hanover Pa
Points: 1011
|
Post Options
Thanks(0)
Quote Reply
Posted: 09 Sep 2020 at 6:49pm |
|
Somewhere along the line our local AC dealer got the part numbers mixed up on these mufflers. I few years ago I ordered (2) for the 185 and the new one had a small pipe in the top and the new old stock they had was the correct size but the pipe was in the center? So I also ordered (1) for the 175 D and it came correct from what I remembered being for the 185. So I bought (3) of those although they are Stanley’s. I’m still not sure the top pipe was correct at 2 1/4” for the 185’s? Some reason I thought they were 2 3/8”?
|
|
allisbred
Orange Level Access
Joined: 28 Mar 2015
Location: Hanover Pa
Points: 1011
|
Post Options
Thanks(0)
Quote Reply
Posted: 09 Sep 2020 at 6:53pm |
|
Somewhere along the line our local AC dealer got the part numbers mixed up on these mufflers. I few years ago I ordered (2) for the 185 and the new one had a small pipe in the top and the new old stock they had was the correct size but the pipe was in the center? So I also ordered (1) for the 175 D and it came correct from what I remembered being for the 185. So I bought (3) of those although they are Stanley’s. I’m still not sure the top pipe was correct at 2 1/4” for the 185’s? Some reason I thought they were 2 3/8”?
|
|
DSeries4
Orange Level
Joined: 12 Sep 2009
Location: Ontario, Canada
Points: 7331
|
Post Options
Thanks(0)
Quote Reply
Posted: 09 Sep 2020 at 8:28pm |
allisbred wrote:
What is different with the 175 diesel muffler? What are the intake & exhaust diameters? Thank you, Kevin |
Pretty much everything is different for the 175 muffler. Hoping to get a new Nelson for it one day. That Stanley sounds awful!
|
|
'49 G, '54 WD45, '55 CA, '56 WD45D, '57 WD45, '58 D14, '59 D14, '60 D14, '61 D15D, '66 D15II, '66 D21II, '67 D17IV, '67 D17IVD, '67 190XTD, '73 620, '76 185, '77 175, '84 8030, '85 6080
|
|
bauerd44
Silver Level Access
Joined: 11 Sep 2009
Location: Wentzville, MO
Points: 350
|
Post Options
Thanks(0)
Quote Reply
Posted: 09 Sep 2020 at 11:14pm |
My 175 gas that I bought in 1977 had a Nelson muffler with an inlet in the center of the oval, and the outlet was offset just like the 185 mufflers Alex has. Dale
|
|
Missouri Allis-Chalmers Club
CA Allis, 175 Allis, 185 Allis
|
|
Tracy Martin TN
Orange Level Access
Joined: 11 Sep 2009
Location: Gallatin,TN
Points: 10624
|
Post Options
Thanks(0)
Quote Reply
Posted: 10 Sep 2020 at 2:20pm |
|

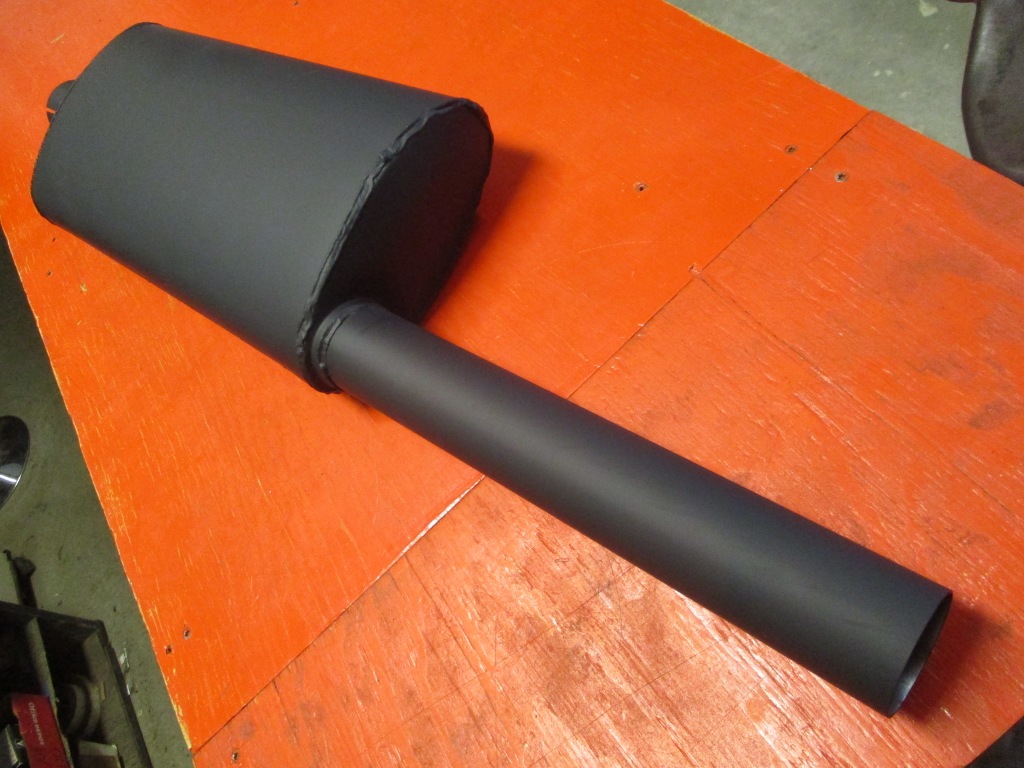

Are they welding these by hand or robot? Welding job doesn't look too great. They can do better. JMHO, Tracy
|
|
No greater gift than healthy grandkids!
|
|
Alex09(WI)
Orange Level
Joined: 15 Mar 2012
Location: CECIL WI
Points: 1699
|
Post Options
Thanks(0)
Quote Reply
Posted: 11 Sep 2020 at 1:00pm |
Tracy Martin TN wrote:
Are they welding these by hand or robot? Welding job doesn't look too great. They can do better. JMHO, Tracy
|
I'm sure they are welding the ovals by hand. They might be welding the pipes by robot though. I will pass on your feedback to Nelson.
|
|
www.awtractor.com
A&W TRACTOR 920-598-1287
KEEPING ALLIS-CHALMERS IN THE FIELDS THROUGH THE 21ST CENTURY
|
|
DrAllis
Orange Level Access
Joined: 12 Sep 2009
Points: 20469
|
Post Options
Thanks(0)
Quote Reply
Posted: 11 Sep 2020 at 5:45pm |
|
Stanley brand mufflers for 180/185 had the outlet centered and it was smaller diameter than the Nelson OEM outlet.
|
|
Alex09(WI)
Orange Level
Joined: 15 Mar 2012
Location: CECIL WI
Points: 1699
|
Post Options
Thanks(0)
Quote Reply
Posted: 12 Sep 2020 at 4:32pm |
|
I should also mention that the diameter of the outlet pipe is 2 3/8" on these Nelson mufflers, which is what the original 180/185 had. It was pointed out to me that the stanley mufflers are 2" on the outlet.
|
|
www.awtractor.com
A&W TRACTOR 920-598-1287
KEEPING ALLIS-CHALMERS IN THE FIELDS THROUGH THE 21ST CENTURY
|
|
allisbred
Orange Level Access
Joined: 28 Mar 2015
Location: Hanover Pa
Points: 1011
|
Post Options
Thanks(0)
Quote Reply
Posted: 28 Sep 2020 at 8:42am |
|
It was very pleasing listening to the 301 as I had remembered with the Nelson. I also think it’s better for the engine as I noticed less back pressure and maybe a little more RPM’s. I posted a picture on another thread with it installed. Thank you Alex for following through, getting these manufactured.
Edited by allisbred - 28 Sep 2020 at 8:43am
|
|
DCAC
Orange Level
Joined: 20 Oct 2018
Location: east central SD
Points: 511
|
Post Options
Thanks(0)
Quote Reply
Posted: 28 Sep 2020 at 6:21pm |
|
Are the series 4 diesel mufflers still in the works
|
|
Alex09(WI)
Orange Level
Joined: 15 Mar 2012
Location: CECIL WI
Points: 1699
|
Post Options
Thanks(0)
Quote Reply
Posted: 29 Sep 2020 at 9:01am |
Thanks for the feedback! I'm glad to hear they sound great! The bigger outlet pipe i'm sure is an improvement!
DCAC wrote:
Are the series 4 diesel mufflers still in the works |
Still considering them next year but don't have much interest at this point. Unfortunately it doesn't make sense to order 100 if only 5 sell.
|
|
www.awtractor.com
A&W TRACTOR 920-598-1287
KEEPING ALLIS-CHALMERS IN THE FIELDS THROUGH THE 21ST CENTURY
|
|
DCAC
Orange Level
Joined: 20 Oct 2018
Location: east central SD
Points: 511
|
Post Options
Thanks(0)
Quote Reply
Posted: 29 Sep 2020 at 9:12pm |
|
Understandable, but am still interested if they become available.
|
|
