NEW PROJECT: D14

 Post Reply Post Reply Page  12>
Author
Message
HVFDFIREFIGHTER View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Jun 2013
Location: Heuvelton, NY
Points: 563
Post Options Post Options   Thanks (0) Thanks(0)   Quote HVFDFIREFIGHTER Quote  Post ReplyReply Direct Link To This Post Topic: NEW PROJECT: D14
    Posted: 20 Jul 2016 at 6:11pm

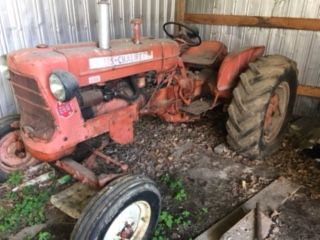

Hello,  I purchased this D14 today. Not sure of the year yet, I am still working on getting it out of the barn and on to the trailer. Tires were flat, pumped them up and are holding air well enough to get onto a trailer. The two back tires are leaking at the valve stems.  Took carb off and did a quick clean, drained gas, put new gas in.  The battery they had in it was a 12 volt with negative to ground.  I put a 12 volt marine battery in and just get a click when I try to start it. Lights are bright. The one gauge reads 15 amps. Just by looking at the generator, I am thinking this is suppose to be a 6 volt positive ground system.  How would I check for 6 volt rather than 12?  Dosen't 6 have more cranking amps?




Edited by HVFDFIREFIGHTER - 21 Jul 2016 at 7:52am
Back to Top
Sponsored Links


Back to Top
HVFDFIREFIGHTER View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Jun 2013
Location: Heuvelton, NY
Points: 563
Post Options Post Options   Thanks (0) Thanks(0)   Quote HVFDFIREFIGHTER Quote  Post ReplyReply Direct Link To This Post Posted: 20 Jul 2016 at 6:25pm

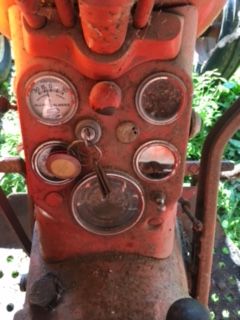

Sorry, these are all upside down.  This is what the tractor had when I found it.

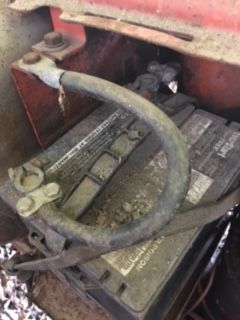

 (12 volt battery, negative ground)     (solenoid?  (on left side of starter as sitting on tractor))

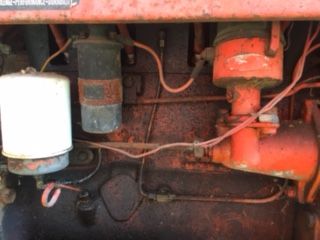

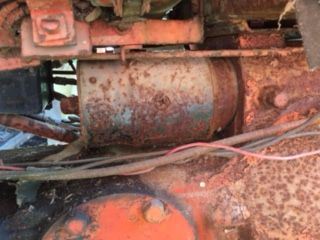

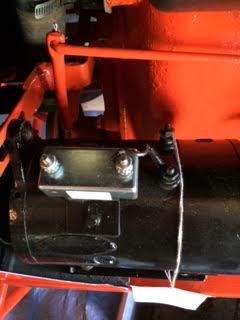

 (generator?)  (black cylinder, a coil?)


Edited by HVFDFIREFIGHTER - 21 Jul 2016 at 7:49am
Back to Top
jaybmiller View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Location: Greensville,Ont
Points: 24415
Post Options Post Options   Thanks (0) Thanks(0)   Quote jaybmiller Quote  Post ReplyReply Direct Link To This Post Posted: 20 Jul 2016 at 7:23pm
Ok...
first, pictures... you need to find the 'option' on your 'smart device' to 'lock orientation', that way pictures will be right side up.
second, wiring. Do yourself a BIG favour and get rid of 100% of what's there! You've got 50-60 year old wiring and NONE of it will be any good. You'll waste a LOT of time trying this and that,testing here and there, and well, the gremlins WILL win. For 'testing' you really only need NEW starter cables and a wire to the ignition, and another to the starter solenoid. If you're not comfortable with wiring, buy a kit from Steve at B&B on this site, though I've redone 3 out of 4 of my D-14s and they run just fine..
3rd. if it hasn't run for awhile, you'll probably need to clean the points as they get corroded over time. Maybe replace all 4 spark plugs. Firing order is 1243 with #1 being closest to the rad.

ask anything, guys here are very, very smart !

Jay

3 D-14s,A-C forklift, B-112
Kubota BX23S lil' TOOT( The Other Orange Tractor)

Never burn your bridges, unless you can walk on water
Back to Top
HVFDFIREFIGHTER View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Jun 2013
Location: Heuvelton, NY
Points: 563
Post Options Post Options   Thanks (0) Thanks(0)   Quote HVFDFIREFIGHTER Quote  Post ReplyReply Direct Link To This Post Posted: 20 Jul 2016 at 7:28pm
Thanks for the info. Do you think it is a 6 or 12 volt system? How would I check?
Back to Top
HVFDFIREFIGHTER View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Jun 2013
Location: Heuvelton, NY
Points: 563
Post Options Post Options   Thanks (0) Thanks(0)   Quote HVFDFIREFIGHTER Quote  Post ReplyReply Direct Link To This Post Posted: 20 Jul 2016 at 7:31pm
That's wierd. Photos look fine on computer but when I posted, the pics were upside down.  I think I have the issue fixed now.  Had to reset the exif parameters.

Edited by HVFDFIREFIGHTER - 21 Jul 2016 at 7:53am
Back to Top
JayD-17(NY) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: New York
Points: 577
Post Options Post Options   Thanks (0) Thanks(0)   Quote JayD-17(NY) Quote  Post ReplyReply Direct Link To This Post Posted: 20 Jul 2016 at 7:59pm
Well, if you put a 12V in it and turned the lights on and the lights or the fuse didn't blow, then it's probably now a 12 system. They did leave the factory as a 6V positive ground system, at least the very first ones did, not sure about toward the end. If it's only clicking, then the starter solenoid maybe shot, or by the looks of it, the wires going to it look pretty crusty.

The coil  may have a 6v or 12v marked on it somewhere if you can get it cleaned up enough to read it. The Genny, if it still has a tag, you can take the model # and Google it on- line.


Edited by JayD-17(NY) - 20 Jul 2016 at 8:03pm
Back to Top
Chalmersbob View Drop Down
Orange Level
Orange Level


Joined: 11 Sep 2009
Location: Pennsylvania
Points: 2122
Post Options Post Options   Thanks (0) Thanks(0)   Quote Chalmersbob Quote  Post ReplyReply Direct Link To This Post Posted: 20 Jul 2016 at 8:57pm
The early D14 was 6 volt and the later ones were 12 volt.
Check your serial # to determine the age of your tractor. LOL Bob
4 B's, 1 C's,3 CA's, 2 G's WD, D14, D15, B-1, B10, B12, 712S,
Back to Top
HVFDFIREFIGHTER View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Jun 2013
Location: Heuvelton, NY
Points: 563
Post Options Post Options   Thanks (0) Thanks(0)   Quote HVFDFIREFIGHTER Quote  Post ReplyReply Direct Link To This Post Posted: 21 Jul 2016 at 2:36am
I will replace all wiring eventually. Can I run a wire directly from battery to starter just to see if it would turn over? Maybe get it started to drive on trailer which would be way easier than pushing.

Edited by HVFDFIREFIGHTER - 21 Jul 2016 at 2:48am
Back to Top
Dan73 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 04 Jun 2015
Location: United States
Points: 6054
Post Options Post Options   Thanks (0) Thanks(0)   Quote Dan73 Quote  Post ReplyReply Direct Link To This Post Posted: 21 Jul 2016 at 3:27am
The generator and negative ground has me confused.   These where positive ground new. It could have been switched to negative ground but typically that is part of a alternator upgrade.   Makes me wonder if someone just didn't know and put a battery in backwards.
Back to Top
HVFDFIREFIGHTER View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Jun 2013
Location: Heuvelton, NY
Points: 563
Post Options Post Options   Thanks (0) Thanks(0)   Quote HVFDFIREFIGHTER Quote  Post ReplyReply Direct Link To This Post Posted: 21 Jul 2016 at 5:46am
I was thinking that. But when I put the 12 in the lights worked. I will try again with battery in opposite position. (positive ground). Anything bad that can happen?

Edited by HVFDFIREFIGHTER - 21 Jul 2016 at 5:47am
Back to Top
HVFDFIREFIGHTER View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Jun 2013
Location: Heuvelton, NY
Points: 563
Post Options Post Options   Thanks (0) Thanks(0)   Quote HVFDFIREFIGHTER Quote  Post ReplyReply Direct Link To This Post Posted: 21 Jul 2016 at 5:58am
with 12 volt battery connected with negative ground, key in run position, tractor not running, cant remember if lights were on (makes sense that they were).  This picture shows the gauge readings. It is reading 9 amps to the discharge side.



Edited by HVFDFIREFIGHTER - 21 Jul 2016 at 7:51am
Back to Top
jaybmiller View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Location: Greensville,Ont
Points: 24415
Post Options Post Options   Thanks (0) Thanks(0)   Quote jaybmiller Quote  Post ReplyReply Direct Link To This Post Posted: 21 Jul 2016 at 6:02am
OK.. 1 picturesa re still upside down on my PC...
starter. IF there's a metal band around the end away from the engine, odds are real good it's a 6 volt starter. NO band ,it's a 12 volt unit. I have 3 with band..all 6 volt,other is 12V.
Honestly ,get rid of the wiring.Spend $20 and get new battery cables and properly install them. That way you can safely use the starter solenoid to turn over the engine without major sparks.emember ther's a  gas tank on top of the starter !!
By getting rid of the wiring the generator is just a 'pulley' for the fan belt,so you can hurt it and it can't hurt you or fry up the 60 year old wires( which you've gotten rid of).
I know I sound anal about the wiring but age, mice, corrorsion will play havoc with wires.Either no power goes through or gets shorted to the wrong place and 'nothing happens', except you've wasted 4-5 hours of your life.
You NEED new wires anyway,so just buy the starter cables.If it spins then you know the solenoid is good as well as the key switch.

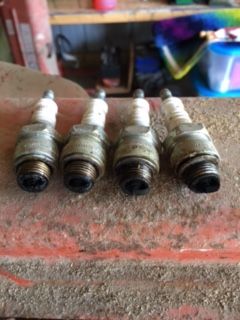

Pull the spark plugs and see what they look like. If all 4 are 'tan' coloured great, any 'oily' ones aren't so great.

Jay

3 D-14s,A-C forklift, B-112
Kubota BX23S lil' TOOT( The Other Orange Tractor)

Never burn your bridges, unless you can walk on water
Back to Top
jaybmiller View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Location: Greensville,Ont
Points: 24415
Post Options Post Options   Thanks (1) Thanks(1)   Quote jaybmiller Quote  Post ReplyReply Direct Link To This Post Posted: 21 Jul 2016 at 6:07am

http://uploads/351/d14wiring2.jpg

oops... serverdon't like me... can't show d-14 wiring for some reason....sigh...

Jay



Edited by jaybmiller - 21 Jul 2016 at 6:09am
3 D-14s,A-C forklift, B-112
Kubota BX23S lil' TOOT( The Other Orange Tractor)

Never burn your bridges, unless you can walk on water
Back to Top
HVFDFIREFIGHTER View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Jun 2013
Location: Heuvelton, NY
Points: 563
Post Options Post Options   Thanks (0) Thanks(0)   Quote HVFDFIREFIGHTER Quote  Post ReplyReply Direct Link To This Post Posted: 21 Jul 2016 at 6:18am

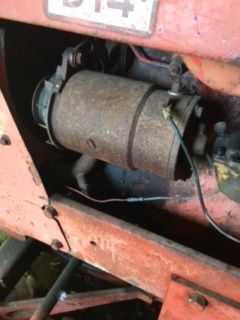

Thanks Jay.  I got the wiring diagram.  Here is a picture of the starter.  I do not see a band.
I took the photos with my phone, sent them to my computer.  They look fine on the computer but then turn upside down on the forum.  I will try to fix as Jay mentioned in an earlier post.


Edited by HVFDFIREFIGHTER - 21 Jul 2016 at 7:55am
Back to Top
jaybmiller View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Location: Greensville,Ont
Points: 24415
Post Options Post Options   Thanks (0) Thanks(0)   Quote jaybmiller Quote  Post ReplyReply Direct Link To This Post Posted: 21 Jul 2016 at 6:29am
I'd say that's a 12 volt starter, sure is sad to see that much rust on the tractor though !

OK, on the bottom of the bell housing there's a 3" hole plug. Pop it off, shine a light in there, see how big a 'mouse house' you have. Normally you should just see clutch parts but mice LOVE that area. If it's full, you'll have to remove starter as it's be jammed with mosue house materials. Mine was so jammed starter would NOT spin over!
ah the fun begins.....
Jay

3 D-14s,A-C forklift, B-112
Kubota BX23S lil' TOOT( The Other Orange Tractor)

Never burn your bridges, unless you can walk on water
Back to Top
Dan73 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 04 Jun 2015
Location: United States
Points: 6054
Post Options Post Options   Thanks (0) Thanks(0)   Quote Dan73 Quote  Post ReplyReply Direct Link To This Post Posted: 21 Jul 2016 at 7:02am
Originally posted by HVFDFIREFIGHTER HVFDFIREFIGHTER wrote:

I was thinking that. But when I put the 12 in the lights worked. I will try again with battery in opposite position. (positive ground). Anything bad that can happen?
old lights work either way.
Back to Top
HVFDFIREFIGHTER View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Jun 2013
Location: Heuvelton, NY
Points: 563
Post Options Post Options   Thanks (0) Thanks(0)   Quote HVFDFIREFIGHTER Quote  Post ReplyReply Direct Link To This Post Posted: 21 Jul 2016 at 8:02am
If in fact this is a 12 volt system, I'm assuming this is still a 6 volt generator.  It would still charge, just not as quick correct?  I notice there is no cutout (silver rectangular box) on the generator like my WD has. This one has just two posts.  Left photo is from D14, right photo is from WD showing the cutout relay



Edited by HVFDFIREFIGHTER - 21 Jul 2016 at 8:03am
Back to Top
DrAllis View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Points: 21503
Post Options Post Options   Thanks (1) Thanks(1)   Quote DrAllis Quote  Post ReplyReply Direct Link To This Post Posted: 21 Jul 2016 at 8:14am
Any D-14 has a voltage regulator, not a cut-out. It's right there behind your starter.
Back to Top
HVFDFIREFIGHTER View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Jun 2013
Location: Heuvelton, NY
Points: 563
Post Options Post Options   Thanks (0) Thanks(0)   Quote HVFDFIREFIGHTER Quote  Post ReplyReply Direct Link To This Post Posted: 21 Jul 2016 at 8:22am

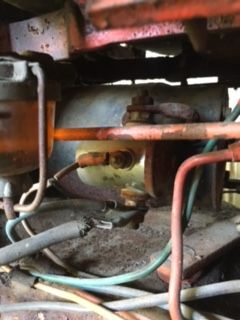

So this is the voltage regulator.  Wire on top, wire on bottom, and wire on side.  It is attached to left side of genny, kinda behind the gas bowl.  The wire on the bottom looks kinda frayed in this photo.   Once I get her home I will be replacing all of the wiring as Jay mentioned.  Currently out in a barn with no electricity. The tractor was stored for years under a roof but open to the weather.

Back to Top
jaybmiller View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Location: Greensville,Ont
Points: 24415
Post Options Post Options   Thanks (0) Thanks(0)   Quote jaybmiller Quote  Post ReplyReply Direct Link To This Post Posted: 21 Jul 2016 at 8:31am
no, that's the starter solenoid, with really, really bad wires on it !
The little wire gets 12v from the ignition switch, in the start position which then allows full battery power to go to the starter.
when you get her home, come on back....

Jay

3 D-14s,A-C forklift, B-112
Kubota BX23S lil' TOOT( The Other Orange Tractor)

Never burn your bridges, unless you can walk on water
Back to Top
JayD-17(NY) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: New York
Points: 577
Post Options Post Options   Thanks (0) Thanks(0)   Quote JayD-17(NY) Quote  Post ReplyReply Direct Link To This Post Posted: 21 Jul 2016 at 8:35am
Originally posted by HVFDFIREFIGHTER HVFDFIREFIGHTER wrote:

So this is the voltage regulator.  Wire on top, wire on bottom, and wire on side.  It is attached to left side of genny, kinda behind the gas bowl.  The wire on the bottom looks kinda frayed in this photo.   Once I get her home I will be replacing all of the wiring as Jay mentioned.  Currently out in a barn with no electricity. The tractor was stored for years under a roof but open to the weather.



......um, no thats the solenoid you have pictured there.....voltage regulator is the square black box looking thing.
Back to Top
Gatz in NE View Drop Down
Orange Level
Orange Level


Joined: 11 Sep 2009
Location: Lincoln, NE
Points: 1043
Post Options Post Options   Thanks (1) Thanks(1)   Quote Gatz in NE Quote  Post ReplyReply Direct Link To This Post Posted: 21 Jul 2016 at 8:42am
A big help for these and other AC tractors is the on-line AGCO Parts Book

http://www.agcopartsbooks.com/PartsBooksN/login.aspx

http://www.agcopartsbooks.com/PartsBooksN/login.aspx

You can browse without having to register; just use "guest"

Type in D14 and follow link.  Click on ELECTRICAL & INSTRUMENTS - WIRING & BATTERY
in the left column.

Item 31 is the Voltage Regulator on that page (104)

You can zoom in/out and define an area to zoom into by using the cursor.

Save the link for future reference.




Edited by Gatz in NE - 21 Jul 2016 at 8:43am
Back to Top
Steve in NJ View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 12 Sep 2009
Location: Andover, NJ
Points: 11950
Post Options Post Options   Thanks (0) Thanks(0)   Quote Steve in NJ Quote  Post ReplyReply Direct Link To This Post Posted: 21 Jul 2016 at 8:49am
I'm just coming on to this, but that is your Starter relay that kicks the Starter motor in. It looks to me as the cable running to it is partically severed or just about rotted off. That will never start with the cable that way. The thing I would do first is see if the engine turns over by hand. If it doesn't, throwing cables and parts at it to get it fired up will be a waste of time if the engine is stuck. The second thing I would do is check the serial number of the Tractor to ID whether it was originally 6V or a later 12V version. Looking at the pic of the Battery, that Battery is a 12V maintenance free version. Doesn't mean its correct. Looking at the Generator chassis, it could be a 6V or 12V with or without a band. Some 6V versions were closed chassis units also. If the engine turns over by hand then I would go with what Jay mentioned with cables, but you have a LOT of cleaning to do at all the connections to even make an attempt to start it. Personally, I think you would be better off getting some help to get it out of where its at onto the trailer and getting it home in your barn or garage to take your time and tear it down to get it in some sort of shape to try to fire it providing as I said that the engine isn't stuck from sitting. HTH
Steve@B&B
39'RC, 43'WC, 48'B, 49'G, 50'WF, 65 Big 10, 67'B-110, 75'716H, 2-620's, & a Motorhead wife
Back to Top
HVFDFIREFIGHTER View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Jun 2013
Location: Heuvelton, NY
Points: 563
Post Options Post Options   Thanks (0) Thanks(0)   Quote HVFDFIREFIGHTER Quote  Post ReplyReply Direct Link To This Post Posted: 21 Jul 2016 at 9:00am
How would I turn by hand?  It does not have a hand crank.    I can turn the genny and the fan.
Back to Top
Gatz in NE View Drop Down
Orange Level
Orange Level


Joined: 11 Sep 2009
Location: Lincoln, NE
Points: 1043
Post Options Post Options   Thanks (0) Thanks(0)   Quote Gatz in NE Quote  Post ReplyReply Direct Link To This Post Posted: 21 Jul 2016 at 9:17am
I wouldn't try to start it with the battery & starter....until you're sure it isn't stuck.

  Make sure  ignition is OFF  and remove plugs for these suggestions

If you push the fan-belt tighter into the pulleys, then pull on one of the fan blades, it may turn over.  Watch so you don't scrape some skin off.

You could put it in 4th HI,
then rock one of the rear tires fwd & back.
If it isn't stuck, that will turn the engine a little.

But, as Steve suggested.  get it onto the trailer and home so you can work on it.
Back to Top
jaybmiller View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Location: Greensville,Ont
Points: 24415
Post Options Post Options   Thanks (0) Thanks(0)   Quote jaybmiller Quote  Post ReplyReply Direct Link To This Post Posted: 21 Jul 2016 at 9:22am
pull the plugs
put PTO lever in gear
carefully put pipe wrench on PTO shaft and turn
that should spin engine

Jay

3 D-14s,A-C forklift, B-112
Kubota BX23S lil' TOOT( The Other Orange Tractor)

Never burn your bridges, unless you can walk on water
Back to Top
HVFDFIREFIGHTER View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Jun 2013
Location: Heuvelton, NY
Points: 563
Post Options Post Options   Thanks (0) Thanks(0)   Quote HVFDFIREFIGHTER Quote  Post ReplyReply Direct Link To This Post Posted: 21 Jul 2016 at 9:49am
Question: the power director shifter (lever on right side of tractor close to gear shift) in forward position, is that hi or low range? On the left side of tractor near the clutch peddle there is another lever, what is that? PTO shifter?

Edited by HVFDFIREFIGHTER - 21 Jul 2016 at 10:12am
Back to Top
JeffMOnt View Drop Down
Silver Level
Silver Level


Joined: 11 Sep 2009
Location: Ottawa, Ont
Points: 129
Post Options Post Options   Thanks (0) Thanks(0)   Quote JeffMOnt Quote  Post ReplyReply Direct Link To This Post Posted: 21 Jul 2016 at 10:07am
Forward is high, middle is neutral, and back is low.
Back to Top
Gatz in NE View Drop Down
Orange Level
Orange Level


Joined: 11 Sep 2009
Location: Lincoln, NE
Points: 1043
Post Options Post Options   Thanks (0) Thanks(0)   Quote Gatz in NE Quote  Post ReplyReply Direct Link To This Post Posted: 21 Jul 2016 at 10:11am
the PD is on the right as you say.  HI range is forward (which is actually direct input)
LO is rearward (reduced input)
In between is Neutral, but do NOT use for shifting transmission when engine is running....use foot clutch only for that.

The lever to the left is the PTO engagement.  Must use foot clutch to engage.
Foot clutch should also be used to disengage the PTO, but sometimes with little to no load, it can be disengaged by simple moving the lever by hand.

This lever is what you'd use to engage the PTO to do what jaymiller suggests.


Edited by Gatz in NE - 21 Jul 2016 at 10:12am
Back to Top
HVFDFIREFIGHTER View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Jun 2013
Location: Heuvelton, NY
Points: 563
Post Options Post Options   Thanks (0) Thanks(0)   Quote HVFDFIREFIGHTER Quote  Post ReplyReply Direct Link To This Post Posted: 21 Jul 2016 at 2:43pm
I got her home today!  Took plugs out, put PTO in gear, put my pipe wrench on, it would't turn by hand.  Stepped on it and it turned about 1/4 turn.  Now cant get it to move. Which way should it turn?  As I am looking at the back of the tractor, clockwise or counterclockwise.  I turned counterclockwise.  I did not try it in fourth gear yet.

The spark plugs did not look good. Not rusty but oily and black.



Edited by HVFDFIREFIGHTER - 21 Jul 2016 at 3:41pm
Back to Top
 Post Reply Post Reply Page  12>
  Share Topic

Forum Jump Forum Permissions View Drop Down

Forum Software by Web Wiz Forums® version 11.10
Copyright ©2001-2017 Web Wiz Ltd.

This page was generated in 0.109 seconds.


Help Support the
Unofficial Allis Forum
