reel mowers

 Post Reply Post Reply
Author
Message
Ronnie View Drop Down
Orange Level
Orange Level
Avatar

Joined: 23 Mar 2014
Location: New Brighton
Points: 557
Post Options Post Options   Thanks (0) Thanks(0)   Quote Ronnie Quote  Post ReplyReply Direct Link To This Post Topic: reel mowers
    Posted: 26 Mar 2016 at 5:34pm

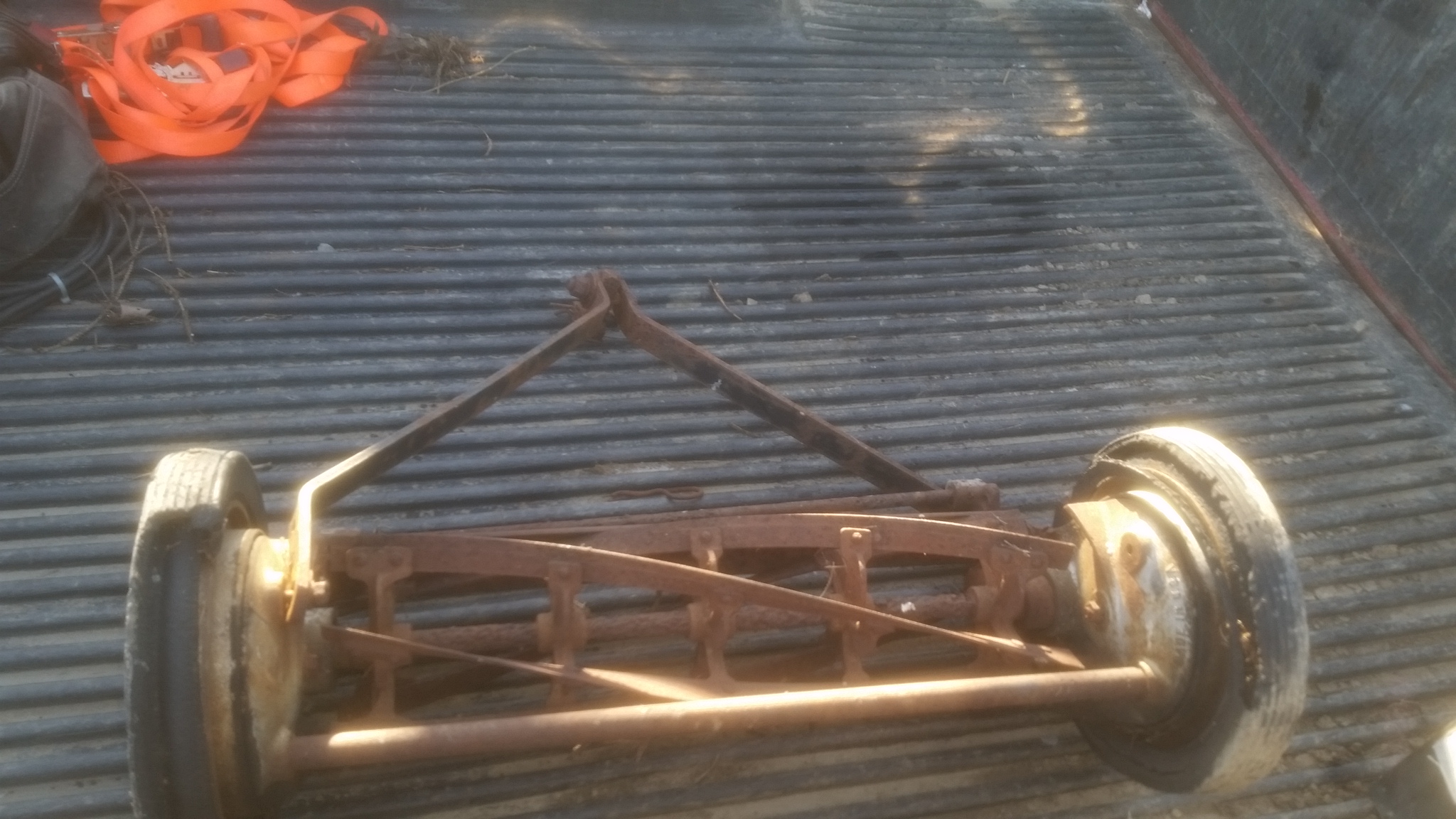

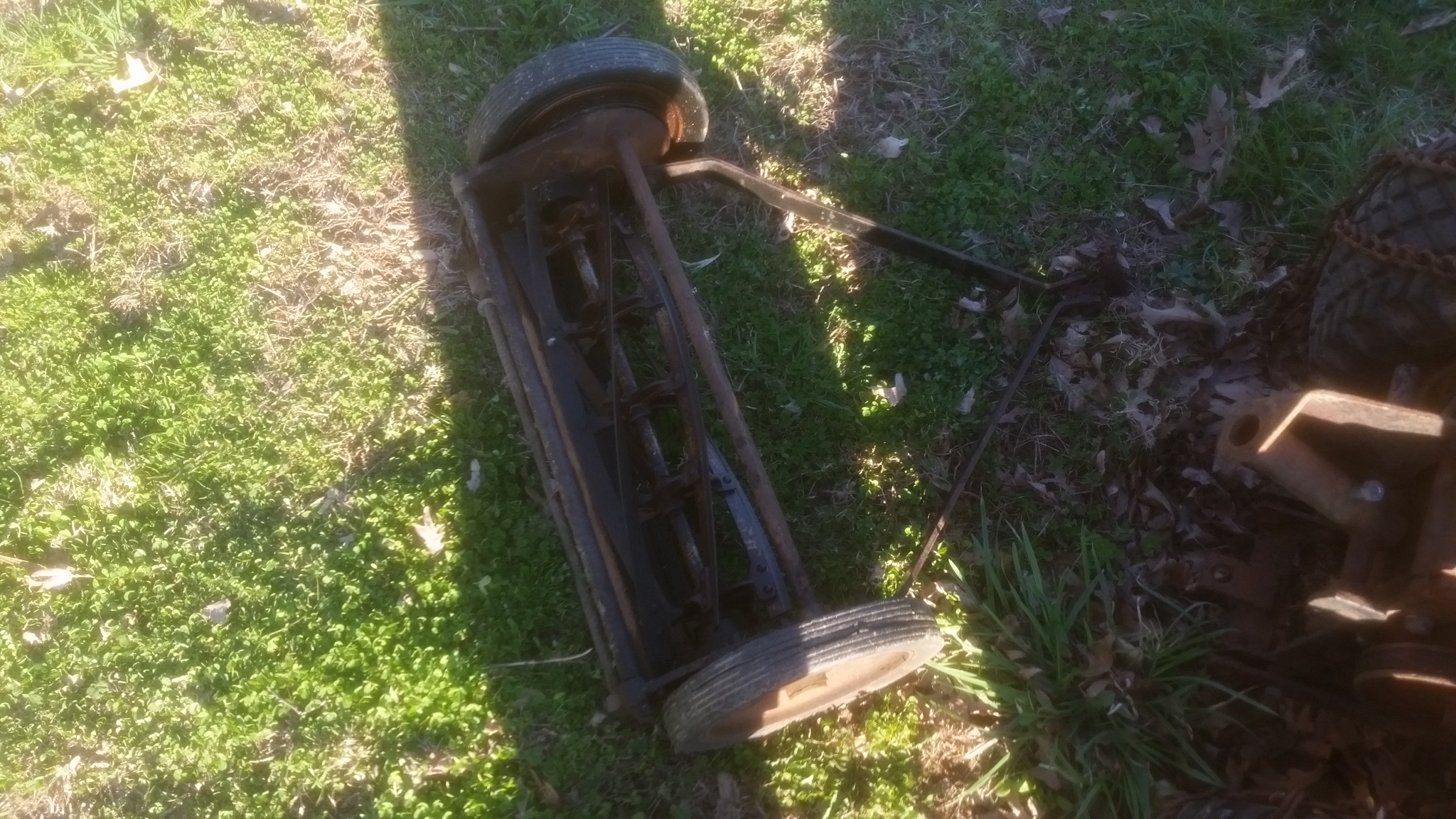

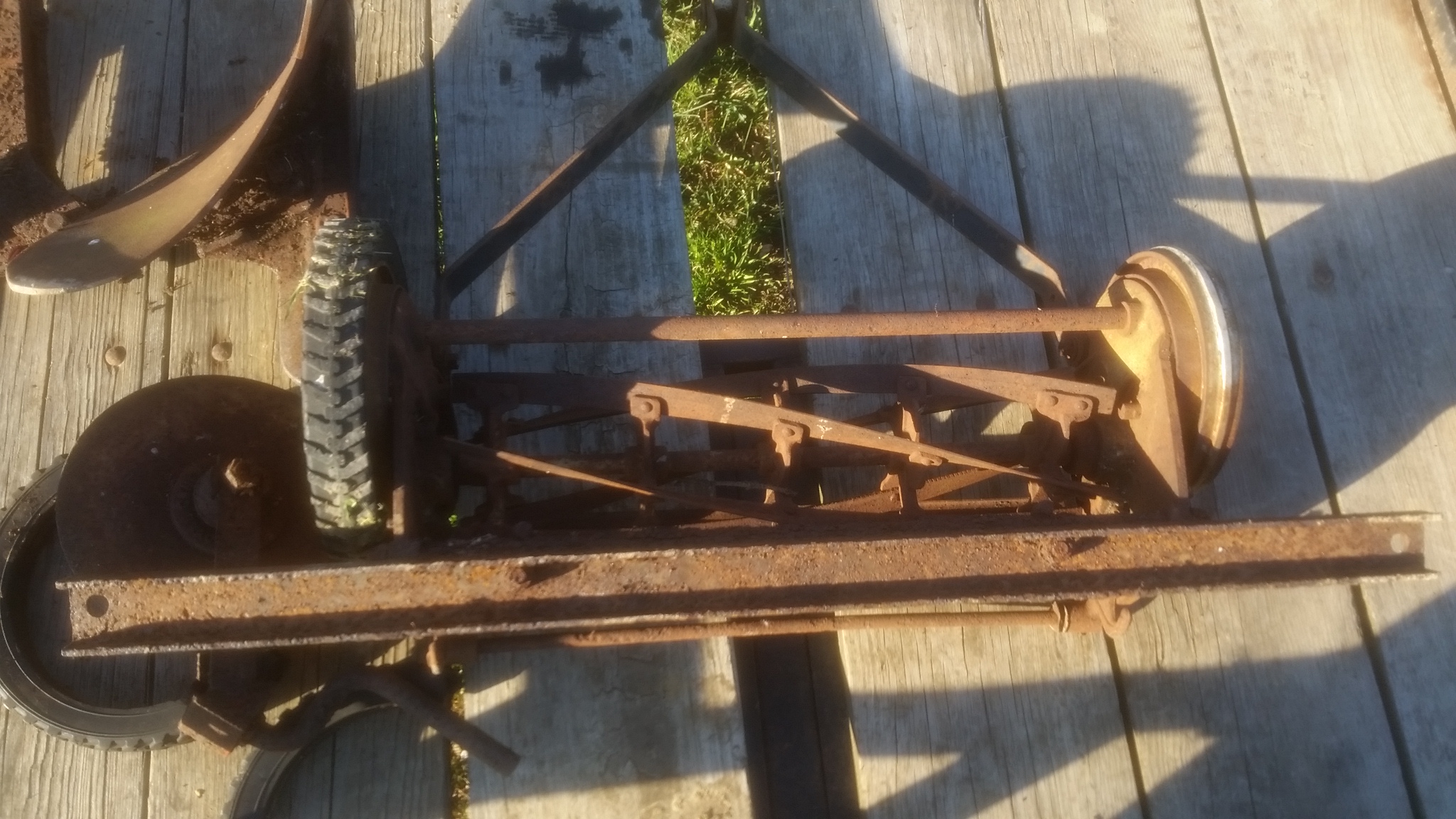

I just got three of them today. they all turn free.
Can any one tell me what there worth
Back to Top
Sponsored Links


Back to Top
dawntreader74 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 28 Oct 2013
Location: Manteno
Points: 1770
Post Options Post Options   Thanks (0) Thanks(0)   Quote dawntreader74 Quote  Post ReplyReply Direct Link To This Post Posted: 27 Mar 2016 at 1:31am
someone on hear' not long ago was looking to buy some of them mowers. needed 3
Back to Top
CTuckerNWIL View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: NW Illinois
Points: 22823
Post Options Post Options   Thanks (0) Thanks(0)   Quote CTuckerNWIL Quote  Post ReplyReply Direct Link To This Post Posted: 27 Mar 2016 at 9:02am
Probably worth the going rate for scrap. It would take a lot of cleaning, de-rusting, and sharpening for them to work good and then you need new tires.

 From Mother Earth News article:

You should perform basic maintenance on a reel lawn mower after every third use, and the procedure is perfectly simple. First, put it up on a workbench. If you grovel at its level, it’s easier to be injured by the blades and lose tiny parts in the grass.

If it’s old, the blades probably need to be sharpened, and you need practice to do this right. Moving the wheels forward causes the blade cage to rotate rapidly because of the movement of a series of gears (which might need to be oiled or repacked with grease). Check the rubber wheels. If they’re slick and can’t get traction, the reel won’t turn efficiently. You can temporarily repair this by making grooves in the tires with a three-corner file — until you have time to look for replacement wheels.

Always wear leather gloves when working with the blades for any reason, including debris removal when mowing. To hone the blades, jam a wooden stick through the cage to prevent it from turning. A coarse sharpening stone and a light application of cutting oil will make each blade sharp within seven or eight light (but even and smooth) strokes. Follow the angle of the blade as closely as possible.

Use the same number of strokes on every blade to ensure a uniform distance of all blades from the cutting bar, which should almost touch the whirling blades, leaving room for the width of a blade of grass. You may need to adjust the cutting bar when you’re done. If your blades slice easily through a sheet of newspaper placed on the cutting bar, you’ve done it right.

Some experts advise dabbing the honed blades with grinding paste and pulling the mower backward for 10 minutes. But I tried out this method, and can tell you that death-by-boredom may occur in half that time. A young person, if desperate enough, might do it for $20, if nobody sees them. (Those were exactly my nephew’s terms.)

On most models, the gears in the wheel assembly aren’t hard to access, but you must be careful not to lose any nuts, bolts or pins. (Drop them in a small can or jar for collection and oiling.) Remove the wheel covers and pack the exposed gears with light grease. If you’re lucky, the wheel covers on your model will have lubrication holes. After each mowing, use a garden hose or air compressor to clean the blades and wheels. Then spray everything liberally with WD-40.

Always mow on a dry, clear day — weekly is best.

http://www.ae-ta.com
Lena 1935 WC12xxx, Willie 1951 CA6xx Dad bought new, 1954WD45 PS, 1960 D17 NF
Back to Top
Ronnie View Drop Down
Orange Level
Orange Level
Avatar

Joined: 23 Mar 2014
Location: New Brighton
Points: 557
Post Options Post Options   Thanks (0) Thanks(0)   Quote Ronnie Quote  Post ReplyReply Direct Link To This Post Posted: 27 Mar 2016 at 9:13am
Can I get replacement wheels for the mowers.
Back to Top
HudCo View Drop Down
Orange Level
Orange Level
Avatar

Joined: 29 Jan 2013
Location: Plymouth Utah
Points: 3553
Post Options Post Options   Thanks (0) Thanks(0)   Quote HudCo Quote  Post ReplyReply Direct Link To This Post Posted: 27 Mar 2016 at 1:47pm
c tucker is right,             the best thing to do is go to a golf coarse or a dealer for golf coarse equipment with the reels and brgs and the bed knives and have them sharpened also brgs need to be in execlant condition or the reels will hit the bed knives when adjusted proper or will not cut.         the  golf coarses have machines that spin the reals like a lathe  with a grinding wheel that moves back and forth  also about the same for the bed knives that makes very thing the same .      ( we have worked on alot of golf coarse equipment over the years and we send all the reels  and hits hard to get it done unless its winter time
Back to Top
marion View Drop Down
Orange Level
Orange Level


Joined: 19 May 2010
Points: 586
Post Options Post Options   Thanks (0) Thanks(0)   Quote marion Quote  Post ReplyReply Direct Link To This Post Posted: 27 Mar 2016 at 7:43pm
they still make new ones, I rent out 2 different houses to women who use these to mow with. the one gal said she did it for the exercise. other gal am sure is same reason. I think people were either tuffer or your yards were smaller when those were popular. as close to one as I want to get is watching it being used.
Back to Top
Ronnie View Drop Down
Orange Level
Orange Level
Avatar

Joined: 23 Mar 2014
Location: New Brighton
Points: 557
Post Options Post Options   Thanks (0) Thanks(0)   Quote Ronnie Quote  Post ReplyReply Direct Link To This Post Posted: 27 Mar 2016 at 7:51pm
I am willing to sell these three mowers. If any one is interested in them . Pm me for more information.
Back to Top
