 Topic: Help identify lever on WD Part 2
Posted: 13 Jan 2021 at 5:47pm |

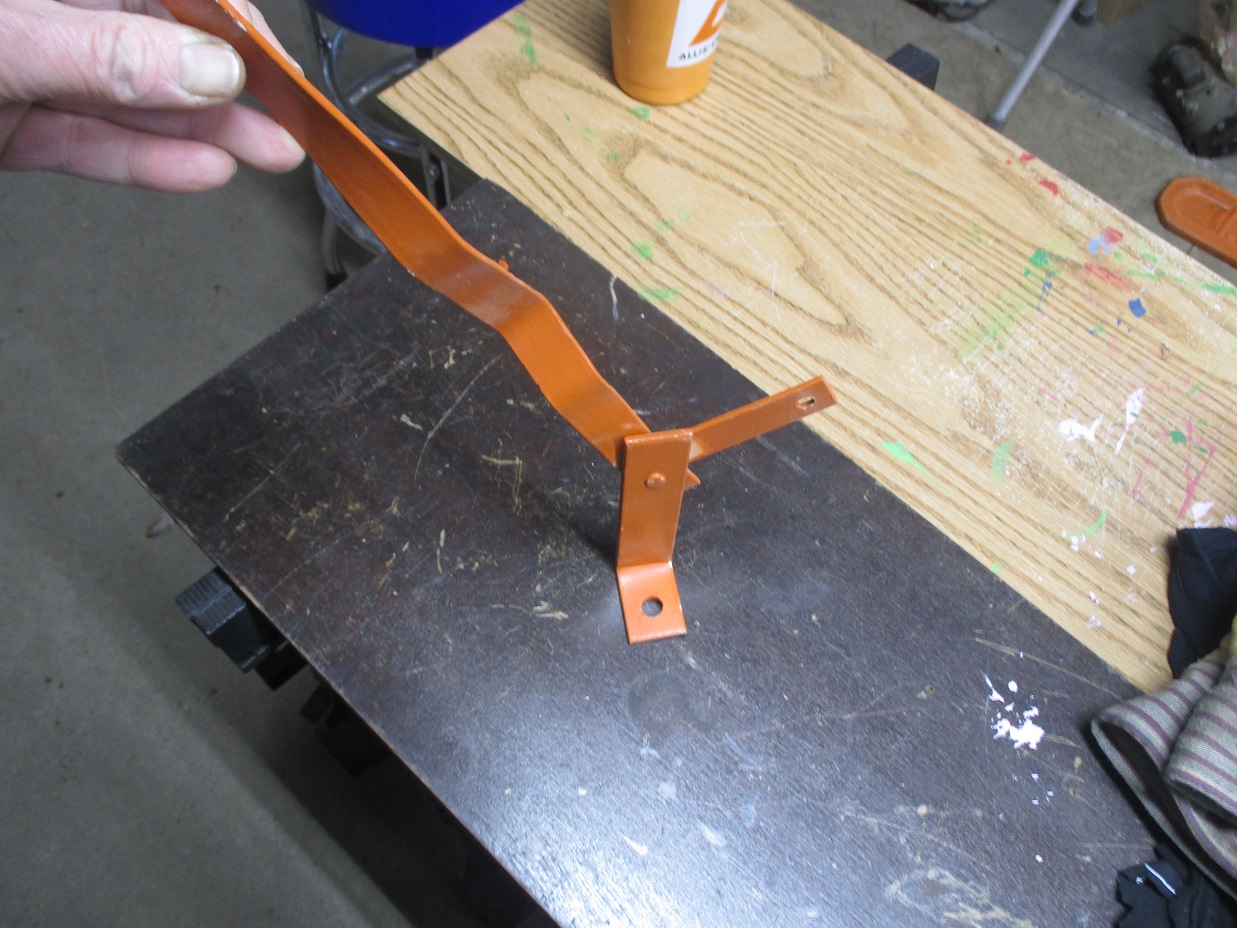

Several years ago I had re  painted this part. But now putting tractor back together, I can't recall what it was for, or where it was mounted. Tractor did have corn picker on it at one time. Thanks Tim
Edited by Tim NH - 05 Feb 2021 at 5:10am
|
|
1950 WD 1959 D14 1955 WD45 1976 7000 B 207
|
 |
|
Sponsored Links
|
|
|
MACK
Orange Level
Joined: 17 Nov 2009
Points: 7664
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Jan 2021 at 9:57pm |
|
Could be a home-made release for snap coupler. MACK
|
|
shameless dude
Orange Level
Joined: 10 Apr 2017
Location: east NE
Points: 13607
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Jan 2021 at 10:32pm |
|
brake lock trelease?
|
|
LouSWPA
Orange Level Access
Joined: 11 Sep 2009
Location: Clinton, Pa
Points: 25547
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Jan 2021 at 10:44pm |
|
well, I don't believe it to be a stock/standard/original part, but I would go with Mack on this, it does look similar to the original snap coupler release
|
|
I am still confident of this;
I will see the goodness of the Lord in the land of the living.
Wait for the Lord;
be strong and take heart and wait for the Lord. Ps 27
|
|
dawntreader74
Orange Level
Joined: 28 Oct 2013
Location: Manteno
Points: 1770
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Jan 2021 at 10:51pm |
|
looks like mack's got it right'
|
|
Tim NH
Orange Level Access
Joined: 16 Oct 2012
Location: Lancaster NH
Points: 1154
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Jan 2021 at 5:45am |

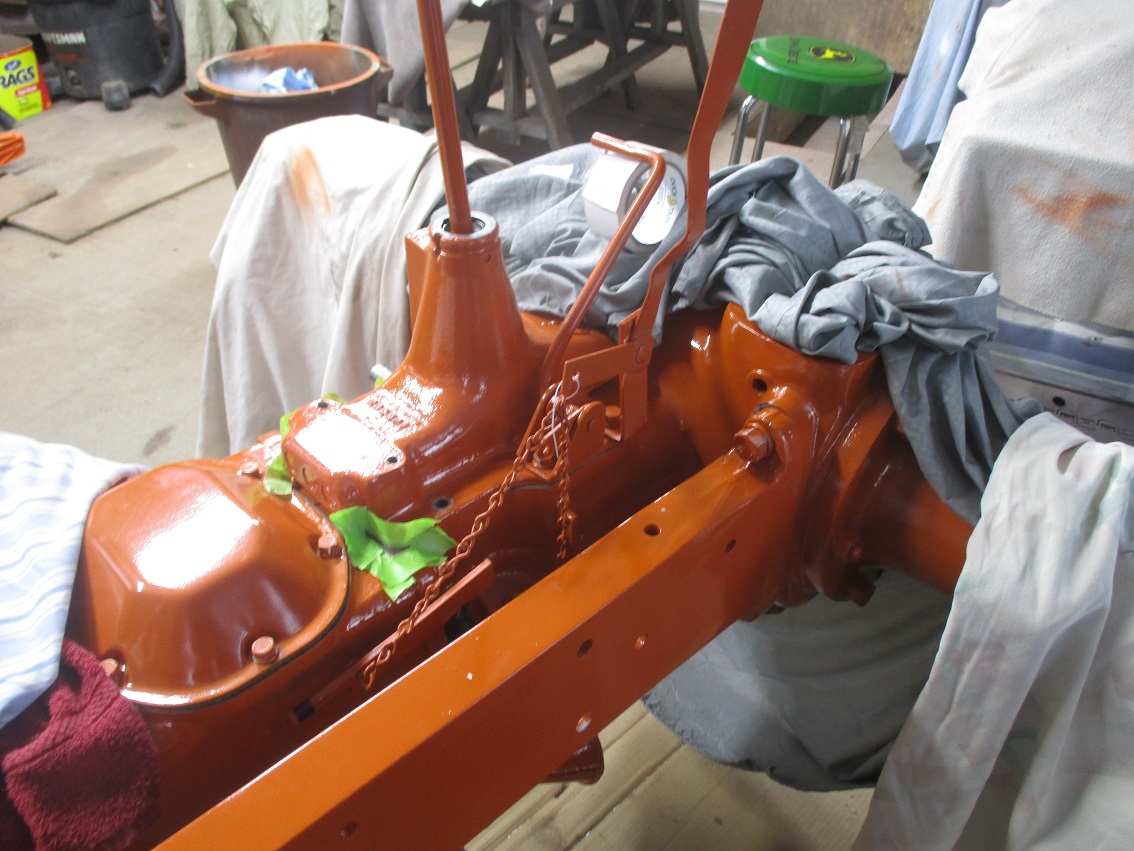

After looking at the lever I realized it would have to be mounted on the snap coupler release lever side. So I placed the lever over the next bolt, and it places the lift arm right over the foot clutch lock out lever. Then it hit me, I took the chain off that lever a bit ago thinking why would I want that on there. LOL If that hand lever is home made there good. Tim
|
|
1950 WD 1959 D14 1955 WD45 1976 7000 B 207
|
|
Sugarmaker
Orange Level
Joined: 12 Jul 2013
Location: Albion PA
Points: 8661
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Jan 2021 at 7:03am |
Tim, Good luck with your WD build! I would agree its not any factory part I have seen. Regards, Chris
|
|
D17 1958 (NFE), WD45 1954 (NFE), WD 1952 (NFE), WD 1950 (WFE), Allis F-40 forklift, Allis CA, Allis D14, Ford Jubilee, Many IH Cub Cadets, 32 Ford Dump, 65 Comet, 66 F100.
|
|
ac45dave
Orange Level Access
Joined: 23 May 2015
Location: SE(IN)
Points: 1349
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Jan 2021 at 8:22am |
Tim, I agree with Mack, SC release lever. That's different than what I've ever seen for SC release.This is the only style I've ever seen.
Edited by ac45dave - 14 Jan 2021 at 8:27am
|
|
54 wd-45gas ; 56 wd-45d N/F w/fact p/s ; 63 d-17 sIII N/F gas ; 60 D14 N/F ; 67 d-17 sIV N/F gas ; 63D15 sII W/F; 39rc#667 ; 2021 massey 4710 fwa ; gravely 2 wheel tractors
|
|
ac fleet
Orange Level
Joined: 12 Jan 2014
Location: Arrowsmith, ILL
Points: 2337
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Jan 2021 at 10:18am |
|
mine are all the round type
|
|
http://machinebuildersnetwork.com/
|
|
DSpears N IL
Silver Level Access
Joined: 11 Sep 2009
Location: Rockford,Ill
Points: 418
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Jan 2021 at 2:20pm |
this is the snapcoupler release lever on my CA that is similar!
DeWayne
|
|
Tim NH
Orange Level Access
Joined: 16 Oct 2012
Location: Lancaster NH
Points: 1154
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Jan 2021 at 4:34pm |
So I had a chance to mock up that lever today. I found it only fit in the bolt hole behind snap coupler lever. The position its in now, would disengage the foot clutch. When I pull the hand lever back, the lockout lever flips right up and over. Wants to chip new paint, and then hand lever goes ahead and down. Probably chip more new paint and rattle. Previous owner asked if I wanted the front mount buzz saw they used a lot with it. Nope, maybe that's why they rigged that lever up. So in the end I took it all back off, not going to use it. Tim
|
|
1950 WD 1959 D14 1955 WD45 1976 7000 B 207
|
|
Dirt Farmer
Silver Level Access
Joined: 15 Sep 2020
Location: Illinois
Points: 473
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Jan 2021 at 9:50pm |
|
Tim, your project is looking very good and quite familiar as I am restoring a WD45 and nearly at the same stage as you in assembly except its gotten to cold here in my shop in Illinois to do more painting for now. Looks like you went back to the original shade of orange too. Keep up the good work and post more pictures as you go along. Good luck
|
|
Tim NH
Orange Level Access
Joined: 16 Oct 2012
Location: Lancaster NH
Points: 1154
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 Jan 2021 at 7:11am |
Thanks for everyone's input, and dirt farmer your compliment. Tim
|
|
1950 WD 1959 D14 1955 WD45 1976 7000 B 207
|
|
Ted J
Orange Level
Joined: 05 Jul 2010
Location: La Crosse, WI
Points: 18967
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Jan 2021 at 11:27pm |
|
|
|
"Allis-Express"
19?? WC / 1941 C / 1952 CA / 1956 WD45 / 1957 WD45 / 1958 D-17
|
|
Tim NH
Orange Level Access
Joined: 16 Oct 2012
Location: Lancaster NH
Points: 1154
|
Post Options
Thanks(0)
Quote Reply
Posted: 17 Jan 2021 at 7:06am |
No Ted, we were planning on flying there. I'd like to though. Tim
|
|
1950 WD 1959 D14 1955 WD45 1976 7000 B 207
|
|
Sugarmaker
Orange Level
Joined: 12 Jul 2013
Location: Albion PA
Points: 8661
|
Post Options
Thanks(0)
Quote Reply
Posted: 17 Jan 2021 at 7:37am |
Tim, Looking really good. Now I see about this homemade lever and its function. It is hard to work that clutch lock and this was a way to do it easier. Did you bring home the wheel of death? Some pictures of it would spark some conversation. I remember my dad had a front mount buzz rig on the WD that is now his GGson's. The paint is looking awesome by the way! I love fresh orange! Regards, Chris
|
|
D17 1958 (NFE), WD45 1954 (NFE), WD 1952 (NFE), WD 1950 (WFE), Allis F-40 forklift, Allis CA, Allis D14, Ford Jubilee, Many IH Cub Cadets, 32 Ford Dump, 65 Comet, 66 F100.
|
|
Tim NH
Orange Level Access
Joined: 16 Oct 2012
Location: Lancaster NH
Points: 1154
|
Post Options
Thanks(0)
Quote Reply
Posted: 17 Jan 2021 at 12:17pm |
No Chris I didn't bring it home. He said it sits right in the shed there. I didn't even look over, I told him I use a chain saw. lol Tim
|
|
1950 WD 1959 D14 1955 WD45 1976 7000 B 207
|
|
Ted J
Orange Level
Joined: 05 Jul 2010
Location: La Crosse, WI
Points: 18967
|
Post Options
Thanks(0)
Quote Reply
Posted: 17 Jan 2021 at 10:09pm |
I have one of those for my CA and as a kid, I cut a LOT of wood with one of them on a CA. They are really dangerous and I'm surprised none of us boys lost and arm or anything. They DO work like a charm though. You just have to be VERY careful around it.
|
|
"Allis-Express"
19?? WC / 1941 C / 1952 CA / 1956 WD45 / 1957 WD45 / 1958 D-17
|
|
Tim NH
Orange Level Access
Joined: 16 Oct 2012
Location: Lancaster NH
Points: 1154
|
Post Options
Thanks(0)
Quote Reply
Posted: 05 Feb 2021 at 5:09am |

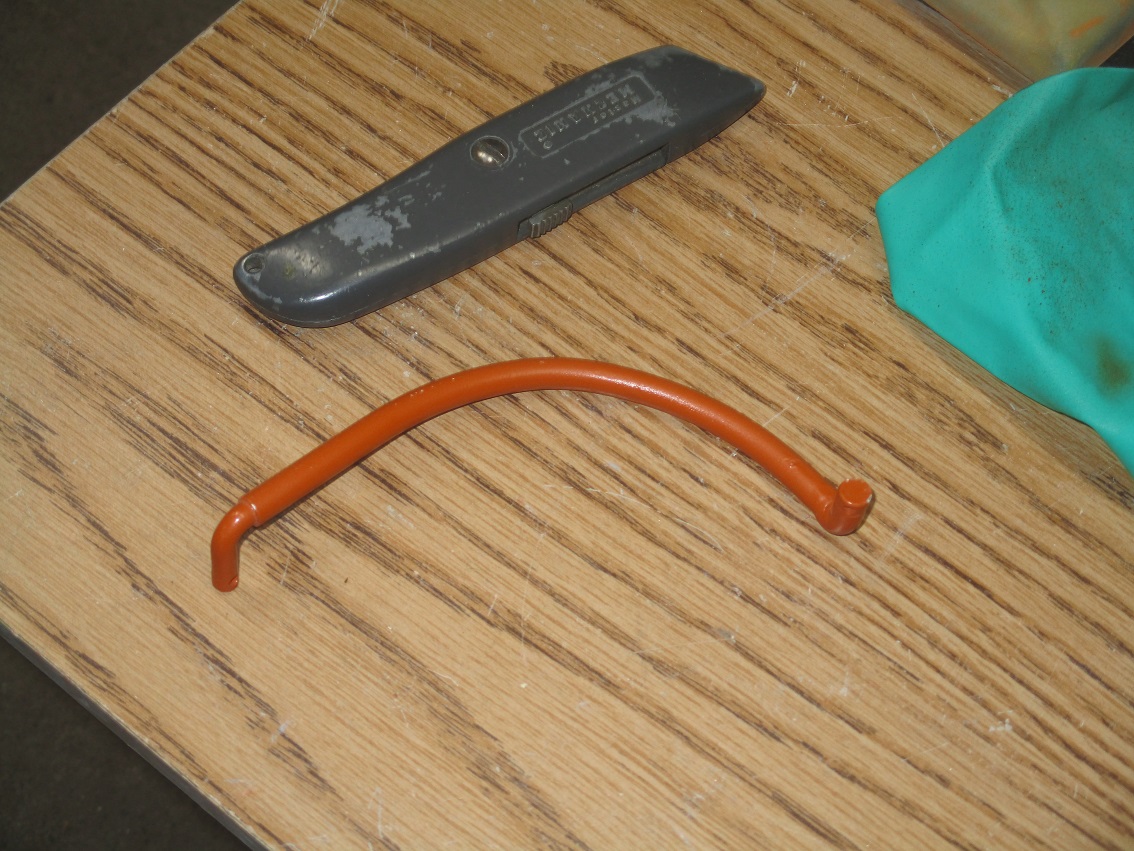

I have another piece I painted some time ago, and can't figure where it goes. Note the ends are different sizes. Thanks Tim
|
|
