d17 hydraulic plug- where to find part?
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
muck7898 View Drop Down
Bronze Level
Bronze Level


Joined: 15 Jul 2026
Location: Indiana
Points: 5 		Post Options Post Options   Thanks (0) Thanks(0)   Quote muck7898 Quote  Post ReplyReply Direct Link To This Post Topic: d17 hydraulic plug- where to find part?
    Posted: 15 Jul 2026 at 12:45pm
New member here trying to get a tractor ready to square bale some hay. I have a series 4 D17 and am in need of Agco Part# 70229579 plug. I found the part number from a post by forum member Saubz back in 2020. His post showed a picture of where the plug goes and even included part number. I just am not having luck finding one online. does anyone have a recommendation?

Thank you,
Adam
Back to Top
Sponsored Links


Back to Top
muck7898 View Drop Down
Bronze Level
Bronze Level


Joined: 15 Jul 2026
Location: Indiana
Points: 5 		Post Options Post Options   Thanks (0) Thanks(0)   Quote muck7898 Quote  Post ReplyReply Direct Link To This Post Posted: 15 Jul 2026 at 1:07pm
Also to update: I called a dealership and they looked up the part number for me. They said it is no longer available.
Back to Top
8070nc View Drop Down
Orange Level Access
Orange Level Access


Joined: 21 Mar 2019
Location: North Carolina
Points: 898 		Post Options Post Options   Thanks (0) Thanks(0)   Quote 8070nc Quote  Post ReplyReply Direct Link To This Post Posted: 15 Jul 2026 at 1:16pm
What does it do and what makes it special
1984 80780
1957 D14
DES 300 with 25000 engine
616 tractor
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 93064 		Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 15 Jul 2026 at 1:19pm
i dont think there are any threads in that hole ??  Seems like it is similar to a FREEZE PLUG that you pound in a hole to seal it up ???

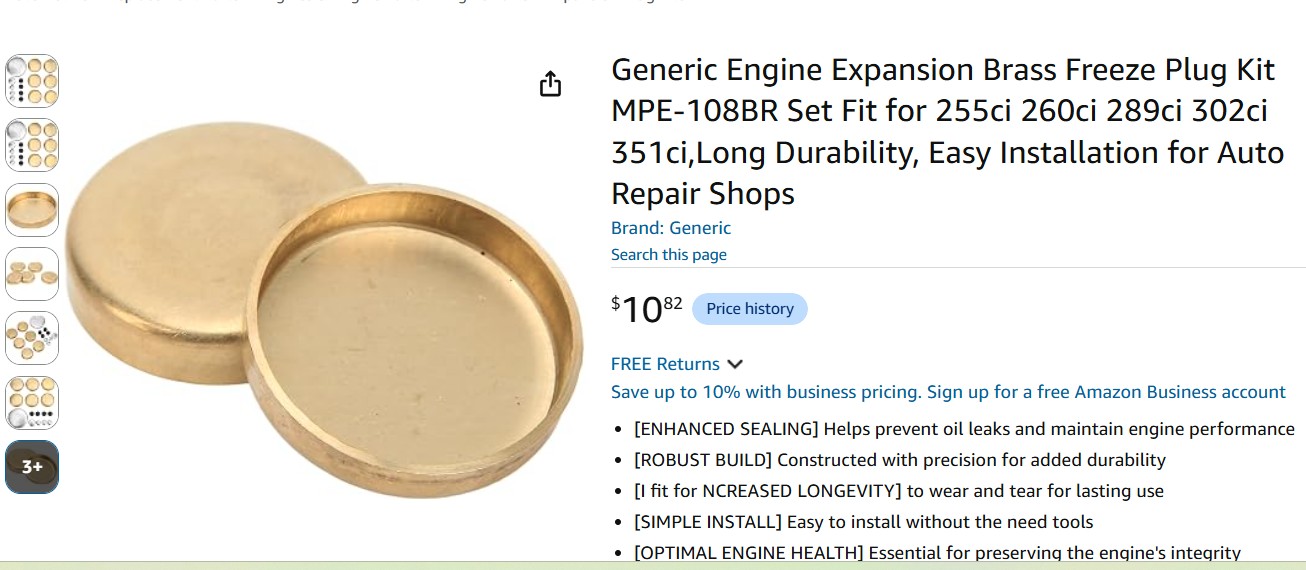

You should be able to use a GENERIC plug if you measure the ID of the hole..does it look something like this ??? you would need to check the RIGHT DIAMETER...




Edited by steve(ill) - 15 Jul 2026 at 1:25pm
Like them all, but love the "B"s.
Back to Top
muck7898 View Drop Down
Bronze Level
Bronze Level


Joined: 15 Jul 2026
Location: Indiana
Points: 5 		Post Options Post Options   Thanks (0) Thanks(0)   Quote muck7898 Quote  Post ReplyReply Direct Link To This Post Posted: 15 Jul 2026 at 1:24pm
The plug keeps it from leaking hydraulic oil. There are no threads in there and I am starting to think the answer of finding a generic plug like a freeze plug and driving it in seems to be the fix. I think Napa has something I can use.
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 93064 		Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 15 Jul 2026 at 1:30pm

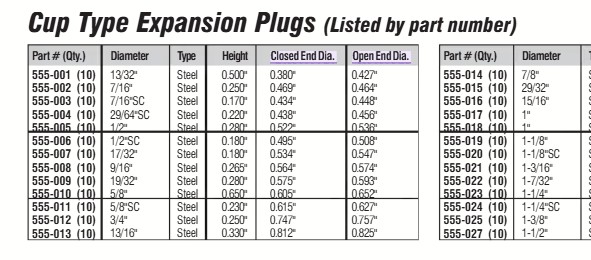

DORMAN part numbers available at NAPA.... just match the HOLE SIZE
Like them all, but love the "B"s.
Back to Top
muck7898 View Drop Down
Bronze Level
Bronze Level


Joined: 15 Jul 2026
Location: Indiana
Points: 5 		Post Options Post Options   Thanks (0) Thanks(0)   Quote muck7898 Quote  Post ReplyReply Direct Link To This Post Posted: 15 Jul 2026 at 1:34pm
Thank you Steve!
