 Topic: D14 Industrial w/ Henry Backhoe (with pictures)
Posted: 02 Dec 2020 at 5:44pm |
My 1958 D14 industrial has the shuttle on the right-hand side. Does anyone know if I can move it to the left-hand side and if so how to do that? I have only ever seen them on the left-hand side. Thanks!
Edited by elec - 04 Dec 2020 at 7:06pm
|
 |
|
Sponsored Links
|
|
|
Gary
Orange Level Access
Joined: 13 Sep 2009
Location: Peterborough,On
Points: 5422
|
Post Options
Thanks(0)
Quote Reply
Posted: 04 Dec 2020 at 11:28am |
|
Are you sure it is a Shuttle.
I seen a regular Farm D-14 at an Auction about 10 years ago.
I was interested until I seen it was a std. D-14 with a Power Director Lever on R/H side, and a regular D-14 front axle.
Had an Ind. Front End Loader and Back Hoe.
Spoke with the owner and he confirmed it was not a Shuttle.
|
|
elec
Bronze Level
Joined: 23 Nov 2020
Location: mi
Points: 86
|
Post Options
Thanks(0)
Quote Reply
Posted: 04 Dec 2020 at 7:04pm |

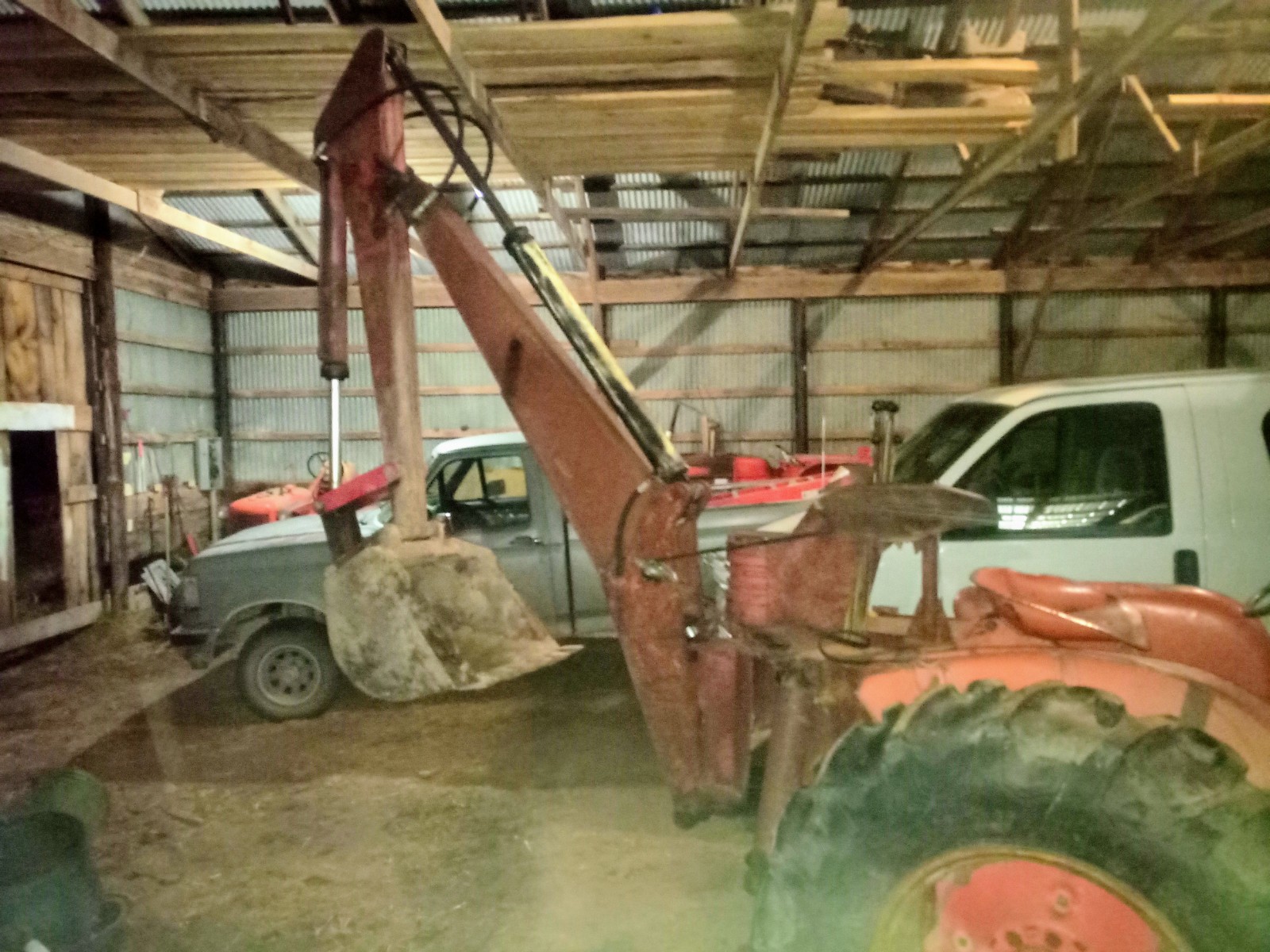

Thank you for your reply. Yes, I'm sure it is a shuttle, not a high-low lever/power director, and it operates as it should. It's definitely an Industrial D14 (SN# D14 17785) because there is no PTO or internal hydraulics, and it has the reinforced heavy-duty front end. See attached pictures.
|
|
steve(ill)
Orange Level Access
Joined: 11 Sep 2009
Location: illinois
Points: 81584
|
Post Options
Thanks(0)
Quote Reply
Posted: 04 Dec 2020 at 7:25pm |
thats what i remember also... HI_LO on the right and shuttle on the left..
short movie.. at 1:30 it shows the shuttle.. Is your handle on the right side the same handle or mirror image ?
Edited by steve(ill) - 04 Dec 2020 at 7:27pm
|
|
Like them all, but love the "B"s.
|
|
NomoreJohnDeere
Silver Level
Joined: 24 Jul 2017
Location: Missouri Ozarks
Points: 308
|
Post Options
Thanks(0)
Quote Reply
Posted: 04 Dec 2020 at 7:27pm |
When you run the hoe it's on the left..........
Never seen an adjustable industrial axle before
|
|
HD3
|
|
elec
Bronze Level
Joined: 23 Nov 2020
Location: mi
Points: 86
|
Post Options
Thanks(0)
Quote Reply
Posted: 04 Dec 2020 at 7:38pm |
|

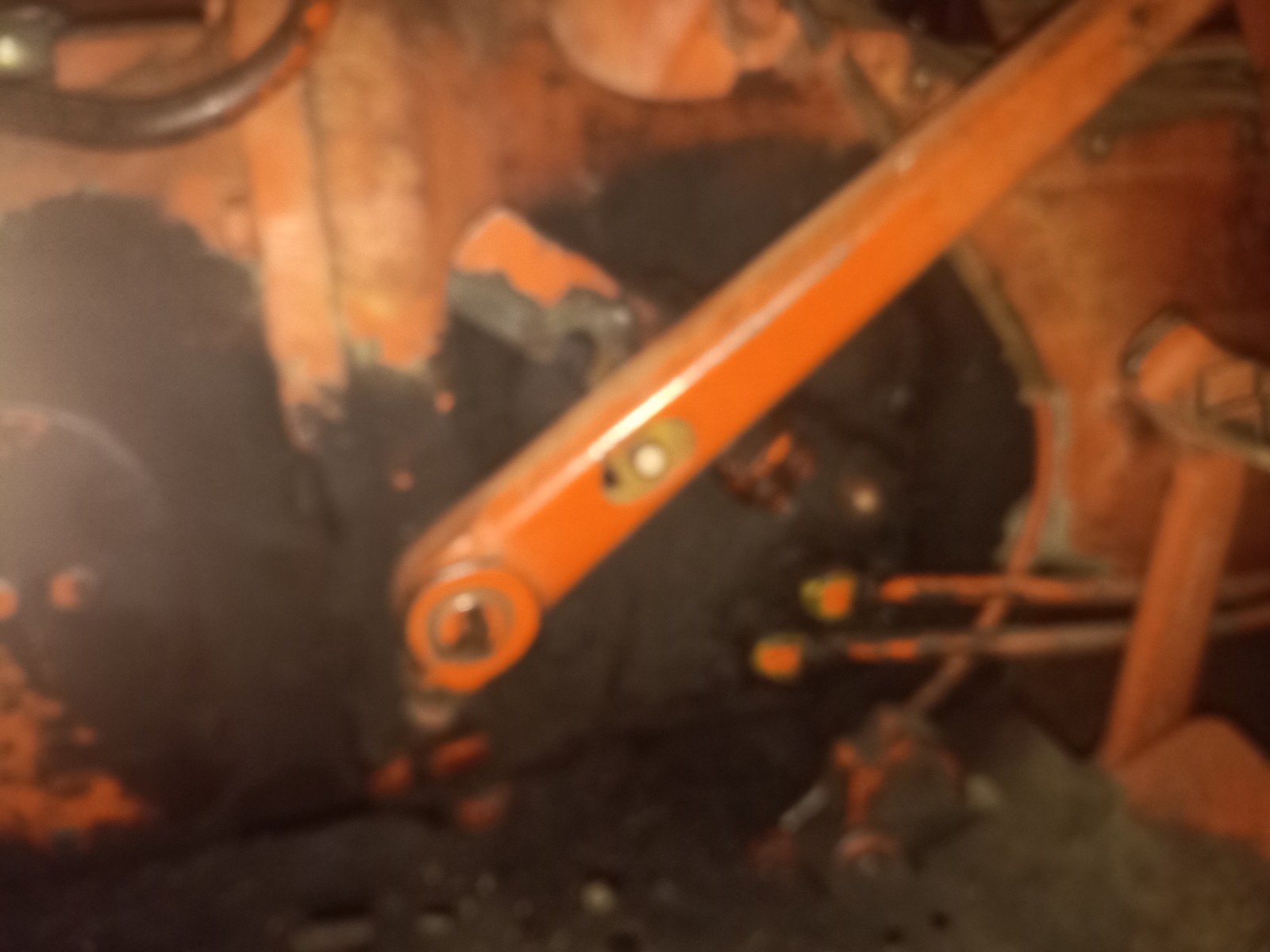

The shuttle is on the right, it is the same handle that the rest of my AC's have for power directory on the right.
|
|
DiyDave
Orange Level Access
Joined: 11 Sep 2009
Location: Gambrills, MD
Points: 51845
|
Post Options
Thanks(0)
Quote Reply
Posted: 04 Dec 2020 at 8:40pm |
I might be wrong, but I think someone might have stuffed a shuttle into a regular PD housing. IIRR, all you have to do is to flip the shaft over to change lever locations. If I'm wrong, someone will be along to correct me...
|
|
Source: Babylon Bee. Sponsored by BRAWNDO, its got what you need!
|
|
Mikez
Orange Level Access
Joined: 16 Jan 2013
Location: Usa
Points: 8416
|
Post Options
Thanks(0)
Quote Reply
Posted: 04 Dec 2020 at 8:53pm |
|
Our D14 industrial has a shuttle like yours. Ours has a different front axle.
Edited by Mikez - 04 Dec 2020 at 8:56pm
|
|
elec
Bronze Level
Joined: 23 Nov 2020
Location: mi
Points: 86
|
Post Options
Thanks(0)
Quote Reply
Posted: 04 Dec 2020 at 8:57pm |
|
@DiyDave: Thank you, hopefully you are right! I definitely will look into it. If it makes a difference, there is also no reverse gear on the shifter, only 1st - 4th. The reason I would like to change the shuttle to the left side is because I would like to add a hay grapple to it, with the hydraulics on the right and the shuttle on the left.
|
|
