Allis AD30, I think
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
Orange Blood View Drop Down
Orange Level
Orange Level
Avatar

Joined: 29 Nov 2010
Location: ColoradoSprings
Points: 4053 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Orange Blood Quote  Post ReplyReply Direct Link To This Post Topic: Allis AD30, I think
    Posted: 18 Aug 2013 at 9:28pm
Hey there folks, I may have a line on an AD30, from what I have read on here, anyway.

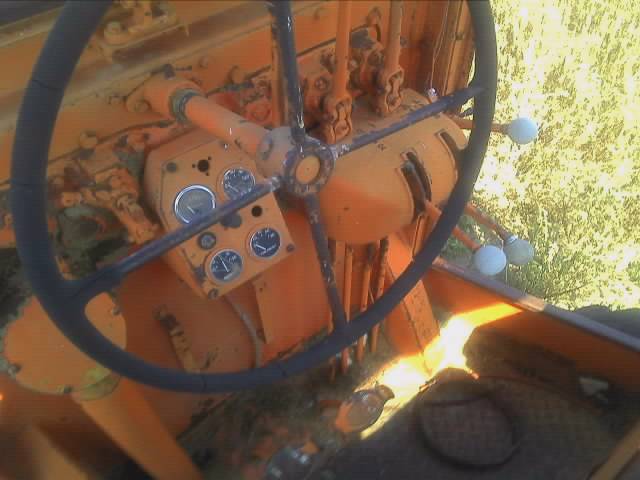

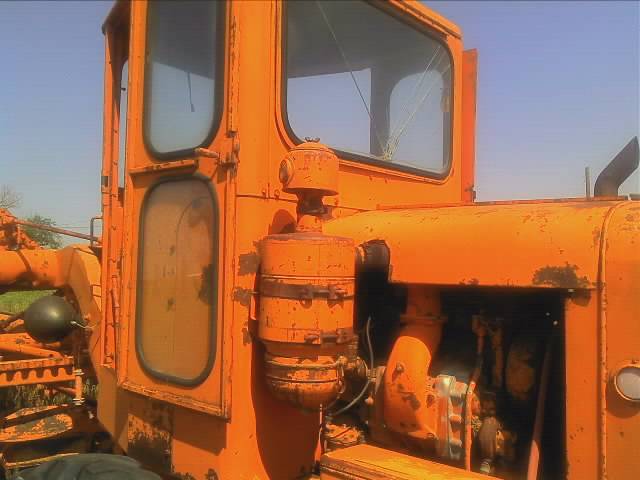

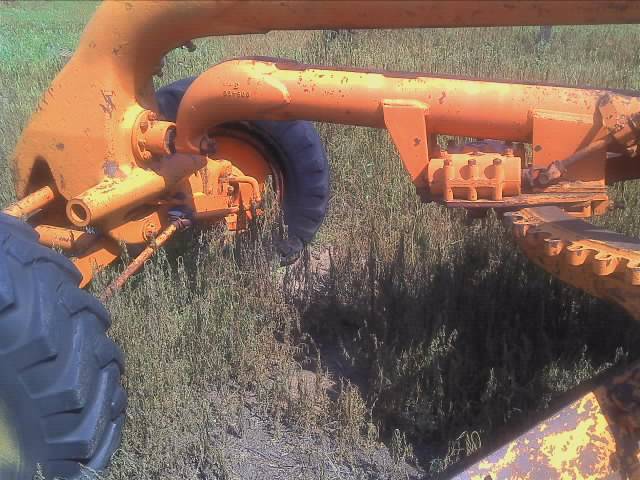

Here are a few pics of it, I am sorry, I didn't take an overall wide shot of it.

Anyway, we have an HD7, that I used to run a lot as a kid, and this would be the perfect sister machine for it.  It has the 3-71 GM Detroit engine in it also.

Any idea of weight?  How many were produced?  Parts availability? etc?

Thanks,

Anthony
Still in use:
HD7 WC C CA WD 2-WD45 WD45LP WD45D D14 3-D17 D17LP 2-D19D D19LP 190XTD 190XTLP 720 D21 220 7020 7030 7040 7045 3-7060
Projects: 3-U UC 2-G 2-B 2-C CA 7-WC RC WDLP WF D14 D21 210 7045 N7
Back to Top
Sponsored Links


Back to Top
CAL(KS) View Drop Down
Orange Level
Orange Level


Joined: 18 Sep 2009
Location: Chapman, KS
Points: 3800 		Post Options Post Options   Thanks (0) Thanks(0)   Quote CAL(KS) Quote  Post ReplyReply Direct Link To This Post Posted: 20 Aug 2013 at 9:02pm
norms bible states that the AD30 weighed 22,700#
only made from 52-55  first # produced in 55' is #1281 so at least that many made.  that includes production of the AD40 as well.

same machine as ad40 but 3-71 instead of 4-71

AD, AD3, AD4 AD30, AD40, Forty-five, and model 45 all had the 10 inch pipe frames and 63 inch circles.  most parts from these models should interchange as they were updated versions of the same family.  going by serial #'s  i would say in excess of 8,000 units units of the AD family produced.

detroit motor parts are plentiful.   finding the grader parts will be tougher.

there is an AD40 near me I am trying to get.
Me -C,U,UC,WC,WD45,190XT,TL-12,145T,HD6G,HD16,HD20

Dad- WD, D17D, D19D, RT100A, 7020, 7080,7580, 2-8550's, 2-S77, HD15
Back to Top
Orange Blood View Drop Down
Orange Level
Orange Level
Avatar

Joined: 29 Nov 2010
Location: ColoradoSprings
Points: 4053 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Orange Blood Quote  Post ReplyReply Direct Link To This Post Posted: 21 Aug 2013 at 6:12am
Thanks Cal,

That does shed quite a bit of light on the situation.

Sounds like if I can get it bought for scrap or slightly below, with a loose motor, I should probably jump on it.  :-)
Still in use:
HD7 WC C CA WD 2-WD45 WD45LP WD45D D14 3-D17 D17LP 2-D19D D19LP 190XTD 190XTLP 720 D21 220 7020 7030 7040 7045 3-7060
Projects: 3-U UC 2-G 2-B 2-C CA 7-WC RC WDLP WF D14 D21 210 7045 N7
