 Topic: 1957 AC D-14 Decal Placement Questions
Posted: 15 Nov 2011 at 3:41pm |

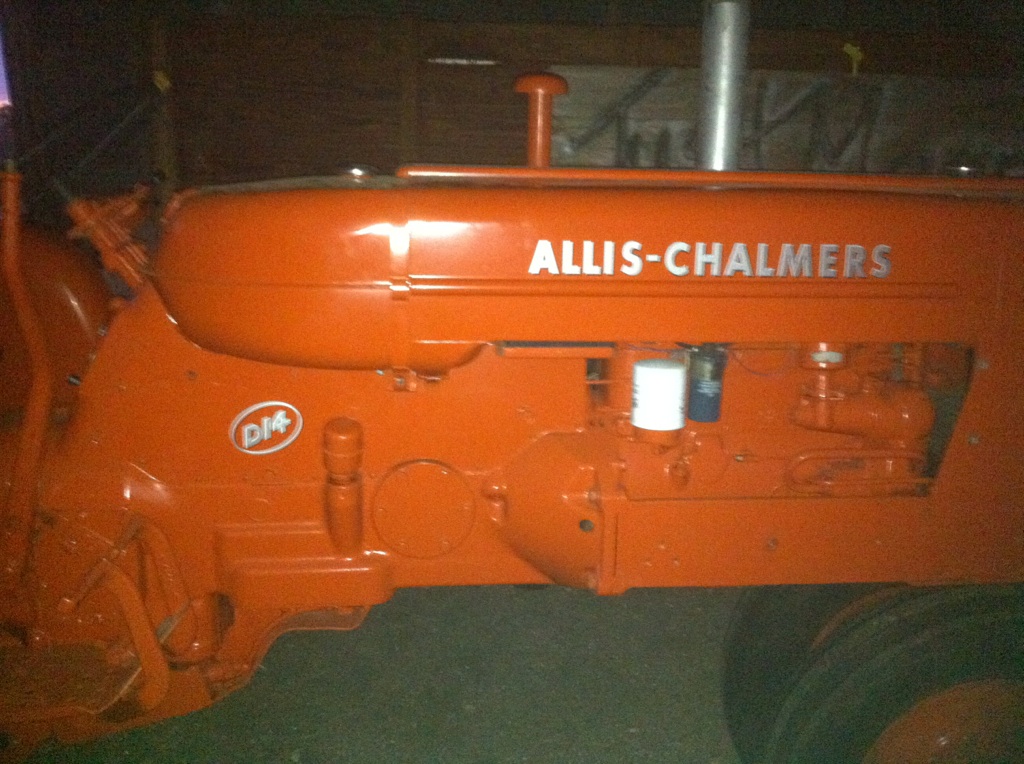

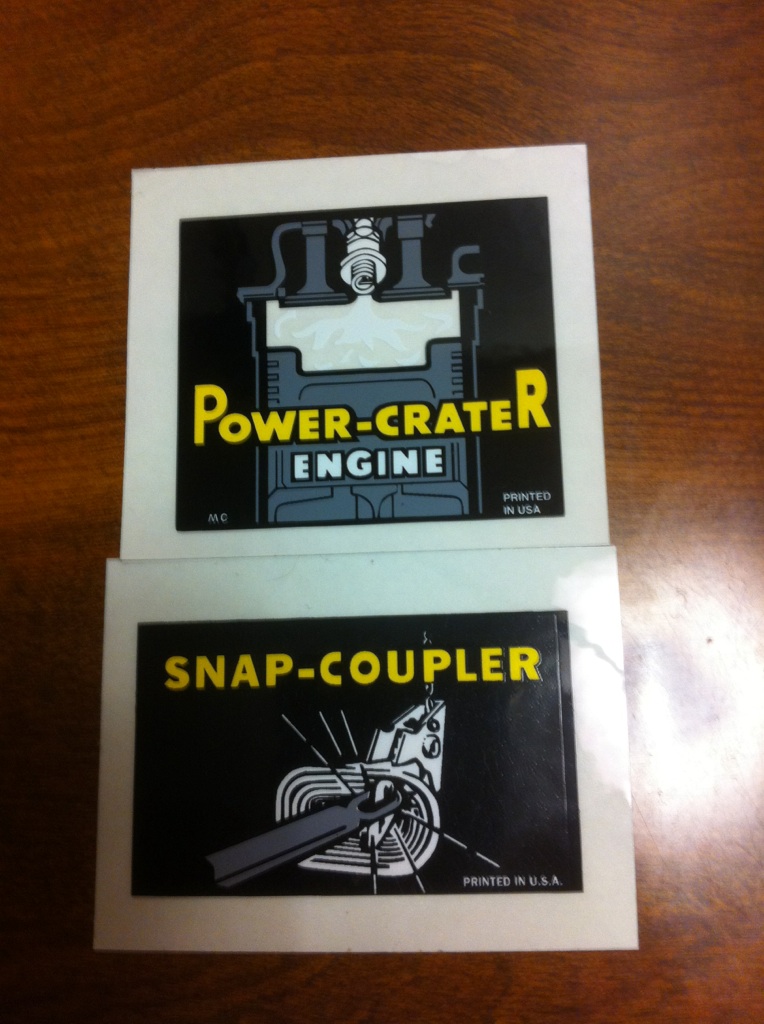

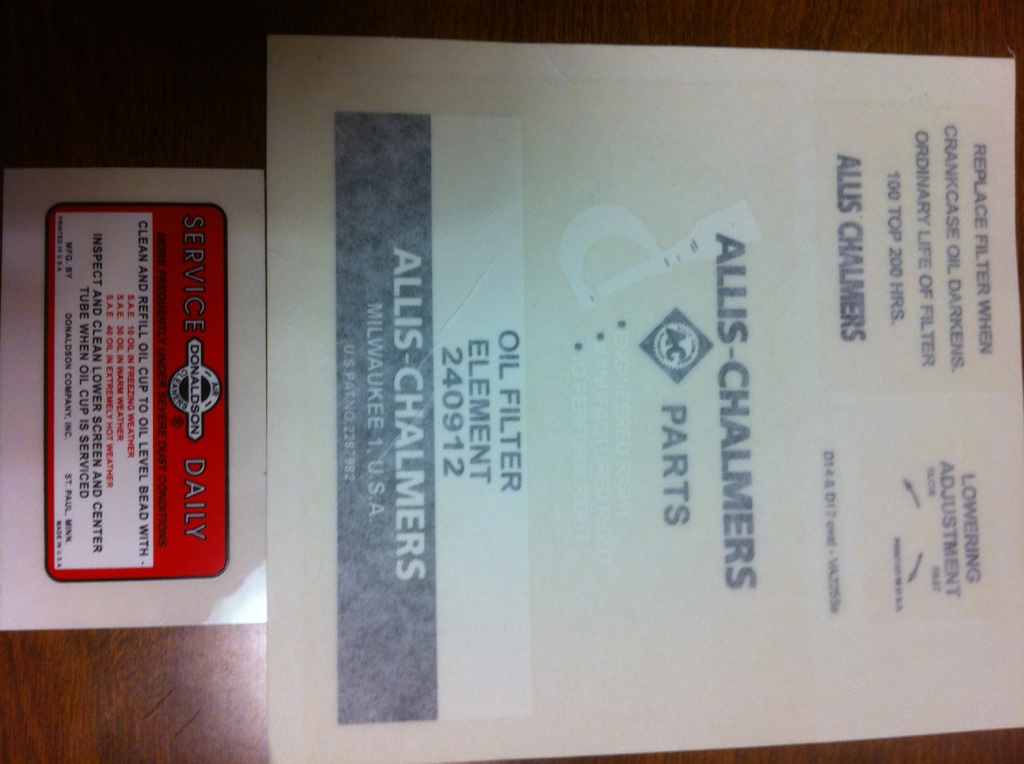

I am almost finished with the restoration of a 1957 Allis Chalmers D-14 for my dad. It was his first tractor at 11 years old. I would like the decal locations to be as accurate as possible. I have scoured the internet as well as made several phone calls trying to get this right. I am a little confused and any help would be greatly appreciated.      1. I have seen the Power Crater Engine decal centered under the carb, but also offset to the right under the carb (as you look at it). Which is correct? 2. I have seen the Snap-Coupler decal on the bell under the tractor on your left side if you were sitting on the tractor. Is this correct? 3. I have not seen where the "Replace oil filter when crank case oil darkens" would go. Any advice? 4. "Lowering Adjustment." I have seen this on the left side panel under the fuel tank in a diagram. Is this correct? 5. I have no idea where the "Allis Chalmers Parts" decal would go. Any advice? 6. I have no idea where the "Oil Filter Element" decal would go. Any advice? 7. I assume the "Service Daily" would go on the air cleaner right above the oil cup. Is this correct? 8. Lift Lower and the Traction Booster should go on handles on the steering wheel. 9. "Drain here" should go behind carb. 10. I have no idea where the "Remove cover to grease clutch shifter" should go. Any Advice? 11. Not sure where "Warning, before dismounting, shift transmission into neutral. Disengage PTO." Any Advice? 12. I am not sure about "Shift Pattern." The gear numbers are cast into the top of the tranmission. Maybe on fender or gas tank? Any Advice? 13. "Be careful" probably goes on PTO Shield. Any Advice? 14. "Danger pull only from drawbar." Any Advice. Thanks for any help in advance. It is greatly appreciated. Matt Splittgerber 254-541-5605
|
 |
|
Sponsored Links
|
|
|
Rick of HopeIN
Orange Level
Joined: 11 Sep 2009
Location: Hope, Indiana
Points: 1324
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 Nov 2011 at 6:39pm |

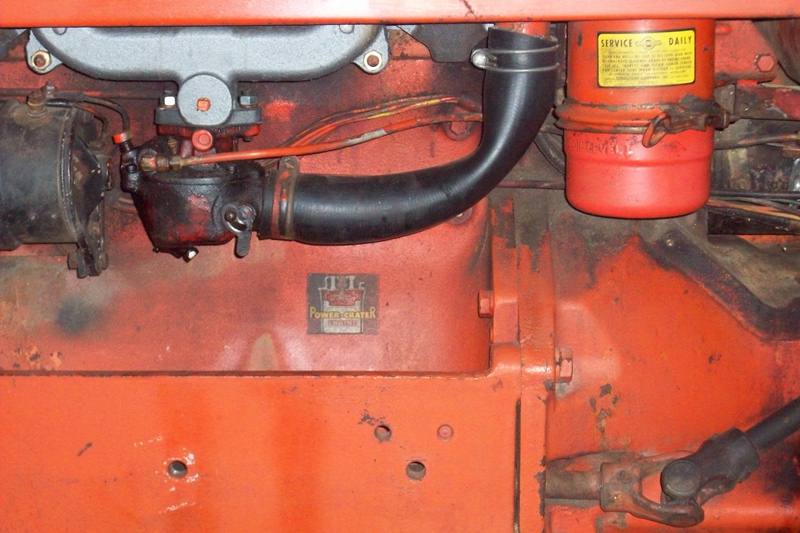

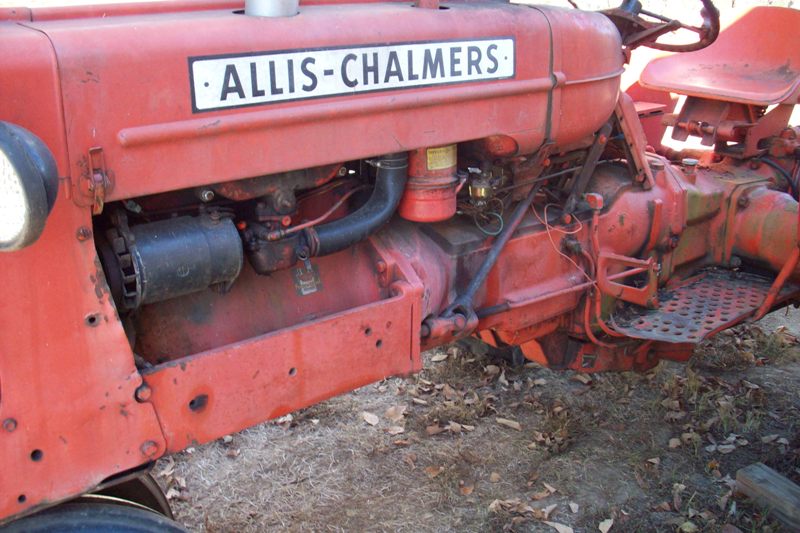

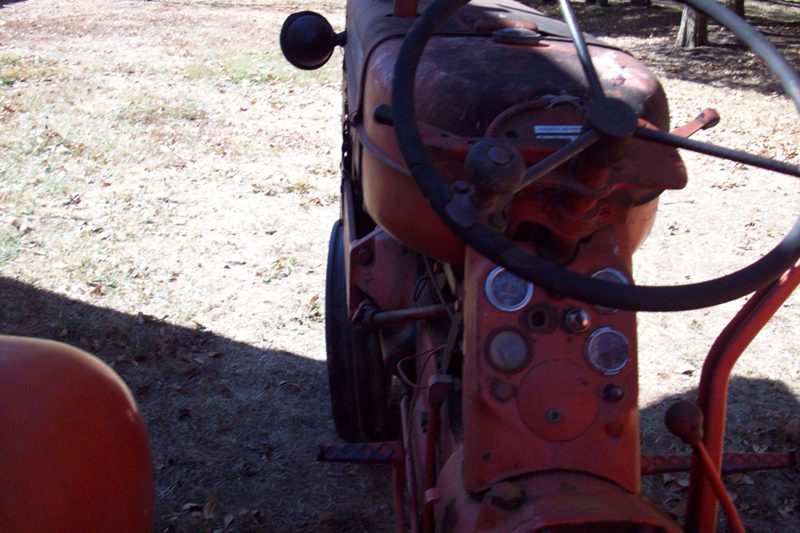

I like your paint job, I love the 57 decal designs. These pic show some decals you asked about. Some parts are not original, the hood is wrong, this is really a 57... If I get it inside I can shoot better pics...
Edited by Rick of HopeIN - 15 Nov 2011 at 6:47pm
|
|
1951 B, 1937 WC, 1957 D14, -- Thanks and God Bless
|
|
Rick of HopeIN
Orange Level
Joined: 11 Sep 2009
Location: Hope, Indiana
Points: 1324
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 Nov 2011 at 6:39pm |
|
|
|
1951 B, 1937 WC, 1957 D14, -- Thanks and God Bless
|
|
MattSplittgerber
Silver Level
Joined: 15 Nov 2011
Location: Temple, Texas
Points: 81
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 Nov 2011 at 7:42pm |
|
Thanks Rick! Does your tractor have any of the warning decals or the others that are still readable? Thanks again for the help, I will post the final product pics when I complete it.
|
|
Chalmersbob
Orange Level
Joined: 11 Sep 2009
Location: Pennsylvania
Points: 2122
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 Nov 2011 at 9:33pm |
|
the decal about the oil filter with the element # on it goes around the oil filter can, after you paint it orange. Bob
|
|
DSeries4
Orange Level
Joined: 12 Sep 2009
Location: Ontario, Canada
Points: 7349
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 Nov 2011 at 9:41pm |

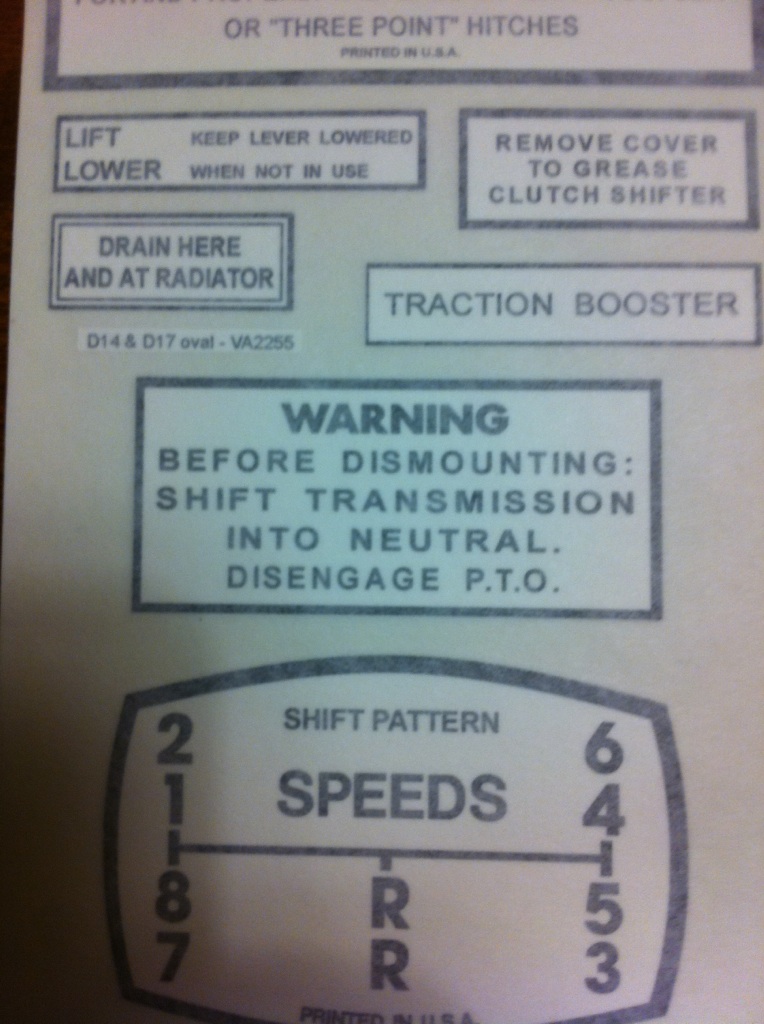

You have some decals that are not used on a D14... Remove cover to grease clutch shifter Shift pattern decal 1 and 2 are correct. Not sure about 3. 4 is correct - goes around the hole that is in the panel. 5 - no comment 6 goes on the oil filter 7-9 are correct 10 - not used 11 - goes on throttle quadrant 12 not used 13 goes above PTO shield 14 goes on the PTO shield
|
|
'49 G, '54 WD45, '55 CA, '56 WD45D, '57 WD45, '58 D14, '59 D14, '60 D14, '61 D15D, '66 D15II, '66 D21II, '67 D17IV, '67 D17IVD, '67 190XTD, '73 620, '76 185, '77 175, '84 8030, '85 6080
|
|
MattSplittgerber
Silver Level
Joined: 15 Nov 2011
Location: Temple, Texas
Points: 81
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 Nov 2011 at 11:35pm |
|
Thanks DSeries4. Greatly appreciated.
|
|
MattSplittgerber
Silver Level
Joined: 15 Nov 2011
Location: Temple, Texas
Points: 81
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 Nov 2011 at 11:40pm |
|
Thanks Chalmersbob. Would you have a separate oil filter to put on at a tractor show? I plan on lightly working this tractor.
|
|
DonDittmar
Orange Level
Joined: 15 Sep 2009
Location: MIllersburg, MI
Points: 2484
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Nov 2011 at 7:43am |
Picture taken from an original D15 Series 2. Drawbar warning decal was on lift arm housing
|
|
Experience is a fancy name for past mistakes. "Great moments are born from great opportunity"
1968 D15D,1962 D19D
Also 1965 Cub Loboy and 1958 JD 720 Diesel Pony Start
|
|
MattSplittgerber
Silver Level
Joined: 15 Nov 2011
Location: Temple, Texas
Points: 81
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Nov 2011 at 10:30am |
|
Thanks Don. Does anyone else have any pictures of exact decal placement on a D- Series tractor.
|
|
79fordblake
Orange Level
Joined: 01 Jul 2010
Location: West Kentucky
Points: 827
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Nov 2011 at 11:12am |
 Picture of Power Crater Decal on '60 D14 I did for neighbor.
|
|
Rick of HopeIN
Orange Level
Joined: 11 Sep 2009
Location: Hope, Indiana
Points: 1324
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Nov 2011 at 1:22pm |
pic of DANGER decal on back of 57, normally under my 3 point link bracket
|
|
1951 B, 1937 WC, 1957 D14, -- Thanks and God Bless
|
|
DonDittmar
Orange Level
Joined: 15 Sep 2009
Location: MIllersburg, MI
Points: 2484
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Nov 2011 at 2:33pm |
|
Thats right Rick. My series 2, the one in the above pic, has factory 3pt so if they put that decal there it would be hid.
|
|
Experience is a fancy name for past mistakes. "Great moments are born from great opportunity"
1968 D15D,1962 D19D
Also 1965 Cub Loboy and 1958 JD 720 Diesel Pony Start
|
|
MattSplittgerber
Silver Level
Joined: 15 Nov 2011
Location: Temple, Texas
Points: 81
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Nov 2011 at 2:48pm |
|
Thanks guys, anymore pics? Keep em coming.
|
|
MattSplittgerber
Silver Level
Joined: 15 Nov 2011
Location: Temple, Texas
Points: 81
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Nov 2011 at 8:28pm |
|
Does anyone know where the "Allis Chalmers Parts" or the "Change Oil" decal would go exactly?
|
|
Rick of HopeIN
Orange Level
Joined: 11 Sep 2009
Location: Hope, Indiana
Points: 1324
|
Post Options
Thanks(0)
Quote Reply
Posted: 20 Nov 2011 at 10:59am |

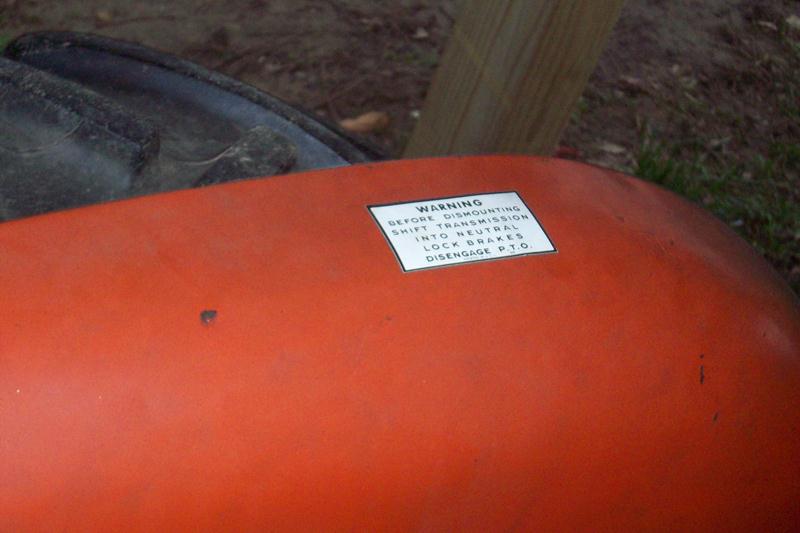

Sorry for the delay, I have not been out to shop much in daylight. PS: I think the Use Allis Parts decal was for your checkbook cover
Edited by Rick of HopeIN - 20 Nov 2011 at 11:01am
|
|
1951 B, 1937 WC, 1957 D14, -- Thanks and God Bless
|
|
Rick of HopeIN
Orange Level
Joined: 11 Sep 2009
Location: Hope, Indiana
Points: 1324
|
Post Options
Thanks(0)
Quote Reply
Posted: 20 Nov 2011 at 10:59am |
|
|
|
1951 B, 1937 WC, 1957 D14, -- Thanks and God Bless
|
|
Rick of HopeIN
Orange Level
Joined: 11 Sep 2009
Location: Hope, Indiana
Points: 1324
|
Post Options
Thanks(0)
Quote Reply
Posted: 20 Nov 2011 at 11:00am |
|
|
|
1951 B, 1937 WC, 1957 D14, -- Thanks and God Bless
|
|
79fordblake
Orange Level
Joined: 01 Jul 2010
Location: West Kentucky
Points: 827
|
Post Options
Thanks(0)
Quote Reply
Posted: 20 Nov 2011 at 12:25pm |
 Rick of HopeIN wrote:
another |
I think those decals should actually be on the traction booster and lift-lower levers.
|
|
Dave (Mid-MI)
Orange Level
Joined: 12 Sep 2009
Location: Hemlock, MI
Points: 544
|
Post Options
Thanks(0)
Quote Reply
Posted: 20 Nov 2011 at 12:50pm |
|
According to sales literature from 1959, the lift-lower and traction booster decals go on the levers like Blake said. They look to be about 1/2" away from the rubber tips on the levers. The same brochure shows the PTO warning decal centered on the quadrant above the steering wheel shaft. Couldn't find any pics of decals in earlier literature. Seems like many times the early brochures are pics of prototype tractors which don't necessarily have all the decals in place.
|
|
Rick of HopeIN
Orange Level
Joined: 11 Sep 2009
Location: Hope, Indiana
Points: 1324
|
Post Options
Thanks(0)
Quote Reply
Posted: 20 Nov 2011 at 5:13pm |
|
That makes sense on the lever decals, my tractor has been repainted so maybe not a good example.. If i repaint mine I will probably be asking these same questions. I have never seen a good guide for the D series.
|
|
