 Topic: WTB: Spring tooth harrow parts
Posted: 11 May 2016 at 8:55pm |
|
I have a spring tooth harrow that is missing two front shanks. There are four shanks in the back row and three in the front. I need two of the front ones. I need the brackets with the two set screws that mount them as well.
http://simpletractors.com/attachments/harrow.htm
Thanks in advance.
Edited by littlemarv - 14 May 2016 at 2:54pm
|
|
The mechanic always wins.
B91131, WC23065, WD89101, CA29479, B1, Early B10, HB212, 416H
|
 |
|
Sponsored Links
|
|
|
littlemarv
Orange Level
Joined: 10 Jun 2013
Location: Wisconsin
Points: 1829
|
Post Options
Thanks(0)
Quote Reply
Posted: 11 May 2016 at 9:01pm |
|
If someone would be kind enough to post how to make that a live link, I promise I will print it out and tape it to my end table next to my chair so I can do it myself!
|
|
The mechanic always wins.
B91131, WC23065, WD89101, CA29479, B1, Early B10, HB212, 416H
|
|
Herb(GA)
Orange Level Access
Joined: 15 Sep 2009
Location: United States
Points: 1038
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 May 2016 at 8:10am |
|
Tri-State Show, Portland, IN, May Swap-meet and August Show is a good place to find such items. Actually, most any large show. Le Sueur, MN is probably much closer for you. And you may find at some small show with only a few old iron venders. Suggest taking along a sample to insure you get the identical item. Happy hunting. Herb(GA)
|
|
SHAMELESS
Orange Level
Joined: 13 Sep 2009
Location: EAST NE
Points: 29486
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 May 2016 at 12:34am |
|
can you post a pic of what you need? I have a few old harrows here I can dismantle!
|
|
DiyDave
Orange Level Access
Joined: 11 Sep 2009
Location: Gambrills, MD
Points: 51944
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 May 2016 at 4:47am |
|
|
|
Gary
Orange Level Access
Joined: 13 Sep 2009
Location: Peterborough,On
Points: 5459
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 May 2016 at 6:09am |
Take the www. out of the link
Gary
http://simpletractors.com/attachments/harrow.htm
|
|
mdm1
Orange Level
Joined: 12 Sep 2009
Location: Onalaska, WI
Points: 2642
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 May 2016 at 1:54pm |
|
|
|
Everything is impossible until someone does it! WD45-trip loader 1947 c w/woods belly mower, 1939 B, #3 sickle mower 1944 B, 2 1948 G's. Misc other equipment that my wife calls JUNK!
|
|
littlemarv
Orange Level
Joined: 10 Jun 2013
Location: Wisconsin
Points: 1829
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 May 2016 at 10:29pm |
Finally found the pictures- had to dig awhile. Here is the harrow, you can see it only has one "front" shank.  I need two of these.  Thanks.
|
|
The mechanic always wins.
B91131, WC23065, WD89101, CA29479, B1, Early B10, HB212, 416H
|
|
ACmowerguy
Orange Level
Joined: 20 Apr 2010
Location: Winfield, MO
Points: 1210
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 May 2016 at 11:35pm |
|
You only need one as it only supposed to have six springs on it. That will be a very hard part to find as these harrows are very rare.
AC part numbers needed =
72026899 Standard
72026901 Spring
72025769 Clamp
72025756 Nut -special (available at The Parts Depot in WI)
72026900 Bolt -special (qty 2 req.)

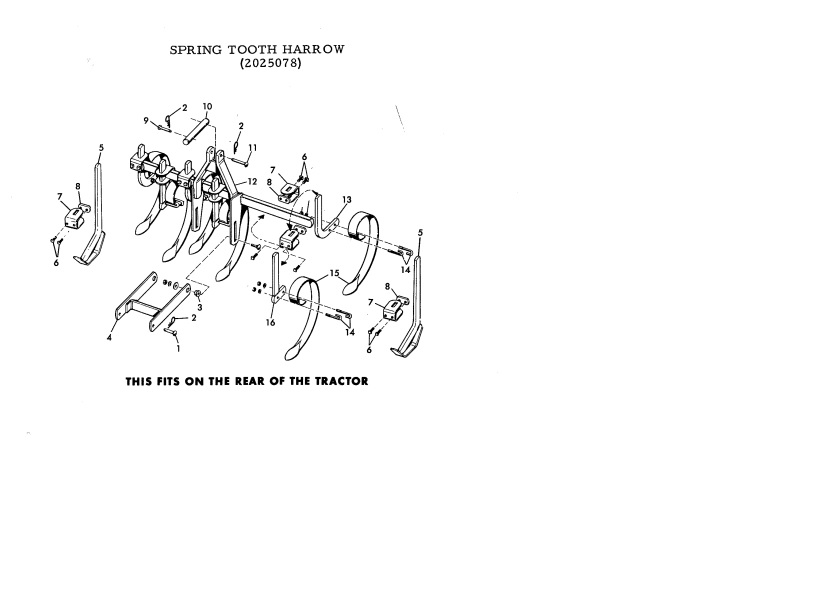

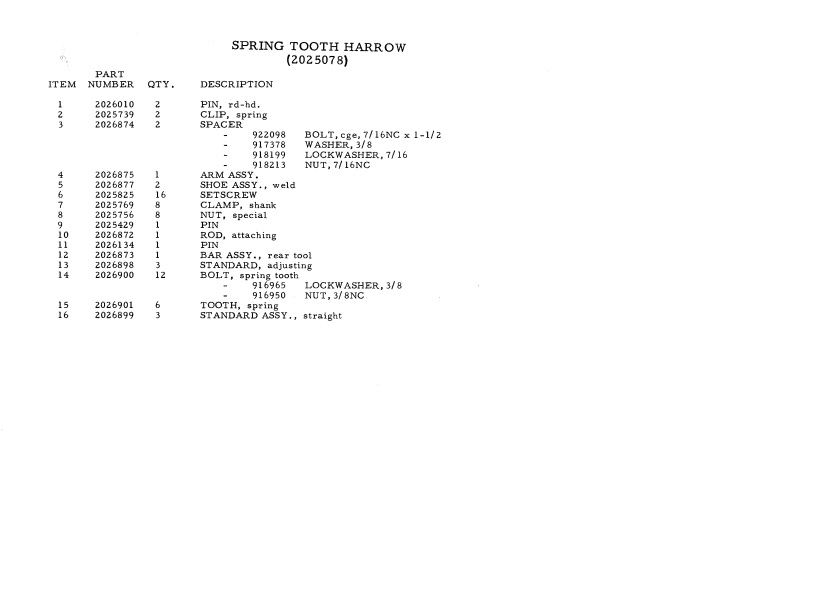

Here is a link to the parts manual with Simplicity part numbers.
http://bsintek.basco.com/BriggsDocumentDisplay/heCBEN8aqNZrE3Cvh5kbp796Dq.pdf
I think your best shot would be finding another incomplete one and making two, or maybe some of these parts are laying on an old dealer's shelf somewhere.
|
|
10 various B-series garden tractors, AC Homesteader8, 416 hydro,710 gt, 914, 916H, 917H, 920D, and many misc attachments
|
|
littlemarv
Orange Level
Joined: 10 Jun 2013
Location: Wisconsin
Points: 1829
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 May 2016 at 12:06am |
|
All the ones I have ever seen have 7 shanks. Like in the link above.
I was hoping to find someone that has a partial one laying around...
|
|
The mechanic always wins.
B91131, WC23065, WD89101, CA29479, B1, Early B10, HB212, 416H
|
|
Dnoym N. S. Can.
Orange Level Access
Joined: 03 Oct 2009
Points: 544
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 May 2016 at 6:00am |
|
|
|
ACmowerguy
Orange Level
Joined: 20 Apr 2010
Location: Winfield, MO
Points: 1210
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 May 2016 at 5:23pm |
Parts book is wrong, my bad.   Should have known better as I have one of these harrows out back.
|
|
10 various B-series garden tractors, AC Homesteader8, 416 hydro,710 gt, 914, 916H, 917H, 920D, and many misc attachments
|
|
littlemarv
Orange Level
Joined: 10 Jun 2013
Location: Wisconsin
Points: 1829
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 May 2016 at 10:32pm |
|
So the spring teeth are all the same, its brackets #13 and #16 that make the difference.
Any any rate, I still need two whole assemblies for the front row of tines....
Are these really that rare? I sure like the way it works the ground up, I'd just like to get it back to original....
|
|
The mechanic always wins.
B91131, WC23065, WD89101, CA29479, B1, Early B10, HB212, 416H
|
|
SHAMELESS
Orange Level
Joined: 13 Sep 2009
Location: EAST NE
Points: 29486
|
Post Options
Thanks(0)
Quote Reply
Posted: 19 May 2016 at 10:19pm |
|
i'll look see what mine look like
|
|
Matt Tallant
Orange Level
Joined: 15 Aug 2011
Location: Virginia
Points: 674
|
Post Options
Thanks(0)
Quote Reply
Posted: 04 Sep 2016 at 7:45pm |
|
I have the parts you need if you Havnt found them.
|
|
Mikez
Orange Level Access
Joined: 16 Jan 2013
Location: Usa
Points: 8424
|
Post Options
Thanks(0)
Quote Reply
Posted: 04 Sep 2016 at 10:42pm |
|
I would like to find a harrow like that
|
|
