WTB Crank drive hydro pump for WD45
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
AC WD45 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 28 Sep 2009
Location: Mid Michigan
Points: 2013 		Post Options Post Options   Thanks (0) Thanks(0)   Quote AC WD45 Quote  Post ReplyReply Direct Link To This Post Topic: WTB Crank drive hydro pump for WD45
    Posted: 11 Oct 2023 at 5:52pm
Just what the title says. Looking for the complete kit Allis offered to run the 445 hydraulic loader on the WD45. I need the crank pulley as well as mine is in poor shape.
German Shepherd dad
1957 Allis Chalmers WD45
#WD234847
1951 Allis Chalmers WD
#WD88193
Back to Top
Sponsored Links


Back to Top
DrAllis View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Points: 20498 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DrAllis Quote  Post ReplyReply Direct Link To This Post Posted: 14 Oct 2023 at 4:10pm
A & W Tractor LLC.....Cecil, Wisconsin.....920-598-1287
Back to Top
Gary View Drop Down
Orange Level Access
Orange Level Access


Joined: 13 Sep 2009
Location: Peterborough,On
Points: 5379 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Gary Quote  Post ReplyReply Direct Link To This Post Posted: 15 Oct 2023 at 6:14am

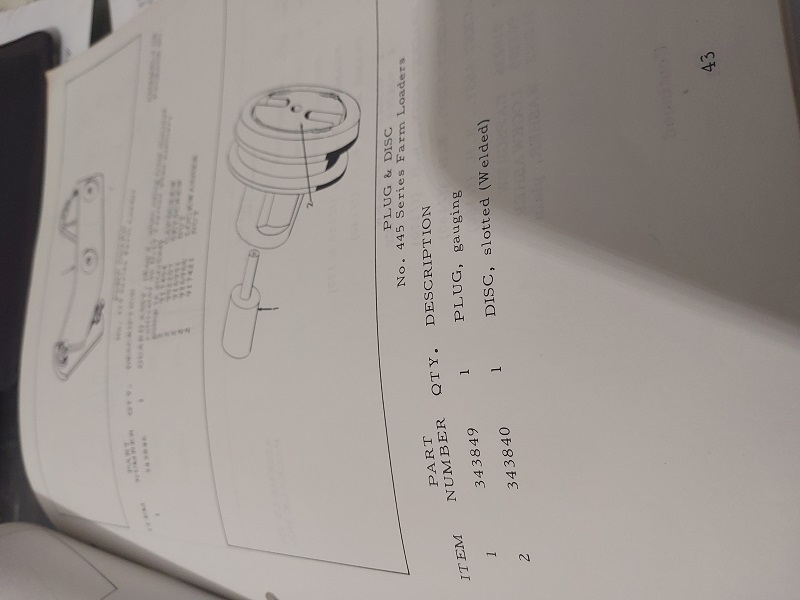

Per Allis Operating Instructions Manual Form 328:

the front 'Slotted Disc Drive' needs to be welded to the Engine Front Crank Pulley.

A Pilot P/N 343849 is required for positioning the Disc Drive inside the Pulley for welding.

G
Back to Top
Mikez View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 16 Jan 2013
Location: Usa
Points: 8386 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Mikez Quote  Post ReplyReply Direct Link To This Post Posted: 15 Oct 2023 at 7:29am
This is under that part number Gary



Edited by Mikez - 15 Oct 2023 at 7:29am
Back to Top
AC WD45 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 28 Sep 2009
Location: Mid Michigan
Points: 2013 		Post Options Post Options   Thanks (0) Thanks(0)   Quote AC WD45 Quote  Post ReplyReply Direct Link To This Post Posted: 29 Oct 2023 at 3:13pm
Bump. Still looking. Received a lot of scam messages not much else.
German Shepherd dad
1957 Allis Chalmers WD45
#WD234847
1951 Allis Chalmers WD
#WD88193
Back to Top
AC WD45 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 28 Sep 2009
Location: Mid Michigan
Points: 2013 		Post Options Post Options   Thanks (0) Thanks(0)   Quote AC WD45 Quote  Post ReplyReply Direct Link To This Post Posted: 29 Oct 2023 at 3:14pm
Originally posted by DrAllis DrAllis wrote:

A & W Tractor LLC.....Cecil, Wisconsin.....920-598-1287


A&W has a kit for the D17 but not the WD45. I was told they are working on it but it isn't available yet.
German Shepherd dad
1957 Allis Chalmers WD45
#WD234847
1951 Allis Chalmers WD
#WD88193
Back to Top
AC WD45 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 28 Sep 2009
Location: Mid Michigan
Points: 2013 		Post Options Post Options   Thanks (0) Thanks(0)   Quote AC WD45 Quote  Post ReplyReply Direct Link To This Post Posted: 12 Nov 2023 at 7:51pm
Still looking
German Shepherd dad
1957 Allis Chalmers WD45
#WD234847
1951 Allis Chalmers WD
#WD88193
Back to Top
KenBWisc View Drop Down
Orange Level
Orange Level


Joined: 15 Sep 2009
Location: Fall Creek, WI
Points: 1174 		Post Options Post Options   Thanks (0) Thanks(0)   Quote KenBWisc Quote  Post ReplyReply Direct Link To This Post Posted: 17 Nov 2023 at 8:46am
I should be able to help you with everything but the pump. $200 plus the ride.
'34 WC #629, '49 G, '49 B, '49 WD, '62 D-19, '38 All Crop 60 and still hunting!
Back to Top
AC WD45 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 28 Sep 2009
Location: Mid Michigan
Points: 2013 		Post Options Post Options   Thanks (0) Thanks(0)   Quote AC WD45 Quote  Post ReplyReply Direct Link To This Post Posted: 18 Nov 2023 at 6:02am
Originally posted by KenBWisc KenBWisc wrote:

I should be able to help you with everything but the pump. $200 plus the ride.


Ken, I will send you a PM!
German Shepherd dad
1957 Allis Chalmers WD45
#WD234847
1951 Allis Chalmers WD
#WD88193
Back to Top
AC WD45 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 28 Sep 2009
Location: Mid Michigan
Points: 2013 		Post Options Post Options   Thanks (0) Thanks(0)   Quote AC WD45 Quote  Post ReplyReply Direct Link To This Post Posted: 20 Nov 2023 at 1:57pm
Unfortunately the kit Ken has is for an early D series. The search continues
German Shepherd dad
1957 Allis Chalmers WD45
#WD234847
1951 Allis Chalmers WD
#WD88193
Back to Top
AC WD45 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 28 Sep 2009
Location: Mid Michigan
Points: 2013 		Post Options Post Options   Thanks (0) Thanks(0)   Quote AC WD45 Quote  Post ReplyReply Direct Link To This Post Posted: 27 Nov 2023 at 3:27pm
Bumparoo
German Shepherd dad
1957 Allis Chalmers WD45
#WD234847
1951 Allis Chalmers WD
#WD88193
Back to Top
AC WD45 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 28 Sep 2009
Location: Mid Michigan
Points: 2013 		Post Options Post Options   Thanks (0) Thanks(0)   Quote AC WD45 Quote  Post ReplyReply Direct Link To This Post Posted: 04 Dec 2023 at 9:18pm
Top
German Shepherd dad
1957 Allis Chalmers WD45
#WD234847
1951 Allis Chalmers WD
#WD88193
Back to Top
Gary View Drop Down
Orange Level Access
Orange Level Access


Joined: 13 Sep 2009
Location: Peterborough,On
Points: 5379 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Gary Quote  Post ReplyReply Direct Link To This Post Posted: 05 Dec 2023 at 6:06am

This would have helped you out !

G

https://www.allischalmers.com/forum/for-sale-ac-445-hydraulic-loader_topic187727.html
Back to Top
AC WD45 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 28 Sep 2009
Location: Mid Michigan
Points: 2013 		Post Options Post Options   Thanks (0) Thanks(0)   Quote AC WD45 Quote  Post ReplyReply Direct Link To This Post Posted: 05 Dec 2023 at 6:30pm
Sure would
German Shepherd dad
1957 Allis Chalmers WD45
#WD234847
1951 Allis Chalmers WD
#WD88193
Back to Top
Mikez View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 16 Jan 2013
Location: Usa
Points: 8386 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Mikez Quote  Post ReplyReply Direct Link To This Post Posted: 05 Dec 2023 at 7:28pm
I looked in the parts book. Was there a part number for a “kit”. Didn’t see one
Back to Top
AC WD45 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 28 Sep 2009
Location: Mid Michigan
Points: 2013 		Post Options Post Options   Thanks (0) Thanks(0)   Quote AC WD45 Quote  Post ReplyReply Direct Link To This Post Posted: 06 Dec 2023 at 4:04pm
I believe it came included with the 445 loader when purchased. Not sure if that makes a difference.
German Shepherd dad
1957 Allis Chalmers WD45
#WD234847
1951 Allis Chalmers WD
#WD88193
Back to Top
DrAllis View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Points: 20498 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DrAllis Quote  Post ReplyReply Direct Link To This Post Posted: 06 Dec 2023 at 6:38pm
A model "445" all hydraulic loader was made for any WD/WD45 GAS tractor and included the front mounted hydraulic pump and control valve.  Any 400 or 500 series loader made for the D-17 tractor before 1965 (series 4 era) should have also had the pump and valve included. 1965 and newer the pump/valve would have been an accessory, as the series 4 had the tractor hydraulics capable of operating the loader.
Back to Top
Mikez View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 16 Jan 2013
Location: Usa
Points: 8386 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Mikez Quote  Post ReplyReply Direct Link To This Post Posted: 06 Dec 2023 at 7:16pm

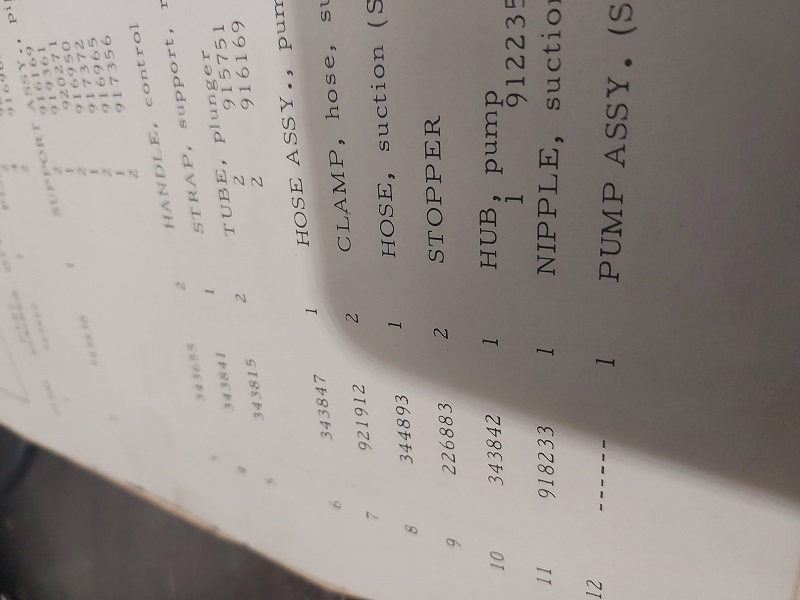

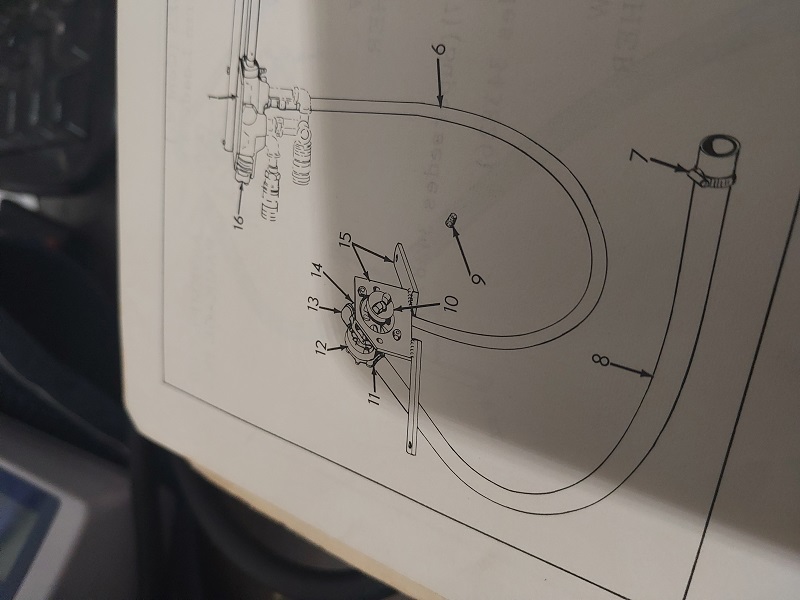

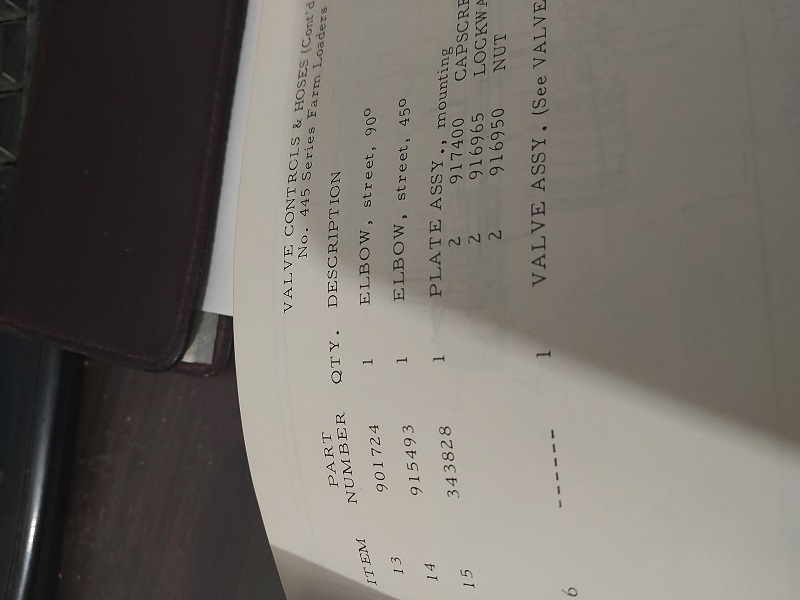

Not sure if you can read this. Or that it will help.




Edited by Mikez - 06 Dec 2023 at 7:16pm
Back to Top
Kenny L. View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 12 Sep 2009
Location: NEIOWA
Points: 1272 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Kenny L. Quote  Post ReplyReply Direct Link To This Post Posted: 06 Dec 2023 at 10:16pm

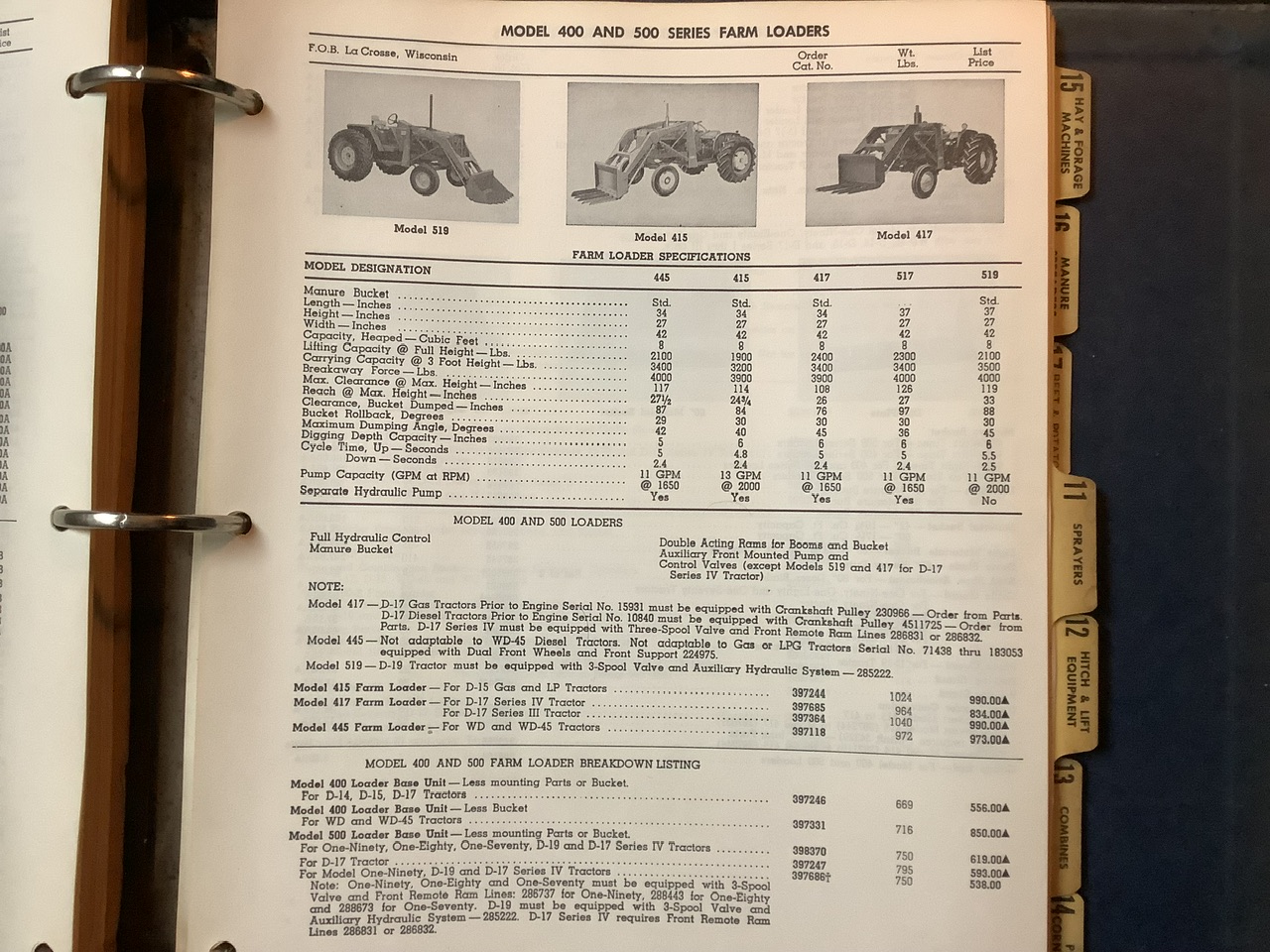

Here are some parts numbers and pictures. I got them out of farm loaders dealers parts catalog may 1965 form D-47 (Mike pages 20,21 and 43)
Back to Top
Mikez View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 16 Jan 2013
Location: Usa
Points: 8386 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Mikez Quote  Post ReplyReply Direct Link To This Post Posted: 06 Dec 2023 at 10:29pm
Oh I did see that Kenny. I looked after I asked.
Thanks
Back to Top
AC WD45 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 28 Sep 2009
Location: Mid Michigan
Points: 2013 		Post Options Post Options   Thanks (0) Thanks(0)   Quote AC WD45 Quote  Post ReplyReply Direct Link To This Post Posted: 14 Dec 2023 at 4:43pm
Bump no real luck so far
German Shepherd dad
1957 Allis Chalmers WD45
#WD234847
1951 Allis Chalmers WD
#WD88193
Back to Top
Fred in Pa View Drop Down
Orange Level
Orange Level
Avatar

Joined: 13 Sep 2009
Location: Hanover Pa.
Points: 9210 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Fred in Pa Quote  Post ReplyReply Direct Link To This Post Posted: 18 Dec 2023 at 12:45pm
sent PM
He who dies with the most toys is,
nonetheless ,still dead.
If all else fails ,Read all that is PRINTED.
Back to Top
AC WD45 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 28 Sep 2009
Location: Mid Michigan
Points: 2013 		Post Options Post Options   Thanks (0) Thanks(0)   Quote AC WD45 Quote  Post ReplyReply Direct Link To This Post Posted: 21 Dec 2023 at 10:15pm
Bump!
German Shepherd dad
1957 Allis Chalmers WD45
#WD234847
1951 Allis Chalmers WD
#WD88193
Back to Top
Fred in Pa View Drop Down
Orange Level
Orange Level
Avatar

Joined: 13 Sep 2009
Location: Hanover Pa.
Points: 9210 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Fred in Pa Quote  Post ReplyReply Direct Link To This Post Posted: 22 Dec 2023 at 7:20am
did you get the drive plate for in the front pulley
He who dies with the most toys is,
nonetheless ,still dead.
If all else fails ,Read all that is PRINTED.
Back to Top
AC WD45 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 28 Sep 2009
Location: Mid Michigan
Points: 2013 		Post Options Post Options   Thanks (0) Thanks(0)   Quote AC WD45 Quote  Post ReplyReply Direct Link To This Post Posted: 23 Dec 2023 at 8:16am
Originally posted by Fred in Pa Fred in Pa wrote:

did you get the drive plate for in the front pulley
yessir! I sent an offer, never got the notification but when I saw this message this morning It popped up I had a notification to pay! Thanks again Sir! One piece to the puzzel is on its way! Now I just.need the bracket, pump and pump side of the drive. Looks like I can get a pump through A&W.
German Shepherd dad
1957 Allis Chalmers WD45
#WD234847
1951 Allis Chalmers WD
#WD88193
Back to Top
Kenny L. View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 12 Sep 2009
Location: NEIOWA
Points: 1272 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Kenny L. Quote  Post ReplyReply Direct Link To This Post Posted: 23 Dec 2023 at 9:52am
ACWD45, I sent you a PM,
Back to Top
