Woods L306 belt diagram
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
Simon2 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 22 Nov 2022
Location: Wisconsin
Points: 20 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Simon2 Quote  Post ReplyReply Direct Link To This Post Topic: Woods L306 belt diagram
    Posted: 13 May 2024 at 1:19pm
Anyone have a GOOD belt diagram?
CA tractor drive. Of coarse belt decal is worn off on the deck. 🙄
Back to Top
Sponsored Links


Back to Top
Leon B MO View Drop Down
Orange Level
Orange Level


Joined: 12 Sep 2009
Location: Old Monroe, Mo
Points: 2110 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Leon B MO Quote  Post ReplyReply Direct Link To This Post Posted: 13 May 2024 at 2:07pm
From behind tractor push one end of the belt under rear end towards the deck go over the middle pulley top groove to the pulley on the right from the right pulley go past the center pulley in the center groove to the pulley on the left of the mower from there back around the center pulley bottom groove from there you will have a quarter twist to the idler at the back of the tractor on the right hand side, over large drive fully from PTO then a half a twist back down to front idler at the back of the tractor, back to center pulley with 3/4 twist. Be sure to run the belt fiddle string tight and check it after it's been run for a while if it is a new belt. Sorry I don't have a diagram I can text you a couple of pictures if you'd like to give me your number.
Leon B Mo
Uncle always said "Fill the back of the shovel and the front will take care of itself".
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 81123 		Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 13 May 2024 at 4:17pm

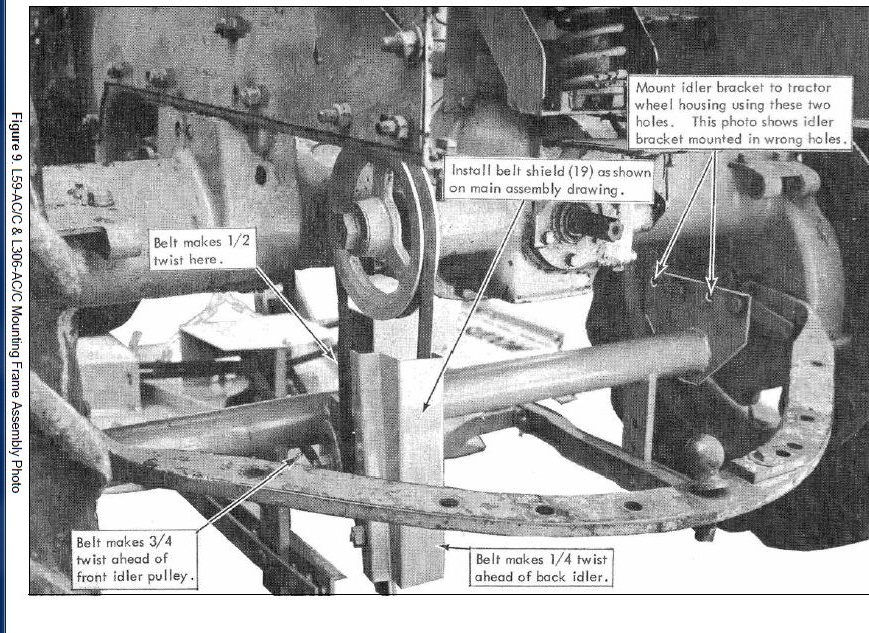

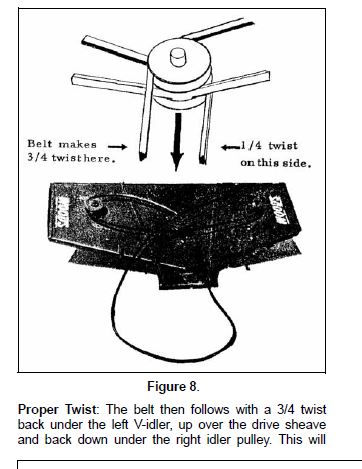

Simon, i have a PDF file that is 2.2 MB in size and covers the  59 and 306 size mowers on the B-C Tractors... If you want a copy, send me  PM with your e-mail address.
Like them all, but love the "B"s.
