my hydrolicswont raise up all the way. there are these plugs at the end of the loader cyclinders that i thought where solid but found out they are hollow and have a hole in them. hydro oil started shooting out of these what is happining
Back to Top
Dusty MI View Drop Down
Orange Level
Orange Level
Avatar

Joined: 13 Sep 2009
Location: Charlotte, Mi
Points: 5050
Post Options Post Options   Thanks (0) Thanks(0)   Quote Dusty MI Quote  Post ReplyReply Direct Link To This Post Posted: 20 May 2022 at 11:45am
The cylinders are two-way and are only being used as one-way. There is a leak in the plunger.
917 H, '48 G, '65 D-10 series III "Allis Express"
Back to Top
hunter321 View Drop Down
Silver Level
Silver Level
Avatar

Joined: 11 Jan 2021
Location: 52320
Points: 351
Post Options Post Options   Thanks (0) Thanks(0)   Quote hunter321 Quote  Post ReplyReply Direct Link To This Post Posted: 20 May 2022 at 12:22pm
The plug?

What do I do.

The plug has a hole that looks like it was drilled
Back to Top
TramwayGuy View Drop Down
Orange Level Access
Orange Level Access


Joined: 19 Jan 2010
Location: Northern NY
Points: 11121
Post Options Post Options   Thanks (0) Thanks(0)   Quote TramwayGuy Quote  Post ReplyReply Direct Link To This Post Posted: 20 May 2022 at 1:39pm
No, the hole in the plug is to allow air in and out as the piston moves.   The leak is in the seals around the piston inside the cylinder. The seals are leaking oil into the space that should only have air in it.

Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 76976
Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 20 May 2022 at 1:51pm
Hunter, when you pump oil in the bottom of the cylinder and push the piston up, the AIR in the other end has to get out of the cylinder... and when you drop the boom and the oil runs back out, the air has to reenter the top of the cylinder..

The PISTON inside has rubber SEALS to keep it from leaking from the bottom to the top.. Yours are BAD... so the oil leaks past the seal and then runs out the AIR VENT.


Like them all, but love the "B"s.
Back to Top
hunter321 View Drop Down
Silver Level
Silver Level
Avatar

Joined: 11 Jan 2021
Location: 52320
Points: 351
Post Options Post Options   Thanks (0) Thanks(0)   Quote hunter321 Quote  Post ReplyReply Direct Link To This Post Posted: 20 May 2022 at 1:57pm
So what do I do
Back to Top
hunter321 View Drop Down
Silver Level
Silver Level
Avatar

Joined: 11 Jan 2021
Location: 52320
Points: 351
Post Options Post Options   Thanks (0) Thanks(0)   Quote hunter321 Quote  Post ReplyReply Direct Link To This Post Posted: 20 May 2022 at 2:53pm
What seal do I buy
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 76976
Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 20 May 2022 at 4:08pm
You have to take the HEAD off the cylinder and pull out the ROD so you can see the PISTON... then replace the seals... You can buy a KIT to replace... Type and size of seals depends on what cylinder it is.
Like them all, but love the "B"s.
Back to Top
hunter321 View Drop Down
Silver Level
Silver Level
Avatar

Joined: 11 Jan 2021
Location: 52320
Points: 351
Post Options Post Options   Thanks (0) Thanks(0)   Quote hunter321 Quote  Post ReplyReply Direct Link To This Post Posted: 20 May 2022 at 4:10pm
Ok is there number to look up for the seal. Can I replace it myself

Edited by hunter321 - 20 May 2022 at 4:13pm
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 76976
Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 20 May 2022 at 4:12pm
this is how you do it.......... you need to know WHAT the cylinder size is.... Or take it apart and measure the PISTON diameter... could be 2.5 inch , or a little bigger or smaller.






Edited by steve(ill) - 20 May 2022 at 4:17pm
Like them all, but love the "B"s.
Back to Top
hunter321 View Drop Down
Silver Level
Silver Level
Avatar

Joined: 11 Jan 2021
Location: 52320
Points: 351
Post Options Post Options   Thanks (0) Thanks(0)   Quote hunter321 Quote  Post ReplyReply Direct Link To This Post Posted: 21 May 2022 at 1:26pm
What part of the pistion do I measure the outer diameter or the diameter inside the seal photos if possible would help greatly
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 76976
Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 21 May 2022 at 9:02pm
you measure the OUTSIDE of the piston.. the BIGGEST diameter... or the BORE  ( inside of the pipe) that is the cylinder......... Just like doing the motor pistons / liners.
Like them all, but love the "B"s.
Back to Top
hunter321 View Drop Down
Silver Level
Silver Level
Avatar

Joined: 11 Jan 2021
Location: 52320
Points: 351
Post Options Post Options   Thanks (0) Thanks(0)   Quote hunter321 Quote  Post ReplyReply Direct Link To This Post Posted: 22 May 2022 at 5:36pm
I measured 2.46
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 76976
Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 22 May 2022 at 6:20pm
i would say it is a 2-1/2 inch piston... Since you have it apart, you can see what kind of packing it takes.. Some used 3-4 rings of a VEE shaped packing laying on top of each other .... Some use something that looks like thick and think plastic and rubber rings ( square cross section) that stack on top of each other..... Some kits you buy are "universal" and will have  6-7 different rings and you might only need 4-5 of them... should also be a oil seal or WIPER on the head that keeps dirt from going down the rod into the top end of the cylinder.

You might want to check calibration on your mike.. The other day you measured the MOTOR PISTON as 3.460 ....... or about 40 thousands under 3-1/2 inch ..... today you measured the hydraulic cylinder piston as 2.460  ... or about 40 thousands under 2-1/2 inch.
Like them all, but love the "B"s.
Back to Top
hunter321 View Drop Down
Silver Level
Silver Level
Avatar

Joined: 11 Jan 2021
Location: 52320
Points: 351
Post Options Post Options   Thanks (0) Thanks(0)   Quote hunter321 Quote  Post ReplyReply Direct Link To This Post Posted: 22 May 2022 at 9:26pm
I will. I measured 4 or 5 times for both

The engine piston is not much bigger than the cylinder piston
Back to Top
hunter321 View Drop Down
Silver Level
Silver Level
Avatar

Joined: 11 Jan 2021
Location: 52320
Points: 351
Post Options Post Options   Thanks (0) Thanks(0)   Quote hunter321 Quote  Post ReplyReply Direct Link To This Post Posted: 23 May 2022 at 7:21am
Just to be sure I get the right seals I will ask the local tractor mechanic
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 76976
Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 23 May 2022 at 8:56am
good plan.

your MOTOR pistons should measure more like 3.496  ..(3-1/2 inch)........... not 3.46

you hydraulic piston should measure more like 2.496 ....( 2-1/2 inch).......... not 2.46


Edited by steve(ill) - 23 May 2022 at 8:58am
Like them all, but love the "B"s.
Back to Top
hunter321 View Drop Down
Silver Level
Silver Level
Avatar

Joined: 11 Jan 2021
Location: 52320
Points: 351
Post Options Post Options   Thanks (0) Thanks(0)   Quote hunter321 Quote  Post ReplyReply Direct Link To This Post Posted: 23 May 2022 at 9:13am
I re measure the d12s engine piston when I get home.

Any idea where to get a new piston and sleeve
Back to Top
hunter321 View Drop Down
Silver Level
Silver Level
Avatar

Joined: 11 Jan 2021
Location: 52320
Points: 351
Post Options Post Options   Thanks (0) Thanks(0)   Quote hunter321 Quote  Post ReplyReply Direct Link To This Post Posted: 23 May 2022 at 9:59am
Also how do I look up the seals after I take it to the shop
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 76976
Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 23 May 2022 at 10:05am
If you know who made the cylinder, you can GOOGLE that.. If not, then you normally buy a "GENERIC" 2.5 inch cylinder kit and use the pieces that you need.. You can compare the picture to the "PARTS" on your cylinder...


Like them all, but love the "B"s.
Back to Top
jaybmiller View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Location: Greensville,Ont
Points: 21258
Post Options Post Options   Thanks (0) Thanks(0)   Quote jaybmiller Quote  Post ReplyReply Direct Link To This Post Posted: 23 May 2022 at 10:45am
be 100% sure the 'seal kit' is rated for the hydraulic pressure that YOUR pump generates !
My D-14 is 3500PSI and 1000PSI seals will NOT last too many times.........
3 D-14s,A-C forklift, B-112
Kubota BX23S lil' TOOT( The Other Orange Tractor)

Never burn your bridges, unless you can walk on water
Back to Top
hunter321 View Drop Down
Silver Level
Silver Level
Avatar

Joined: 11 Jan 2021
Location: 52320
Points: 351
Post Options Post Options   Thanks (0) Thanks(0)   Quote hunter321 Quote  Post ReplyReply Direct Link To This Post Posted: 23 May 2022 at 11:00am
I will take photos of the seals on now and compare them with others.

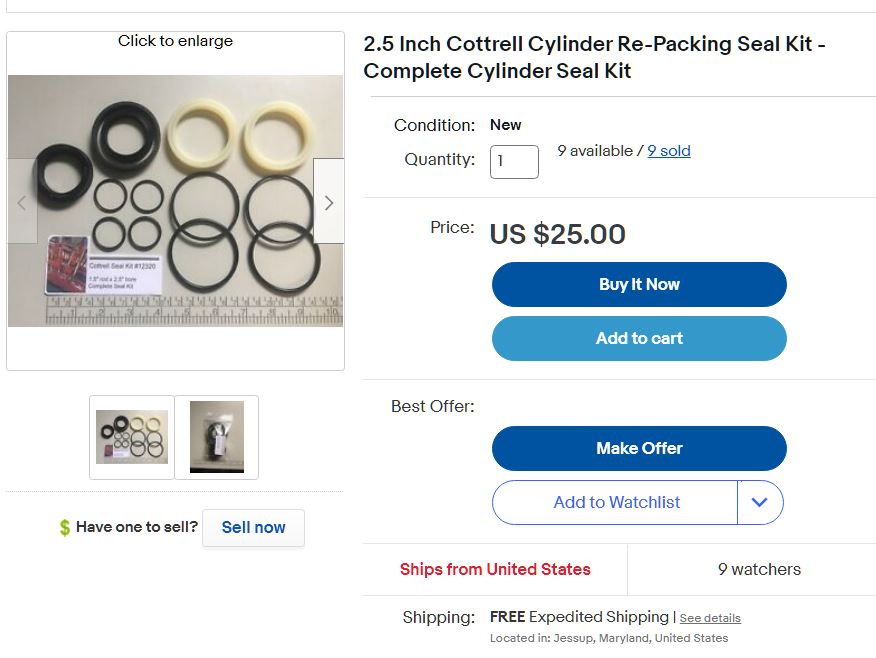

I think the set above should work.

Need wiper seal
Piston seals
Piston rod o ring
An both end cap seals
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 76976
Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 23 May 2022 at 12:26pm
"kits" are sold with a PISTON DIAMETER and ROD DIAMETER... You can find a 2-1/2 inch  "KIT" that might have a 1- 1/2 inch rod, or a 1-1/4 inch rod ..... watch that.
Like them all, but love the "B"s.
Back to Top
hunter321 View Drop Down
Silver Level
Silver Level
Avatar

Joined: 11 Jan 2021
Location: 52320
Points: 351
Post Options Post Options   Thanks (0) Thanks(0)   Quote hunter321 Quote  Post ReplyReply Direct Link To This Post Posted: 23 May 2022 at 12:33pm
Ok
Still going to take the cylinder to the tractor shop to make 1000% share what to buy

Edited by hunter321 - 23 May 2022 at 12:57pm
Back to Top
hunter321 View Drop Down
Silver Level
Silver Level
Avatar

Joined: 11 Jan 2021
Location: 52320
Points: 351
Post Options Post Options   Thanks (0) Thanks(0)   Quote hunter321 Quote  Post ReplyReply Direct Link To This Post Posted: 23 May 2022 at 1:55pm

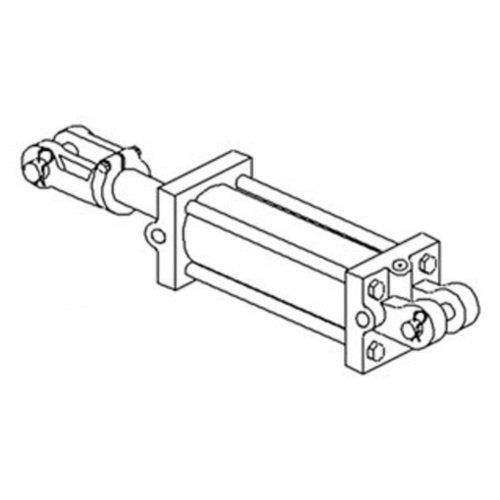

This is what my cylinders look like but longer
Back to Top
hunter321 View Drop Down
Silver Level
Silver Level
Avatar

Joined: 11 Jan 2021
Location: 52320
Points: 351
Post Options Post Options   Thanks (0) Thanks(0)   Quote hunter321 Quote  Post ReplyReply Direct Link To This Post Posted: 23 May 2022 at 4:29pm
The rod is 1.13 in
And the piston is 2.5 in

It's energy brand

I think it said B-715

Edited by hunter321 - 23 May 2022 at 5:27pm
Back to Top
hunter321 View Drop Down
Silver Level
Silver Level
Avatar

Joined: 11 Jan 2021
Location: 52320
Points: 351
Post Options Post Options   Thanks (0) Thanks(0)   Quote hunter321 Quote  Post ReplyReply Direct Link To This Post Posted: 23 May 2022 at 4:54pm

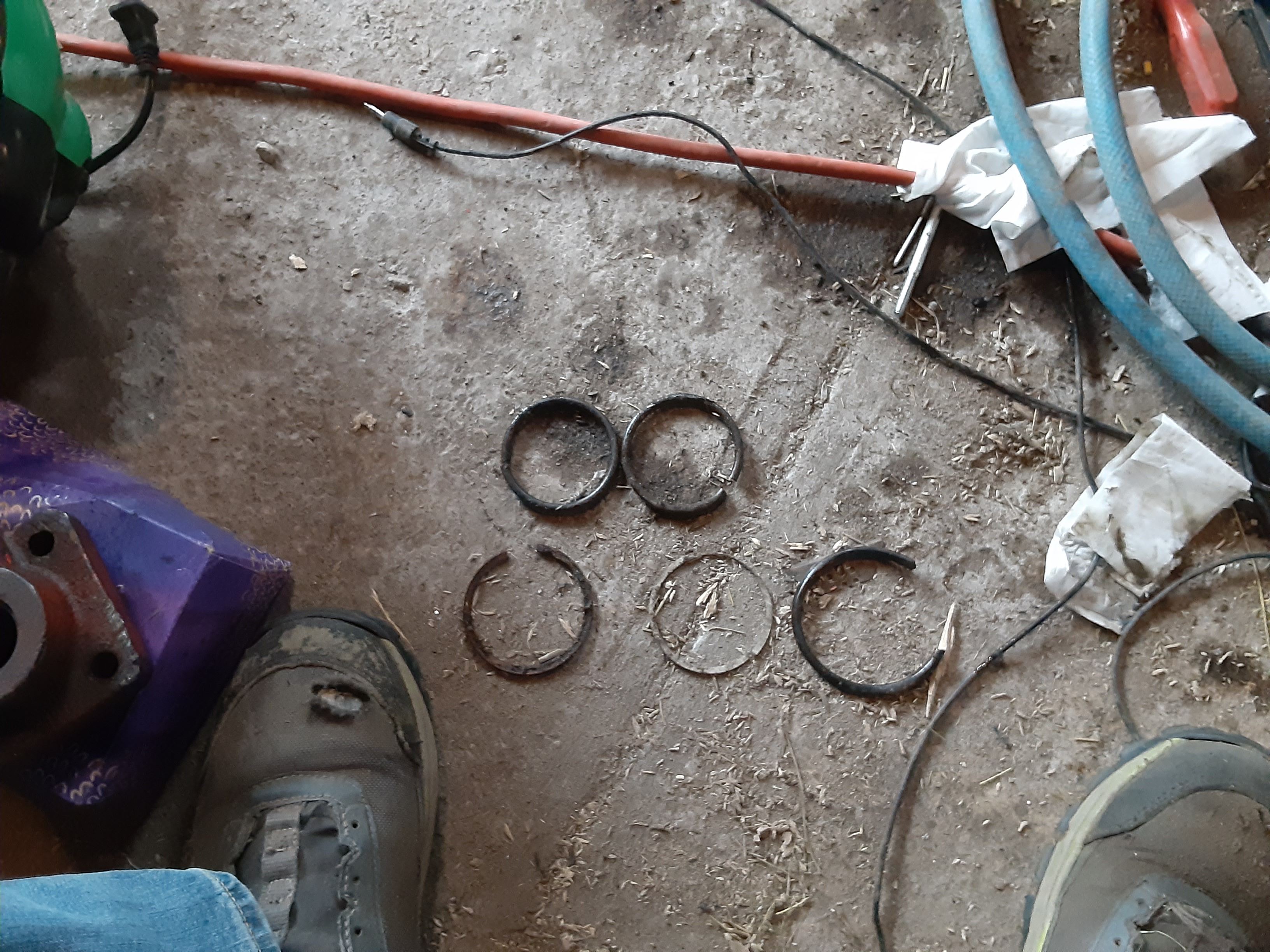

This is what the seals look like
Back to Top
 Post Reply Post Reply Page  <1 56789 13>
  Share Topic

Forum Jump Forum Permissions View Drop Down
