I am rewiring my ac wd45 and was wondering if this is the correct diagram
6 volt Allis wiring system | Chalmers, Diagram, System





Back to Top
Sponsored Links


Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 56650
Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 11 Jan 2021 at 1:10pm
that drawing was taken from the Allis B-C service manual..

I dont know about the WD45, but may be "close"... does your tractor have a Magneto ?
Trump Is Not A Lib or Conserv, He's a "Pragmatist." (someone who is practical and focused on reaching a goal. Has a straightforward, matter-of-fact approach and doesn't let emotion distract him or her
Back to Top
hunter321 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 11 Jan 2021
Location: home
Points: 54
Post Options Post Options   Thanks (0) Thanks(0)   Quote hunter321 Quote  Post ReplyReply Direct Link To This Post Posted: 11 Jan 2021 at 2:01pm
Yes I believe it has a magneto
Back to Top
hunter321 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 11 Jan 2021
Location: home
Points: 54
Post Options Post Options   Thanks (0) Thanks(0)   Quote hunter321 Quote  Post ReplyReply Direct Link To This Post Posted: 11 Jan 2021 at 2:44pm
Also does anyone know if I can get 6 volt led sealed beam lights for my wd45
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 56650
Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 11 Jan 2021 at 4:05pm
hunter, you need to figure out what you want to have in the end. If you are restoring and want it original, then the 6v might be the way to go... If you use the tractor and want it more common with other vehicles, you might want to switch to a 12 volt battery. Your magnito does not use the battery, so ignition is no problem..  Your starter does not care if the battery is 6 or 12 volts and it does not care if it is positive or negative ground. Quite a few people have changed to a more common 12 volt battery and negative ground ( like your car or truck) when they are rewiring... If you do that, then head lights and other accessories are easier to come by.

The above diagram is basically right for a WD 45.. but i think you have a dash with  light / switch, other that the B and C did not have.

Good time now to decide now what voltage / ground you want to have in the future.
Trump Is Not A Lib or Conserv, He's a "Pragmatist." (someone who is practical and focused on reaching a goal. Has a straightforward, matter-of-fact approach and doesn't let emotion distract him or her
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 56650
Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 11 Jan 2021 at 4:07pm
The charging system is also a concern.  If your generator is in good shape it will put out just enough to keep a 12 v battery charged. You would eliminate the light switch resistor and install a voltage regulator... Another idea is to install a small automotive alternator with an internal regulator and simplify the wiring.... all depends on what you want in the end.
Trump Is Not A Lib or Conserv, He's a "Pragmatist." (someone who is practical and focused on reaching a goal. Has a straightforward, matter-of-fact approach and doesn't let emotion distract him or her
Back to Top
hunter321 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 11 Jan 2021
Location: home
Points: 54
Post Options Post Options   Thanks (0) Thanks(0)   Quote hunter321 Quote  Post ReplyReply Direct Link To This Post Posted: 11 Jan 2021 at 6:34pm
I wired the tractor tonight and it still won't start it hasn't started in at least 14 years. It had a oil change wiring is brand new new battery but no spark.
I am restoring it and am keeping it 6 volt positive ground
Back to Top
hunter321 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 11 Jan 2021
Location: home
Points: 54
Post Options Post Options   Thanks (0) Thanks(0)   Quote hunter321 Quote  Post ReplyReply Direct Link To This Post Posted: 11 Jan 2021 at 6:35pm
I am a 14 year old and have no idea what I am doing. I just look up what I need to know
Back to Top
jaybmiller View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Location: Greensville,Ont
Points: 15605
Post Options Post Options   Thanks (0) Thanks(0)   Quote jaybmiller Quote  Post ReplyReply Direct Link To This Post Posted: 11 Jan 2021 at 7:31pm
re: 6 volt led sealed beam lights

yes, you can take a 12 volt sealed LED unit, providing it has BOTH red and black wires ( power to LED). You'll need to buy a 'voltage booster' module ( $5+-) good for the amps of the LED unit.
3 D-14s,A-C forklift, B-112
Kubota BX23S lil' TOOT( The Other Orange Tractor)

Never burn your bridges, unless you can walk on water
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 56650
Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 11 Jan 2021 at 7:56pm
hunter, if you have a magnito it will have 4 wires on the cap that go to the individual spark plugs..  The magnito has no BATTERY POWER. It is a rotor and coil inside the housing that generates it own spark..

A DISTRIBUTOR ignition system has a black cap with 5 wires.. the one in the CENTER comes from an external coil that is powered from the battery... just like an old truck.

Assuming you have a MAGNETO with 4 plug wires only, you do NOT need any other wires or battery to get the spark.. All the battery does is crank the motor over... If you remove the black plastic magneto cap you will see a point inside that opens and closes and makes the spark JUMP... There might be corrosion on the point faces. spread them 1 /16 inch and drag some fine sand paper across the contacts several times.. See if that works.. If not, you might had additional problems with the condenser or internal coil.
Trump Is Not A Lib or Conserv, He's a "Pragmatist." (someone who is practical and focused on reaching a goal. Has a straightforward, matter-of-fact approach and doesn't let emotion distract him or her
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 56650
Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 11 Jan 2021 at 7:57pm
the drawing show ONE WIRE going to the magnito from a KILL SWITCH.. Just to be safe, take that wire OFF THE TERMINAL to make sure it is not GROUNDED ( = no spark)


a magneto looks like this (below)... will have 4 spark plug wires.




a distributor cap looks like this ( below)




Edited by steve(ill) - 11 Jan 2021 at 8:10pm
Trump Is Not A Lib or Conserv, He's a "Pragmatist." (someone who is practical and focused on reaching a goal. Has a straightforward, matter-of-fact approach and doesn't let emotion distract him or her
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 56650
Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 11 Jan 2021 at 8:14pm
hunter, dont take the mag off the tractor because right now you dont know how to retime it during install......... just watch this movie and maybe get an idea of how things work.



Trump Is Not A Lib or Conserv, He's a "Pragmatist." (someone who is practical and focused on reaching a goal. Has a straightforward, matter-of-fact approach and doesn't let emotion distract him or her
Back to Top
DrAllis View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Points: 13930
Post Options Post Options   Thanks (0) Thanks(0)   Quote DrAllis Quote  Post ReplyReply Direct Link To This Post Posted: 11 Jan 2021 at 8:46pm
A WD-45 with a magneto ???
Back to Top
hunter321 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 11 Jan 2021
Location: home
Points: 54
Post Options Post Options   Thanks (0) Thanks(0)   Quote hunter321 Quote  Post ReplyReply Direct Link To This Post Posted: 12 Jan 2021 at 6:19am
It definitely has a distributor. I have friends who have ac wd45 and can help with the work you guy mentioned before. Thanks
Back to Top
Steve in NJ View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 12 Sep 2009
Location: Andover, NJ
Points: 10206
Post Options Post Options   Thanks (0) Thanks(0)   Quote Steve in NJ Quote  Post ReplyReply Direct Link To This Post Posted: 12 Jan 2021 at 7:01am
Sitting that long, it probably just needs some Brakekleen on a rag run through the points. It'll probably fire right up!

Steve@B&B
39'RC, 43'WC, 48'B, 49'G, 50'WF, 65 Big 10, 67'B-110, 75'716H, 2-620's, & a Motorhead wife
Back to Top
WF owner View Drop Down
Orange Level
Orange Level


Joined: 12 May 2013
Location: Bombay NY
Points: 3002
Post Options Post Options   Thanks (0) Thanks(0)   Quote WF owner Quote  Post ReplyReply Direct Link To This Post Posted: 12 Jan 2021 at 7:20am
Originally posted by Steve in NJ Steve in NJ wrote:

Sitting that long, it probably just needs some Brakekleen on a rag run through the points. It'll probably fire right up!

Steve@B&B

... and it probably has a better quality condenser than you can buy today !
Back to Top
hunter321 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 11 Jan 2021
Location: home
Points: 54
Post Options Post Options   Thanks (0) Thanks(0)   Quote hunter321 Quote  Post ReplyReply Direct Link To This Post Posted: 12 Jan 2021 at 8:33am
ill try that
Back to Top
hunter321 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 11 Jan 2021
Location: home
Points: 54
Post Options Post Options   Thanks (0) Thanks(0)   Quote hunter321 Quote  Post ReplyReply Direct Link To This Post Posted: 12 Jan 2021 at 11:15am
if i have everything wired ecpet the light switch would it matter
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 56650
Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 12 Jan 2021 at 11:44am
all you need is a hot wire going to the COIL from the battery ( negative if that is your HOT).... then a wire from the coil (+) to the distributor point..... those two wires will give your distributor point power... if it starts and you want to stop, just pull the little wire off the battery. ( or on  - off switch).

you dont need the light switch, generator, etc.
Trump Is Not A Lib or Conserv, He's a "Pragmatist." (someone who is practical and focused on reaching a goal. Has a straightforward, matter-of-fact approach and doesn't let emotion distract him or her
Back to Top
hunter321 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 11 Jan 2021
Location: home
Points: 54
Post Options Post Options   Thanks (0) Thanks(0)   Quote hunter321 Quote  Post ReplyReply Direct Link To This Post Posted: 12 Jan 2021 at 11:52am

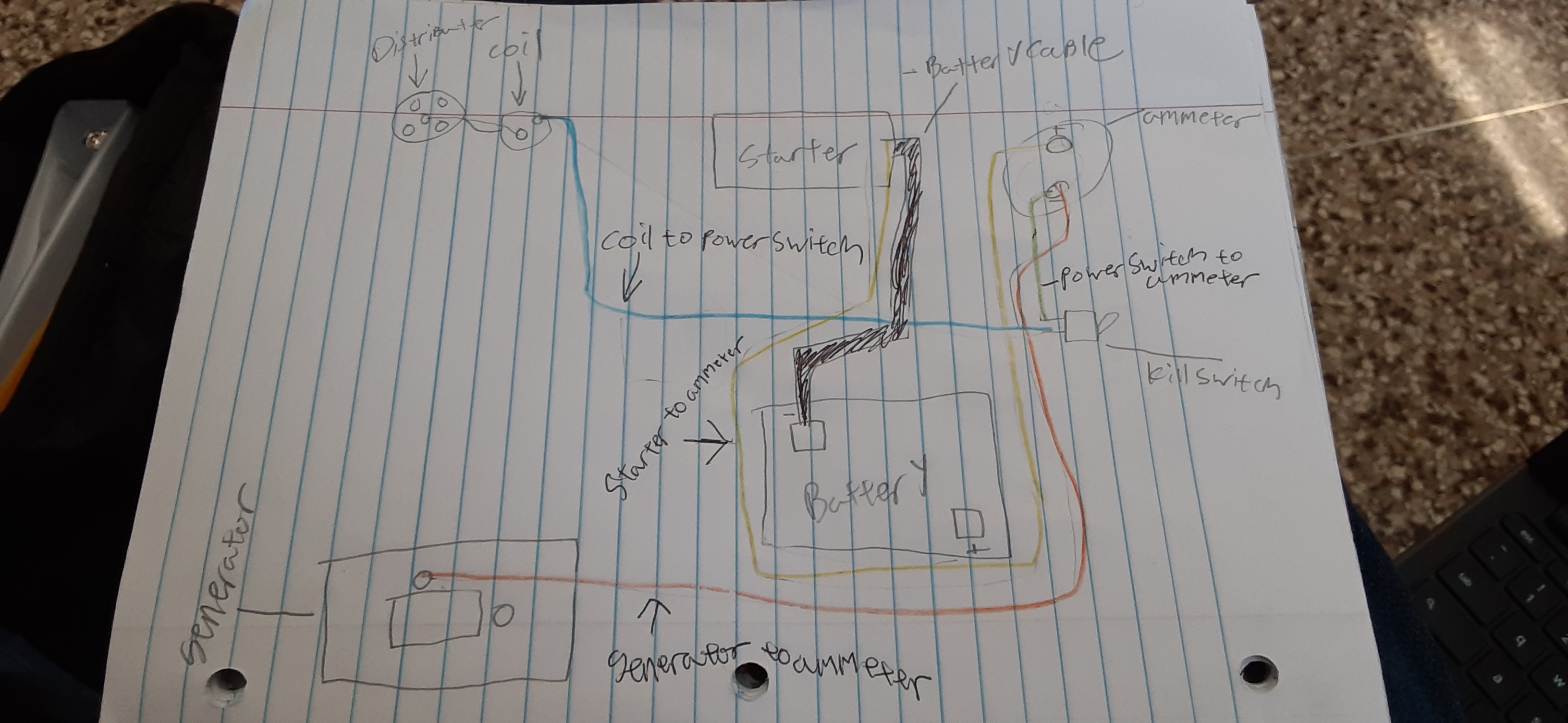

This is what I have wired right now

Edited by hunter321 - 12 Jan 2021 at 11:55am
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 56650
Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 12 Jan 2021 at 12:01pm
yea, that looks pretty good.. While you were posting, i took the ORIGINAL drawing at the top of the page, put the coil and distributor in, and highlighted the HOT wire ( negative), from the battery, to the starter, to the amp meter, to the on- off switch, to the coil to the distributor......... i think that is what you have shown..







Edited by steve(ill) - 12 Jan 2021 at 12:03pm
Trump Is Not A Lib or Conserv, He's a "Pragmatist." (someone who is practical and focused on reaching a goal. Has a straightforward, matter-of-fact approach and doesn't let emotion distract him or her
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 56650
Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 12 Jan 2021 at 12:05pm
you dont need the light switch or the generators wires, or head light wires to make it run... all you need is the HOT red wires i have shown from the battery - starter - amp - switch - coil - distributor .... then the POINT has to open and close and have good contact faces.

like mentioned earlier... if you dont know if the amp meter and ingition switch are good.. you can run a wire from the battery negative terminal straight to the coil... and the coil wire to the distributor... it should have power with those two wires. ... you can also use a test light or meter to see if you have 6 v at the coil terminal.


Edited by steve(ill) - 12 Jan 2021 at 12:08pm
Trump Is Not A Lib or Conserv, He's a "Pragmatist." (someone who is practical and focused on reaching a goal. Has a straightforward, matter-of-fact approach and doesn't let emotion distract him or her
Back to Top
hunter321 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 11 Jan 2021
Location: home
Points: 54
Post Options Post Options   Thanks (0) Thanks(0)   Quote hunter321 Quote  Post ReplyReply Direct Link To This Post Posted: 12 Jan 2021 at 12:12pm
The switch is new I am getting a new ammeter and me and my dad are going to see if I have power to the coil or not
Back to Top
hunter321 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 11 Jan 2021
Location: home
Points: 54
Post Options Post Options   Thanks (0) Thanks(0)   Quote hunter321 Quote  Post ReplyReply Direct Link To This Post Posted: 12 Jan 2021 at 12:14pm
Once I get it started I am going to add in the light switch
Back to Top
hunter321 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 11 Jan 2021
Location: home
Points: 54
Post Options Post Options   Thanks (0) Thanks(0)   Quote hunter321 Quote  Post ReplyReply Direct Link To This Post Posted: 12 Jan 2021 at 4:42pm
Could the sparkplug wires and the wire from the distributor to the coil be bad
Back to Top
DrAllis View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Points: 13930
Post Options Post Options   Thanks (0) Thanks(0)   Quote DrAllis Quote  Post ReplyReply Direct Link To This Post Posted: 12 Jan 2021 at 5:03pm
Sure, they could be, but until you know you have power or not to the coil and thru the points, that is just a guess.
Back to Top
hunter321 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 11 Jan 2021
Location: home
Points: 54
Post Options Post Options   Thanks (0) Thanks(0)   Quote hunter321 Quote  Post ReplyReply Direct Link To This Post Posted: 01 Feb 2021 at 10:55am
I have power the coil and every thing but when I checked if I had spark I still dont



Edited by hunter321 - 01 Feb 2021 at 10:57am
Back to Top
hunter321 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 11 Jan 2021
Location: home
Points: 54
Post Options Post Options   Thanks (0) Thanks(0)   Quote hunter321 Quote  Post ReplyReply Direct Link To This Post Posted: 01 Feb 2021 at 11:36am
What do I try next
Back to Top
Sugarmaker View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Jul 2013
Location: Albion PA
Points: 7486
Post Options Post Options   Thanks (0) Thanks(0)   Quote Sugarmaker Quote  Post ReplyReply Direct Link To This Post Posted: 01 Feb 2021 at 12:59pm
No spark? Might try cleaning points and or check/set point gap.

Need these things too which I assume you checked:
Fuel? Check for flow through the carb.
Compression? Check each cylinder for pressure on compression stroke.

Regards,
 Chris
D17 1958 (NFE), WD45 1954 (NFE), WD 1952 (NFE), WD 1950 (WFE), Allis F-40 forklift, Ford Jubilee, Many IH Cub Cadets
Back to Top
ac45dave View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 23 May 2015
Location: SE(IN)
Points: 1197
Post Options Post Options   Thanks (0) Thanks(0)   Quote ac45dave Quote  Post ReplyReply Direct Link To This Post Posted: 01 Feb 2021 at 1:04pm
Make sure the distributor is grounded.If not grounded,then clean the mounting surfaces were the dist mounts into the engine.

Edited by ac45dave - 01 Feb 2021 at 1:04pm
54 wd-45gas ; 56 wd-45d n/f w/fact p/s ; 63 d-17 sIII nf gas ; 67 d-17 sIV wf gas ; 39rc#667 ; 45 Farmall M ; 2000 massey263 ; gravely 2 wheel tractors
Back to Top
