 Topic: What model do I have?
Posted: 19 Sep 2023 at 7:03pm |

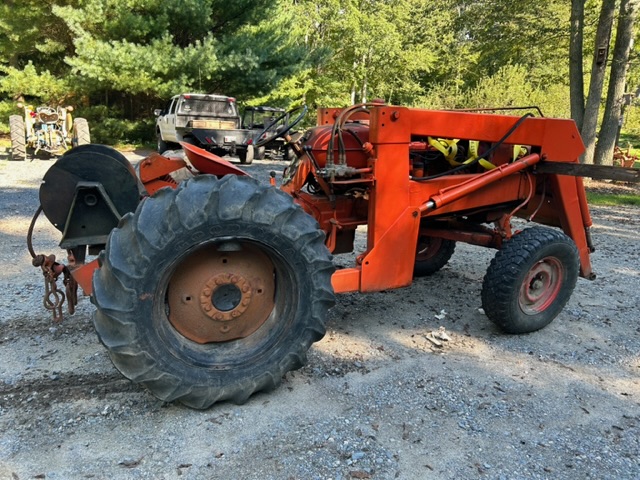

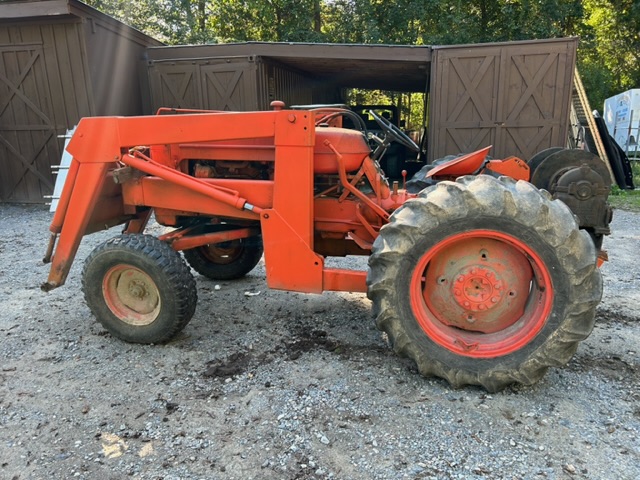

Hi everybody I just scored a D series but I’m not sure if it’s a 10, 12, or 14. It’s only my second Allis I’m typically a Ford and Farmall guy. It has no starter so if anyone has one I’d be interested in buying it. Thanks in advance. Here are some photos. let me know if they load. Tom
|
 |
|
Sponsored Links
|
|
|
KMAG
Orange Level Access
Joined: 26 May 2020
Location: Elizabethtown,
Points: 669
|
Post Options
Thanks(0)
Quote Reply
Posted: 19 Sep 2023 at 7:13pm |
|

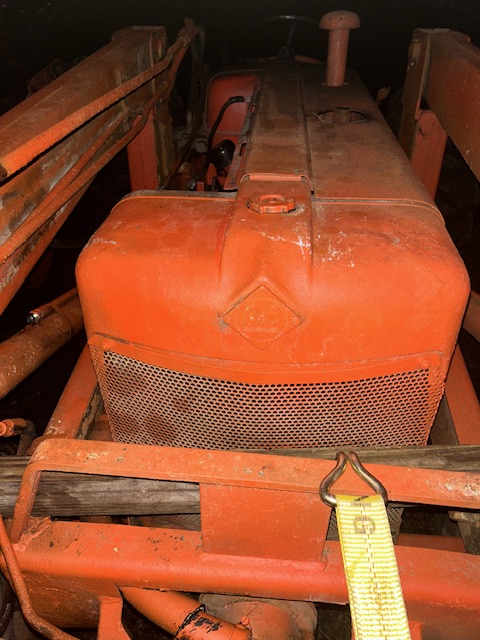

D14 or D15 - a photo of tractor nose would help.
Edited by KMAG - 19 Sep 2023 at 7:16pm
|
|
CronyTJ
Bronze Level
Joined: 19 Sep 2023
Location: MA
Points: 10
|
Post Options
Thanks(0)
Quote Reply
Posted: 19 Sep 2023 at 7:24pm |
|
Ah ok even better. If it’s too dark to get a photo now I’ll get one in the morning. Thanks.
|
|
CronyTJ
Bronze Level
Joined: 19 Sep 2023
Location: MA
Points: 10
|
Post Options
Thanks(0)
Quote Reply
Posted: 19 Sep 2023 at 7:27pm |
|
|
|
only AC orange
Silver Level Access
Joined: 06 Dec 2014
Location: Eastern Indiana
Points: 465
|
Post Options
Thanks(0)
Quote Reply
Posted: 19 Sep 2023 at 7:27pm |
|
Whatever it is, it has shuttle shift on left side!
|
|
steve(ill)
Orange Level Access
Joined: 11 Sep 2009
Location: illinois
Points: 81101
|
Post Options
Thanks(0)
Quote Reply
Posted: 19 Sep 2023 at 8:01pm |
|
how about a serial number
|
|
Like them all, but love the "B"s.
|
|
Lars(wi)
Orange Level Access
Joined: 14 Sep 2009
Location: Permian Basin
Points: 7197
|
Post Options
Thanks(0)
Quote Reply
Posted: 19 Sep 2023 at 9:27pm |
|
What happened to the muffler?
Why not get a starter for it? From what I have heard over the years, if the shuttle works, those are very good loader tractors.
|
|
I tried to follow the science, but it was not there. I then followed the money, and that’s where I found the science.
|
|
Tracy Martin TN
Orange Level Access
Joined: 11 Sep 2009
Location: Gallatin,TN
Points: 10624
|
Post Options
Thanks(0)
Quote Reply
Posted: 19 Sep 2023 at 9:47pm |
|
Heavy duty front axle too.
|
|
No greater gift than healthy grandkids!
|
|
steve(ill)
Orange Level Access
Joined: 11 Sep 2009
Location: illinois
Points: 81101
|
Post Options
Thanks(0)
Quote Reply
Posted: 19 Sep 2023 at 9:54pm |
you might message LON and see if he has a starter...
|
|
Like them all, but love the "B"s.
|
|
AC720Man
Orange Level
Joined: 10 Oct 2016
Location: Shenandoah, Va
Points: 4910
|
Post Options
Thanks(0)
Quote Reply
Posted: 19 Sep 2023 at 9:55pm |
|
I think it’s a D15 industrial, shuttle shift and heavy duty front axle.
|
|
1968 B-208, 1976 720 (2 of them)Danco brush hog, single bottom plow,52" snow thrower, belly mower,rear tine tiller, rear blade, front blade, 57"sickle bar,1983 917 hydro, 1968 7hp sno-bee, 1968 190XTD
|
|
Travis2766
Silver Level
Joined: 26 Aug 2015
Location: Amherst, Wi
Points: 405
|
Post Options
Thanks(0)
Quote Reply
Posted: 19 Sep 2023 at 10:30pm |
|
D14 Industrial??? Serial number will tell what it is, its on the torque tube (left side) where it meets the motor.
|
|
190XT Series III, D17 Series IV, D15 Series II, All Crop 66 and a whole mess of equipment.
|
|
Fred in Pa
Orange Level
Joined: 13 Sep 2009
Location: Hanover Pa.
Points: 9210
|
Post Options
Thanks(0)
Quote Reply
Posted: 20 Sep 2023 at 6:34am |
|

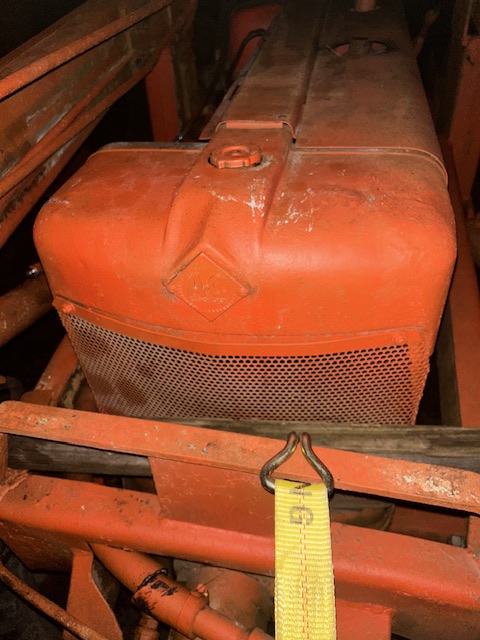

what is width of grill 15 is wider then 14 by 2 inch
|
|
He who dies with the most toys is,
nonetheless ,still dead.
If all else fails ,Read all that is PRINTED.
|
|
CronyTJ
Bronze Level
Joined: 19 Sep 2023
Location: MA
Points: 10
|
Post Options
Thanks(0)
Quote Reply
Posted: 20 Sep 2023 at 6:40am |
|

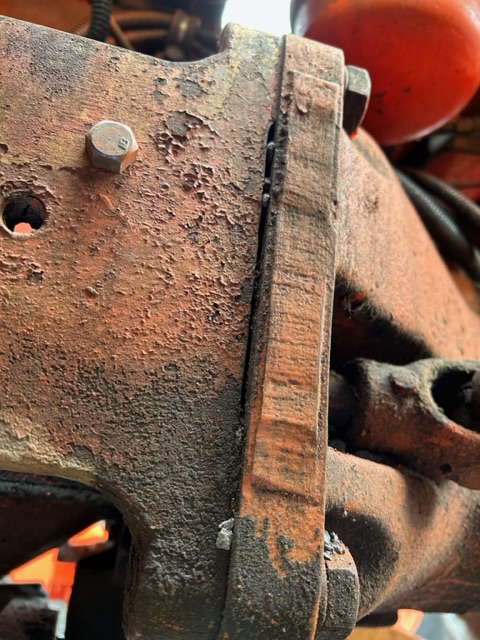

So on left side of bell housing there’s a raised rectangle where it looks like serial number should be. But no number.
|
|
Travis2766
Silver Level
Joined: 26 Aug 2015
Location: Amherst, Wi
Points: 405
|
Post Options
Thanks(0)
Quote Reply
Posted: 20 Sep 2023 at 7:08am |

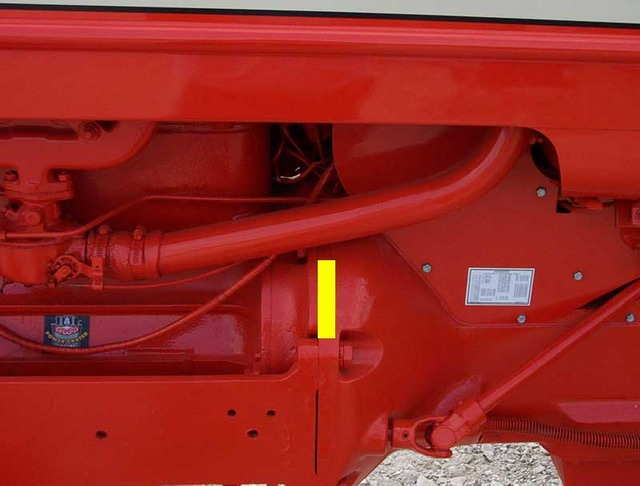

It will be where the yellow box is in the picture, it’s stamped into the casting and is very hard to see sometimes.
|
|
190XT Series III, D17 Series IV, D15 Series II, All Crop 66 and a whole mess of equipment.
|
|
CronyTJ
Bronze Level
Joined: 19 Sep 2023
Location: MA
Points: 10
|
Post Options
Thanks(0)
Quote Reply
Posted: 20 Sep 2023 at 7:55am |
 Nothing there
|
|
DrAllis
Orange Level Access
Joined: 12 Sep 2009
Points: 20485
|
Post Options
Thanks(0)
Quote Reply
Posted: 20 Sep 2023 at 8:01am |
|
ON TOP, not the side.
|
|
Travis2766
Silver Level
Joined: 26 Aug 2015
Location: Amherst, Wi
Points: 405
|
Post Options
Thanks(0)
Quote Reply
Posted: 20 Sep 2023 at 8:01am |
|
That’s below where the highlighted yellow box is. Go higher up on the same flange, above the upper bolt in your picture.
|
|
190XT Series III, D17 Series IV, D15 Series II, All Crop 66 and a whole mess of equipment.
|
|
CronyTJ
Bronze Level
Joined: 19 Sep 2023
Location: MA
Points: 10
|
Post Options
Thanks(0)
Quote Reply
Posted: 21 Sep 2023 at 9:42am |
|
Whoops. Just saw your reply. I’ll look today and check back. Thanks.
|
|
CronyTJ
Bronze Level
Joined: 19 Sep 2023
Location: MA
Points: 10
|
Post Options
Thanks(0)
Quote Reply
Posted: 21 Sep 2023 at 12:38pm |

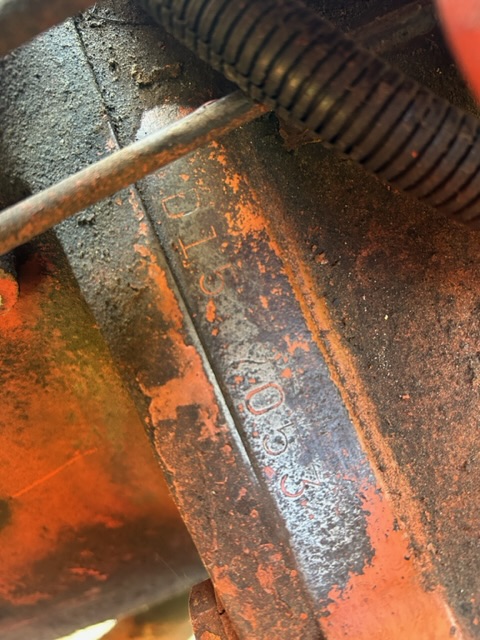

Well look what I found
|
|
steve(ill)
Orange Level Access
Joined: 11 Sep 2009
Location: illinois
Points: 81101
|
Post Options
Thanks(0)
Quote Reply
Posted: 21 Sep 2023 at 1:15pm |
|
|
|
Like them all, but love the "B"s.
|
|
Travis2766
Silver Level
Joined: 26 Aug 2015
Location: Amherst, Wi
Points: 405
|
Post Options
Thanks(0)
Quote Reply
Posted: 21 Sep 2023 at 1:52pm |
|
D15 7053??? If I’m seeing that right you have a 1961 series 1 D15 Industrial, the standard D15’s have the “big stick” on the right side of the torque housing and that created a high and low for each gear. The industrials have it on the left side and it created a forward/reverse shuttle.
|
|
190XT Series III, D17 Series IV, D15 Series II, All Crop 66 and a whole mess of equipment.
|
|
ACinSC
Orange Level
Joined: 16 Dec 2015
Location: South Carolina
Points: 2760
|
Post Options
Thanks(0)
Quote Reply
Posted: 21 Sep 2023 at 3:30pm |
|
Maybe I missed it , but is it a diesel ? If so , you may have a hard time finding a starter . Hope not , good luck .
|
|
CronyTJ
Bronze Level
Joined: 19 Sep 2023
Location: MA
Points: 10
|
Post Options
Thanks(0)
Quote Reply
Posted: 21 Sep 2023 at 4:41pm |
|
Nice! Thanks for all the info.
It’s a gas job. Hope starter isn’t hard to come by.
And I was wondering what the big stick on left was. The shuttle will be handy.
|
|
ACinSC
Orange Level
Joined: 16 Dec 2015
Location: South Carolina
Points: 2760
|
Post Options
Thanks(0)
Quote Reply
Posted: 21 Sep 2023 at 4:54pm |
|
I would think a gas starter would be pretty easy to find. Steve at B and B might have one.
|
|
Les Kerf
Orange Level
Joined: 08 May 2020
Location: Idaho
Points: 777
|
Post Options
Thanks(0)
Quote Reply
Posted: 21 Sep 2023 at 5:12pm |
That is one bodacious winch on there  I like it!
|
|
AC720Man
Orange Level
Joined: 10 Oct 2016
Location: Shenandoah, Va
Points: 4910
|
Post Options
Thanks(0)
Quote Reply
Posted: 21 Sep 2023 at 7:27pm |
|
In the first picture it looks Ike the front support power steering vent has been screwed into the transmission oil level hole below and to the left of the key?
|
|
1968 B-208, 1976 720 (2 of them)Danco brush hog, single bottom plow,52" snow thrower, belly mower,rear tine tiller, rear blade, front blade, 57"sickle bar,1983 917 hydro, 1968 7hp sno-bee, 1968 190XTD
|
|
Mikez
Orange Level Access
Joined: 16 Jan 2013
Location: Usa
Points: 8384
|
Post Options
Thanks(0)
Quote Reply
Posted: 21 Sep 2023 at 9:31pm |
|
Robbie our D14 industrial, shuttle clutch has the same vent
|
|
AC720Man
Orange Level
Joined: 10 Oct 2016
Location: Shenandoah, Va
Points: 4910
|
Post Options
Thanks(0)
Quote Reply
Posted: 21 Sep 2023 at 9:35pm |
|
That surprises me, don’t recall the D15 industrial I tried out having that. Thanks for correction. Guess I was to busy testing the shuttle clutch lol. I should have bought it...it went cheap
|
|
1968 B-208, 1976 720 (2 of them)Danco brush hog, single bottom plow,52" snow thrower, belly mower,rear tine tiller, rear blade, front blade, 57"sickle bar,1983 917 hydro, 1968 7hp sno-bee, 1968 190XTD
|
|
Mikez
Orange Level Access
Joined: 16 Jan 2013
Location: Usa
Points: 8384
|
Post Options
Thanks(0)
Quote Reply
Posted: 21 Sep 2023 at 9:38pm |
|
Not saying it’s right lol. Interesting
|
|
Mikez
Orange Level Access
Joined: 16 Jan 2013
Location: Usa
Points: 8384
|
Post Options
Thanks(0)
Quote Reply
Posted: 21 Sep 2023 at 9:45pm |
|
Just looked in d14 parts book. Gives three different part numbers. First just says gauge assy, oil level. Second says same and base tractor in parentheses. Third says same and for utility tractor with shuttle clutch in parentheses
|
|
