What is this disconnected linkage?
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
MadCow View Drop Down
Bronze Level
Bronze Level


Joined: 27 Aug 2023
Location: South Dakota
Points: 135 		Post Options Post Options   Thanks (0) Thanks(0)   Quote MadCow Quote  Post ReplyReply Direct Link To This Post Topic: What is this disconnected linkage?
    Posted: 23 Sep 2025 at 8:25pm
Got my new 190XT.

I noticed position control wasnt quite working right, and this linkage is not connected up. I can't seem to figure out what I'm missing and how it all goes together from the parts manual. Anybody got a picture of theirs?

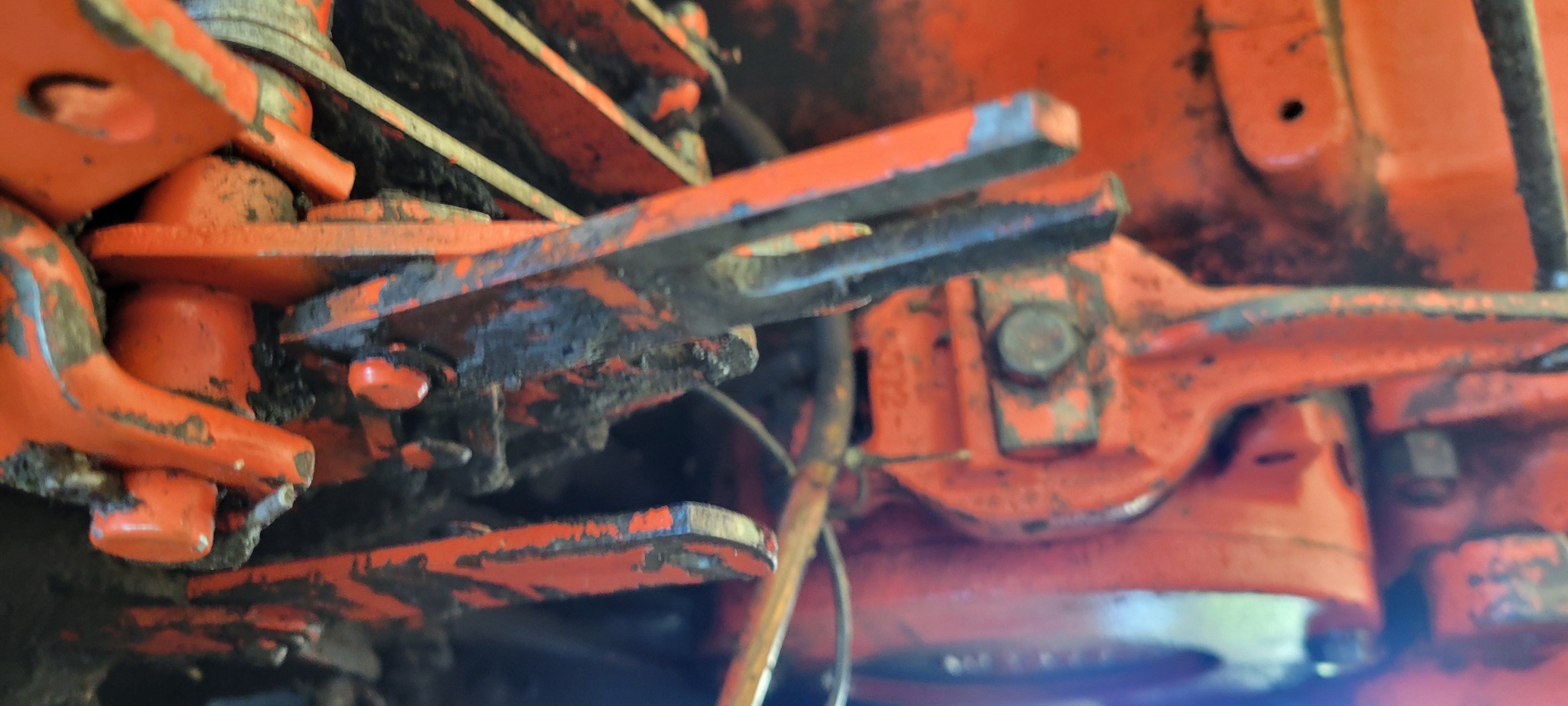

I just realized the picture isn't very good. It's right behind the valve stack and looks connected to the outboard most valve.

Parts book calls it the sensing lever and slotted link.



Back to Top
Sponsored Links


Back to Top
MadCow View Drop Down
Bronze Level
Bronze Level


Joined: 27 Aug 2023
Location: South Dakota
Points: 135 		Post Options Post Options   Thanks (0) Thanks(0)   Quote MadCow Quote  Post ReplyReply Direct Link To This Post Posted: 13 hours 36 minutes ago at 6:41pm

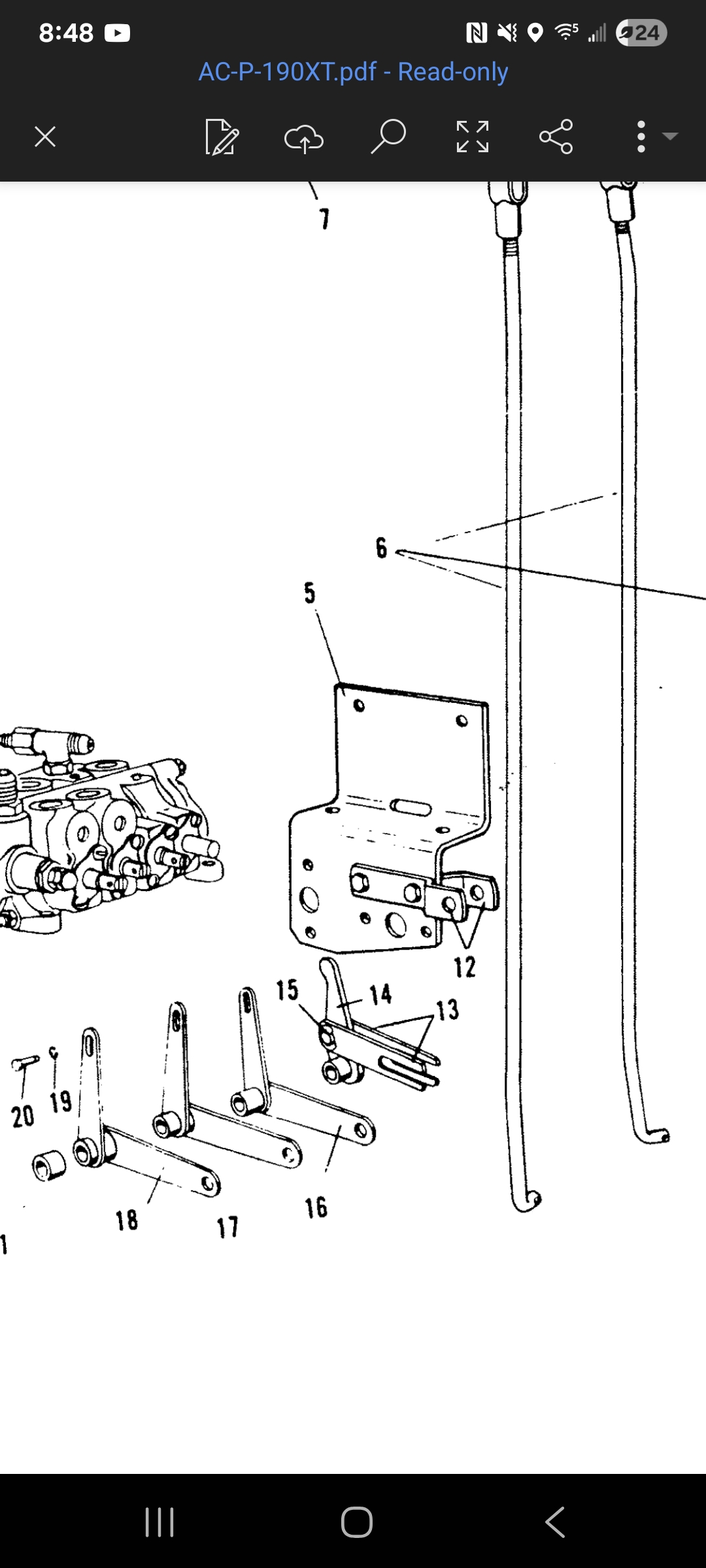

A better picture of the linkage. I believe it's the item 20 from this page of the parts manual. But I'm not sure how it links up. Would someone be willing to take a picture of their 190. Right side directly behind the valve stack.

[
Back to Top
AMB(wcIL) View Drop Down
Silver Level
Silver Level


Joined: 03 Oct 2009
Location: Chapin Il
Points: 315 		Post Options Post Options   Thanks (0) Thanks(0)   Quote AMB(wcIL) Quote  Post ReplyReply Direct Link To This Post Posted: 11 hours 2 minutes ago at 9:15pm
It's for raising and lowering the 3point while hooking up an implement.  You use the tire tool handle in the pipe.  I remember my dad saying that it kind of work when our 200 was new.  Andy
Back to Top
Lynn Marshall View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 13 Sep 2009
Location: Dana, Iowa
Points: 2403 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Lynn Marshall Quote  Post ReplyReply Direct Link To This Post Posted: 10 hours 47 minutes ago at 9:30pm
You're missing alot more than just #20. You may need to go to a salvage yard to get everything you need.
Back to Top
MadCow View Drop Down
Bronze Level
Bronze Level


Joined: 27 Aug 2023
Location: South Dakota
Points: 135 		Post Options Post Options   Thanks (0) Thanks(0)   Quote MadCow Quote  Post ReplyReply Direct Link To This Post Posted: 10 hours 31 minutes ago at 9:46pm
Would either of you be able or willing to take a picture of your tractor at this location? I'm not sure I'm even looking at the right page of the parts manual
Back to Top
MadCow View Drop Down
Bronze Level
Bronze Level


Joined: 27 Aug 2023
Location: South Dakota
Points: 135 		Post Options Post Options   Thanks (0) Thanks(0)   Quote MadCow Quote  Post ReplyReply Direct Link To This Post Posted: 10 hours 26 minutes ago at 9:51pm

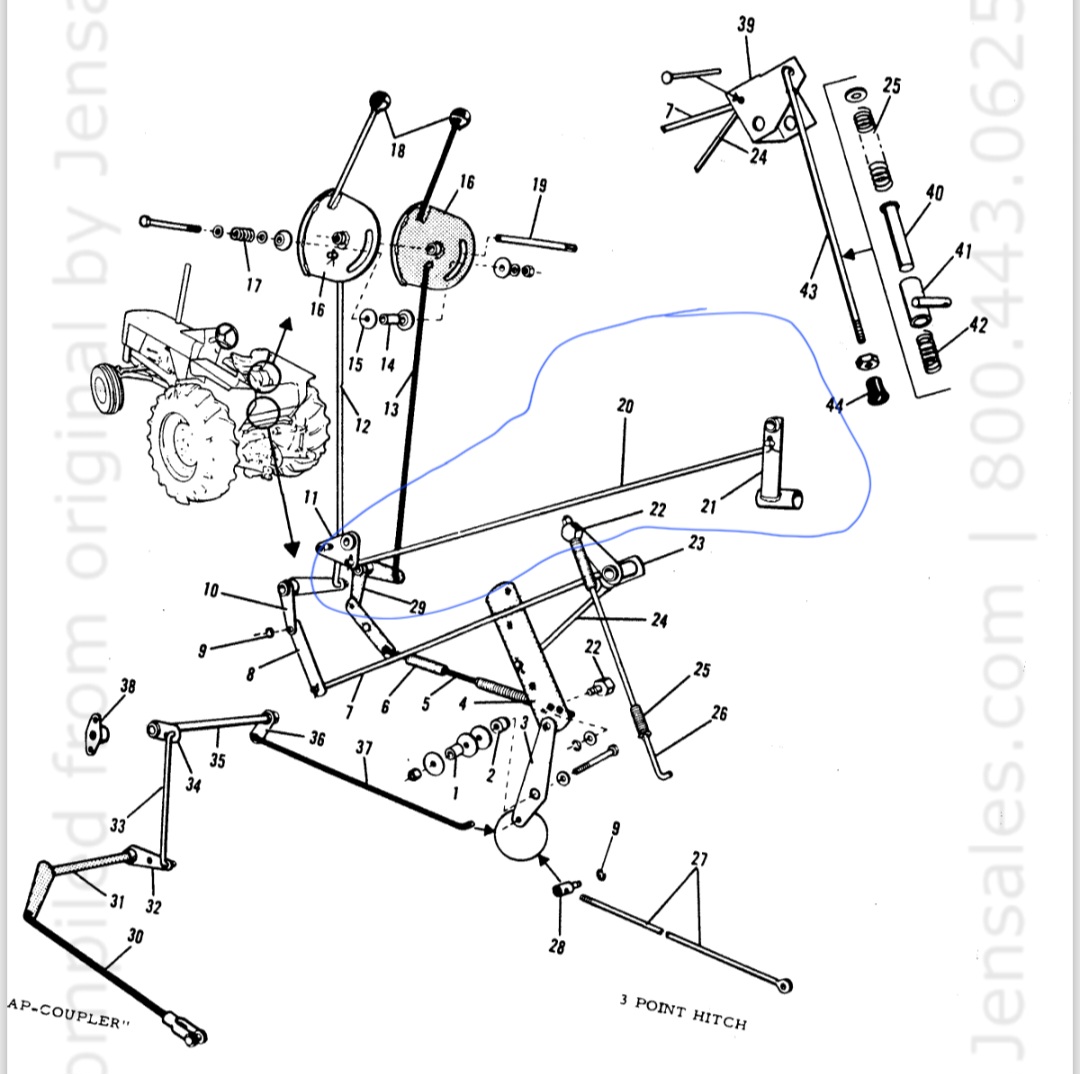

I know the disconnected linkage is part 13,14,15. But what does that connect you to on the other page? Is it #20?

#20 is an assembly of 5 parts. It says to order parts 40-45, but there is no part 45.

Nearest salvage yards to me are 9hr drives away. Other wise I could just pop over to one and compare.
Back to Top
Nathan (SD) View Drop Down
Orange Level
Orange Level


Joined: 11 Sep 2009
Location: Day County SD
Points: 1281 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Nathan (SD) Quote  Post ReplyReply Direct Link To This Post Posted: 1 hour 60 minutes ago at 6:17am
That is the traction booster linkage. On your valve body in the rear of the tractor. Make sure you can push that plunger in and springs back out. Probably lube it up good first with some spray can lube.
It might be stuck in the in position already. Or not.

Rod 26.

Edited by Nathan (SD) - 1 hour 55 minutes ago at 6:22am
Back to Top
Lynn Marshall View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 13 Sep 2009
Location: Dana, Iowa
Points: 2403 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Lynn Marshall Quote  Post ReplyReply Direct Link To This Post Posted: 41 minutes ago at 7:36am
I don't personally own one of those tractors, but I've been around enough of them to know. I may be able to get a photo of a neighbors.
Back to Top
