WD electrical
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
acd17toy View Drop Down
Orange Level Access
Orange Level Access


Joined: 11 Sep 2009
Location: USA
Points: 704 		Post Options Post Options   Thanks (0) Thanks(0)   Quote acd17toy Quote  Post ReplyReply Direct Link To This Post Topic: WD electrical
    Posted: Yesterday at 6:31pm

  Need wiring diagram for a 12 volt negative ground system with a generator  and voltage regulator.   Current system not charging battery.
Back to Top
Sponsored Links


Back to Top
jvin248 View Drop Down
Silver Level
Silver Level
Avatar

Joined: 17 Jan 2022
Location: Detroit
Points: 312 		Post Options Post Options   Thanks (0) Thanks(0)   Quote jvin248 Quote  Post ReplyReply Direct Link To This Post Posted: Yesterday at 7:28pm
.

Some setups need the generator to spin at higher rpm to charge the field windings and charge the battery.

That got me on one tractor (Ferguson 35) so I rewired with new generator with internal regulator, new coil with internal resistor, a new key switch and simpler reliable system.

My WD is stock 6V pos ground until it misbehaves. Then it gets 12v neg.
Tractor run switch or light switch are involved with charging cycle so verify the switches are ok. Then trace wires.

If Delco truck 12v one wire alternator was used on yours they often need a pin block added to run the fields and charge.

.

.
.
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 81102 		Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: Yesterday at 7:44pm

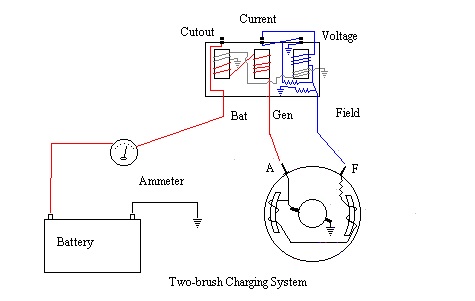

here is a generic diagrom of a GENERATOR with a REGULATOR..... you can mark either battery teminal + or neg..... still wired the same..
Like them all, but love the "B"s.
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 81102 		Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: Yesterday at 7:47pm
one test is to take a JUMPER WIRE and clip on the "F" terminal of the generator and GROUND it to the tractor frame/ engine... If that makes it charge, then your REGULATOR has a problem..... If you dont see the amp meter jump, then put a volt meter on the "A" terminal to ground and see if the GENERATOR is putting out voltage... and the regulator is bad.
Like them all, but love the "B"s.
Back to Top
Kenny L. View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 12 Sep 2009
Location: NEIOWA
Points: 1268 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Kenny L. Quote  Post ReplyReply Direct Link To This Post Posted: 22 hours 24 minutes ago at 11:58pm
Duey's helpful homepage, In the knowledge section
