Wd clutch actuation rod length
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
59f100292 View Drop Down
Bronze Level
Bronze Level


Joined: 11 Dec 2011
Points: 63 		Post Options Post Options   Thanks (0) Thanks(0)   Quote 59f100292 Quote  Post ReplyReply Direct Link To This Post Topic: Wd clutch actuation rod length
    Posted: 04 Apr 2020 at 2:17pm

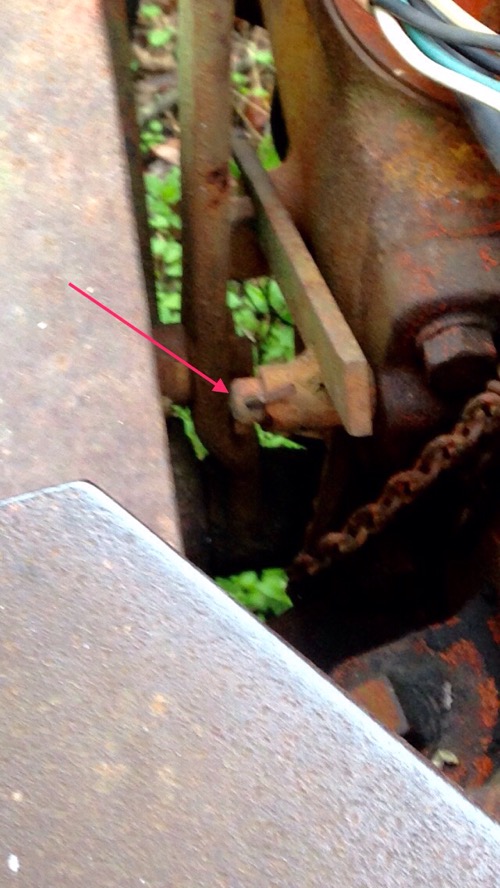

On my WD, the rod that goes from the pedal to the clutch arm looks like it had an 1.5” extension welded in the middle. I’m concerned that this leaves the clutch less than fully engaged when the pedal is at its full aft operating position. I haven’t felt any signs of slippage, but I’d hate to find out the clutch is wearing prematurely due to less than full pressure.

Can anyone measure the length of a proper rod? Mine measures roughly 23.5” center to center.
Back to Top
Sponsored Links


Back to Top
CTuckerNWIL View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: NW Illinois
Points: 22825 		Post Options Post Options   Thanks (0) Thanks(0)   Quote CTuckerNWIL Quote  Post ReplyReply Direct Link To This Post Posted: 04 Apr 2020 at 2:57pm
The rod length isn't what you should be concerned about. FREE PLAY is what needs to be right. If you don't have at least an inch of freeplay, it's probably too long.
https://www.allischalmers.com/forum/wd-clutch-adjustment_topic12365.html
http://www.ae-ta.com
Lena 1935 WC12xxx, Willie 1951 CA6xx Dad bought new, 1954WD45 PS, 1960 D17 NF
Back to Top
john(MI) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: SE MI
Points: 9262 		Post Options Post Options   Thanks (0) Thanks(0)   Quote john(MI) Quote  Post ReplyReply Direct Link To This Post Posted: 04 Apr 2020 at 3:31pm
Someone like me did it.  I always had a problem reaching the pedal because of my short legs.  That wouldn't have been enough of an extension for me, but it was apparently all that someone needed.  On my D14 it has about 3 to 4 inches added.  That is adequate for me!
D14, D17, 5020, 612H, CASE 446
Back to Top
CTuckerNWIL View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: NW Illinois
Points: 22825 		Post Options Post Options   Thanks (0) Thanks(0)   Quote CTuckerNWIL Quote  Post ReplyReply Direct Link To This Post Posted: 05 Apr 2020 at 8:21am
Originally posted by john(MI) john(MI) wrote:

Someone like me did it.  I always had a problem reaching the pedal because of my short legs.  That wouldn't have been enough of an extension for me, but it was apparently all that someone needed.

 I don't see how adding to the rod on a WD would do anything for a short leg, unless you move the pivot point of the pedal back the same amount.



Edited by CTuckerNWIL - 05 Apr 2020 at 8:21am
http://www.ae-ta.com
Lena 1935 WC12xxx, Willie 1951 CA6xx Dad bought new, 1954WD45 PS, 1960 D17 NF
Back to Top
brkfldj View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 13 May 2010
Location: Sharpsburg, MD
Points: 168 		Post Options Post Options   Thanks (0) Thanks(0)   Quote brkfldj Quote  Post ReplyReply Direct Link To This Post Posted: 05 Apr 2020 at 10:29am
If the pedal return stop is cut shorter, the pedal can return nearer the foot rest. Maybe even use the rest as a stop.



Jim
Back to Top
