Wanted: AC 2300 Disc axle, stub shafts and hubs

 Post Reply Post Reply
Author
Message
Michael (WI) View Drop Down
Orange Level
Orange Level


Joined: 12 Sep 2009
Location: Larrabee, WI
Points: 806
Post Options Post Options   Thanks (0) Thanks(0)   Quote Michael (WI) Quote  Post ReplyReply Direct Link To This Post Topic: Wanted: AC 2300 Disc axle, stub shafts and hubs
    Posted: 09 Nov 2018 at 5:22pm

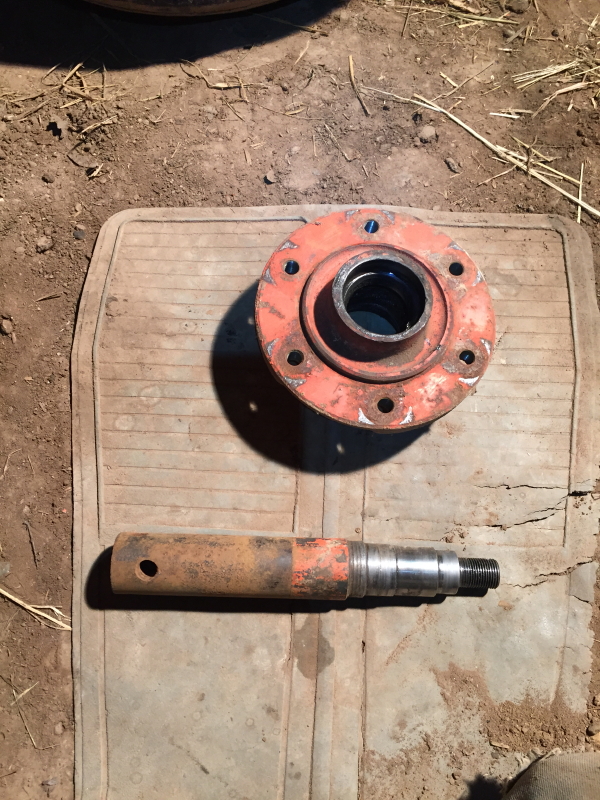

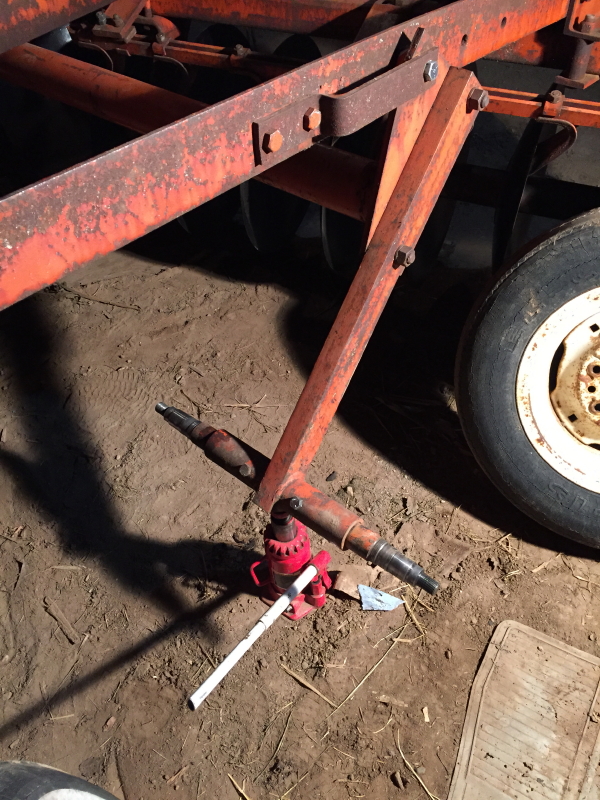

Thought I would tackle one last simple project....or not.  Wanted to asses the wheel bearings on the tandem wheeled 2300 disc I bought in spring and found one spindle wobbling in the axle tube wearing both the spindle and tube.  Unrelated to the wobble, on the same axle someone blew up a bearing as parts were still buried in the hub grease, and cobbled some new inner seal which I fear wore the ID of the hub so the right seal will no longer fit.  The inner seal on the rest of the bearings are all cracked so ground has been getting in and scoring up the seal surface on the shaft.  Oh and a couple lug bolts half stripped when removing them.  Called the dealer and the axle assembly/shaft, spindle and hubs are discontinued.

So I am looking for: a whole good used tandem axle assembly/shaft (solid steel rectangle shaft with welded hollow tube on the end) (70571863),  an old style hub (70555359) and four really good spindles (70575648).

I will say I might have found a spindle replacement at my local structural steel fab shop that also does trailers and has a "farm shop".  The spindle is close but the end threads are large diameter (should still work), the butt end of the spindle is longer but can be cut and there is no inner seal surface/step but I suppose that could be cut on a lathe.
