 Topic: Clutch problem
Posted: 12 Sep 2024 at 11:38pm |
|
I resurfaced and balanced the flywheel on my IB, installed a new clutch disk, pressure plate, and throwout bearing. The bearing yoke and tube are in good shape and lubed. The pressure plate fingers are adjusted to 1/4". The pedal rod is adjusted to just bottom on the stop when engaged. However, even through the fingers are depressed, the pressure plate continues to spin. Any ideas before I split this critter again?
|
 |
|
Sponsored Links
|
|
|
WF owner
Orange Level
Joined: 12 May 2013
Location: Bombay NY
Points: 4698
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Sep 2024 at 5:10am |
|
Is the clutch disc in backwards? It's very easy to do that (from experience).
|
|
Jim.ME
Orange Level
Joined: 19 Nov 2016
Location: Maine
Points: 954
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Sep 2024 at 7:12am |
The pressure plate is bolted to the flywheel, it spins when the engine is running. Pushing the clutch pedal does not stop the pressure plate.
When the throwout bearing pushes the pressure plate fingers, the pressure plate is supposed to release the clamping force on the clutch disc. The clutch disc, between the pressure plate and flywheel, is what is supposed to stop spinning
If the clutch is not disengaging the clutch disc may have been installed backwards, as has been posted. Not an uncommon happening.
|
|
Freewheeling
Bronze Level
Joined: 05 Nov 2017
Location: Wisconsin
Points: 152
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Sep 2024 at 7:57am |
Well duh, what was I thinking. Of course its bolted to the flywheel. Brain doesn't engage sometimes when I'm pissed. Can't believe i put the disk in backwards but it's been one of those weeks. I'll find out this morning.
|
|
Freewheeling
Bronze Level
Joined: 05 Nov 2017
Location: Wisconsin
Points: 152
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Sep 2024 at 11:40am |
|
The disk was installed correctly. Everything looked good. I remembered seeing a spec that called for 1 13/16 between the face of the disk and the contact point on the fingers. Not even close. With the adjustment screws all the way I get 1 3/8. That would explain why I'm not getting separation.
|
|
Freewheeling
Bronze Level
Joined: 05 Nov 2017
Location: Wisconsin
Points: 152
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Sep 2024 at 10:34pm |
|
I called Kentucky Clutch and they said I should add a washer under each pressure plate bolt or replace the finger bolts with longer ones. Moral of the story - Don't just adjust the fingers to 1/4". Verify that the initial setting on your reman pressure plate is correct.
|
|
Eric B
Orange Level
Joined: 09 Feb 2012
Location: British Columbi
Points: 955
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Sep 2024 at 12:42am |
|
To be able to work in the access hole for clutch adjustment is very tricky to say the least. I have adjusted the clutch on several and I'm not really sure where you are making the 1/4" measurement? When you have good adjustment you only have a few thousands of an inch between the fingers and the throw out bearing. Please share your success story once you get the clutch working right, thanks.
|
|
Currently- WD,WC,3WF's,2 D14's B. Previously- I 600,TL745,200,FL9,FR12,H3,816 LBH. Earth has no sorrow that Heaven cannot heal!
|
|
PaulB
Orange Level
Joined: 12 Sep 2009
Location: Rocky Ridge Md
Points: 4806
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Sep 2024 at 6:42am |

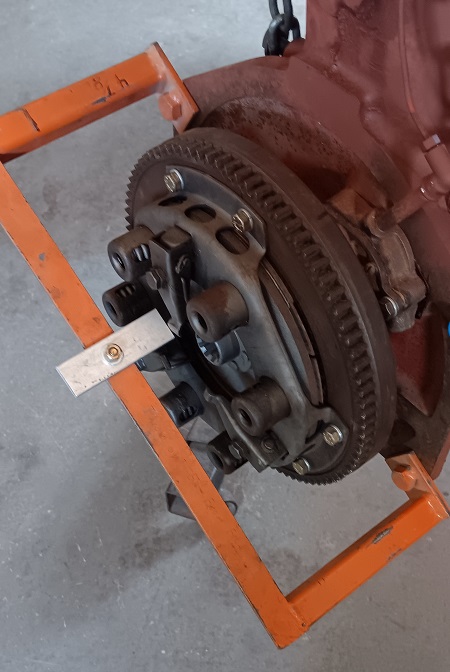

In all the years I've pulled CA tractors, I've done a lot of engine switching. I found that matching the distance from the rear of the engine block to the throwout finger tips resulted in better clutch function than measuring the distance to the tips from the driving disc. This would be because of the variables involved: resurface flywheel, resurfaced driving member in the pressure plate and varying driving discs thicknesses. To this end, I made a jig for adjusting the fingers, it make a one time installation.
|
|
If it was fun to pull in LOW gear, I could have a John Deere.
Real pullers don't have speed limits.
If you can't make it GO... make it SHINY
|
|
Alvin M
Orange Level
Joined: 24 Jun 2018
Location: PA
Points: 778
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Sep 2024 at 7:52am |
|
Make sure the bushing in the flywheel is lubed good if not the shaft will turn
|
|
Freewheeling
Bronze Level
Joined: 05 Nov 2017
Location: Wisconsin
Points: 152
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Sep 2024 at 10:00am |
The 1/4" is the space between the throwout bearing and the contact point on the fingers, I have a 1/4" square bar bent to allow it to fit through the hole. My I&T shop manual says to just adjust the fingers to 1/4" with each of the 3 being within .010 of each other. (Good luck with that.) Then the clutch rod to where it has 3 threads showing. Since the rod that was in mine was a cobbled job, that wasn't reliable.
My Allis Chalmers service manual says to adjust the fingers to 1 13/16 from the clutch disk to the contact point and then adjust the clutch pedal to get the 1/4 ". It states there are usually 1-2 threads showing and to make sure the pedal hts the stop on the torque tube. The trick with getting an accurate 1 13/16" is to place the clutch disk where there is not a spring under the finger.
|
|
Freewheeling
Bronze Level
Joined: 05 Nov 2017
Location: Wisconsin
Points: 152
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Sep 2024 at 10:02am |
You should market this!
|
|
Tracy Martin TN
Orange Level Access
Joined: 11 Sep 2009
Location: Gallatin,TN
Points: 10640
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Sep 2024 at 6:42pm |
|
I have a jig similar to Paul's. I also have a fixture to set the clearance between fingers and throw out bearing while tractor is split, no guess work. HTH Tracy
|
|
No greater gift than healthy grandkids!
|
|
HudCo
Orange Level
Joined: 29 Jan 2013
Location: Plymouth Utah
Points: 3607
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Sep 2024 at 8:25pm |
|
the wick in the end of the crankshaft didnt get pulled out to far that keep it spinning
|
|
Freewheeling
Bronze Level
Joined: 05 Nov 2017
Location: Wisconsin
Points: 152
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Sep 2024 at 8:59pm |
Nope. I installed an oilite bushing instead of a wick.
|
|
Freewheeling
Bronze Level
Joined: 05 Nov 2017
Location: Wisconsin
Points: 152
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Sep 2024 at 9:08pm |
|
What's the distance from the block to the finger?
|
|
Freewheeling
Bronze Level
Joined: 05 Nov 2017
Location: Wisconsin
Points: 152
|
Post Options
Thanks(0)
Quote Reply
Posted: 24 Sep 2024 at 9:14am |
The saga continues. I tried a longer 3/8 UNF bolt in the fingers and found that where the head on the existing bolts are 1/2", the head on the standard bolt is 9/16" which would make adjusting the fingers even more difficult once the clutch is enclosed since both the bolt head and jam nut woud be the same size. The 1/2" head allows a 9/16" socket over it. Also, the standard bolt should probably be rounded on the end like the originals since there are sharp edges.
I'm thinking that the flywheel has probably been resurfaced many times over the past 70 years. If the reman disk & plate are to spec, then the flywheel is the logical variable. The new ring gear I put on the flywheel extends .065" from the flywheel. Is that excessive?
It appears that adding washers between the pressure plate and the flywheel is the better option. I don't understand all the geometry of the pressure plate but will washers extend the fingers any more than their thickness? I checked the thickness of a couple 5/16 gr.8 black coated washers and they are .058-.059. Is that enough to give me another 5/16" on the fingers? I see that McMaster-Carr has a USS 5/16" Grade 8 oversized black washer @ .100 +/- .10. I'm thinking I should avoid the wider tolerances (+/- .020) of zinc washers.
Thoughts?
|
|
SteveM C/IL
Orange Level Access
Joined: 12 Sep 2009
Location: Shelbyville IL
Points: 8291
|
Post Options
Thanks(0)
Quote Reply
Posted: 25 Sep 2024 at 12:48pm |
|
I don't know if there's a way position the throw out brg fwd but you need the pressure plate bolted to the flywheel. Your idea will reduce clamping force if it even works.
|
|
RedHeeler79
Bronze Level
Joined: 09 Sep 2023
Location: NE Kansas
Points: 117
|
Post Options
Thanks(0)
Quote Reply
Posted: 25 Sep 2024 at 1:26pm |
|
In my experience, yes, the washers will affect the fingers distance much more than the thickness of the washer. Trial and error on this method. As Steve pointed out, it also affects the clamping force. I don’t think you’re going to have an issue to that end, but i would not go over .100” thick for sure. I had about .060” washers under a clutch pressure plate before and got the proper gap at the release bearing that way. Flywheel has been machined several times, apparently
|
|
Freewheeling
Bronze Level
Joined: 05 Nov 2017
Location: Wisconsin
Points: 152
|
Post Options
Thanks(0)
Quote Reply
Posted: 25 Sep 2024 at 6:41pm |
|
I installed the .058-.059 washers and got the 1 13/16 but there is less than 1 turn on the jam nut. I'm debating whether to leave these or go to a slightly thicker version. There's not much adjustment left. The manual says to adjust the clutch pedel to get the 1/4" between the t/o bearing and the fingers after establishing the 1 13/16 but with the course thread on the rod I'm thinkig I may have to fine tune the fingers. I would hate to have to split this tractor a 3rd time.
|
|
Freewheeling
Bronze Level
Joined: 05 Nov 2017
Location: Wisconsin
Points: 152
|
Post Options
Thanks(0)
Quote Reply
Posted: 28 Sep 2024 at 6:40am |
|
I left the pressure plate with the .058 washers, set the fingers at 1 13/16, and put the tractor back together. Now I have zero (0) clearance between the T/O bearing and the fingers. WTF? I'm going to leave it as-is, back off the fingers to 1/4",and see what happens.
|
|
RedHeeler79
Bronze Level
Joined: 09 Sep 2023
Location: NE Kansas
Points: 117
|
Post Options
Thanks(0)
Quote Reply
Posted: 28 Sep 2024 at 7:02am |
|
It sounds like you’re at the final step in which you adjust the clutch rod to achieve the 1/4” gap between clutch fingers and the throw-out bearing… per the manual. As long as you have enough threads on the rod to make this happen, I would think you should be good to go
|
|
Freewheeling
Bronze Level
Joined: 05 Nov 2017
Location: Wisconsin
Points: 152
|
Post Options
Thanks(0)
Quote Reply
Posted: 28 Sep 2024 at 4:09pm |
I adjusted the fingers to 1/4". Also adjusted the clutch rod so there is only 1/4" free travel before making contact. With the tractor at low idle and the pedal all the way to the stop, it takes 30-40 seconds to get into low gear with no or minimal grinding. I've never encountered this on my other tractors.
The rod is backed out to where there are no threads showing. It's longer than the one that was in it but that one was a cobble job. I could make another longer rod but I don't think it will help given the minimum free travel and the fact that it takes a lot of pressure to bottom out the pedal. I believe the service manual says that with finger/bearing gap of 1/4" there should be 1 1/4" of free pedal travel. I didn't measure at the pedal but I'm sure it's less.
I have no clue where to go from here.
|
|
Les Kerf
Orange Level
Joined: 08 May 2020
Location: Idaho
Points: 842
|
Post Options
Thanks(0)
Quote Reply
Posted: 29 Sep 2024 at 7:43am |
|
Well, at the risk of sounding like Captain Obvious, it would appear that something isn't quite right Since going 'by the book' isn't working out, try adjusting everything down to bare minimum clearance so as to shove the clutch levers as far as possible. There are really only two possibilities, either the clutch isn't being pushed far enough to fully release, or the pilot bushing is dragging. I suspect the latter.
|
|
SteveM C/IL
Orange Level Access
Joined: 12 Sep 2009
Location: Shelbyville IL
Points: 8291
|
Post Options
Thanks(0)
Quote Reply
Posted: 29 Sep 2024 at 1:40pm |
|
Could it be something to do with spacing pressure plate away from flywheel and it messes up the geometry of how it releases?
|
|
Freewheeling
Bronze Level
Joined: 05 Nov 2017
Location: Wisconsin
Points: 152
|
Post Options
Thanks(0)
Quote Reply
Posted: 30 Sep 2024 at 3:19pm |
Never considered the bushing.I installed a new one and lightly greased it. I guess I could split the tractor one more time and lube the hell out it.
|
|
Alvin M
Orange Level
Joined: 24 Jun 2018
Location: PA
Points: 778
|
Post Options
Thanks(0)
Quote Reply
Posted: 30 Sep 2024 at 4:25pm |
|
If you used a punch to drive the bushing in it might have nick on the end I always used a bushing driver if it is use a round file clean the inner edge
|
|
Freewheeling
Bronze Level
Joined: 05 Nov 2017
Location: Wisconsin
Points: 152
|
Post Options
Thanks(0)
Quote Reply
Posted: 30 Sep 2024 at 4:49pm |
|
I had the machine shop press in the bushing when I had the flywheel resurfaced. It was an Oilite bushing so I didn't use a bunch of grease as I would with a regular bushing.
|
|
PaulB
Orange Level
Joined: 12 Sep 2009
Location: Rocky Ridge Md
Points: 4806
|
Post Options
Thanks(0)
Quote Reply
Posted: 30 Sep 2024 at 5:53pm |
 Freewheeling wrote:
I had the machine shop press in the bushing when I had the flywheel resurfaced. It was an Oilite bushing so I didn't use a bunch of grease as I would with a regular bushing. |
There ya go, The machine shop could have possible deformed the bushing or it possible may not have the correct clearance for the stub on the end of the clutch shaft after the press fit into the flywheel. Whenever using NON-spec parts it is a MUST to make sure that they will do what is desired. Next time you split the tractor check the fit of the flywheel to the shaft. Maybe just ad a finger of grease in the bushing.
|
|
If it was fun to pull in LOW gear, I could have a John Deere.
Real pullers don't have speed limits.
If you can't make it GO... make it SHINY
|
|
Freewheeling
Bronze Level
Joined: 05 Nov 2017
Location: Wisconsin
Points: 152
|
Post Options
Thanks(0)
Quote Reply
Posted: 30 Sep 2024 at 5:59pm |
|
I used 6 non-plated grade 5 washers that mic'd out at 057"-.059". I sent a photo of the assembly to Kentucky Clutch since they were the ones who suggested the washers. They said the fingers looked good.
|
|
PaulB
Orange Level
Joined: 12 Sep 2009
Location: Rocky Ridge Md
Points: 4806
|
Post Options
Thanks(0)
Quote Reply
Posted: 30 Sep 2024 at 6:17pm |
I've NEVER needed to put washers between a pressure plate and flywheel if all the components were properly rebuilt. That's a shade tree fix. However if your flywheel has been re surfaced way beyond a usable limit, that can create a dimension problem. I've done more engine installs in CA tractor than probably anyone. That's why I made the jig to get the setting right the first time. I've also found that for my service (mainly pulling tractors) 1/8" clearance works just fine instead of the service manual of 1/4".
Edited by PaulB - 30 Sep 2024 at 6:24pm
|
|
