 Topic: D17 IV Clutch Pressure Plate
Posted: 07 Jul 2024 at 9:43pm |

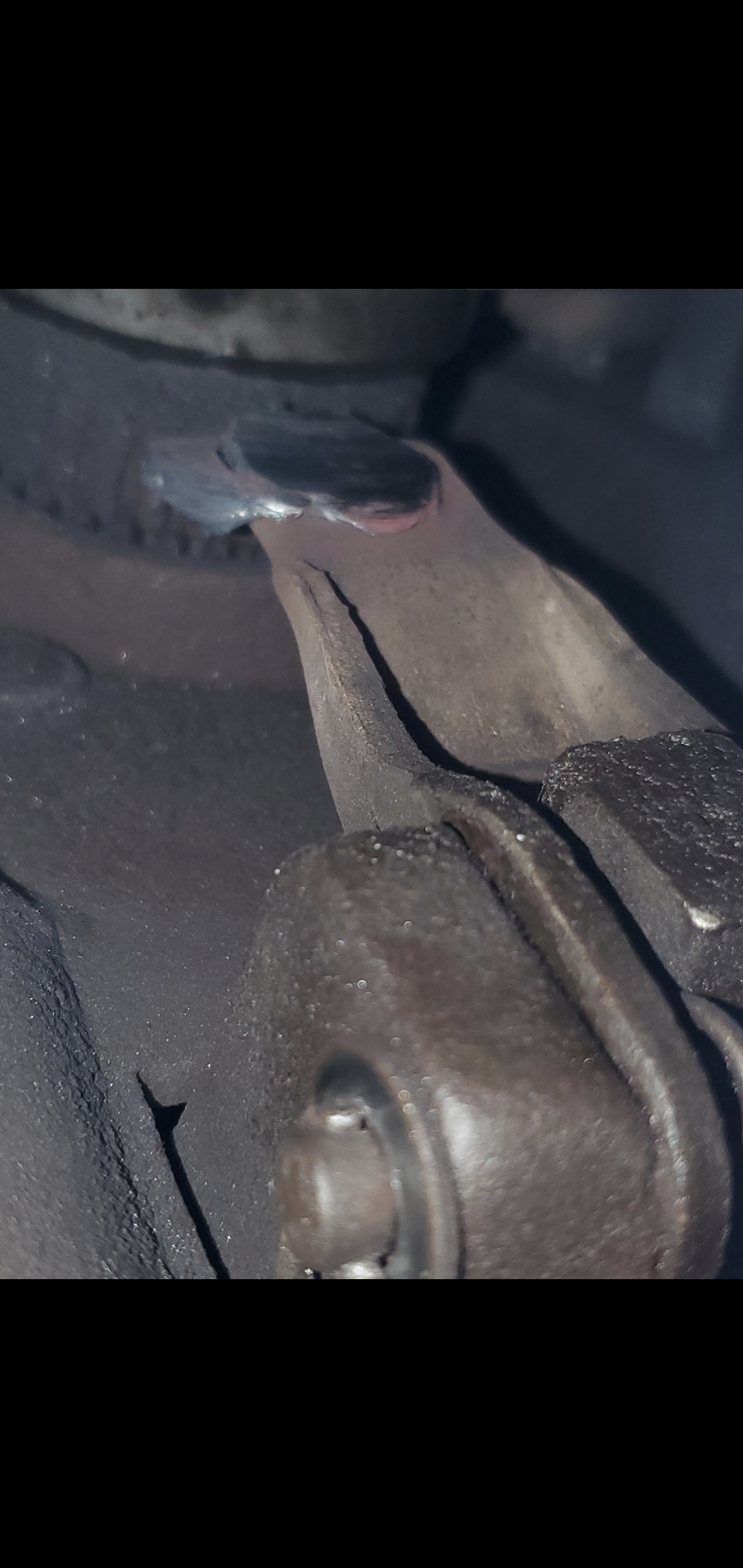

 While baling today it got progressively harder to get the pto and transmission in gear. I looked inside and see this. Looking to gain understanding aboit the mechanics of what went wrong.
|
 |
|
Sponsored Links
|
|
|
DrAllis
Orange Level Access
Joined: 12 Sep 2009
Points: 20547
|
Post Options
Thanks(0)
Quote Reply
Posted: 07 Jul 2024 at 9:49pm |
|
Clutch pedal went to zero free play and the throw out bearing was spinning all the time and failed as a result. Time for a new foot clutch and everything else related. Had to be making a squealing noise at some point.
Edited by DrAllis - 07 Jul 2024 at 9:54pm
|
|
AjsAllis
Bronze Level
Joined: 07 May 2024
Location: Colorado
Points: 29
|
Post Options
Thanks(0)
Quote Reply
Posted: 07 Jul 2024 at 10:38pm |
 DrAllis wrote:
Clutch pedal went to zero free play and the throw out bearing was spinning all the time and failed as a result. Time for a new foot clutch and everything else related. Had to be making a squealing noise at some point. |
Yes, when I was nearly done raking I did hear the squealing start, made 8 round bales and couldn't go on. Lots of clutch work with the baler. What do you mean about zero free play in the foot clutch ?
|
|
Lynn Marshall
Orange Level Access
Joined: 13 Sep 2009
Location: Dana, Iowa
Points: 2284
|
Post Options
Thanks(0)
Quote Reply
Posted: 08 Jul 2024 at 7:28am |
|
Considering that I don't see the release bearing up against that finger in the picture, your bearing may have locked up. You may still have the correct free play, but the fingers would have just ground away, like in the picture, every time you stepped on the pedal. Regardless, you will need to split the tractor and completely service the clutch assembly. Surface the flywheel and it may have even damaged the piece that the release bearing sits on.
|
|
Mikez
Orange Level Access
Joined: 16 Jan 2013
Location: Usa
Points: 8394
|
Post Options
Thanks(0)
Quote Reply
Posted: 08 Jul 2024 at 7:33am |
|
Curious to your comment. Lots of clutch work with baler.
|
|
Brian G. NY
Orange Level
Joined: 12 Sep 2009
Location: 12194
Points: 2242
|
Post Options
Thanks(0)
Quote Reply
Posted: 08 Jul 2024 at 7:45am |
Like Mike, I too am curious about "lots of clutch work". I would think that if there was a need to slow the speed of the tractor while baling, the power director would be the "clutch" to use.
|
|
AjsAllis
Bronze Level
Joined: 07 May 2024
Location: Colorado
Points: 29
|
Post Options
Thanks(0)
Quote Reply
Posted: 08 Jul 2024 at 9:00am |
|
I should have specified I'm running a 8420 Case IH round baler. In order to dump I need to back up. Power director is great to stop and put twine on but without a bale kicker have to back up.
|
|
Mikez
Orange Level Access
Joined: 16 Jan 2013
Location: Usa
Points: 8394
|
Post Options
Thanks(0)
Quote Reply
Posted: 11 Jul 2024 at 4:28pm |
|
Oh ok. There’s where it would be handy having a shuttle clutch
|
|
AjsAllis
Bronze Level
Joined: 07 May 2024
Location: Colorado
Points: 29
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 Jul 2024 at 12:58pm |
|
Anything not in the book about doing clutch adjustment? Plan to get this project rolling this week.
|
|
DrAllis
Orange Level Access
Joined: 12 Sep 2009
Points: 20547
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 Jul 2024 at 1:43pm |
|
Ideally, you always want a couple of inches of freeplay (or more) and the new clutch should release near the bottom of the clutch pedals stroke.
|
|
