D19 - Transmission vs Hydraulic Drainplugs

Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic

   I need to drain/replace the transmission oil on my D19 but not the hydraulic/power director oil. I haven't found clear info on which drain plugs are for the trans oil versus hydraulic oil and it looks like the previous owner put the same oil type in both reservoirs. I found three different drainplugs below the hydraulic and transmission dipsticks, the manual says there are two plugs for the trans:
"...one at bottom and one at bottom L.H side of housing."

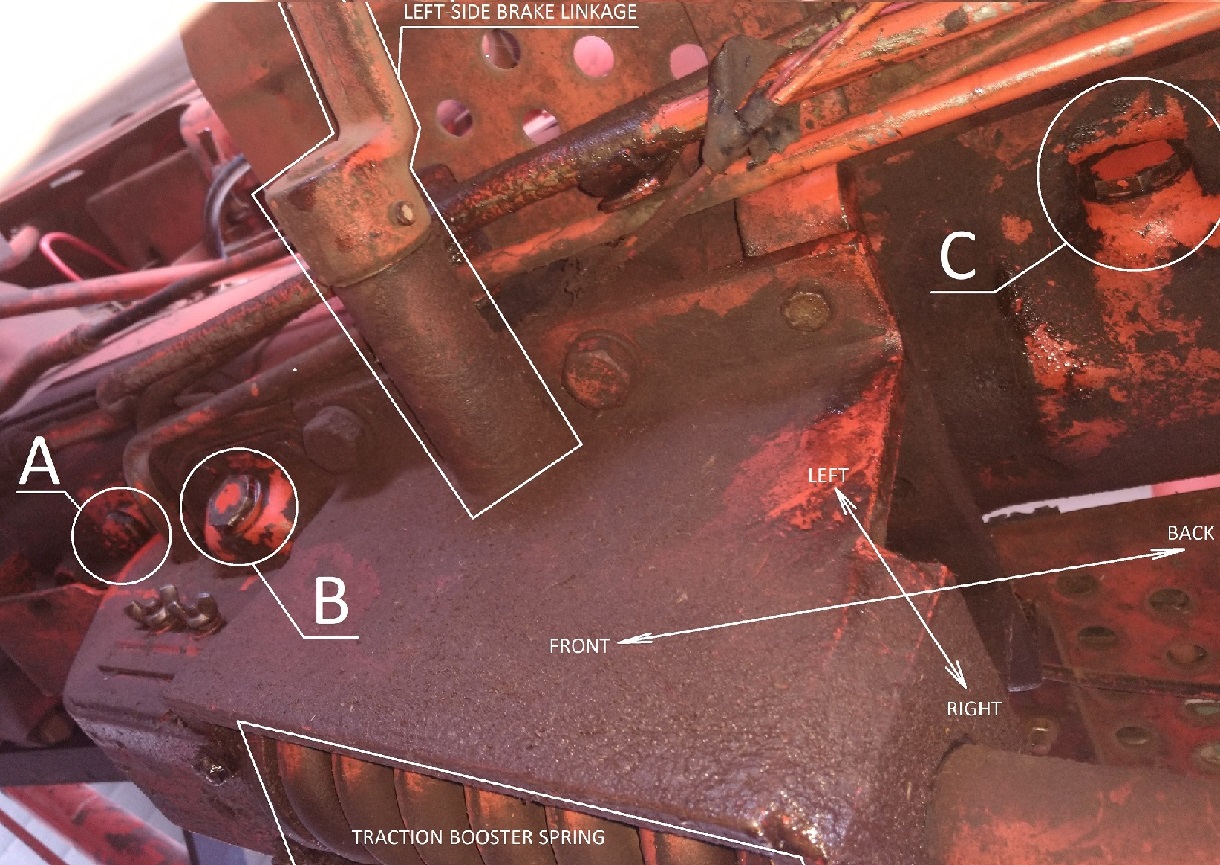

I think that means plug A is for the hydraulics and B and C are for the transmission in the photo below. Photo was taken from ground level between the rear wheels, looking up and towards the right front quarter of the tractor

https://i.imgur.com/UR4y591.jpg

Can anyone steer me in the right direction before I pull the wrong plug and drain a few gallons of the wrong oil?

Edited by azxdews - 30 Mar 2024 at 2:51am

	This site is not affiliated with AGCO Inc., Duluth GA., Allis-Chalmers Co., Milwaukee, WI., or any surviving or related corporate entity. All trademarks remain the property of their respective owners. All information presented herein should be considered the result of an un-moderated public forum with no responsibility for its accuracy or usability assumed by the users and sponsors of this site or any corporate entity.
	The Forum	Parts and Services	Unofficial Allis Store	Tractor Shows	Serial Numbers	History

Author	Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic
azxdews Members Profile Send Private Message Find Members Posts Add to Buddy List Bronze Level Joined: 24 Mar 2024 Location: Arizona Points: 3	Post Options Post Reply Quote azxdews Report Post Thanks(0) Quote Reply Topic: D19 - Transmission vs Hydraulic Drainplugs Posted: 30 Mar 2024 at 1:49am
	I need to drain/replace the transmission oil on my D19 but not the hydraulic/power director oil. I haven't found clear info on which drain plugs are for the trans oil versus hydraulic oil and it looks like the previous owner put the same oil type in both reservoirs. I found three different drainplugs below the hydraulic and transmission dipsticks, the manual says there are two plugs for the trans: "...one at bottom and one at bottom L.H side of housing." I think that means plug A is for the hydraulics and B and C are for the transmission in the photo below. Photo was taken from ground level between the rear wheels, looking up and towards the right front quarter of the tractor https://i.imgur.com/UR4y591.jpg Can anyone steer me in the right direction before I pull the wrong plug and drain a few gallons of the wrong oil? Edited by azxdews - 30 Mar 2024 at 2:51am

Sponsored Links

PaulB Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Joined: 12 Sep 2009 Location: Rocky Ridge Md Points: 4765	Post Options Post Reply Quote PaulB Report Post Thanks(0) Quote Reply Posted: 30 Mar 2024 at 6:20am
	Doesn't the operators manual clearly state which plugs drain what? Every operators manual I've ever seen does. I don't have one for a D19 as I don't have a D19 tractor. If you don't have an operators manual for your D19, you should have one.
	If it was fun to pull in LOW gear, I could have a John Deere. Real pullers don't have speed limits. If you can't make it GO... make it SHINY

Model 70 Members Profile Send Private Message Find Members Posts Add to Buddy List Bronze Level Joined: 09 Jan 2021 Location: Minnesota Points: 139	Post Options Post Reply Quote Model 70 Report Post Thanks(0) Quote Reply Posted: 30 Mar 2024 at 7:20am
	Plug c for transmission and rear differential.

DrAllis Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Access Joined: 12 Sep 2009 Points: 20578	Post Options Post Reply Quote DrAllis Report Post Thanks(0) Quote Reply Posted: 30 Mar 2024 at 7:26am
	A and B are the the Power Director/PTO gears and hydraulic system. C is for the transmission and "D" is for the differential. "D" is located to the left of the PTO shaft on the rear end of the tractor and forward about 4 inches. Takes the same size wrench as all the other plugs.

azxdews Members Profile Send Private Message Find Members Posts Add to Buddy List Bronze Level Joined: 24 Mar 2024 Location: Arizona Points: 3	Post Options Post Reply Quote azxdews Report Post Thanks(0) Quote Reply Posted: 30 Mar 2024 at 9:07am
	Thank you all for the info. DrAllis, is the same oil is shared by the transmission and rear diff? So I will need to pull both plugs C and D to drain the full 32qt capacity of the transmission? Update: Found an old answer to this question. Trans/diff share oil and have two plugs to drain. https://www.allischalmers.com/forum/d19-question_topic9082.html When refilling with new oil can I pour everything through the transmission dipstick/breather hole or is there a better spot? Edited by azxdews - 30 Mar 2024 at 10:24am

DrAllis Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Access Joined: 12 Sep 2009 Points: 20578	Post Options Post Reply Quote DrAllis Report Post Thanks(0) Quote Reply Posted: 30 Mar 2024 at 11:04am
	Everything goes in the trans shift cover dipstick, but it takes two drain plugs to remove it all.
